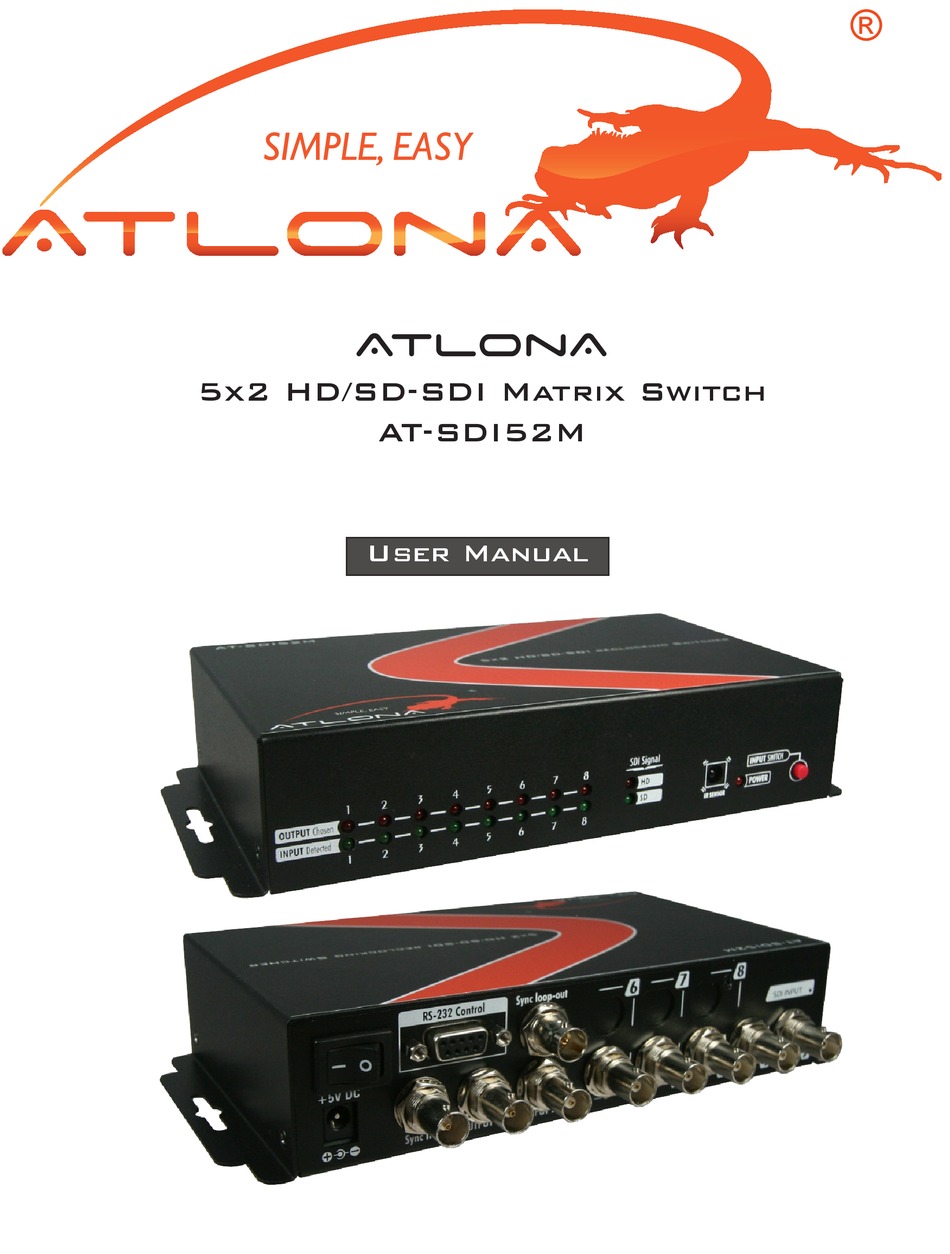

- Page 1 AtlonA 5x2 HD/SD-SDI Matrix Switch AT-SDI52M User Manual...
-
Page 2: Table Of Contents
3. Specifications & Package Contents ..........4. Panel Descriptions ..........4.1. Front Panel ..........4.2. Rear Panel ..........5. RS232 Commands ..........6. IR Remote Control ..........7. Hardware Installation ..........8. Safety Information ..........9. Warranty ..........10. Atlona Product Registration .......... -
Page 3: Introduction
Introduction This AT-SDI52M receives, equalizes, and reclocks* up to 8 SDI inputs, perfectly switches the desired input to SDI equipped monitors or receivers. The switch supports both HD/SD-SDI bit rates, and the re-transmitted quality is guaranteed. Through RS-232, IR remote, or front panel push button, the control of the SDI switch becomes versatile and easier. -
Page 4: Specifications & Package Contents
Power consumption 10 Watts [max] Operation temperature 0~40°C [32~104°F] Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] Package Contents 1x AT-SDI52M / AT-SDI52M / AT-SDI81 / AT-SDI82M 1x IR remote controller 1x 5V power adapter 1x User Manual... -
Page 5: Panel Descriptions
Panel Descriptions Front Panel 1. Chosen input channel LED 2. Input channel auto detection LED 3. Output HD/SD detection LED 4. IR remote receiver 5. Power indicator LED 6. Push button for input channel switch Rear Panel 7. Power switch 8. -
Page 6: Rs232 Commands
0x01 0x53 0x57 0x30 0x08: Check Code 0x04 0xff :Machine number 0x02: Command ID 0x01~0x08: Input Source ( AT-SDI81 & AT-SDI82M [0x01~0x08]; AT-SDI51 & AT-SDI52M [0x01~0x05]) 0xed~0xf4: Check sum 0xaa: Header 0x03: Command length 0x01: Selected source 0x04: Check Sum... - Page 7 0x04 0xff :Machine number 0xea: Check sum 0xaa: Header 0x03: Command length 0x01: Selected source[source one] ( AT-SDI81 & AT-SDI82M [0x01~0x08]; AT-SDI51 & AT-SDI52M [0x01~0x05]) 0x04: Check Sum 0x8 0x53 0x57 0x30 0x08 0xec 0xaa Read Input Status 0xff 0x03...
-
Page 8: Ir Remote Control
0x08 0x53 0x57 0x30 0x08 0xed 0xaa Read Machine Number 0xff 0x04 0x03 0x08: Command Length 0xff 0x53 0x57 0x30 0x08: Check Code 0x02 0xff :Machine number 0x04: Command ID 0xed: Check sum 0xaa: Header 0x03: Command length 0xff: Machine Number 0x02: Check Sum IR Remote Control Reserved... -
Page 9: Hardware Installation
Hardware Installation 1. Connect SDI enable equipments to the output of AT-SDI52M. 2. Connect the SDI input sources to the inputs of AT-SDI52M. 3. Plug power adapter cable into 5V DC power jack. 4. Use IR remote, RS-232, or front panel push button to switch between input channels. -
Page 10: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 11: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. -
Page 12: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights. To register go to www.atlona.com/registration...
