User Manual
8x8 4K/UHD HDMI to HDMI
Matrix Switcher
AT-UHD-H2H-88M Installation Guide
Please check http://www.atlona.com/product/AT-UHD-H2H-
88M for the most recent firmware update or manual.

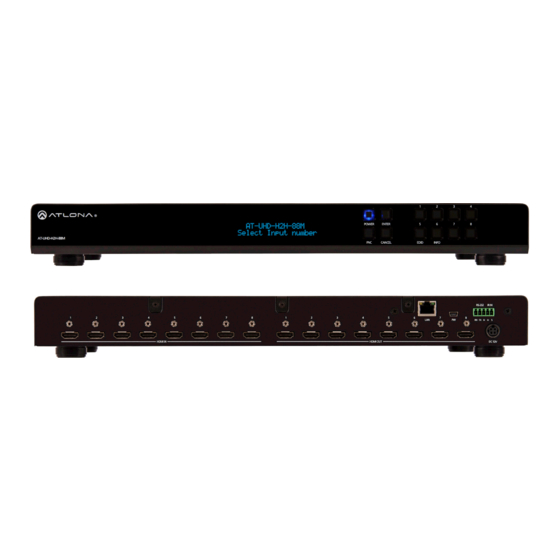

The Atlona 8x8 4K/UHD HDMI to HDMI Matrix Switcher is designed for the best audio, video,
and control experience. Pass through of video up to 4K/UHD or 2560x2048, audio up to Dolby®
TrueHD, DTS-HD Master Audio™, or Dolby Atmos™, and multiple control options (such as TCP/
IP, RS-232, IR, front panel, and WebGUI) enables the UHD-H2H-88M to provide the highest quality
experience no matter if playing a movie, giving a presentation, and more.
Package Contents
• 1 x AT-UHD-H2H-88M
• 1 x 5 pin captive screw female connector
IR: 2 pin, RS-232: 3 pin
• 1 x 12V DC power supply
• 1 x IEC C13
power cable
• 1 x IR
Remote control
• 1 x Pair of rack mount ears
• 1 x Installation Guide
Toll free: 1-877-536-3976
atlona.com
Local: 1-408-962-0515
Advertisement
Table of Contents
Related Manuals for Atlona AT-UHD-H2H-88M
Summary of Contents for Atlona AT-UHD-H2H-88M
-
Page 1: Matrix Switcher
88M for the most recent firmware update or manual. The Atlona 8x8 4K/UHD HDMI to HDMI Matrix Switcher is designed for the best audio, video, and control experience. Pass through of video up to 4K/UHD or 2560x2048, audio up to Dolby®... -
Page 2: Panel Description
Panel Description Front Panel POWER ENTER AT-UHD-H2H-88M CANCEL EDID INFO RS-232 IR IN RX TX 1. IR Receiver Window - Receives the signal from the included IR Hand Held Remote Control or 3rd DC 12V HDMI IN HDMI OUT party controller 2. -
Page 3: Rack Mounting
CAT6a/7 solid core cables for best results. Connector type and size is very important to ensure extenders work correctly. Please use the matching cable type with the correct RJ45 connector. (e.g. CAT 7 cable should use a CAT 7 connector) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 4: Captive Screw
The signal wire is red and ground wire is black. The IR cable will plug into the IR IN ports and connect to third party control systems. One side of the optional IR cable is marked Signal (S) to differenciate pin outs. Ground ( ) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 5: Connection Diagram
IPStatic command (e.g. IPStatic 192.168.1.56). Connection Diagram Video HDBaseT Ethernet Video Control TCP/IP Video Blu-ray player POWER ENTER AT-UHD-H2H-88M CANCEL EDID INFO Set top box Game Console RS-232 IR IN Game Console RX TX HDMI IN HDMI OUT DC 12V... -
Page 6: Troubleshooting
7. What is the default IP address of the matrix? 192.168.0.150 8. Can I update the matrix firmware through the USB port? The FW mini-USB port is reserved for future use. To update the matrix firmware, connect to the webGUI or AMS. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
