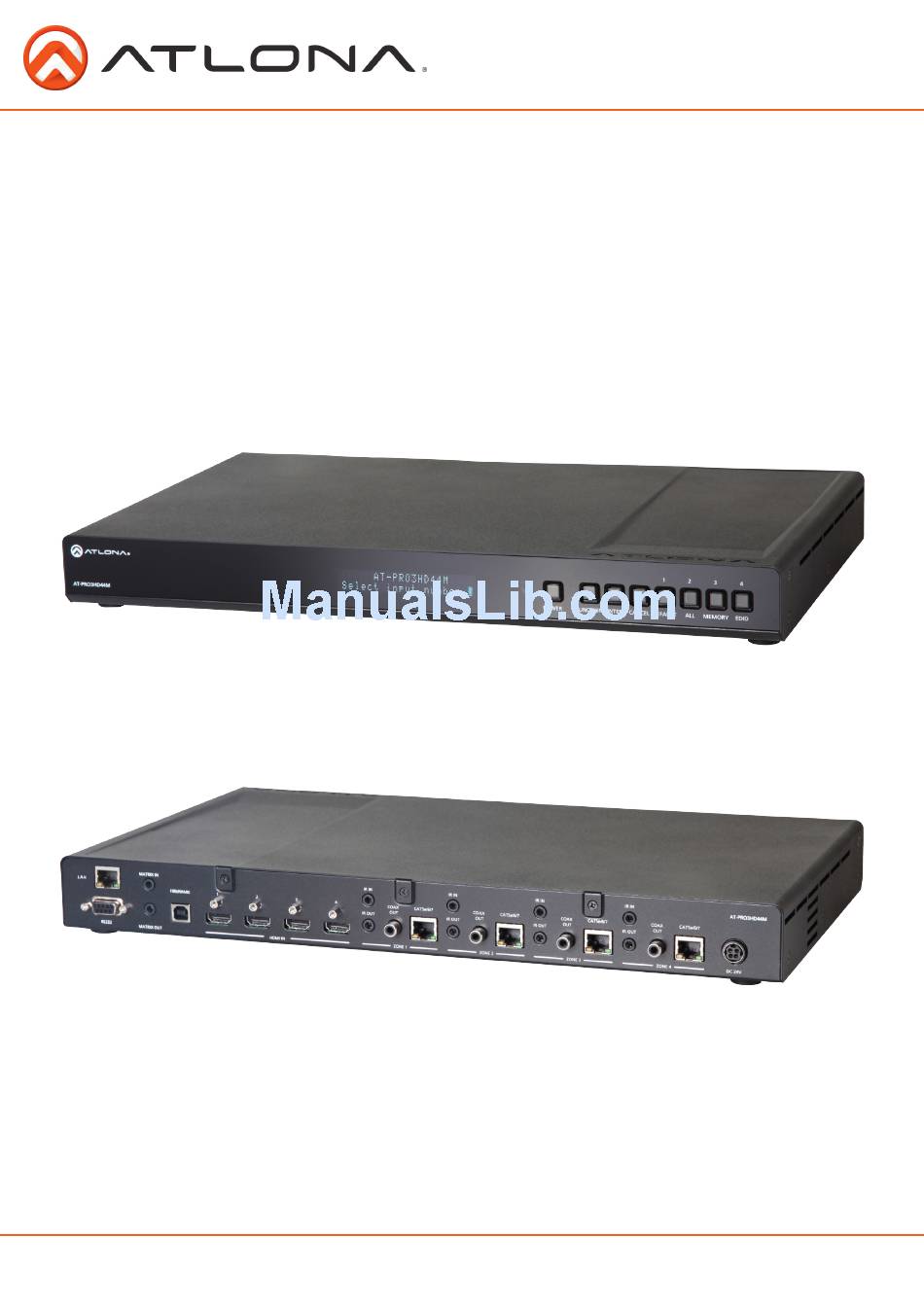

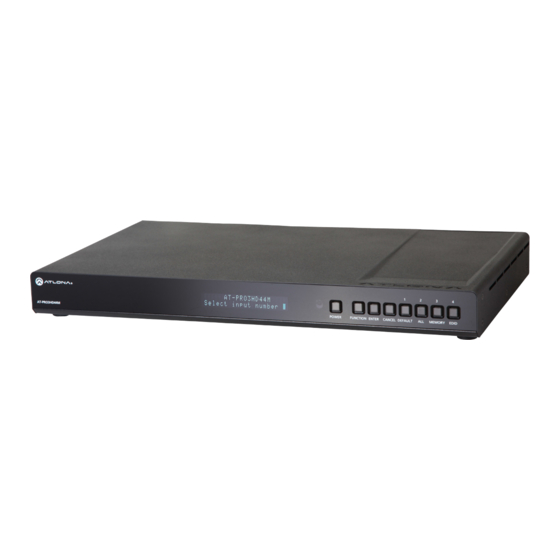

Atlona HDMI 4 by 4 Matrix Switcher
over CAT5e/6/7
AT-PRO3HD44M

User Manual

Toll free: 1-877-536-3976
atlona.com
Local: 1-408-962-0515

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-PRO3HD44M and is the answer not in the manual?

Questions and answers

Related Manuals for Atlona AT-PRO3HD44M

Summary of Contents for Atlona AT-PRO3HD44M

  • Page 1: User Manual

    Atlona HDMI 4 by 4 Matrix Switcher over CAT5e/6/7 AT-PRO3HD44M User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 2: Table Of Contents

    11. Resetting and Updating ................25 12. Specifications ................26 13. Safety Information ................27 14. Warranty ................28-29 15. Atlona Product Registration ................29 Revision B (1/21/13): Hardware update New TCP/IP port Page 6 Revision B Part 2 (3/20/13): TCP/IP...

  • Page 3: Introduction

    230ft over category cable. The Atlona HDMI 4 by 4 Matrix Switcher allows for effortless control of up to 8 devices through IR, RS-232, TCP/IP and the front panel. With built in S/PDIF ports send audio to an AVR or distribution amp.

  • Page 4: Panel Description

    Select IR 1: On 2: Off Feedback= Select IR 1:On 2: Off ---> ---> ---> ---> Current On Current: On/Off ”IR On Selected” Select IR 1: On 2: Off Feedback= ---> ---> ---> Current off ”IR Off Selected” Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 5: Back Panel

    Compatible with LPCM 2Channel, Dolby 2.0, Dolby Digital 5.1, and DTS 5.1. d. CAT5e/6/7 Out (RJ45): Extends video and bi-directional RS-232, IR, and audio signals through a single category cable. 8. Power Port - Use included locking DC adaptor to power the matrix switcher Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 6: Connection And Installation

    Connection and Installation 3rd Party Control box Set Up 3rd Party Controller Zone IR Control Mono to mono 2 conductor IR extender cable Matrix IR Control Blu-ray Player AT-PRO3HDREC IR Emitter Video Display Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 7: Ir Remote Control

    IR Remote Control Set Up Note: When using an IR remote control all sources can be controlled as well as the local display. Blu-ray Player IR Emitter AT-PRO3HDREC IR Receiver Module Video Display Remote Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 8: Matrix I/O Control

    Matrix Front Panel Functions The AT-PRO3HD44M’s front panel has 3 functions: I/O control, EDID, and matrix settings. The following sections go over step by step setup & control. I/O Control To set an input to an output (I.E. Input 1 to output 2)

  • Page 9: I/O Route Memory

    O: 1 2 3 4 I : 4 2 1 3 To save an I/O route to memory home screen AT-PRO3HD44M 1 Save in/out route Select Function Option ---> --->...
  • Page 10 1.Default 2.Saved 3.Int Feedback = ”Save memory # EDID Use EDID memory # + enter ---> ---> _ _ _ to input #” Atlona EDID - ATL Pioneer EDID - PIO Toshiba EDID - TSB Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 11 * Recommended EDID for use of an AVR ** Recommended EDID for use of the S/PDIF audio de-embedding *** Recommended EDID for use of DVI projectors home screen AT-PRO3HD44M 1 To copy up to 4 EDIDs Select Function Option --->...

  • Page 12: Matrix Status

    When installing or troubleshooting it’s important to verify settings, or be able to come back to a project and see how it was set up. The AT-PRO3HD44M matrix settings are viewable through the front panel display. View current I/O settings, firmware version, FPGA version, and the baud rates of not just the matrix but extenders as well.

  • Page 13: Rs-232

    Bits Per Second: 115200, Data Bits: 8, Parity: None, Stop Bits: 1 and Flow Control: None. (see picture C) Set up is done and any hyperterminal program may be used to control the matrix now. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 14: Tcp/Ip

    IP overriding another device. TCP/IP WebGUI Atlona has created an easy to use WebGUI for changing settings and controlling the matrix. To begin, plug a LAN cable into the matrix and your network, then type the IP address of the matrix into a web browser (as seen below).
  • Page 15 FPGA will not display (see first image). Once the power is on it will display (see second image). Note: When the matrix is turned off many fields within the WebGUI will not display information. Be sure the matrix is powered on for complete access. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 16 IP connections to the matrix. Note: Login Mode should not be used when using a control system. Note: The username and password used in IP Login Mode will be the same login information as the WebGUI Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 17 A grey screen will display the save and cancel options when making changes. Remember to save all settings before moving on to the next page. Note: All like fields can be changed during one edit. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 18 Adding, deleting, and updating users can also be done from the config page. User changes can only be done by the admin. Admin user name is always “root” and default password is “Atlona”. Note: Only the admin password can be changed. The username will always remain “root”...
  • Page 19 The I/O page allows input and output routes to be changed easily by drop down menu. Output All will route one selected input to all the outputs. Note: All routes can be changed while in the grey edit screen. Remember to save after all changes have been made. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 20 **Clicking on the Display’s EDID link will provide a breakdown of the selected output’s EDID Note: MM#s in the picture above are examples of saved EDIDs Note: Remember to save after all changes to ensure complete compatibility. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 21 Supported - HDCP is supported by the display Not Supported - The display is unable to support HDCP Non-HDCP Source - A source that does not support HDCP No connection - If no source is selected/connected, HDCP status cannot be determined Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 22: Control Commands

    Will display a list of users - user password - user password - user password IPAddUser [X] [Y] TCP/IP user was added Add a user for TCP/IP control. X=User Y=Password Ex. IPAddUser Atlona 1234 (User=Atlona 1234=Password) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 23: Baud Rate

    TCP/IP Commands Cont. IPDelUser [X] TCP/IP user was deleted Delete a user from TCP/IP X=User (Ex. IPDelUser Atlona) IPDHCP sta IPDHCP sta Displays the status of DHCP Ex. IPDHCP on IPDHCP on IPDHCP on Turns DHCP on IPDHCP off IPDHCP off...

  • Page 24: Remote Control

    Remote Control Output selection. Numbers correspond with the category cable outputs (1-4) on the matrix. Arrow buttons are not functional for this product. Input selection. Numbers correspond with the HDMI inputs (1-4) on the matrix. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 25: Resetting And Updating

    If you wish to verify the new firmware, use the RS-232 command “Version”. Resetting to factory settings Atlona understands that settings can be troublesome and at times its just easier to set things back to factory settings. To make things easier a simple one step reset was created.

  • Page 26: Specifications

    Weight 3.18 Rack Size 1 U, 19 in. standard electronics rack Temperature Operating Storage 32°F to 104°F 4°F to 140°F 0°C to 40°C 20°C to 60°C Certifications CE, FCC, RoHS, cULus for power supplies Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...

  • Page 27: Safety Information

    Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.
  • Page 28 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.

  • Page 29: Atlona Product Registration

    Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
