4K/UHD Dual-Distance 8x8 HDMI to
HDBaseT Matrix Switcher with PoE
Please check http://www.atlona.com/product/AT-UHD-PRO3-
88M for the most recent firmware update or manual.

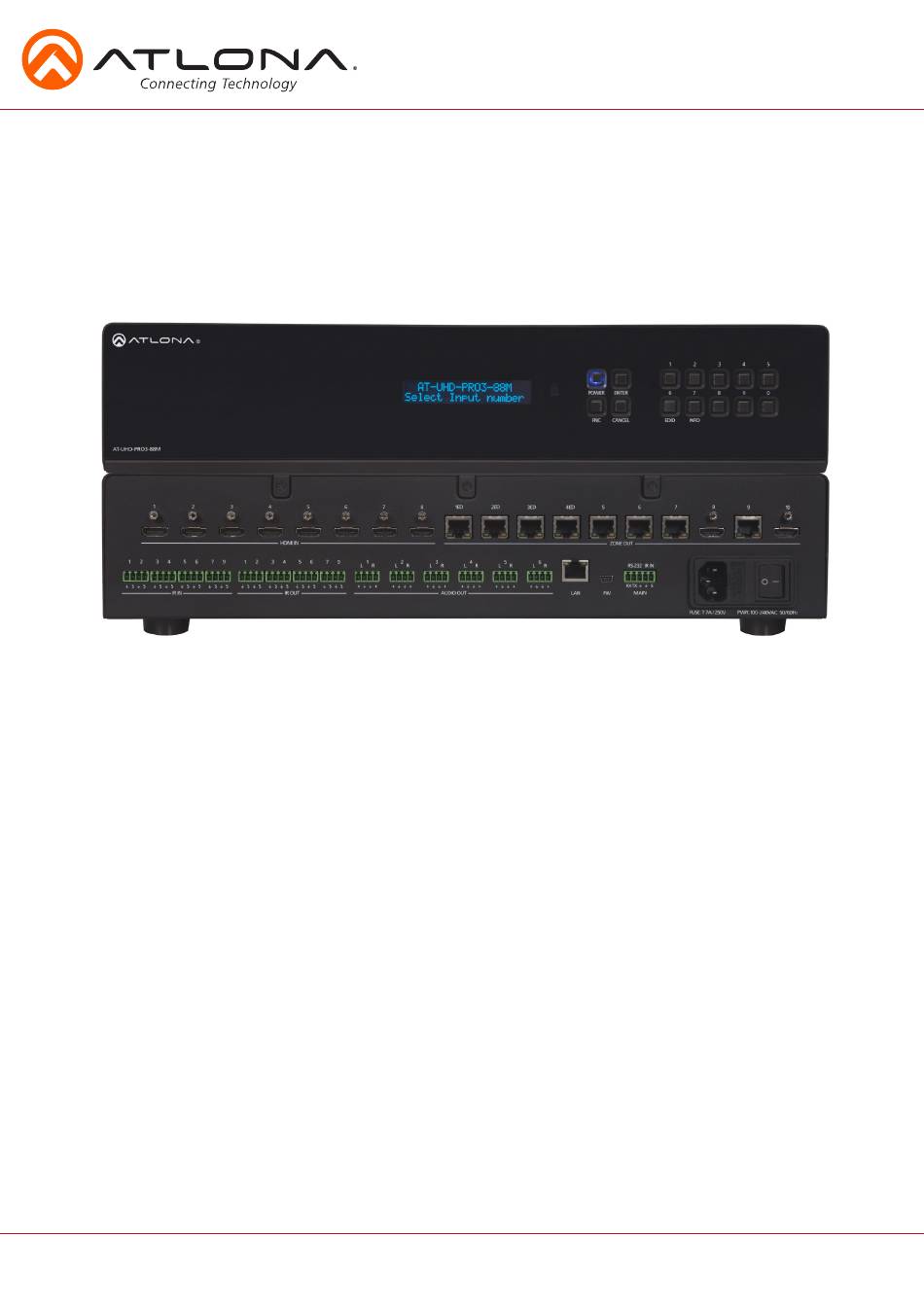

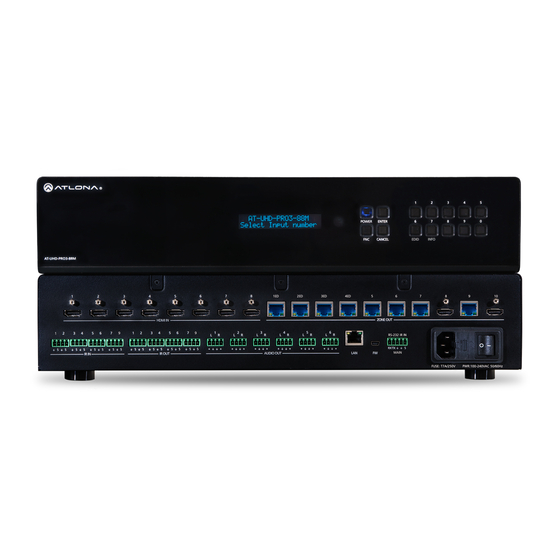

The 4K/UHD Dual-Distance 8x8 HDMI to HDBaseT Matrix Switcher with PoE is a multi zone switcher
with long distance and extended distance ports, multiple control options, supports HDCP 2.2, and
multichannel audio up to Dolby® Atmos™.
Package Contents
• 1 x AT-UHD-PRO3-88M
• 14 x
4 pin captive screw female connector
(4 x IR IN, 4 x IR OUT, 6 x Audio OUT)
• 1 x 5 pin captive screw female connector
Ir: 2 pin, RS-232: 3 pin
• 1 x IEC C13
power cable
• 1 x IR
Remote control
• 1 x Pair of rack mount ears
• 1 x User
Manual
atlona.com
AT-UHD-PRO3-88M Installation Guide
Toll free: 1-877-536-3976
Local: 1-408-962-0515
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlona AT-UHD-PRO3-88M
Summary of Contents for Atlona AT-UHD-PRO3-88M
- Page 1 HDCP 2.2, and multichannel audio up to Dolby® Atmos™. Package Contents • 1 x AT-UHD-PRO3-88M • 14 x 4 pin captive screw female connector (4 x IR IN, 4 x IR OUT, 6 x Audio OUT) •...
- Page 2 Panel Descriptions Front Panel POWER ENTER CANCEL EDID INFO AT-UHD-PRO3-88M 1. IR Receiver Window - Receives the signal from the included IR Hand Held Remote Control or 3rd HDMI IN ZONE OUTPUTS party controller RS-232 IR IN 2. Function Button - Select for command options.
- Page 3 POWER ENTER CANCEL EDID INFO Back Panel AT-UHD-PRO3-88M HDMI IN ZONE OUTPUTS RS-232 IR IN RX TX IR IN IR OUT AUDIO OUT MAIN FUSE: T 4A / 250V PWR: 100-240VAC 50/60Hz 1. HDMI Input - Connect HDMI sources to these ports Ex.
- Page 4 Note: Pin outs may vary, please refer to the audio device’s manual to ensure a correct connection. Important! When terminating cables, please ensure exposed adjacent wires do not touch. This may result in a short that can damage connected devices. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 5 IP address set using RS-232 commands, or webGUI. To disable DHCP, use the following command: IPDHCP off. Once disabled, set the IP address using the IPStatic command (e.g. IPStatic 192.168.1.56). Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 6 IP address is shown on the front panel display. Enter the IP address in the web browser. A login screen will appear (this is the same log in for admin and general users). The default login for the webGUI will be username “root” and password “Atlona”. Toll free: 1-877-536-3976 atlona.com...
- Page 7 RS-232 IR IN IR OUT HDBaseT IN HDMI OUT AT-UHD-EX-100CE-RX Game Console HDBaseT CANCEL EDID INFO AT-UHD-PRO3-88M HDMI IN ZONE OUTPUTS RS-232 IR IN RX TX IR IN IR OUT AUDIO OUT MAIN FUSE: T 4A / 250V PWR: 100-240VAC 50/60Hz...
- Page 8 4. When I raise or lower the volume of the zone, the TV audio is not affected. The volume control only raises, lowers, and mutes the analog audio outputs for each zone. Version 2 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
