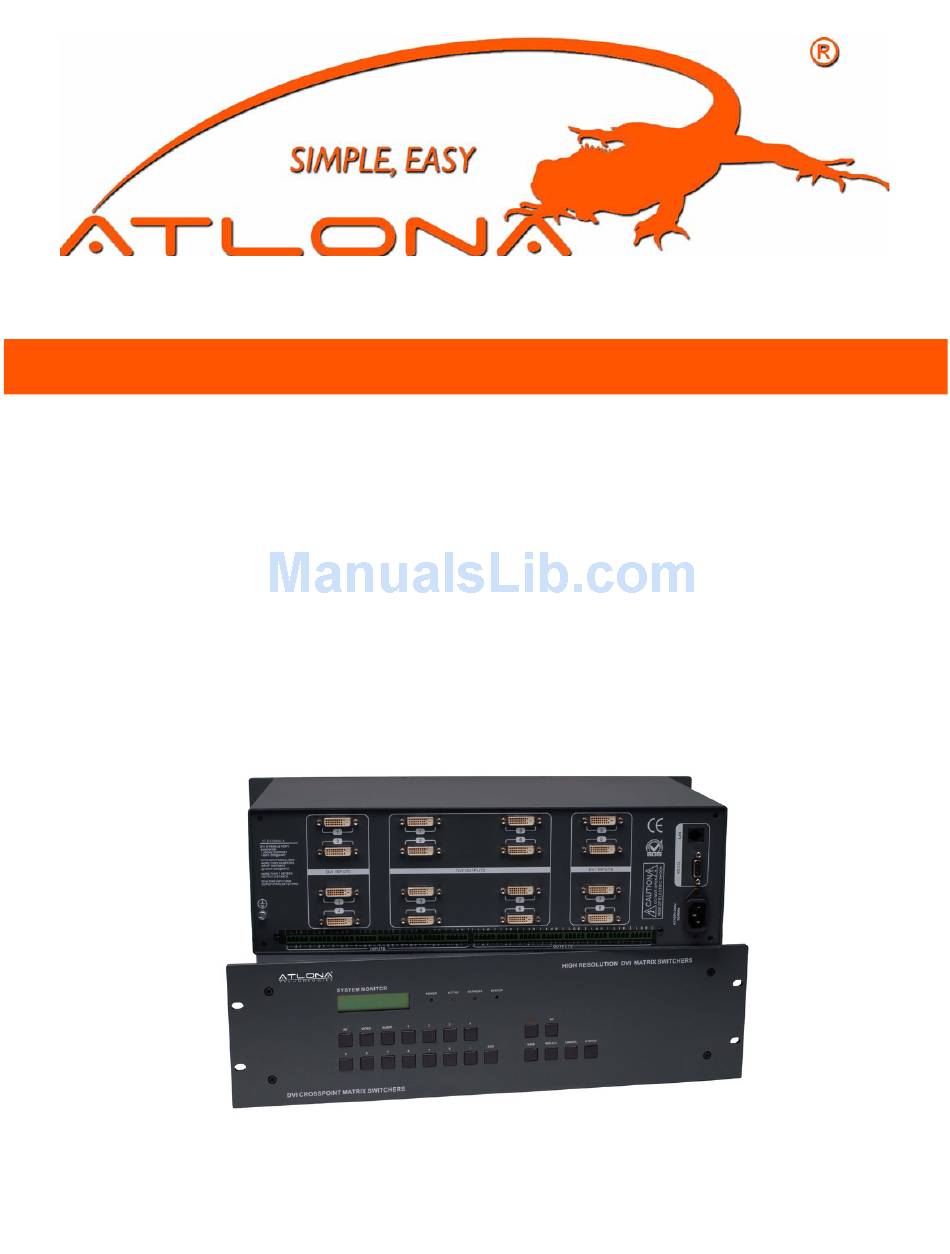

- Page 1 DVI MATRIX USERS MANUAL AT-DVI0808/AT-DVI0808-A AT-DVI1616/AT-DVI1616-A AT-DVI3232/AT-DVI3232-A AT-DVI3216/AT-DVI3216-A...
-
Page 2: Safety Operation Guide
This manual is only an instruction for operators, not for any maintenance usage. Any changes of functions and parameters since then will be informed separately. This manual is copyright Atlona Technologies. All rights reserved. No part of this publication may be copied or reproduced without the prior written consent of Atlona Technologies. -
Page 3: Table Of Contents
5.5 Remote Control Operarion..............12 5.6 Operarion Of Application Software..........12 5.7 Keyboard Tab...................14 5.8 Auto Tab...................14 5.9 Cusome Code Tab................15 5.10 Code Group Tab................16 5.11 Send/Receive Code List Tab............17 6. Operation of RS232................17 7. Technical Specifications..............19 8. Troubleshooting..................21 Atlona Technologies www.atlona.com... -
Page 4: Introduction
3rd party control system devices. The user manual takes DVI0808-A as an example, other models can take reference from it too. 1.2 DVI Matrix Switch Model Video Inputs Video Outputs Audio Inputs Audio Outputs RS232 Specification Model AT-DVI0808-A AT-DVI1616-A Atlona Technologies www.atlona.com... -
Page 5: Package Contents
DVI matrix switchers adopt metal shell and can be stacked with other devices. They are rack-mountable and can be installed on a standdard 19 inches rack. It is recommended to leave a 1U space between the units to have easy access for installation of the cables. Atlona Technologies www.atlona.com... -

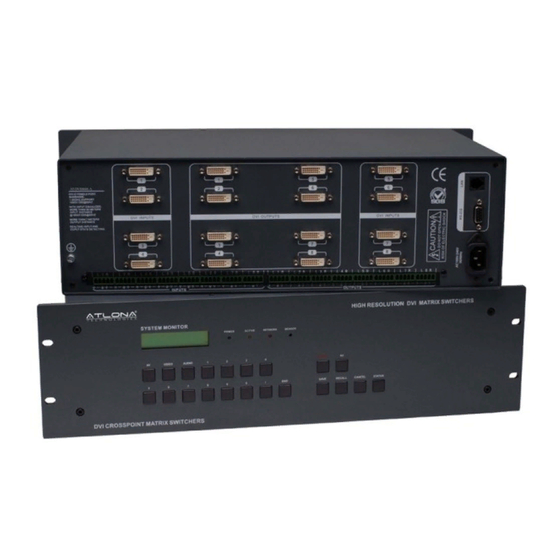

Page 6: Front And Rear View On The Product
When the switcher connects to the COM1 or COM2 of the computer with control software, users can control it by that computer. To control the switcher, users may use the application SWITCHER 2.0 in the supplied CD or develop their own control software. Atlona Technologies www.atlona.com... -
Page 7: Connecting Using Input And Output Terminals
For the low frequency extent of the audio signal, it would be easily interfered under long distance transmission. Therefore as an anti-interference connection, it is mostly used in Audio connection of special high end devices. Atlona Technologies www.atlona.com... - Page 8 If in a nonstandard case, it is done to connect balanced for the balanced end and unbal- anced for unbalanced end. But if in a standard one, the converter must be used to switch the signals as the same, balanced or unbalanced. Example of connection Atlona Technologies www.atlona.com...
-
Page 9: Front Control/ Operation
Save button: To save the present operation to a preset command Example: To save the present operation to the preset command No.2 Operation: Press buttons in the following order “SAVE”, “2” Note: There are altogether 10 preset commands ranged from No.0 to No.10. Atlona Technologies www.atlona.com... - Page 10 To unlock it, a password is needed. “DEMO” Demo button: To demonstrate the commands one by one every 3 seconds. The Switch can be controlled directly by entering the following command: “Input Channel” + “Switching Mode” + “Output Channel” + “END”+ “ENTER” Atlona Technologies www.atlona.com...
- Page 11 Display feedback on LCD: The video signal of output channel No.4 is transferred from the input channel No.3 and the audio signal is from the input channel No.2 Atlona Technologies www.atlona.com...
-
Page 12: Remote Control Operarion
Memory: At least 32mb Space in hard disk: At least 10M CD-ROM COM Port According to practical needs, user can select and operate at different function tabs such as SYSTEM, AUTO, KEYBOARD, CUSTOM CODE, CODE GROUP and SEND/RECEIVE CODE LIST. Atlona Technologies www.atlona.com... - Page 13 IP address of the switch- “Set Password”: Set the password for the control panel on the Matrix (The pass- word must be an 8 digit number) “Unlock Keyboard”: Unlock the keyboard of the control panel on the Matrix. Atlona Technologies www.atlona.com...
-
Page 14: Keyboard Tab
Transfer the signals from input channel No.2 to output channel No.1-32; Transfer the signals from the input channel No.32 to the output channel No.1-32; This switching test will perform this way one by one every second until the test is over. Atlona Technologies www.atlona.com... -
Page 15: Cusome Code Tab
No.7, and the audio signals from the input channel No.2 to the output channel No.4, just perform the following steps below. 1. Select the “ASCII” as the command codes format; 2. Input the command codes “1B7.2A4.” at the blank of Codes; 3. Click the button “Send” to perform the commands. Atlona Technologies www.atlona.com... -
Page 16: Code Group Tab
Execute: Executes a selected preset command or a selected group of preset commands Clear: Clears the feedback window Add Code ltem: To add another new group of preset commands Edit: To edit the User’s name (User), Delete: Deletes the selected group. Atlona Technologies www.atlona.com... -
Page 17: Send/Receive Code List Tab
Transfer signals from input channel [x1] to all output channels Operation Command All# Transfer all input signals to matching output channels. All$ Switch off all output channels. [x1]# Transfer signals from input channel [x1] to output Atlona Technologies www.atlona.com channel [x1]. - Page 18 Save the present operation to the preset command [Y]. [Y] ranges from 0 to 9. Recall[Y] Recall the preset command [Y]. Clear[Y] Clear the preset command [Y]. [X1]*[X2]! Transfer both video and audio signals from input channel [x1] to output channel [x2]. Atlona Technologies www.atlona.com...
-
Page 19: Technical Specifications
>90dB Stereo separate >80dB @ 1 kHz CMRR >75dB @: 20 Hz ~ 20 kHz Signal type Stereo, balance or unbalance Resistance Input >10 kΩ balance or unbalance Output 50 Ω unbalance , 100 Ω balance Atlona Technologies www.atlona.com... - Page 20 AT-DVI0808/A Mode AT-DVI1616/A AT-DVI3232/A DVI0808-A Specification Max input level +19.5dBu, balance or unbalance ±0.1dB Gain offset Max output level +19.5dBu, balance or unbalance Control Serial control port RS-232, 9-pin female D Baud rate Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none...
-
Page 21: Troubleshooting
The swticher cannot be controlled by front panel The unit may be broken, contact dealer for repair. keys, RS-232 port or remote control ATLONA 2151 O’toole Ave, Ste D San Jose CA 95131 Toll Free: 1-877-536-3976 International: 408-954-8782 FAX: 408-954-8792 Website: www.atlona.com E-MAIL: info@atlona.com Atlona Technologies www.atlona.com...
