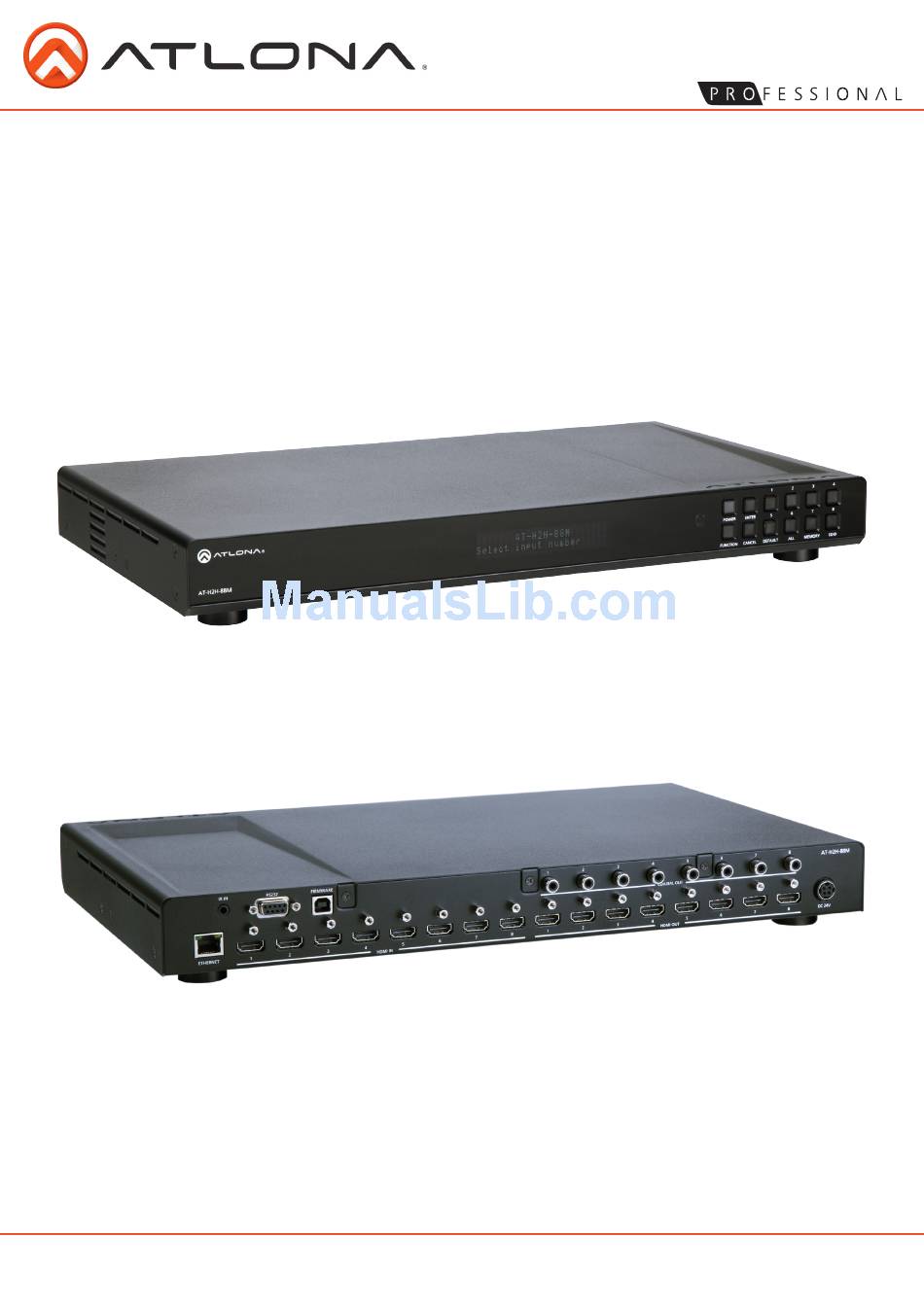

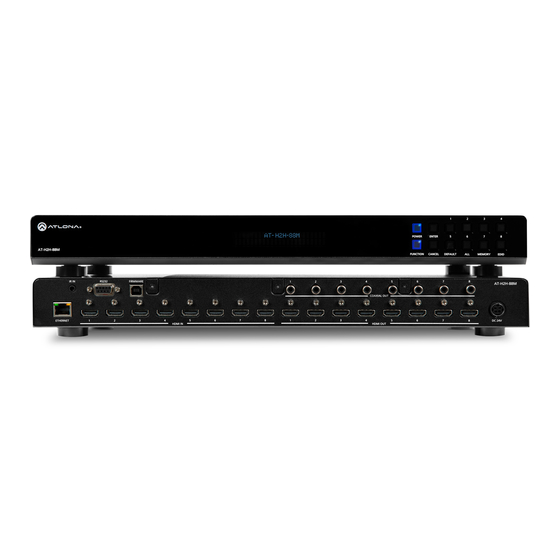

- Page 1 Atlona 8 by 8 HDMI Matrix Switcher AT-H2H-88M User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
Command ................12-13 c. Set Up ..................13 d. Baud Rate ..................13 9. Resetting and Updating ..................14 10. Safety Information ..................15 11. Warranty ..................16 12. Atlona Product Registration ..................17 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Introduction Multiple control options, HD resolutions, and the best audio, the Atlona 8 by 8 HDMI Switcher is built for your home and professional needs. With the ability to pass 1080p, 1920x1200, all Lossy and Lossless audio formats (including Dolby TrueHD and DTS-HD Master Audio), full 3D, and ARC, the AT-H2H-88M provides a full range of features that ensures the highest quality experience whether you’re watching a movie, giving a presentation, and more. -
Page 4: Panel Descriptions
The IR receiver window can sometimes pick up extra signals or commands, so the ability to turn IR on or off has been made possible through the front panel. See below directions. home screen Hold for AT-H2H-88M Select Function Option ---> --->... -
Page 5: Remote Control
Remote Control Output selection. Numbers correspond with the HDMI outputs (1-8) on the matrix. Arrow buttons are not functional for this product. Input selection. Numbers correspond with the HDMI inputs (1-8) on the matrix. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 6: Connection Diagram
Connection Diagram Audio Loop-Out Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 7 Matrix Front Panel Functions The AT-H2H-88M’s front panel has 3 functions: I/O control, EDID set up, and matrix settings. The following sections go over step by step setup & control. I/O Control To set an input to an output home screen AT-H2H-88M --->...
- Page 8 To save an I/O route to memory * I/O route is current settings of inputs to outputs home screen AT-H2H-88M Select Function Option ---> ---> ---> ---> Select Input Number 1 Save in/out route Save to memory (1-8): # --->...
-
Page 9: Edid Set Up
There are two options when setting up EDID: Default and Copy. In order to have any options other than default different EDIDs must first be copied. The AT-H2H-88M can copy up to 4 EDIDs to memory. To save an EDID If you’re having compatibility issues the H2H has a built in EDID management system to enable... - Page 10 Input: X Select saved ---> ---> ---> through EDID memory 1-8 (#) Use EDID memory X + enter ---> through Atlona EDID -ATL _ _ _ Pioneer EDID -PIO Toshiba EDID -TSB Feedback= ”Save memory # EDID ---> ---> to input #”...
- Page 11 When installing or troubleshooting it’s important to verify settings, or be able to come back to a project and see how it was set up. The AT-H2H-88M has matrix settings viewable through the front panel. View current I/O settings, firmware version, FPGA version, and the baud rate of the matrix.
- Page 12 S/PDIF to loop-out the audio from the matrix source. To switch between ARC and matrix source audio, ARC must be turned on or off. Enable or disable ARC through RS-232 (see page 15) or front panel (see below). home screen Hold for AT-H2H-88M Select Function Option ---> ---> --->...
- Page 13 NOTE: If audio does not pass through, check to make sure ARC is turned off. NOTE: HD audio formats are not supported through S/PDIF. Ex. Dolby TrueHD or DTS-HD Master Audio Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 14: Rs-232
Turns off all output channels Each command is terminated with a carriage return. Each feedback is terminated with a carriage return and Line feed. Note: If the command fails or is incorrect the feedback should be “Command FAILED” Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 15: Set Up
Command for Matrix baud rate CSpara[baudrate,data-length,parity,stop-bit] (data, parity, and stop for matrix must be 8,0,1) For example if you wish to change the baud rate to 38400 the command would look like this: CSpara[38400,8,0,1] Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 16: Updating Firmware
Updating and Resetting Updating firmware At times there will be new firmware to update, fix, or change functionality of products. Atlona has made this as easy as possible for updating on the job by simply downloading from Atlona.com and uploading the file onto the matrix. -
Page 17: Safety Information
Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-H2H-88M. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 18: Warranty
Atlona Technologies’ and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. -
Page 19: Atlona Product Registration
Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
