Summary of Contents for Atlona AT-SAV-42M

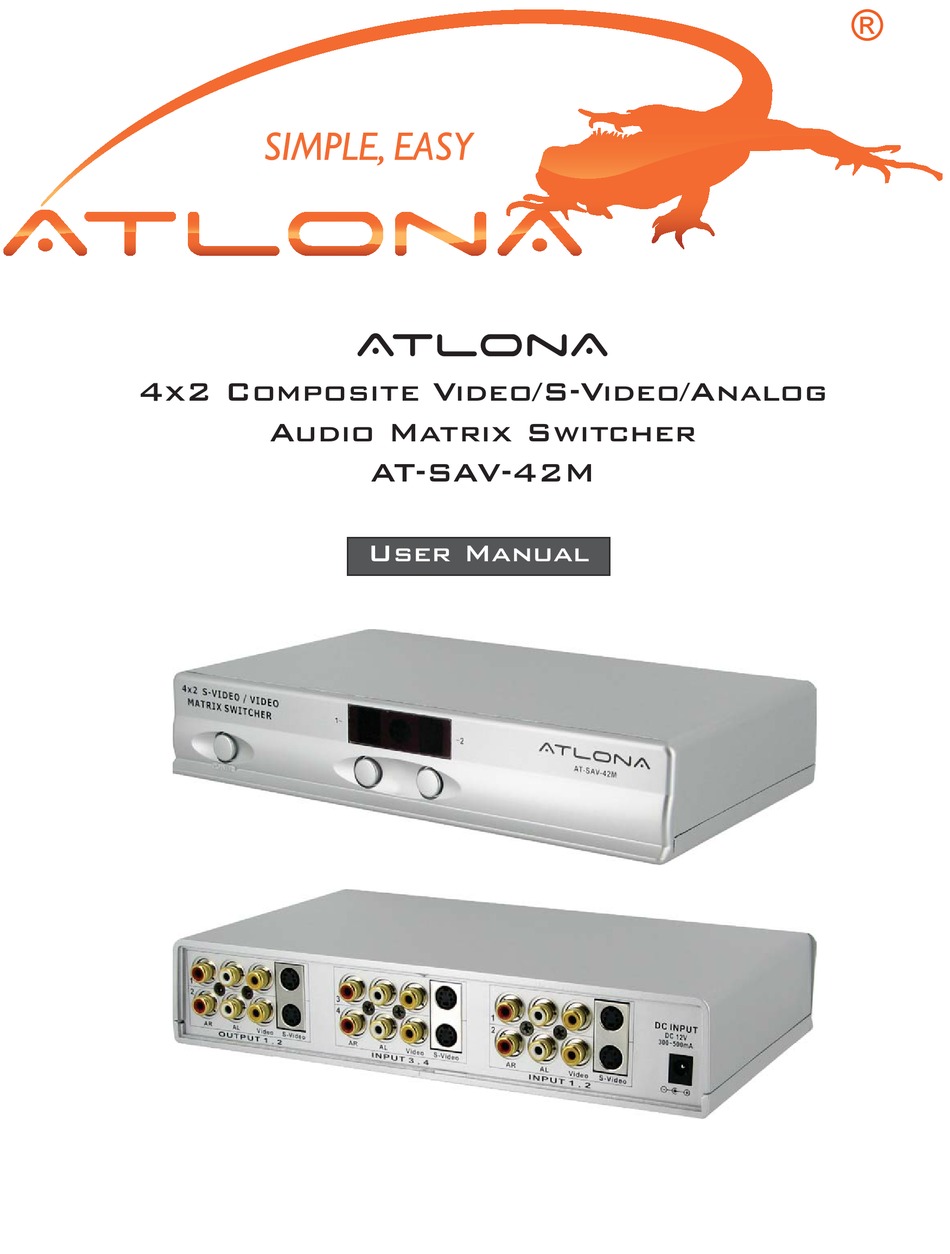

- Page 1 AtlonA 4x2 Composite Video/S-Video/Analog Audio Matrix Switcher AT-SAV-42M User Manual...
-
Page 2: Table Of Contents
3. Package Contents .......... 6SHFL¿FDWLRQV 5. Panel Descriptions ..........5.1 Front Panel ..........5.2 Rear Panel ..........6. IR Remote Control ..........7. Controls ..........8.Installation ..........9. Safety Information ..........10. Warranty ..........11. Atlona Product Registration .......... -
Page 3: Introduction
GHYLVH ZLOO VXSSRUW VKDUS DQG KLJKO\ GH¿QHG YLGHR LQ PXOWLSOH UHVROXWLRQV RI XS WR LL 7KLV unit has quick and easy installation. With manual as well as IR Remote control options, Atlona’s AT-SAV-42M Matrix Switcher is perfect for all Video equipment that using S-Video signal such as Cable and Satellite receivers, VCRs, DVD Players, Set Top Boxes...etc. -
Page 4: Panel Descriptions
SPECIFICATIONS Video Inputs 4 x Composite Video / 4 x S-Video Video Outputs 2 x Composite Video / 2 x S-Video Audio Inputs 4x Stereo R/L, 40K on RCA Connectors Audio Outputs 2x Stereo R/L, 400 on RCA Connectors Video Bandwidth >260MHz Video Distortion GE 6WDQGDUG GE ... -
Page 5: Ir Remote Control
Likewise for TV-2 When controlling the AT-SAV-42M manually, select desired video input by pressing the corre- sponding selection button for each display. To select a video input you must press the video se- lection button multiple times to cycle through the available video inputs. -
Page 6: Installation
1. Switch off all devices, including monitors. 2. Connect all sources to the Desired Video/Audio Inputs 3. Connect all displays to desired Audio/Video Outputs 4. Plug in 12V DC power supply. 5. Power on the monitors. 6. Power on the sources. 7. Power on AT-SAV-42M... -
Page 7: Safety Information
It may also cause damage to your the manufacturer could void the AT-SAV-42M. Opening the product will void user’s authority to operate this the warranty. equipment. -
Page 8: 10. Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. -
Page 9: 11. Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights. To register go to www.atlona.com/registration...
