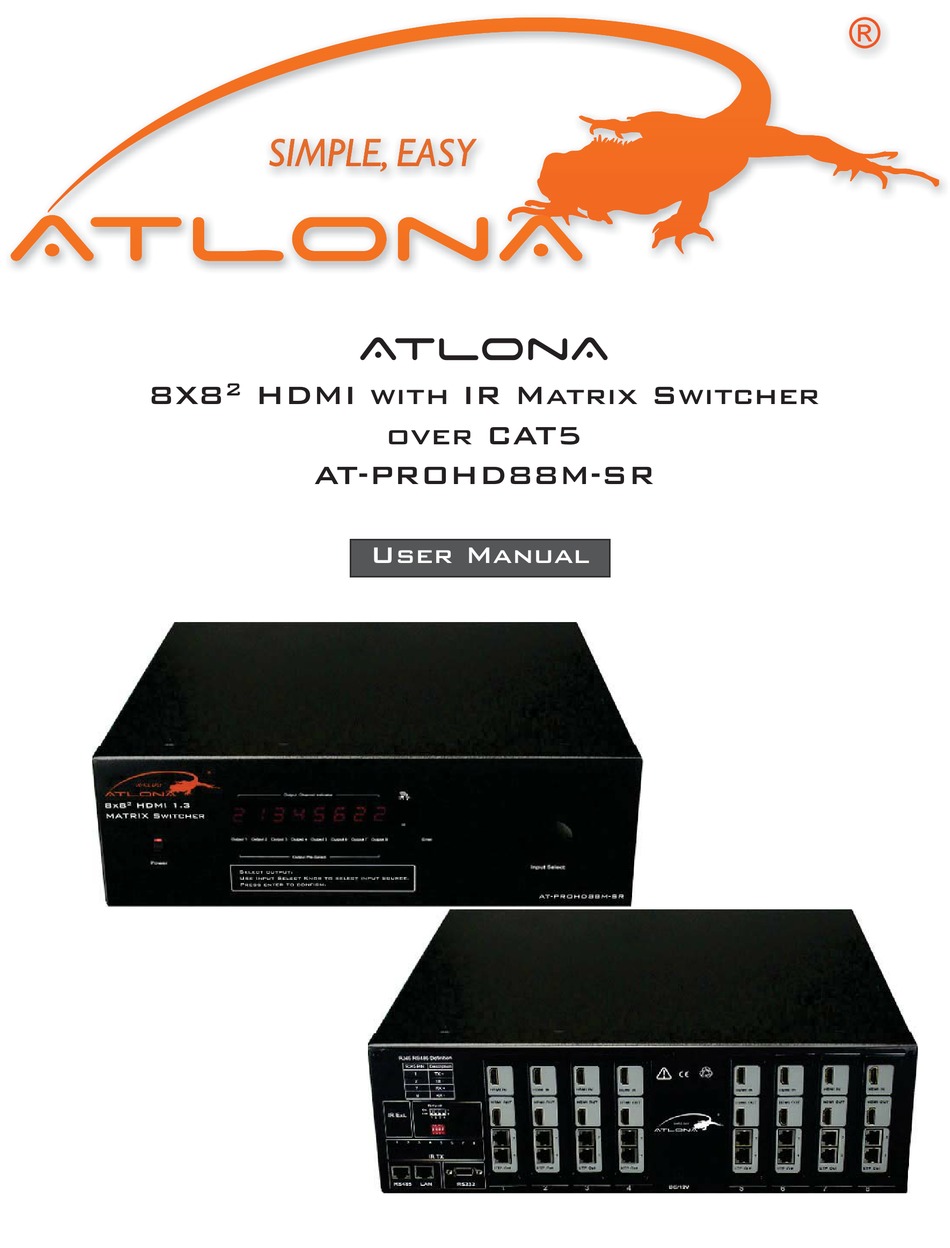

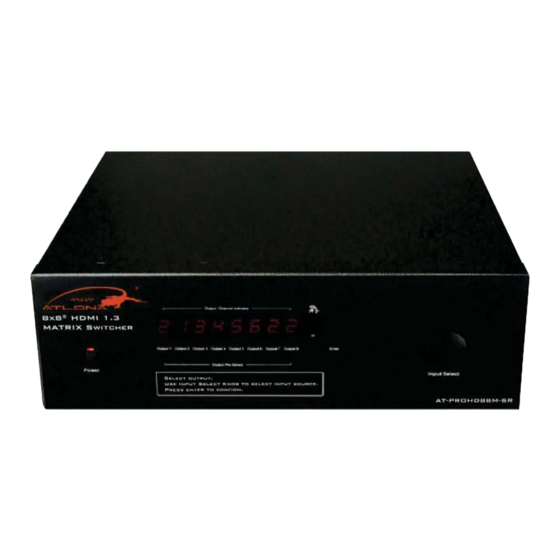

  • Page 1 AtlonA HDMI with IR Matrix Switcher over CAT5 AT-PROHD88M-SR User Manual...

  • Page 2: Table Of Contents

    5.2. Rear Panel ..........6. Connection and Operation ..........6.1. Operation on front panel ..........6.2. Control via RS232 ..........6.2.1. The Interface of AT-PROHD88M-SR ..........6.2.2. The Message Window ..........6.2.3. The Com Status ..........6.2.4. Control Command Format ..........

  • Page 3: Introduction

    INTRODUCTION Atlona’s AT-PROHD88M-SR is a true 8x8 HDMI matrix switcher. This unit allows any of the eight HD source’s (i.e. Blue-Ray player, HD DVD player, satellite receiver, PS3, AppleTV etc.) to be routed to any of the eight HD displays simultaneously. Users can choose several differ- ent ways of controlling the matrix: IR Back Channel, RS232, RS485, LAN and supplied remote control.

  • Page 4: Package Contents

    1RWH 6SHFL¿FDWLRQV DUH VXEMHFW WR FKDQJH ZLWKRXW QRWLFH PACKAGE CONTENTS Master Unit 1. 1 x AT-PROHD88M-SR 2. 8 x IR emitter cables (marked IR TX), 3. 1x IR receiver cables (marked IR RX) 4. 1 x USB to RS232 cable 5.

  • Page 5: Panel Descriptions

    Select output. Use Input Select Knob to select input source. Press enter to confirm. AT-PROHD88M-SR 1. Power switch. 2. Output selection push-buttons (Use it to choose the preferred output channel). 3. LED indicator of input for output port 1 to 8.
  • Page 6 AT-PROHD-R 1. HDMI output. 2. CAT-5e/6 input1 and input2. 3. Power input, 5VDC. (power supply is not required if used within suggested distance) 4. IR Receiver INPUT 1RWH ,5 HPLWWHU VKRXOG EH SODFHG DV QHDU WR WKH ,5 H\H DV SRVVLEOH...

  • Page 7: Connection And Operation

    CONNECTION and OPERATION 1. Connect the HDMI input sources (such as HD-DVD, PS3, STB, AppleTV etc) into the AT-PROHD88M-SR. 2. Connect the standard HDMI outputs (such as LCD or DLP) into AT-PROHD88M-SR. 3. Connect two CAT-5E or CAT-6 cables to both Twisted Pair outputs of the unit and receiver Twister Pair inputs.

  • Page 8: Control Via Rs232

     3UHVV WKH µ(QWHU¶ EXWWRQ WR FRQ¿UP WKH DFWLRQ /(' ZLOO VWRSV EOLQNLQJ WKH /(' VWRSV ÀDVKLQJ press the enter push Select output. EXWWRQ WR FRQ¿UP WKH DFWLRQ Use Input Select Knob to select input source. Press enter to confirm. AT-PROHD88M-SR 6.2. Control via RS232 6.2.1. The Interface of AT-PROHD88M-SR...

  • Page 9: The Message Window

    “operation results” such as below Status Button Click this button to read the status of AT-PROHD88M-SR. The status is about which input is selected by the output. Send Window Input the control command in this window.

  • Page 10: The Com Status

    Click this button to set the switch mode: Quick switch or Normal switch. When you click this button it will read the current mode of AT-PROHD88M-SR; if you want to change the mode, select the mode you want and click OK.

  • Page 11: Control Command Format

    ”(hex: 63 69 72 20 33 39 0D 0A), when the unit receives this command ,it will change the Outport4 status to the next input port. ( “c”-0x63, ”I”-0x69, ”r”-0x72, ” “-0x20, ”3”- [ ´´[ µ ¶[GD 6.2.5. Control code AT-PROHD88M-SR: Ouput1 <“08” >“09” 1“00” 2“01”...

  • Page 12: Read Status Command

    ³EF´ LV WKH NH\ ZRUG µB¶ LV 6SDFH µ ¶ LV FDUULDJH UHWXUQ When you succeed in sending the read status command to the AT-PROHD88M-SR, it will feed- back the status of all outputs. When you send “Bc” to unit, it will feedback the current status of the switcher.

  • Page 13: At-Prohd88M-Sr Rs-232 Remote

    6.2.8. AT-PROHD88M-SR RS-232 Remote Control Protocol The connection between AT-PROHD88M-SR and remote controller with RS-232 modem cable AT-PROHD88M-SR Remote Controller 'H¿QLWLRQ 'H¿QLWLRQ RS-232 transmission format: Baud Rate : 9600 bps Data Bit : 8 bits Parity : None Stop Bit : 1 bit...
  • Page 14 cir 20 Output 3 select Input1 Output 3 cir 21 Output 3 select Input2 cir 22 Output 3 select Input3 cir 23 Output 3 select Input4 cir 24 Output 3 select Input5 cir 25 Output 3 select Input6 cir 26 Output 3 select Input7 cir 27 Output 3 select Input8...
  • Page 15 cir 63 Output 7 select Input4 Output 7 cir 64 Output 7 select Input5 cir 65 Output 7 select Input6 cir 66 Output 7 select Input7 cir 67 Output 7 select Input8 < cir 68 Output 7 select Input previous >...

  • Page 16: Lan Control

    6.3. LAN control 1RWH8VH WKH GLUHFW 873 FDEOH WR FRQQHFW ZLWK 3& RU XVH FURVV FDEOH WR FRQQHFW WR WKH (WKHUQHW VZLWFKHU :KHQ 1(7&7/ UXQV RQ 3& IRU WKH ¿UVW WLPH LW ZLOO FUHDWH D ¿OH µ1(7&7/7;7¶ 7KLV ¿OH LV IRU GHYLFH¶V LQIRUPDWLRQ EDFNXS 7KLV information includes MAC address of unit, IP address, device name etc.
  • Page 17 The right area is for device controlling. Click these buttons to control the device. It is the same as using the remote controller. The left area shows which inputs are being chosen by the outputs.  :KHQ µ$VVLJQ ,3¶ LV GLVSOD\HG LW PHDQV WKDW WKH GHYLFH KDV QRW EHHQ DVVLJQHG DQ ,3 DX- WRPDWLFDOO\ 'RXEOH FOLFN WKLV LWHP RU FOLFN ULJKW EXWWRQ DQG FOLFN µ$VVLJQ ,3¶...

  • Page 18: Ir Call-Back From Remote Locations To Control The At-Prohd88M-Sr

    IR Call-back from Remote Locations to Control the AT-PROHD88M-SR You can use the unit’s remote through the IR RX of the HDMI receiver to change the input channel for the UTP out of the switcher, just by changing this UTP output.

  • Page 19: Details On The Edid

    DETAILS ON THE EDID Position ID EDID Operational Mode Fully COPY (STANDARD MODE) limited TMDS CLK COPY EDID )L[HG +0',B&+ (',' )L[HG +0',B&+ (',' )L[HG +0',B&+ (',' )L[HG +0',B&+ (',' Other conditions Limited TMDS CLK COPY EDID Limited TMDS CLK COPY EDID - Copy the EDID from the sink device to the matrix. But will limit the bit-rate below 2.25GHz.
  • Page 20 Use Input Select Knob to select input source. channel for output 1 Press enter to confirm. AT-PROHD88M-SR  3UHVV GRZQ µ(17(5¶ DQG µ287387B¶ VLPXOWDQHRXVO\ DIWHU WZR VHFRQGV /(' OLJKW VKRZ µµ circularly. (This means the matrix is performing EDID COPY). Release the buttons and wait IRU WKH PDFKLQH WR ¿QLVK WKH UHPDLQLQJ ZRUN...

  • Page 21: Maintenance

    Failed, LED shows MIX FL Select output. Use Input Select Knob to select input source. Press enter to confirm. AT-PROHD88M-SR $WWHQWLRQ  :KHQ WKH ',3 VZLWFK LV VHW WR ¿[HG (','   WKH (',' &23< RSHUDWLRQ ZLOO IDLO 7KH /(' ZLOO VKRZ 0,; )'...

  • Page 22: Connection Diagram

    CONNECTION DIAGRAM SOURCES 1 to 8 X-Box PS 3 2xCAT5e HDMI cable HDMI cable cable 2xCAT5e cable AT-PROHD-RP PROHD-RP AT-PROHD88M-R AT-PROHD88M-R HDMI cable HDMI cable HDTV HDTV...

  • Page 23: Safety Information

    It may also cause damage to your the manufacturer could void the AT-PROHD88M-SR. Opening the product user’s authority to operate this will void the warranty. equipment.

  • Page 24: Warranty

    Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.

  • Page 25: Atlona Product Registration

    At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights. To register go to www.atlona.com/registration...
