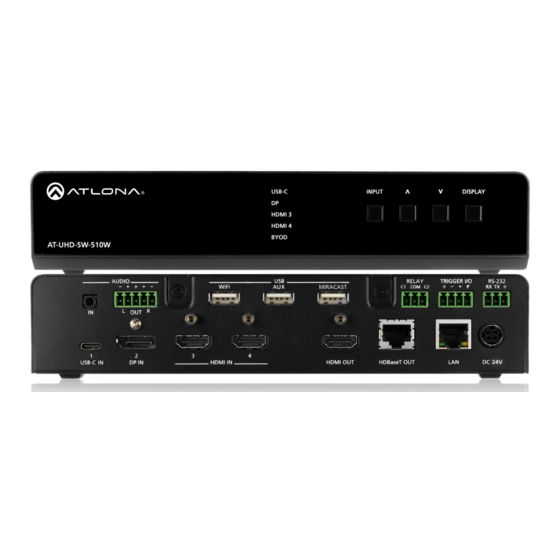

Atlona AT-UHD-SW-510W Manual

4k/uhd five-input universal matrix switcher with wireless presentation link
Hide thumbs Also See for AT-UHD-SW-510W:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Installation Manual
4K/UHD
Five-Input Universal Matrix Switcher
with Wireless Presentation Link
AT-UHD-SW-510W
Atlona Manuals
Switchers

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-UHD-SW-510W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atlona AT-UHD-SW-510W

Summary of Contents for Atlona AT-UHD-SW-510W

  • Page 1 4K/UHD Five-Input Universal Matrix Switcher with Wireless Presentation Link Atlona Manuals AT-UHD-SW-510W Switchers...
  • Page 2 Manual updated to reflect firmware 1.0.3 5/18 Manual updated to reflect firmware 1.1.0 7/18 Manual updated to reflect firmware 1.1.1 8/18 Manual updated to reflect firmware 1.2.0 9/18 Manual updated to reflect firmware 1.2.1 10/18 Manual updated to reflect firmware 2.0.0 AT-UHD-SW-510W...
  • Page 3 Welcome to Atlona! Thank you for purchasing this Atlona product. We hope you enjoy it and will take a extra few moments to register your new purchase. Registration only takes a few minutes and protects this product against theft or loss. In addition, you will receive notifications of product updates and firmware.
  • Page 4 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
  • Page 5 Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.
  • Page 6 Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations. AT-UHD-SW-510W...

  • Page 7: Table Of Contents

    Matrix Mode w/ Static Route Selecting the Audio Input Bluetooth Discovery AirPlay / Miracast P2P PIN Codes Using Moderator Mode 802.1X Authentication Using Wifi Using Ethernet The Web GUI Introduction to the Web GUI Menu Bar Info General page System page AT-UHD-SW-510W...
  • Page 8 User Accounts page Advanced page Pre-Release page Audio page Event Viewer page Appendix Updating the Firmware Upgrading from 1.1.05 Upgrading from Earlier Versions of Firmware Default Settings Mounting Instructions Single-unit Rack Installation Dual-unit Rack Installation Flat Surface Specifications Index AT-UHD-SW-510W...

  • Page 9: Introduction

    Introduction The Atlona AT-UHD-SW-510W is a 5×2, multi-format matrix switcher with wireless presentation capability. It provides universal BYOD (bring your own device) compatibility with HDMI, DisplayPort, and USB-C inputs, plus wireless connectivity for mobile devices. The SW-510W is HDCP 2.2 compliant, and features matrixed or mirrored HDMI and HDBaseT outputs.

  • Page 10: Panel Description

    Input Indicators 10 RS-232 Displays the currently selected input. Use the included captive screw connector to connect the AT-UHD-SW-510W to an automation system or INPUT computer running a terminal emulator. Press this button to cycle through each input. 11 USB-C...

  • Page 11: Installation

    Installation Audio The AUDIO OUT connector on the AT-UHD-SW-510W provides a separate output for balanced audio using XLR connectors. Use the included 5-pin captive-screw terminal block. Balanced audio connections use two signal wires and a ground to minimize interference in audio signals. Unbalanced output audio is not supported.

  • Page 12: Relay

    The AT-UHD-SW-510W provides a RELAY port, which allows the control of screens, curtains, and other devices. Use a 48 V DC relay with no more than 1 A current draw. When the AT-UHD-SW-510W is powered-on or rebooted, C1 and C2 are set to the Normally Open (NO) state. AT-UHD-SW-510W...

  • Page 13: Connection Instructions

    The AUX port is reserved for obtaining the IP address of the unit. Refer to Getting the IP Address (page 15) BYOD more information. AT-UHD-SW-510W IMPORTANT: Only use Atlona Wi-Fi USB modules. Other Wi-Fi modules may not be supported by this product. AUDIO RELAY TRIGGER I/O...

  • Page 14: Connection Diagram

    Installation Connection Diagram AT-VGW-250 DI SP IN PU B- C AT-UHD-SW-510W 10 W W -5 D -S A T- AT-UHD-EX-100CE-RX-PSE AT-VTP-800-WH se T Tablet (BYOD) Miracast™ Laptop Laptop UHD/HD Display Laptop AT-UHD-SW-510W...

  • Page 15: Ip Configuration

    IP address on the network. If the AT-UHD-SW-510W is unable to detect a DHCP server within 15 seconds, then the unit will use a self-assigned IP address within the range of 169.254.xxx.xxx. If this occurs, refer to Auto IP Mode (page 17).

  • Page 16: Setting The Ip Address Using The Web Gui

    GUI, to set the AT-UHD-SW-510W to either DHCP or static IP mode. In order to access the web GUI, the IP address of the AT-UHD-SW-510W must be known. 1. Open the desired web browser and enter the IP address of the AT-UHD-SW-510W.

  • Page 17: Auto Ip Mode

    Auto IP Mode If the AT-UHD-SW-510W is unable to detect a DHCP server within 15 seconds, then the unit will use a self-assigned IP address within the range of 169.254.xxx.xxx. If this occurs, connect the AT-UHD-SW-510W to a computer running Microsoft Windows®...

  • Page 18: Basic Operation

    Basic Operation Boot Sequence 1. After the power supply has been connected to the AT-UHD-SW-510W, the input indicators on the front panel will begin to flash, in an up-and-down pattern, as shown by the arrows. Input indicators USB-C INPUT DISPLAY...

  • Page 19: The Splash Screen

    Column #2 Customizing the Splash Screen This area displays information on how to connect to the AT-UHD-SW-510W and the name of the unit (subtitle). Each of the above text fields can be modified within the web GUI. 1. Launch a web browser and enter the IP address of the AT-UHD-SW-510W in the address bar.
  • Page 20 {name}. This value is a system value and is defined as the abbreviated SKU of the unit (“SW510”) plus the last four digits of the serial number. Other system values are available and can be placed in any of these fields. To display a list of available system values, click Legend. 5. Click the Save button to commit changes. AT-UHD-SW-510W...

  • Page 21: Displaying Metadata

    10.0.1.83 Version: 1.2.0 Metadata 1. Launch a web browser and enter the IP address of the AT-UHD-SW-510W in the address bar. 2. Login to the web GUI. Refer to Introduction to the Web GUI (page 55) for more information. 3. Click Splash Screen from the menu bar on the left.

  • Page 22: Displaying The Wireless Password

    Basic Operation Displaying the Wireless Password The wireless password can be displayed along with the name of the AT-UHD-SW-510W. When configured as a Access Point, the wireless password will automatically be displayed. The Name represents the SSID of the AT-UHD- SW-510W and is used to identify the unit when used as an Access Point.

  • Page 23: Changing The Splash Screen Image

    Splash screen #3 Automatically cycling through factory splash screen 1. Launch a web browser and enter the IP address of the AT-UHD-SW-510W in the address bar. 2. Login to the web GUI. Refer to Introduction to the Web GUI (page 55) for more information.

  • Page 24: Resetting Splash Screen Images

    3. Click Splash Screen from the menu bar on the left. 4. Click the Reset to default button. The AT-UHD-SW-510W will display a message box to confirm the operation. Click OK to proceed or click Cancel to abort.

  • Page 25: Selecting The Input

    Basic Operation Selecting the Input Press the INPUT button to cycle through each of the available inputs on the unit. If the unit is powered-off, then powered-on, the AT-UHD-SW-510W will set the default input to BYOD. USB-C INPUT DISPLAY HDMI 3...

  • Page 26: Wireless Configuration

    Access Point Mode When configured as an Access Point (AP), users will be able to connect wireless devices to the AT-UHD-SW-510W. 1. Make sure the AT-UHD-SW-510W is configured properly for use on a wired network. Refer to...
  • Page 27 Basic Operation 9. Click the Hide Password on OSD check box to prevent the password from being displayed. 10. Click the Rotate WiFi Password check box to allow the AT-UHD-SW-510W to generate a new random password. This feature can be used to provide an extra level of security. Dynamically rotating the password ensures that unauthorized clients will not have access to the AT-UHD-SW-510W if the current password is “leaked”...
  • Page 28 Basic Operation Firewall Mode (optional) This feature allows control of incoming and outgoing network traffic. The AT-UHD-SW-510W provides the following firewall modes: Block Private Network, Block Internet, Block All, and None. If this feature is not desired, then skip to Step 14.

  • Page 29: Connect Mode

    Connect Mode To connect the AT-UHD-SW-510W to another wireless network, select the Connect Mode. 1. Launch a web browser and enter the IP address of the AT-UHD-SW-510W in the address bar. 2. Login to the web GUI. Refer to Introduction to the Web GUI (page 55) for more information.
  • Page 30 9. Click the Save button near the bottom of the screen to commit changes. The system will prompt to be rebooted, as shown below. Click Yes to perform a reboot. To reboot at a later time, click the Later button. AT-UHD-SW-510W...
  • Page 31 The following table provides a list of possible status messages. State Description Connected The AT-UHD-SW-510W is connected to the wireless network. Not Connected Unsuccessful connection. Check to make sure the password was entered correctly. This state will also occur if the wireless network, to which the AT- UHD-SW-510W is connected, is taken offline.

  • Page 32: Setting The System Date And Time

    Basic Operation Setting the System Date and Time The AT-UHD-SW-510W uses the internal clock to store the current date and time. When setting the time and date, Universal Coordinated Time (UTC) must be used. 1. Login to the web GUI. Refer to Introduction to the Web GUI (page 55) for more information.

  • Page 33: Casting

    1. Select the BYOD input on the AT-UHD-SW-510W. 2. On the iOS device, go to Settings > Wi-Fi. 3. Under Wi-Fi, select the SSID of the AT-UHD-SW-510W in the list of available devices. The SSID is displayed on the splash screen. See Boot Sequence (page 18) for more information on locating the SSID.
  • Page 34 AirPlay is not supported. 1. Click the Wi-Fi icon in the menu bar and select the SSID of the AT-UHD-SW-510W. If the Wi-Fi icon is not displayed, then refer to the Macintosh documentation for information on setting up a Wi-Fi connection.
  • Page 35 Click the AirPlay icon and select “Turn AirPlay Off”. AirPlay can also be turned off by clicking System Preferences > Displays. Click the AirPlay Display drop- down list and select “Off”. To re-enable AirPlay, select the device from the drop-down list. AT-UHD-SW-510W...

  • Page 36: Microsoft Miracast

    Method 1 1. Press keys, simultaneously. 2. The list of available devices will be displayed on the right-hand side of the screen. Select the AT-UHD-SW-510W hostname from the list. Method 2 1. Right -click on the Windows Desktop and select Display Settings from the pop-up menu.

  • Page 37: Google Chromecast (Vp8)

    3. Click the Cast... option from the drop-down menu. 4. Select the hostname of the AT-UHD-SW-510W from the Cast to menu. Chrome will immediately begin casting to the AT-UHD-SW-510W. Note that if Moderator mode is enabled, this cast will be placed in the Users table queue. Refer to Using Moderator Mode (page 49) for more information.
  • Page 38 6. Click the x in the upper-right corner of the Casting tab to dismiss this dialog. When Chrome is casting, the icon will appear in the upper-right porition of the menu bar. Clicking this icon will display the Casting tab dialog. 7. Click STOP to discontinue casting to the AT-UHD-SW-510W. AT-UHD-SW-510W...

  • Page 39: Android / Google Home App

    There are two methods for casting with the Google Home App. Both methods will be covered below. Standard Method 1. Launch the Google Home App. 2. Scroll-down and locate the Additional section, 3. The casting screen will be displayed. Press the then press the Mirror device option. desired device to cast to. AT-UHD-SW-510W...
  • Page 40 Basic Operation Quick Cast Method 1. Press and hold the Google Home App icon to display the Cast screen fly-out menu. 2. Tap the Cast screen option from the fly-out menu. AT-UHD-SW-510W...

  • Page 41: Advanced Operation

    Advanced Operation Matrix Modes The AT-UHD-SW-510W features two matrix modes: Matrix Mode and Matrix Mode with static route. Enabling matrix mode provides the ability to use AT-UHD-SW-510W in video codec / conference applications, using a dual-presentation mode. Matrix Mode This mode allows the AT-UHD-SW-510W to independently switch between any input or both outputs. Following the instructions below to configure Matrix Mode.
  • Page 42 Advanced Operation Example diagram illustrating a Matrix Mode application. AT-VTP-800 I OUT P OUT -250 AT-V AT-UHD-SW-510W AT-VGW-250 Network Switch RS -23 R I/O IG GE M IRA 24 V W iFi se T DI O AT-UHD-EX-100CE-RX-PSE B- C Tablet...

  • Page 43: Matrix Mode W/ Static Route

    Matrix Mode w/ Static Route This mode allows the AT-UHD-SW-510W to be integrated with a video conference system. In this mode, both static input and output routing is specified. Auto switching will be enabled. However, the specified static input will be removed from the auto-switching pool.
  • Page 44 Advanced Operation Example diagram illustrating a Matrix Mode application. AT-UHD-SW-510W Network Switch RS -2 R I/O IG GE M IR 24 V W iFi se T DI O AT-UHD-EX-100CE-RX-PSE B- C se T n t e E n d F a r...

  • Page 45: Selecting The Audio Input

    DISPLAY By default, the AT-UHD-SW-510W will use the digital audio (if present) from the USB-C IN, DP IN, or HDMI IN ports and output the audio over the HDMI OUT and/or HDBaseT OUT ports. However, an external analog source can HDMI 3 also be used.

  • Page 46: Bluetooth Discovery

    5. Click the Airplay - Bluetooth check box under the BYOD section. If this check box has a check mark in it, then the feature is enabled. Also, make sure that Airplay Enable is checked. 6. Go to the AirPlay device and activate Screen Mirroring. The AT-UHD-SW-510W will now be displayed in the device list.

  • Page 47: Airplay / Miracast P2P Pin Codes

    AirPlay / Miracast P2P PIN Codes The AT-UHD-SW-510W can be configured to prompt for a PIN code, before a BYOD device connects with either AirPlay or Miracast P2P. When the this option is enabled, a PIN code will be displayed on the screen when an AirPlay or Miracast device attempts to connect to the AT-UHD-SW-510W.
  • Page 48 10 seconds. If the PIN code is not entered within the time interval, then the PIN code will be removed from the screen. The example below, shows an AirPlay device prompting for the PIN code. Clicking Cancel in the AirPlay Code dialog box will reconnect the AirPlay device to the AT-UHD-SW-510W and generate a new PIN code.

  • Page 49: Using Moderator Mode

    In order to monitor which devices are allowed to display content, this box must be checked before a device begins casting. If a device is already casting, then enabling this feature will have no effect. 4. Connect the BYOD devices to the AT-UHD-SW-510W. Once connected, the device can begin casting. Refer to Casting (page 33) for more information on how to configure devices for casting.
  • Page 50 Once the selected device is allowed to cast to the connected display device, the Allow button will be disabled. In the example below, Brenda’s iPhone is now the active casting device and shown on the display device. Active casting device AT-UHD-SW-510W...
  • Page 51 Once a device has been “kicked”, it will no longer appear in the Users table. In the example below, Brenda’s iPhone has been removed. To reconnect a device that has been “kicked”, select the hostname of the AT-UHD-SW-510W from the cast menu of the BYOD device.

  • Page 52: 802.1X Authentication

    Supplicant 10 W W -5 D -S A T- (AT-UHD-SW-510W) Using Wifi 1. Login to the web GUI. Refer to Introduction to the Web GUI (page 55) for more information. 2. Click Administration > Networking from the menu bar on the left.
  • Page 53 5. Enter the required credentials in the Identity and Password fields. 6. Click the Upload button to upload the required certificate to the AT-UHD-SW-510W. Note that the PKCS#12 file (.pfx file) should not include a private key. To delete an existing certificate, click the Delete button.

  • Page 54: Using Ethernet

    5. Enter the required credentials in the Identity and Password fields. 6. Click the Upload button to upload the required certificate to the AT-UHD-SW-510W. Note that the PKCS#12 file (.pfx file) should not include a private key. To delete an existing certificate, click the Delete button.

  • Page 55: The Web Gui

    Introduction to the Web GUI The AT-UHD-SW-510W includes a built-in web GUI. Atlona recommends that the web GUI be used to set up the AT-UHD-SW-510W, as it provides intuitive management of all features. Follow the instructions below to access the webGUI.

  • Page 56: Menu Bar

    The window on the left side of the screen is the is the menu bar and lists all available menus. Click on the desired menu item to open that page. In this example, clicking Display, in the menu bar, will display the Display page. AT-UHD-SW-510W...

  • Page 57: Info

    The version of firmware. Firmware Version The version of firmware that the AT-UHD-SW-510W is running. Always make sure to check the AT-UHD-SW-510W product page, on the Atlona web site, for the latest version of firmware. NOTE: When the default password is used as part of the login credentials, the following message...

  • Page 58: General Page

    Name Enter the desired name of the AT-UHD-SW-510W in this text field. Include the {id} tag to use the last four digits of the hardware MAC address. The {id} tag is optional and can be placed anywhere within the Name field.

  • Page 59: System Page

    Model Name The SKU of the product: AT-UHD-SW-510W. Master Version The master version of firmware. Always make sure to check the AT-UHD-SW-510W product page, on the Atlona web site, for the latest version of firmware. Firmware Version The version of (MCU) firmware that the AT-UHD-SW-510W is running. Always make sure to check the AT-UHD-SW- 510W product page, on the Atlona web site, for the latest version of firmware.
  • Page 60 The Web GUI Upload Click this button to upload a configuration file to the AT-UHD-SW-510W. Uploading a new configuration file will overwrite the current configuration settings. Documentation Click each of these links to access the latest version of the User Manual, IT Deployment Guide, or API Documentation.

  • Page 61: Splash Screen Page

    Refer to the illustration The text positioned in the left column. The default text is above. “Connect wired: Connect the HDMI, USB-C, or DisplayPort cable at the table to your device”. Save Click this button to commit all changes on this page. AT-UHD-SW-510W...

  • Page 62: Images

    Click the Reset button to set the splash screen images to the default images. Enable Image Rotation Click this check box to instruct the AT-UHD-SW-510W to cycle through the splash screen images. Image Rotation Time Click this drop-down list to select the image rotation interval.

  • Page 63: Routing Page

    Click the desired button to set the auto-switch input. Fallback Delay (ms) Set the time interval, in seconds, before the AT-UHD-SW-510W auto-switches to the selected input, if no signal is present. The default value is 5000 milliseconds (5 seconds). Matrix Switching Matrix Switch Click this drop-down list to select the desired matrix mode.

  • Page 64: Display Page

    Display Auto Power Click this check box to allow the AT-UHD-SW-510W to send the power-on command to the display when an A/V signal is detected. When the AV signal is no longer present, then the AT-UHD-SW-510W will send the power-off command to the display.

  • Page 65: Cec

    The power-on and power-off command can also be sent over HDBaseT or HDMI. These buttons will only be enabled if a device is connected to the AT-UHD-SW-510W, using the correct cable. For example, the HDMI ON / OFF buttons will only be enabled when an HDMI cable is connected from the AT-UHD-SW-510W to a display.
  • Page 66 Affects the settings for the RS-232 port. RS-232 commands will be transmitted to/ from the RS-232 port to the control system. Both Both HDBaseT OUT and the RS-232 port are used. Note that when using both ports, the RS-232 settings must be identical. AT-UHD-SW-510W...
  • Page 67 If a device is not listed, enter the appropriate commands the device in each field. Commands can be either ASCII or hexadecimal. If hexadecimal values are used, then use the /x delimiter at the end of the string. AT-UHD-SW-510W...
  • Page 68 Commands can be either ASCII or hexadecimal. If hexadecimal values are used, then use the /x delimiter at the end of the string. Save Click this button to commit all changes. Revert Click this button to undo all changes. AT-UHD-SW-510W...

  • Page 69: Edid Page

    Displays the EDID assigned that is being used by each output. Press the Save button to save the EDID to a file. Inputs The Input column displays each of the inputs on the AT-UHD-SW-510W. Click the drop-down list, under the Selection column, to select the desired EDID to be used. Click the Save button to accept the changes. The table below lists the available EDID presets.

  • Page 70: Administration Page

    The Web GUI Administration page Telnet page The Telnet page provides an emulated terminal for entering commands. AT-UHD-SW-510W...

  • Page 71: Moderator Page

    Users This table lists all users which are casting using the AT-UHD-SW-510W. Up to four users can be hosted at one time, but only one can be displayed at a time. Devices will only appear in this table when they are casting. Moderator mode must be enabled for devices to be displayed in this table.

  • Page 72: Networking Page

    The Web GUI Networking page This page contains a Wifi and Ethernet tab. Use the settings, under these tabs, to connect the AT-UHD-SW-510W to a network or Wireless Access Point (WAP). Refer to the IT Network Deployment Guide for detailed information on configuring the AT-UHD-SW-510W in various network environments.
  • Page 73 AT- UHD-SW-510W. Connect Select this mode to connect the AT-UHD-SW-510W to the specified SSID of a wireless host. Disabled Select this mode to disable Wi-Fi on the AT-UHD-SW-510W.
  • Page 74 510W provides the following firewall modes: Block Private Network, Block Internet, Block All, and None. Setting Description None Select this option to disable the firewall on the AT-UHD-SW-510W and allow all incoming and outgoing network traffic. Block Private Network Select this option to prevent unauthorized clients from accessing the AT-UHD-SW-510W.
  • Page 75 Connect Mode Select this option to allow the AT-UHD-SW-510W to connect to an available wireless network. SSID The name of the wireless network to which the AT-UHD-SW-510W is connected. Click the Pick button to select the desired wireless network. Password Enter the password, required to connect to the AT-UHD-SW-510W.
  • Page 76 Ethernet tab Click this tab to configure wired network settings on the AT-UHD-SW-510W. By default, the AT-UHD-SW-510W is set to DHCP mode, allowing a DHCP server (if present) to assign the unit an IP address. If a DHCP server is not found within 15 seconds, then the unit will be placed in Auto IP mode and use a link-local IP address within the range of 169.254.xxx.xxx.
  • Page 77 Select this option to enter a specific IP address. When set to Static mode, the subnet mask, gateway, and DNS servers can be specified. IP Address Enter the desired IP address for the AT-UHD-SW-510W in this field. Network Mask Enter the subnet mask in this field.
  • Page 78 The Web GUI Factory Static Mode Select this option to set the AT-UHD-SW-510W to the factory-default IP settings: IP Address 192.168.1.254 Network Mask 255.255.0.0 Gateway 192.168.1.1 The advantage of this mode is that the IP address is always known, and is useful for troubleshooting and configuration.
  • Page 79 Connecting to a Wifi Network 1. Select Connect from the Mode drop-down list. 2. Click the Pick button to open the Pick a Wifi Network dialog box. 3. Click on the desired wireless network from the list. 4. Click the OK button. AT-UHD-SW-510W...

  • Page 80: Debug Page

    Debug page Click the Download Logs button to download the debug logs. Debug logs are downloaded in a .zip file. Debug logs are used by Atlona Technical Support Engineers to identify functionality issues. 1. Click Debug on the side menu bar.

  • Page 81: User Accounts Page

    1. Click the Change button to display the Change Password dialog box. 2. Enter the new password in the Password field. 3. Re-enter the same password in the Repeat Password field. 4. Click the Save button to commit changes or click Cancel to abort the process. AT-UHD-SW-510W...

  • Page 82: Advanced Page

    SW510-E753 To being your presentation: Connect wired: Connect wirelessly: Connect the HDMI, USB-C, Search for SW510-E753 or DisplayPort cable on your AirPlay, at the table to your GoogleCast (Google Home App), device. or Miracast device. Name: sw510-e753 Password: m0dsquaD AT-UHD-SW-510W...
  • Page 83 The Web GUI BYOD Max BYOD Time Click this drop-down list to select the desired time interval before the connected BYOD is automatically disconnected from the AT-UHD-SW-510W. Kick User Click this button to disconnect the current BYOD. Miracast EDID Click this drop-down list to select the EDID used by Miracast.
  • Page 84 Click this drop-down list to select the desired HTTP protocol. Setting Description HTTP and HTTPS Provides either HTTP or HTTPS connections at the login screen. HTTPS Used for secure connections only. Block USB HID Deactivates / disables the USB ports on the rear panel of the AT-UHD-SW-510W. AT-UHD-SW-510W...

  • Page 85: Pre-Release Page

    The Web GUI Pre-Release page This page is reserved for future features. AT-UHD-SW-510W...

  • Page 86: Audio Page

    Click these drop-down lists to select the desired audio input source. If Analog is selected, then the analog audio source connected to the 3.5 mm AUDIO IN port will be heard on that output. Refer to Selecting the Audio Input (page 45) for more information. AT-UHD-SW-510W...

  • Page 87: Event Viewer Page

    The Web GUI The Web GUI Event Viewer page Displays a dynamic list of events, returned in JSON format. The image below, shows a list of sample events. AT-UHD-SW-510W...

  • Page 88: Appendix

    2. Connect the computer, containing the firmware files, to the same network as the AT-UHD-SW-510W. 3. Launch a web browser and enter the IP address of the AT-UHD-SW-510W in the address bar. a. If the IP address is unknown, then insert a USB drive into the AUX port on the back of the unit. Wait approximately 10 seconds then remove the USB drive.

  • Page 89: Upgrading From 1.1.05

    The unit automatically reboots. 4. The following message will appear at the top of the screen. Click the message or press the ESC key to return to the Login screen. Enter the login credentials. 5. The firmware update process is complete. AT-UHD-SW-510W...

  • Page 90: Upgrading From Earlier Versions Of Firmware

    Appendix Upgrading from Earlier Versions of Firmware STOP! Continue with the following steps ONLY if the AT-UHD-SW-510W Master Firmware version is older than 1.2.1-5. 6. Click System on the side menu bar. 7. Click the Upload button, next to Update Firmware and select the SW510-[version]-B.bin file.
  • Page 91 Appendix After the firmware process has completed, the AT-UHD-SW-510W will automatically reboot and the following message will appear at the top of the screen: 9. Click the message or press the ESC key to return to the Login screen. Enter the login credentials.

  • Page 92: Default Settings

    Appendix Default Settings The following tables list the factory-default settings, as defined in the web GUI, for the AT-UHD-SW-510W. Web GUI Page Setting Default Value Login Username admin Password Atlona General Name SW510-{id} Splash Screen Show Meta Data Disabled Show Panel...
  • Page 93 AirPlay - Bluetooth Disabled AirPlay PIN Disabled AirPlay Enable Enabled Googlecast Enable Enabled Miracast Enable Enabled Arrow Buttons Volume Portal Mode HTTP and HTTPS Audio Master Volume 0 (dB) Audio Input: HDMI 3 Digital HDMI 4 Digital USB-C Digital Digital AT-UHD-SW-510W...

  • Page 94: Mounting Instructions

    Appendix Mounting Instructions The AT-UHD-SW-510W can be mounted in different ways, based on the number of units that are being installed. The AT-UHD-SW-510W can be mounted in a rack or on/under any flat surface. NOTE: AT-UHD-510W-RM rack ears are sold separately. Contact Atlona for more information.

  • Page 95: Dual-Unit Rack Installation

    IN P B -C N -4 -R O P L A 5 1 0 D IS D - S - U H IN P B -C N -4 -R O 5 1 0 D - S - U H AT-UHD-SW-510W...

  • Page 96: Flat Surface

    P L A D IS IN P B - C 5 1 0 D - S - U H NOTE: The unit can also be mounted under a flat surface, such as a table, by turning the unit upside down. AT-UHD-SW-510W...

  • Page 97: Specifications

    DTS-HD Master Audio™, and DTS:X® Sample Rate 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz Bit Rate 24 Mbits/s max Resolution / Distance 4K/UHD - Feet / Meters 1080p - Feet / Meters HDMI IN/OUT CAT5e/6 CAT6a/7 AT-UHD-SW-510W...
  • Page 98 H x W x D (w/ feet) 1.77 x 8.46 x 10.19 48 x 215 x 259 H x W x D (w/o feet) 1.73 x 8.46 x 10.00 44 x 215 x 254 Weight Pounds Kilograms Device 3.70 1.68 Certification Device CE, FCC, UL AT-UHD-SW-510W...

  • Page 99: Index

    Contents Resetting package to factory-defaults table of RS-232 Customer support Safety information Default settings Settings Description default front / rear panel Specifications DHCP Splash screen changing the image customizing dynamic background EDID layout presets metadata resetting images AT-UHD-SW-510W...
  • Page 100 • 408.962.0515 • 877.536.3976 © 2018 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability...
