Summary of Contents for Atlona AT-UHD-PRO3-88M

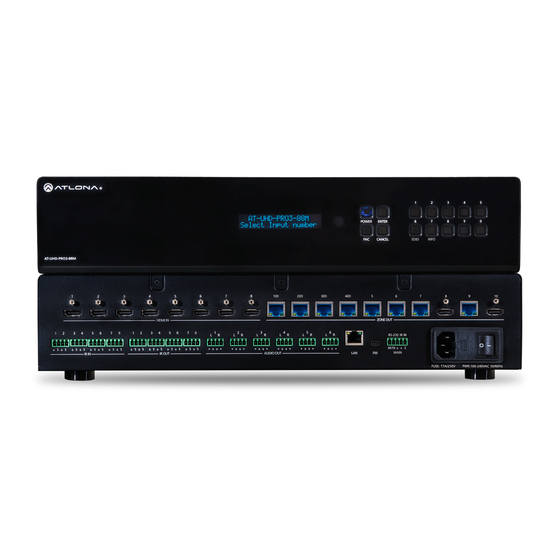

- Page 1 4K/UHD 8x8 HDMI to HDBaseT Matrix Switcher Atlona Manuals AT-UHD-PRO3-88M Switchers...
- Page 2 Version Information Version Release Date Notes 11/18 New format AT-UHD-PRO3-88M...
- Page 3 Welcome to Atlona! Thank you for purchasing this Atlona product. We hope you enjoy it and will take a extra few moments to register your new purchase. Registration only takes a few minutes and protects this product against theft or loss. In addition, you will receive notifications of product updates and firmware.
- Page 4 Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com.
- Page 5 Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.
- Page 6 Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations. AT-UHD-PRO3-88M...
-
Page 7: Table Of Contents
Using the web GUI Copying a Downstream EDID Managing Users Adding Users Editing / Deleting Users Advanced Operation RS-232 Control Determining the Port Type Cable Assembly Pass-through mode Control mode IR Control Cable Assembly Controlling Display Devices Controlling Headend Devices AT-UHD-PRO3-88M... - Page 8 Firmware page Network page Control page Users page I/O page Route Memory page EDID page HDCP page HDBT Test page Audio page Appendix Updating the Firmware Cable Termination HDBaseT Testing Default Settings Mounting Instructions Rack Installation Surface Mounting Specifications AT-UHD-PRO3-88M...
-
Page 9: Introduction
Introduction The AT-UHD-PRO3-88M is a dual-distance 4K/UHD 8×8 HDMI to HDBaseT matrix switcher 4K/UHD @ 60 Hz video signals with Power over Ethernet for receivers and analog audio breakout. The matrix provides flexible HDBaseT routing with both extended distance, 330 foot (100 meter) and long distance, 230 foot (70 meter) transmission over category cable with bidirectional extension of both RS- 232 and IR Control. -
Page 10: Panel Description
Panel Description Front POWER ENTER CANCEL EDID INFO AT-UHD-PRO3-88M HDMI IN ZONE OUT Front Panel Display This 16-character, two-row display provides the status of the matrix during various operations. RS-232 IR IN RX TX IR IN IR OUT AUDIO OUT... -
Page 11: Rear
Panel Description POWER ENTER Rear CANCEL EDID INFO AT-UHD-PRO3-88M HDMI IN ZONE OUT RS-232 IR IN RX TX IR IN IR OUT AUDIO OUT MAIN FUSE: T 4A/250V PWR 100-240VAC 50/60Hz HDMI IN Connect up to eight HD/UHD source devices to these ports using HDMI cables. -
Page 12: Installation
Installation Audio Connectors The AUDIO IN and AUDIO OUT ports on the AT-UHD-PRO3-88M provide analog inputs and outputs, respectively, for audio. Use the included 5-pin captive screw blocks to connect either balanced or unbalanced analog sources/ outputs. Balanced XLR Wiring... -
Page 13: Connection Instructions
Web GUI and/or use the matrix for IP control. CANCEL EDID INFO 5. Connect the included power cable from the PWR 100-240VAC 50/60Hz power receptacle to an available AC AT-UHD-PRO3-88M power outlet. HDMI IN ZONE OUT RS-232 IR IN... -
Page 14: Setting The Ip Mode
255.255.255.0 Gateway 192.168.0.1 The front-panel display can be used to identify the IP address of the matrix. The AT-UHD-PRO3-88M can also be set to a static IP address, if necessary. Using the Front Panel 1. Make sure the home screen is displayed. If the home screen is not displayed, press the CANCEL button to return to the home screen. - Page 15 Click OFF to set the matrix to static IP mode. When set to static IP mode, enter the required information in the IP Address, Subnet, and Gateway fields, as shown in the illustration below. 3. Click the Save button to commit changes. AT-UHD-PRO3-88M...
-
Page 16: Connection Diagram
R SYS Speakers pli fer al Am ss ion Pr ofe Zone Amplifier HD display TE R FC N AT-UHD-EX-100CE-RX -U HD AT-UHD-PRO3-88M Set-Top Box Media Player P BOX A/V Receiver ri c SYST SPEA ri c SYST SPEA ri c... -
Page 17: Basic Operation
INFO 1. Press the ON/OFF button so that it is in the ON position. To power-off the matrix, push the button to the AT-UHD-PRO3-88M OFF position. During the power-on procedure, the backlight on the POWER button will flash blue/red. Once complete, the POWER button will be backlit with a solid blue light. -
Page 18: Standby Mode
CANCEL EDID INFO AT-UHD-PRO3-88M The matrix will power-down and be placed in a low-power state and the POWER button will be backlit by a solid red light. When the matrix is in standby mode, operations using the front-panel buttons are suspended. However, access... -
Page 19: Viewing Matrix Settings
4. Press the ENTER button once more to return to the home screen. By default, the AT-UHD-PRO3-88M is set to a “one-to-one” routing state, meaning that each input is routed to its associated output: 1-to-1, 2-to-2, etc., as shown below. This matrix features a total of eight HDMI inputs and 10 outputs (eight HDBaseT outputs and two HDMI outputs). -
Page 20: Displaying The System Settings
2. Press and release the FNC button to display the SELECT FUNCTION screen. POWER ENTER CANCEL EDID INFO AT-UHD-PRO3-88M 3. Press and release the INFO button to display the firmware version. AT-UHD-PRO3-88M HDMI IN ZONE OUT FW 16.1.0 RS-232... -
Page 21: Routing Inputs To Outputs
Routing Inputs to Outputs When the AT-UHD-PRO3-88M is shipped from the factory, the matrix is set to “one-to-one” routing mode. This means that input 1 is routed to output 1, input 2 is routed to output 2, and so on. The following section describes how to change the routing state. - Page 22 3. In the row labeled Out 4: Output_4, click the drop-down list to the far right, and select In 3 : Input_3. 5. Click the Save button to commit changes. HDMI IN 3 is now routed to ZONE OUT 4. AT-UHD-PRO3-88M...
-
Page 23: Routing A Single Input To All Outputs
2. Press and release the FNC button to display the Select Function screen. POWER ENTER INFO CANCEL EDID AT-UHD-PRO3-88M 3. Press button 1 to execute the Route To All Outputs function. Select input to HDMI IN ZONE OUT route to all outpuTs RS-232... - Page 24 3. Under the Input/Output Selection section, click the Output “All” drop-down list and select the input to be routed. In this example, HDMI IN 2 will be selected. 4. Click the Save button to commit changes. HDMI IN 2 is now routed to all outputs. AT-UHD-PRO3-88M...
-
Page 25: Output Mirroring
POWER ENTER Output Mirroring CANCEL EDID INFO AT-UHD-PRO3-88M In addition to the HDBaseT outputs, the AT-UHD-PRO3-88M also provides two HDMI output ports (highlighted in the image below). HDMI IN ZONE OUT RS-232 IR IN RX TX IR IN IR OUT... - Page 26 5. Click the drop-down list, across from Out 8: Output_8, and select Out 3 : Output_3. This instructs the matrix to mirror the source signal on ZONE OUT 3 to ZONE OUT 8. 6. Click the Save button to commit changes. HDMI IN 7 routed to ZONE OUT 3 Mirroring On ZONE OUT 3 mirrored to ZONE OUT 8 AT-UHD-PRO3-88M...
-
Page 27: Disabling Mirroring
AT-UHD-EX-100CE-RX AT-UHD-PRO3-88M 3- 88 D -P A T- A/V Signal Display Display AT-UHD-PRO3-88M... - Page 28 4. Click the drop-down list, to the right of Out 8: Output_8, and select In 2 : Input_2. This instructs the matrix to route HDMI IN 2 to ZONE OUT 8. 5. Click the Save button to commit changes. Mirroring Off HDMI IN 2 routed to ZONE OUT 8 AT-UHD-PRO3-88M...
-
Page 29: Creating And Editing Routing Presets
4. Click the drop-down list, next to each output, to set the desired routing state. In this example below, Preset_2 will be used to store the current routing state. The Mirror Mode drop-down lists can also be changed as desired, and will be stored as part of the routing preset. 5. Click the Save button to commit changes. AT-UHD-PRO3-88M... -
Page 30: Recalling A Preset
2. Click Route Memory, under the Configuration section, in the menu bar on the left side of the screen. 3. Click the drop-down list under Memory Selection and select the desired preset. In this example, M2 : Preset_2 is being selected. 4. Click the Select button to invoke the selected routing state. AT-UHD-PRO3-88M... -
Page 31: Editing Presets
4. Click the drop-down list, next to each output, to set the new routing state. For more information on how to modify routing states, refer to Routing Inputs to Outputs (page 21) Audio Routing (page 31). 5. Click the Save button to commit changes. AT-UHD-PRO3-88M... -
Page 32: Renaming Presets
4. Enter the name of the preset in the Memory label text field, as shown in the example below. 5. Click the change button to commit the change. All instances for the new input name will now be displayed, throughout the web GUI, as shown: AT-UHD-PRO3-88M... -
Page 33: Input And Output Management
In this example, In 3 : Input_3 is being renamed as Blu-ray_Player. 5. Click the Change button to save the change. All instances for the new input name will now be displayed, throughout the web GUI, as shown: AT-UHD-PRO3-88M... -
Page 34: Renaming Outputs
5. Click the Change button to save the change. The new name will now be displayed when an output is selected, as shown. Note that if an output is selectable (Output_8 and Output_10 drop-down lists), then it will also appear in the drop-down list. AT-UHD-PRO3-88M... -
Page 35: Renaming Memory Presets
Basic Operation Renaming Memory Presets The AT-UHD-PRO3-88M provides 50 presets for storing routing presets. Each preset can also be renamed with more descriptive names, for easy identification and recall at any time. 1. Login to the web GUI. Refer to Introduction to the Web GUI (page 53) for more information. -
Page 36: Edid Management
Once the source has this information, it will send the supported picture and audio resolution that is supported by the display. By default, the AT-UHD-PRO3-88M loads a “default” EDID on all inputs. This particular EDID provides the source with the highest common resolution and audio information that is supported by all connected displays. - Page 37 ATL 1080P 3D DD EDID 14 ATL 4K30 MultiCH EDID 07 ATL 720P 2CH EDID 15 ATL 4K60 2CH EDID 08 ATL 720P DD EDID 16 ATL 4K60 MultiCH 9. Press the ENTER button to copy the selected EDID to the input. AT-UHD-PRO3-88M...
-
Page 38: Using The Web Gui
Refer to Copying a Downstream EDID (page 39) for more information. 4. Click the Save button to commit changes. The source device, routed to this input, will now use this EDID instead of the downstream EDID (of the sink device). AT-UHD-PRO3-88M... -
Page 39: Copying A Downstream Edid
Press the FNC button to display the SELECT FUNCTION screen. POWER ENTER INFO CANCEL EDID AT-UHD-PRO3-88M 3. Press the EDID button to display the EDID screen. 1. copy output edid HDMI IN ZONE OUT 2. choose input edid RS-232... - Page 40 4. Click the EDID Memory drop-down list for the output, where the sink is connected, and select the memory location. Each of the 10 outputs has an associated memory location: Output_1 = EDID Memory 1, Output_2 = EDID Memory 2, and so on. AT-UHD-PRO3-88M...
- Page 41 When selecting an EDID to be copied to an input, always click the Save button to commit changes. To clear all stored EDID data from the AT-UHD-PRO3-88M, click the EDID Reset button, shown in the illustration on the previous page.
-
Page 42: Managing Users
The AT-UHD-PRO3-88M allows the Admin user to create, edit, and remove additional TCP/IP users. All users have the same level of access to control the AT-UHD-PRO3-88M. However, only the Admin user is allowed to manage other users. Up to three additional users can be created. - Page 43 6. Once created, the new user and the associated password will appear under the All User Login Settings section. To login with the new username, click Logout in the upper-right corner of the screen, then enter the login credentials for the user on the Login page. AT-UHD-PRO3-88M...
-
Page 44: Editing / Deleting Users
The username and password of a user can be changed using this method. 1. Open the desired web browser and enter the IP address of the AT-UHD-PRO3-88M. 2. Log in as the Admin user with the required credentials. The factory-default username and password for the... -
Page 45: Advanced Operation
Advanced Operation RS-232 Control The AT-UHD-PRO3-88M provides RS-232 control between an automation system and an RS-232 device using a captive screw connector block. The AT-UHD-PRO3-88M provides two modes of RS-232 control: Pass-through mode and control mode. RS-232 is serial data protocol that allows Data Terminal Equipment (DTE) devices, such a computer or control... -
Page 46: Cable Assembly
However, the AT-UHD-PRO3-88M will use only TxD, RxD, and GND signals when communicating with a control system or computer. -
Page 47: Pass-Through Mode
Advanced Operation Pass-through mode In pass-through mode, RS-232 commands are sent to the AT-UHD-PRO3-88M and then transmitted over HDBaseT to the receiver unit (e.g. AT-UHD-100CE-RX), and then to the display (sink) device. 1. Connect the RS-232 cable between the control system and the AT-UHD-PRO3-88M. Refer to... - Page 48 The factory-default username and password are listed below: Username: root Password: Atlona 5. Click Control in the side menu bar. 6. Select the proper baud rate, data bit, parity, and stop bit settings for the HDBaseT OUT port. These settings must correspond with the RS-232 settings of the receiver unit (e.g.
-
Page 49: Control Mode
Advanced Operation Control mode In control mode, RS-232 commands are sent from a computer or control system (DTE) to the AT-UHD-PRO3-88M (DCE). This method allows direct control of the matrix for routing, IP configuration, powering-on / powering-off and other functions. -
Page 50: Ir Control
Advanced Operation IR Control POWER ENTER The AT-UHD-PRO3-88M feature eight IR IN ports and eight IR OUT ports. Devices at either the headend or CANCEL EDID INFO connected to the receiver unit can be controlled using IR. AT-UHD-PRO3-88M ZONE OUT... -
Page 51: Controlling Display Devices
ZONE OUT port: IR IN 1 > ZONE OUT 1ED, IR IN 2 > ZONE OUT 2ED, and so on. 1. Connect the IR output of the control system to the IR IN ports on the AT-UHD-PRO3-88M, using the included 4-pin captive screw connector blocks. -
Page 52: Controlling Headend Devices
1. Connect the IR receiver (AT-IR-CS-RX) to the HDBaseT receiver, at the viewing location. Although a control system can be used, a basic IR receiver is commonly used. 2. Connect an IR emitter to the desired IR OUT port on the AT-UHD-PRO3-88M. Make sure the source device is within range of the IR emitter. -
Page 53: The Web Gui
2. Launch a web browser and enter the IP address of the unit. If the default static IP address is being used, enter 192.168.1.254. If the IP address of the AT-UHD-PRO3-88M is not known, press and release the FNC button on the front panel, then repeatedly press the INFO button until the IP address is displayed, as illustrated in the example below. - Page 54 The window on the left side of the screen is the is the menu bar and lists all available menus. Click on the desired menu item to open that page. For example, clicking on Network will display the Network page. Click Logout, at any time, to logout of the web GUI. AT-UHD-PRO3-88M...
-
Page 55: Status Page
Save System Settings Click this button to save the current system configuration to a local file. Choose File Click this button to select the configuration file to be loaded. Click the Load button to upload the file to the system. AT-UHD-PRO3-88M... -
Page 56: Firmware Page
Click this button to select the firmware file for the matrix. Click this button to select the firmware file for the Click the Update button to being the firmware update HDBaseT remote device (if connected). Click the process. Update button to being the firmware update process. AT-UHD-PRO3-88M... -
Page 57: Network Page
Simple Device Discovery Protocol. SDDP is a discovery (“IP scan”) protocol authored by Control4® to provide IP Address easy integration of the AT-UHD-PRO3-88M with Enter the IP address of the AT-UHD-PRO3-88M in this Control4 devices on a network. SDDP functions similar ®... -
Page 58: Control Page
Click this drop-down list to specify the desired NTP server. Two NTP servers are available: Server 1 or Server 2. Time Zone Click this drop-down list to select the desired time zone. The default setting is Greenwich Mean Time (GMT). AT-UHD-PRO3-88M... -
Page 59: Users Page
Click this button to add a TCP/IP user. The Username and Password fields must be completed before a new user can be added. Old Password Enter the current password for the “root” username in this field. The default password is “Atlona”. New Password Enter the new password for the “root” username in this field. -
Page 60: I/O Page
Click this drop-down list to select the desired output to be labeled. Enter the name of the output in the field to the right of the drop-down list. Click Change to commit the name of the output. Refer to Renaming Outputs (page for more information. AT-UHD-PRO3-88M... -
Page 61: Route Memory Page
Renaming Memory Presets (page 35) for more information. Memory Selection Click this drop-down list to select the desired memory preset. Click Select to recall the memory preset. Refer to Creating and Editing Routing Presets (page 29) for more information. AT-UHD-PRO3-88M... -
Page 62: Edid Page
Click the EDID Selection drop-down lists to assign the desired EDID to an input. Stored EDID data will also be displayed in these drop-down list if EDID data was captured. Refer to EDID Management (page 36) for more information. Save Click this button to commit all changes for inputs. Cancel Click to abort changes. AT-UHD-PRO3-88M... -
Page 63: Hdcp Page
The Web GUI HDCP page Output 1 - Output 10 Displays the connection status of each output. AT-UHD-PRO3-88M... -
Page 64: Hdbt Test Page
The Web GUI HDBT Test page HDBT Zone Click this drop-down list to select the output channel (ZONE OUT) to test. Refer to HDBaseT Testing (page 69) more information. AT-UHD-PRO3-88M... -
Page 65: Audio Page
Click the Save button to commit changes. Click the Cancel button to abort changes. Audio range for output volume is -79 dB to +15 dB. The default value is -10 dB. Save Click this button to commit all changes. Cancel Click to abort changes. AT-UHD-PRO3-88M... -
Page 66: Appendix
GUI must be on the same network as the AT-UHD-PRO3-88M. 2. Type the IP address of the AT-UHD-PRO3-88M into a web browser, as shown in the example below. 3. The login screen will be displayed. Login using the username and password. The default login credentials are:... - Page 67 7. Click Firmware, on the left side of the screen. 8. Click the Choose File button, to select the firmware file. 9. Click the Update button. A progress bar will be displayed during the update process. 10. Once the update has been completed, re-login to the web GUI. AT-UHD-PRO3-88M...
-
Page 68: Cable Termination
Appendix Cable Termination Atlona recommends EIA/TIA-568-B termination. Connector type and size is very important to ensure extenders work correctly. Always use the matching cable type with the correct RJ45 connector. • CAT5e cables should use only CAT5e RJ45 connectors •... -
Page 69: Hdbaset Testing
Appendix HDBaseT Testing The web GUI of the AT-UHD-PRO3-88M provides a tool for testing the signal integrity of HDBaseT cables. This tool is useful for troubleshooting and identifying defective or damaged Ethernet cables which are connected from the ZONE OUT ports to a receiver. -
Page 70: Default Settings
Appendix Default Settings The following tables list the factory-default settings, as defined in the web GUI, for the AT-UHD-PRO3-88M. Web GUI Page Setting Default Value Login Username root Password Atlona Network System Secure (SSH) DHCP Telnet Port HTTP Port IP Timeout... -
Page 71: Mounting Instructions
Appendix Mounting Instructions The AT-UHD-PRO3-88M can be mounted in a standard 19-inch rack or placed on top of a desk or table. Rack Installation IMPORTANT: To prevent possible fire hazards due to overheating, do not block the ventilation holes on either side of the enclosure, which would prevent proper airflow through the unit. In addition, do not exceed the maximum weight capacity for the rack. -
Page 72: Surface Mounting
Appendix Surface Mounting The AT-UHD-PRO3-88M can be placed on top of any flat surface. To prevent damage to the surfaces or unnecessary movement of the matrix, four feet have been included. 1. Turn the unit upside down. 2. Install each foot using the included feet screws, the rubber grips of the feet should be facing up during installation. -
Page 73: Specifications
4K - Meters 1080p - Feet 1080p - Meters CAT5e/6 (Port 1 - 4) CAT6a/7 (Port 1 - 4) CAT5e/6 (Port 5-7, 9) CAT6a/7 (Port 5 -7, 9) HDMI IN/OUT Signal Bandwidth 10.2 Gbps HDCP Supports up to 2.2 AT-UHD-PRO3-88M... - Page 74 H x W x D (w/ rack ears) 88 x 482 x 301 3.49 x 19.00 x 11.88 Rack Unit Weight Kilograms Pounds Unit 5.18 11.4 Certification Unit CE, FCC, RoHS, TUV Power Supply CE, FCC, Level VI, RoHS, cULus, RCM, CCC AT-UHD-PRO3-88M...
- Page 75 • 408.962.0515 • 877.536.3976 © 2018 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability...
