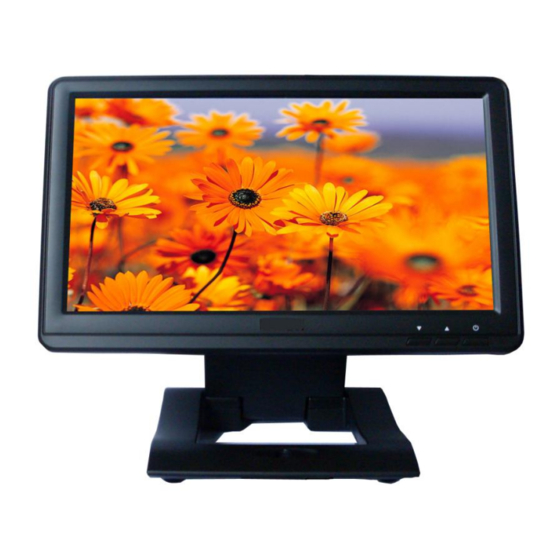

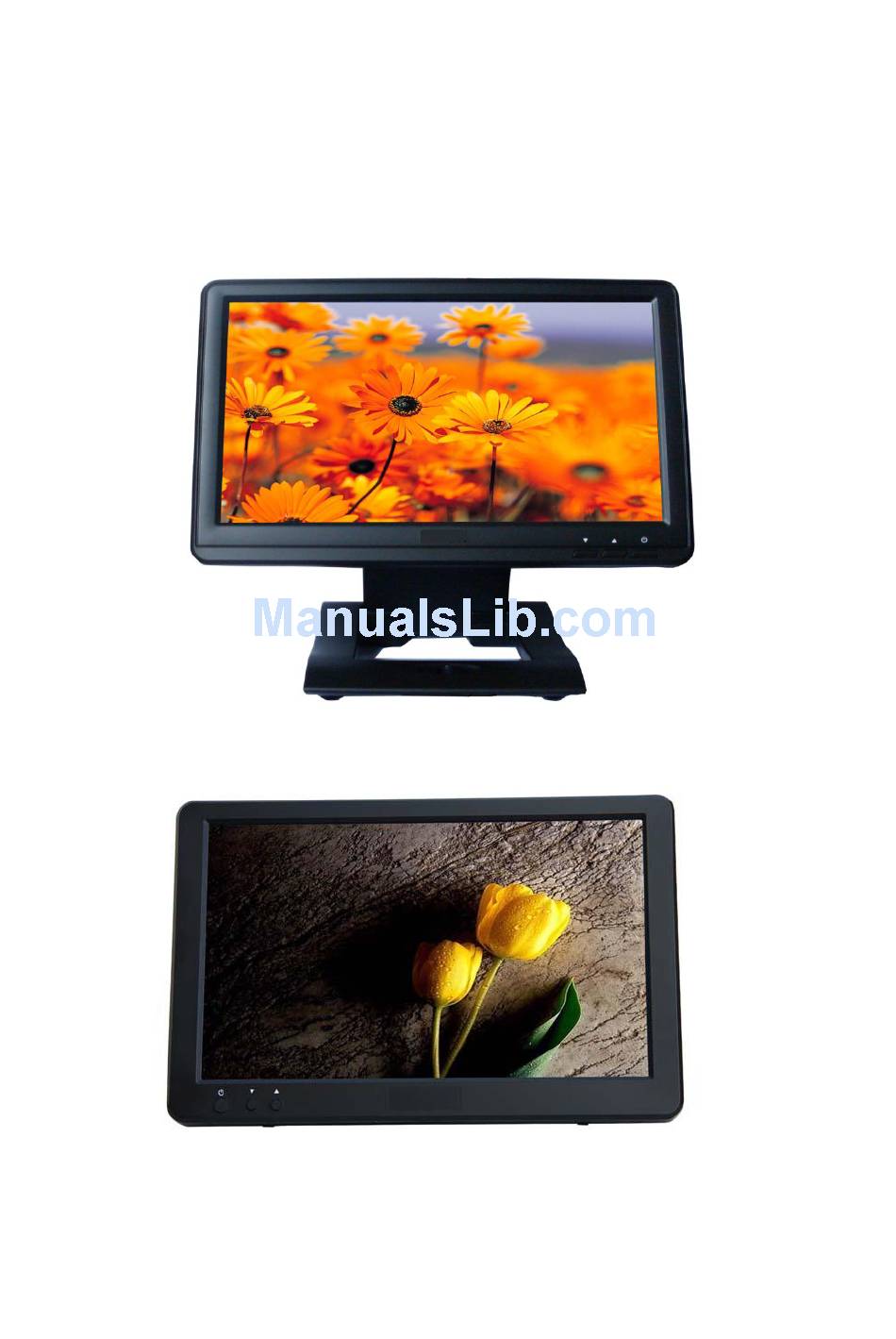

- Page 1 10.1＂USB Monitor Manual...
-
Page 2: Table Of Contents
CONTENTS Safety Instructions ...................... Product Features ......................connections and Installation .................. Installation Monitor Driver ..................USB MONITOR Display Setting ............... System Requirements ....................…………………………………… Touch and Sound Function Instruction Cable specification(Y type USB cable) …………………………………………….. Specification ........................Accessories ........................Troubleshootiong ...................... -
Page 3: Safety Instructions
1. Safety Instructions These safety instructions must be followed to ensure your safety and prevent property damage. Warning/Cautions Otherwise, it may result in personal injury or property damage. Make sure to read the instructions carefully and use the product in the correct manner. -
Page 4: Product Features
2. Product Features USB Monitor is A USB Powered Touch Screen Monitor, a user may utilize USB MONITOR as Multiple Input/output devices for Video Conference, Instant Messaging, News and Stock casting. The model has special functions: extended monitoring and touch control Picture Model 1 1. - Page 5 Model 2 1. POWER：ON/OFF 2. Brightness down 3. Brightness up 4. Bracket 5. USB Interface 6. Built-in speakerx2...
-
Page 6: Connections And Installation
7. Power and Signal Input（Mini USB interface） 8. Power interface: DC5V 3. Connections and Installation 3.1. USB Monitor can connected with USB interface only. Mini USB input：connect the device and PC with USB cable. 3.2. System Requirements CPU: Intel Pentium/Celeron/AMD/K6/Athlon/Duron 1.2GHz or above ... -
Page 7: Usb Monitor Display Setting
4.3.2 If you see following message window, select “I agree” to accept the terms of use 4.3.3 When the installation is complete, the USB MONITOR setting icon appears on your system tray and the connected USB monitor information will pop-up. 5. -
Page 8: System Requirements
6. System Requirements & Restrictions 6.1. System Properties Windows 2000 Windows XP（32bit、64bit） Windows vista（32bit、64bit） Windows 7（32bit、64bit） Mac OS X User may check the Operating System version by Right-click „My Computer‟ → „Properties‟ →„System Properties‟ 6.2. USB MONITOR is a USB monitor to be recognized as a Generic USB device. Therefore system boot-up screen or DOS screen cannot be displayed properly. - Page 9 Keep press“NEXT”until“FINISH” to finish installation. The task bar shows icon 7.2 Touch Setting: ，or right click the icon on task bar ， Double click shortcut icon popup menu. pop-up below dialog box when selected "Calibration Utility"...
- Page 10 Picture 1 click “Monitor Mapping", it shows as follows: Picture 2 Click picture1, press SPACE bar, or waiting for 10seconds, and select the touch screen need to Calibrate. picture 2 shows 》Please touch here《, and then shows 》 OK 《 to confirm this monitor to 4-point calibration(refer to 7.3. Touch Calibration) then can start calibration.
- Page 11 7.3. Touch Calibration: ，or right click the icon on task 7.3.1 Double click shortcut icon ，popup menu. Select “4 points calibration” in the toolbar, popup the following interface. Long press the middle point until shows “OK”, the same methods for the last 3 points.(Please finish calibration within 15 seconds.) 7.3.2 Calibration when more than one touch monitors.
- Page 12 7.4 Sound function instructions (Only model 2) 7.4.1 When USB devices connection is complete, computer digital audio will display USB digital audio, and adjust volume directly: 7.4.2 When USB devices connection is complete, keep long pressing the power switch for 5 seconds to switch monitor sound function.
-
Page 13: Cable Specification(Y Type Usb Cable)
8. Cable specification （Y type USB cable） Connect USB MONITOR cable Connect PC cable（power&data） Connect PC branch cable(power) Please plug both USB ports when operating device to ensure power supply 9. Specifications Model No. Model 1/C/T Model 2/C/T Sound Function Touch Function optional optional DC Adapter... -
Page 14: Accessories
10. Accessories Manual 1. USB cable 1piece 1piece （Optional） 2. CD drive 1piece （Optional） 3. Touch pen 4. DC Adapter（5V） 1piece 5. Manual 1piece 11. Troubles shooting Before calling for assistance, please read carefully below. If you do need assistance, please call local service center or contact your desire Q: No image on screen, I cannot turn on the USB MONITOR A: 1. - Page 15 Q: I cannot boot my system after connecting USB MONITOR. A: in case i851 chipset once – Board Type PC system, please disable „Legacy USB support‟ option in system. BIOS setup method may differ from PC to PC, please refer to the User manual of the PC.
- Page 16 monitor status. To delete the deactivated monitor information, please uninstall „Display link Core software‟ driver. Once the driver is uninstalled, you may not use USB MONITOR. To use USB MONITOR again please re-install the driver. Q: How can I clean the outer case/LCD Panel? A: Disconnect the USB cable and then clean the USB MONITOR with a soft cloth, using either a cleaning solution or plain water.
