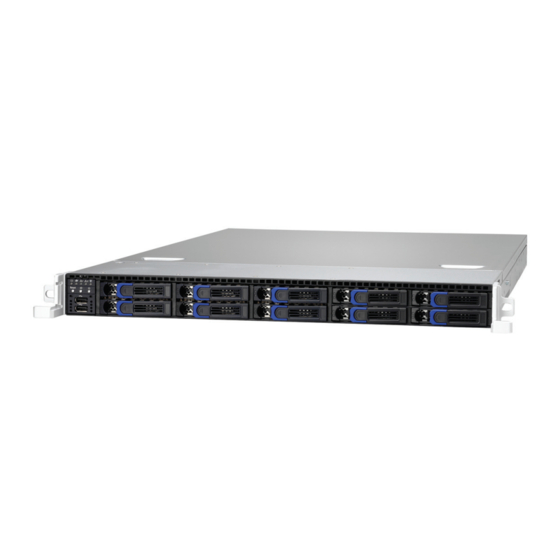

TYAN GT62A-B5512 Service Engineer's Manual
  1. Manuals
  2. Brands
  3. TYAN Manuals
  4. Server
  5. GT62A-B5512
  6. Service engineer's manual

TYAN GT62A-B5512 Service Engineer's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GT62A-B5512
Service Engineer's Manual
1
http://www.tyan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GT62A-B5512 and is the answer not in the manual?

Questions and answers

Related Manuals for TYAN GT62A-B5512

Summary of Contents for TYAN GT62A-B5512

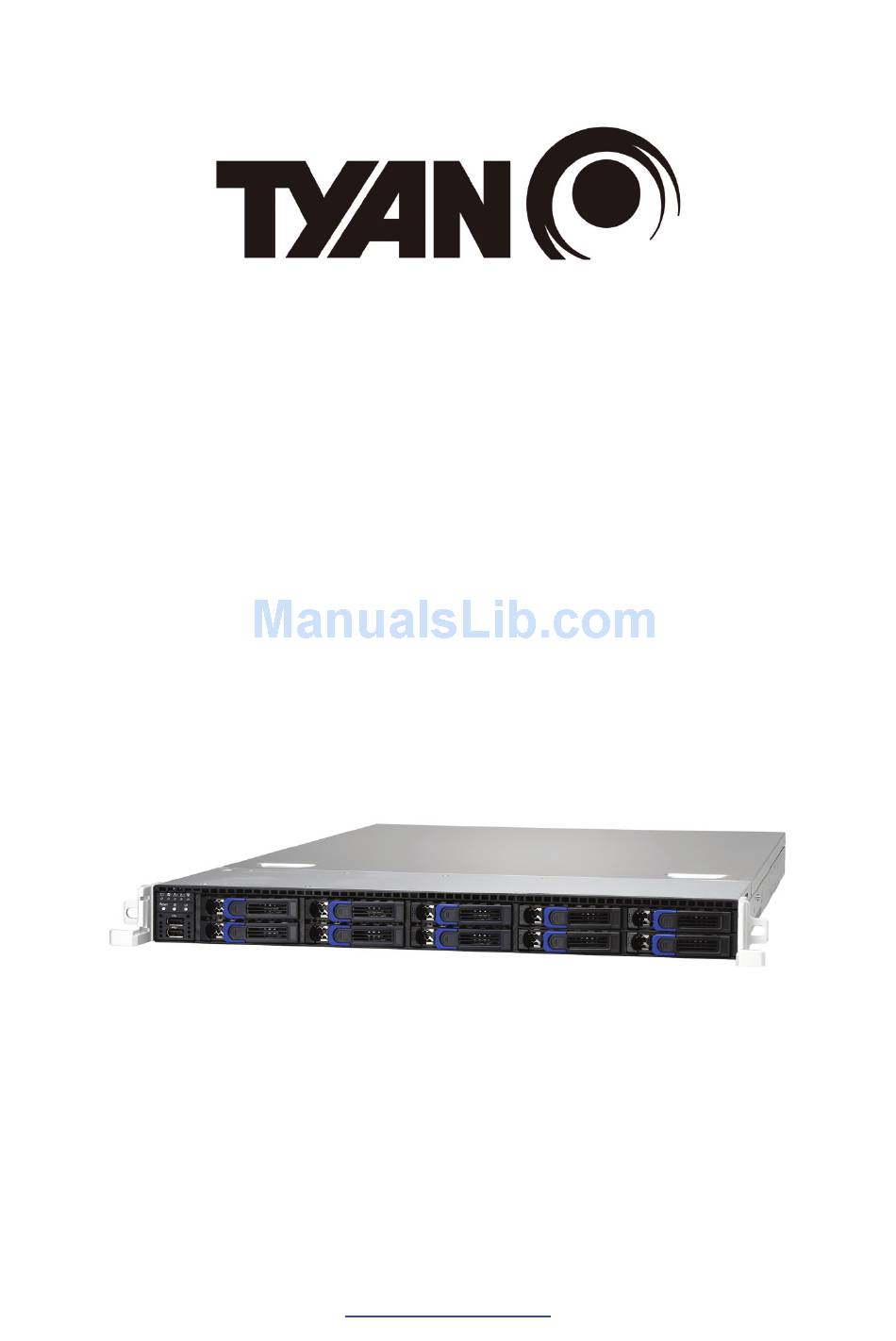

  • Page 1 GT62A-B5512 Service Engineer’s Manual http://www.tyan.com...
  • Page 2 http://www.tyan.com...
  • Page 3 Neither this manual, nor any material contained herein, may be reproduced without written consent of manufacturer. ® Copyright 2012 MiTAC International Corporation. All rights reserved. TYAN a registered trademark of MiTAC International Corporation. Version 1.0 Disclaimer Information contained in this document is furnished by MiTAC International Corporation and has been reviewed for accuracy and reliability prior to printing.
  • Page 4 There will be danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by manufacturer. Dispose of used battery according to manufacturer instructions and in accordance with your local regulations. http://www.tyan.com...

  • Page 5: About This Manual

    About this Manual This manual provides you with instructions on installing your TYAN GT62A-B5512. This Manual is intended for experienced users and integrators with hardware knowledge of personal computers. This manual consists of the following parts: Chapter1: Provides an introduction to the TYAN GT62A-B5512...

  • Page 6: Safety And Compliance Information

    Safety and Compliance Information Before installing and using TYAN GT62A-B5512, take note of the following precautions: ·Read all instructions carefully. ·Do not place the unit on an unstable surface, cart, or stand. ·Do not block the slots and opening on the unit, which are provided for ventilation.

  • Page 7: Safety Information

    You must become familiar with the safety information in this guide before you install, operate, or service TYAN products. Symbols on Equipment Caution. This symbol indicates a potential hazard.
  • Page 8 · Make sure the rack is level and stable before installing an appliance in the rack. · Make sure the leveling jacks are extended to the floor. · Make sure the full weight of the rack rests on the leveling jacks. http://www.tyan.com...
  • Page 9 If you do not ground the Green/Yellow tab, it can cause an electrical shock due to high leakage currents. · Do not place objects on AC power cords or cables. Arrange them so that no one might accidentally step on or trip over them. http://www.tyan.com...
  • Page 10 TYAN, your authorized TYAN partner, or their agents. Equipment Modifications · Do not make mechanical modifications to the system. TYAN is not responsible for the regulatory compliance of TYAN equipment that has been modified.
  • Page 11 – Liquid has been spilled on the product or an object has fallen into the product. – The product has been exposed to rain or water. – The product has been dropped or damaged. – The product does not operate normally when you follow the operating instructions. http://www.tyan.com...
  • Page 12 http://www.tyan.com...

  • Page 13: Table Of Contents

    Table of Contents Chapter 1: Overview............... 15 About the TYAN GT62A-B5512 ..........15 Product Models............... 15 Features.................. 16 Standard Parts List ..............21 1.4.1 Box Contents ..............21 1.4.2 Accessories ..............22 About the Product..............23 1.5.1 System Front View ............23 1.5.2...
  • Page 14 HDD BP Board LED Definitions ........66 Replacing the Power Supply ..........67 Appendix I: Cable Connection Tables .......... 69 Appendix II: Fan and Temp Sensors ..........71 Appendix III: FRU Parts Table ............75 Appendix IV: Technical Support ........... 77 http://www.tyan.com...

  • Page 15: Chapter 1: Overview

    ® TYAN also offers the GT62A-B5512 in a version that can support up to 2.5” hot-swap hard drives. The GT62A-B5512 uses TYAN’s latest chassis featuring a robust structure and a solid mechanical enclosure. All of this provides GT62A-B5512 the power and flexibility to meet the needs of nowadays server application.

  • Page 16: Features

    Features TYAN GT62AB5512 (B5512GT62AV10H) Form Factor 1U Rackmount Gross Weight 17 kg Chassis Model GT62A System Dimension (D x W x 24.6" x 17.2" x 1.72" (625.4 x 436 x 43.6mm) Motherboard S5512GM2NR Board Dimension ATX, 12" x 9.6" (305x243.8mm)
  • Page 17 10° C ~ 35° C (50° F~ 95° F) Non-operating Operating - 40° C ~ 70° C (-40° F ~ 158° F) Temp. Environment In/Non-operating 90%, non-condensing at 35° C Humidity RoHS RoHS 6/6 Compliant Yes Motherboard (1) S5512 Motherboard Package Barebone (1) GT62AB5512 Barebone Contains http://www.tyan.com...
  • Page 18 (1) CRAL-0034, sliding rail kit for KGT20 Mounting Ear (1) CEAR-0050, mounting ear kit for KGT20 Manual (1) User's manual Installation CD (1) TYAN installation CD (1) CCBL-0317, US type power cord Cable Power Cord (1) CCBL-0300, EU type power cord TYAN GT62AB5512 (B5512GT62AW10H) Form Factor...
  • Page 19 Memory channel 2 Channels Memory voltage 1.5V PCI-E (1) PCI-E x8 slot Pre-install TYAN M2091, PCI-E x16 1U riser card (left) Expansion Slots Riser Card Max. HBA (1) 111.15mm x 167.65mm (FH/HL) Dimension (H x L) Port Q'ty (3) GbE ports...
  • Page 20 (1) CRAL-0034, sliding rail kit for KGT20 Package Mounting Ear (1) CEAR-0050, mounting ear kit for KGT20 Contains Manual (1) User's manual Installation CD (1) TYAN installation CD (1) CCBL-0317, US type power cord Cable Power Cord (1) CCBL-0300, EU type power cord http://www.tyan.com...

  • Page 21: Standard Parts List

    Standard Parts List This section describes GT62A-B5512 package contents and accessories. Open the box carefully and ensure that all components are present and undamaged. The product should arrive packaged as illustrated below. 1.4.1 Box Contents Component Description 1U chassis, (10) hot swap HDD bays...

  • Page 22: Accessories

    If any items are missing or appear damaged, contact your retailer or browse to ® TYAN ’s website for service: http://www.tyan.com ® The web site also provides information of other TYAN products, as well as FAQs, compatibility lists, BIOS settings, etc. Box Contents AC Power Cord 125V (US) AC Power Cord 250V (Europe) Removable Screw Kit x 1 2.5’’HDD Screw Kit x 2...

  • Page 23: About The Product

    About the Product The following views show you the product. 1.5.1 System Front View Power LED LAN2 LED LAN1 LED IPMI LED HDD LED Power Button ID Button Reset Button USB Ports http://www.tyan.com...

  • Page 24: System Rear View

    1.5.2 System Rear View Power Supply LAN3 Port (shared with IPMI) USB Ports VGA Port Serial Port USB Ports LAN1 Port (Intel 82574L) LAN2 Port (Intel 82574L) Expansion Slot http://www.tyan.com...

  • Page 25: Led Definitions

    Power up and power down the system(Use a pin) Press once the ID (UID) on the Front Panel, the blue ID ID(UID) LED on the rear panel will light up. The Power LED on the front panel will turn blue. Reset Press to reset the system. http://www.tyan.com...

  • Page 26: Motherboard (S5512) Layout

    The board you receive may not look exactly like the above diagram. The DIMM slot numbers shown above can be used as a reference when reviewing the DIMM population guidelines shown later in the manual. For the latest board revision, please visit our web site at http://www.tyan.com. http://www.tyan.com...

  • Page 27: Jumpers & Connectors

    SAS (Port7/Port3/Port6/Port2) J36/J37/J40/J41 SAS (Port5/Port1/Port4/Port0) J50/J51/J52/J53 SATA2.0 (Port5/Port4/Port3/Port2) J54/J55 SATA3.0 (Port1/Port0) ME recovery function set RTC Clear CMOS set ME update function set Jumper Legend OPEN - Jumper OFF Without jumper cover CLOSED - Jumper ON With jumper cover http://www.tyan.com...

  • Page 28: System Block Diagram (S5512)

    1.5.6 System Block Diagram (S5512) http://www.tyan.com...

  • Page 29: System Top View

    1.5.7 System Top View HDD Trays Front Panel Tray and Board M1253G62-BP6-10 HDD Backplane Board System Fans Power Supply http://www.tyan.com...
  • Page 30 NOTE http://www.tyan.com...

  • Page 31: Chapter 2: Setting Up

    Caution! To avoid damaging the motherboard and associated components, do not use torque force greater than 7kgf/cm (6.09 lb/in) on each mounting screw for motherboard installation. Do not apply power to the board if it has been damaged. http://www.tyan.com...

  • Page 32: Precautions

    Working on a system that is connected to a power supply can be extremely dangerous. Follow the guidelines below to avoid damage to GT62A-B5512 or injury to yourself.  Ground yourself properly before removing the top cover of the system.

  • Page 33: Installing Motherboard Components

    CPUs, memory modules, HDD and PCI-E cards. 2.1.1 Removing the Chassis Cover Follow these instructions to remove the GT62A-B5512 chassis cover. First loosen the thumb screw on the back side as show in the small diagram and then slide the top cover out.
  • Page 34 Remove the air duct from the chassis. http://www.tyan.com...

  • Page 35: Installing The Cpu And Heatsink

    Follow the steps below on installing CPUs and CPU heatsinks. Locate the CPU sockets. Always start with CPU0 first. Pull the lever slightly away from the socket and then push them to a fully open position. Push the CPU socket cover to a fully open position. http://www.tyan.com...
  • Page 36 Take out the protection cap when installing the CPU. Place the CPU into the socket and make sure that the gold arrow is located in the right direction. http://www.tyan.com...
  • Page 37 Close the CPU socket cover and press the levers down to secure the CPU. Position the heatsink on top of the CPU and secure it with 4 screws. Place the air duct in place. http://www.tyan.com...

  • Page 38: Installing The Pci-E Card

    2.1.3 Installing the PCI-E Card Follow these instructions to install the PCI-E card. Unlock the PCI-E slot latch. Take off the PCI-E slot shield. Insert the PCI-E card into the PCI-E slot and secure the PCI-E slot latch. http://www.tyan.com...

  • Page 39: Installing The Memory

    Align the memory module with the slot. When inserted properly, the memory slot locking levers lock automatically onto the indentations at the ends of the module. Follow the recommended memory population table to install the other memory modules. http://www.tyan.com...
  • Page 40 http://www.tyan.com...
  • Page 41 http://www.tyan.com...
  • Page 42 Recommended Memory Population Table ® To achieve the best performance, TYAN strongly recommended memory installation configuration as listed below: S5512UDIMM population One DIMM per Channel Two DIMM per Channel DIMM B1 (J32) Single DIMM B0 (J31) Rank DIMM A1 (J30)

  • Page 43: Installing Hard Drives

    2.1.5 Installing Hard Drives Follow these instructions to install a hard drive. Press the locking lever latch and pull the locking lever open. Slide the HDD tray out. Unscrew the HDD tray bracket. http://www.tyan.com...
  • Page 44 Place a hard drive into the drive tray and use 4 screws to secure the HDD. Reinsert the HDD tray into the chassis and press the locking lever to secure the tray. http://www.tyan.com...

  • Page 45: Rack Mounting

     Mounting Brackets x 4  Installing the Server in a Rack Follow these instructions to mount the TYAN GT62A-B5512 into an industry standard 19" rack. NOTE: Before mounting the TYAN GT62A-B5512 in a rack, ensure that all internal components have been installed and that the unit has been fully tested.

  • Page 46: Installing The Inner Rails To The Chassis

    2.2.1 Installing the inner Rails to the Chassis Screw the mounting ear to each side of TYAN KGT62A as shown using two screws of #6-32 L5.3(D) from the supplied screws kit. Draw out the inner rails from rail assembly. Install inner rails to left and right sides of chassis using 1 M4-4L(A) screw for each side.

  • Page 47: Installing The Outer Rails To The Rack

    Rear Bra cket x 2 Front Brack et x2 Secure the front bracket to outer rail with 2 M4-4L(A) screws. Reserve the distance same as in Step 2 on rear bracket. Secure the rear bracket to outer rail with 2 M4-4L(B) screws. http://www.tyan.com...
  • Page 48 Secure the outer rail to the rack using 2 brackets and 4 M5-20L(C) screws for each side. Secure the mounting brackets from inside, not outside, of the rack. Mounting Bra cket http://www.tyan.com...

  • Page 49: Rack Mounting The Server

    Draw out the middle rail to the latch position. Lift the chassis and then insert the inner slide rails into the middle rails. Push the chassis in and press the latch key (A). Then push the whole system into the rack (B) http://www.tyan.com...
  • Page 50 Secure the mounting ears of chassis to the rack with 2 M5-15L(C) screws. NOTE: To avoid injury, it is strongly recommended that two people lift the TYAN GT62A-B5512 into the place while a third person screws it to the rack. http://www.tyan.com...

  • Page 51: Chapter 3: Replacing Pre-Installed Components

    This chapter explains how to replace the pre-installed components, including the S5512 Motherboard, M1008 Front Panel Board, M1253G62-BP6-10 SATA/SAS HDD Backplane Board, PCI-E Card, System Fan and Power Supply Unit etc. 3.0.2 Disassembly Flowchart The following flowchart outlines the disassembly procedures. http://www.tyan.com...

  • Page 52: Removing The Cover

    Removing the Cover Before replacing any parts you must remove the chassis cover. Follow Section 2.1.1 Removing the Chassis Cover (page 33) to remove the cover of the GT62A-B5512. Removing Motherboard Procedures Follow these instructions to replace the motherboard. 3.2.1...

  • Page 53: Removing The Motherboard

    After removing all of the aforementioned cables, follow these instructions to remove the motherboard from the chassis. Remove the heatsink and processor if installed. Remove the nine screws securing the motherboard to the chassis. Carefully lift the motherboard from the chassis as the image shows. http://www.tyan.com...

  • Page 54: Replacing The Front Panel Board

    Replacing the Front Panel Board Follow these instructions to replace the Front Panel Board. Release cables from the cable clip. Unscrew the front panel tray. Pull the front panel tray from the chassis. Disconnect cables from the front panel board. http://www.tyan.com...
  • Page 55 Unscrew the Front Panel Board to replace a new one. Follow the steps described earlier in reverse to reinstall the USB Board. Repeat the procedures described earlier in reverse order to place the front panel tray back into place. http://www.tyan.com...

  • Page 56: Front Panel Board Features

    Pin Net Name Function Pin Net Name Function VCC_USB0 Power connect to 5V (for USB) 6 USB_P1_P USB_P1 + VCC_USB1 Power connect to 5V (for USB) 7 Ground USB_P0_N USB_P0 - Ground USB_P1_N USB_P1 - USB_P0_P USB_P0 + 10 NC http://www.tyan.com...

  • Page 57: Replacing The System Fans

    Follow these instructions to replace the system fans. Disconnect the fan power cords from the HDD backplane board. Take out the failed fans. Push the latch in the direction as the arrow shown to release the fan from the plastic holder. Step A: http://www.tyan.com...
  • Page 58 Remove the plastic holder to replace a new fan. Step B: After replacing the new fans, follow Step A & B in reverse order to lock the fans. Reinstall the fans into the chassis. http://www.tyan.com...
  • Page 59 Connect the fan cables to the backplane fan connectors. http://www.tyan.com...

  • Page 60: Replacing The Hdd Backplane Board

    Replacing the HDD Backplane Board Follow these instructions to replace the M1235G62-BP6-10 HDD Backplane Board. Disconnect the power cables attached to the M1253G62-BP6-10 HDD BP Board. Disconnect the Mini SAS cable and the fan cables. http://www.tyan.com...
  • Page 61 Unscrew the HDD BP Board. Lift the HDD Backplane bracket up. The HDD BP Board bracket show as the following image. http://www.tyan.com...
  • Page 62 Remove the eight screws which secure HDD BP Board. Set the HDD BP Board and the iron bracket apart. http://www.tyan.com...

  • Page 63: Hdd Backplane Board Specifications

    3.7.1 HDD Backplane Board Specifications Front View http://www.tyan.com...
  • Page 64 Rear View http://www.tyan.com...
  • Page 65 (8) HDD active LEDs LEDs  (8) HDD fault LEDs J29: Front Panel Connector Signal Signal TACH1 TACH6 TACH2 TACH7 TACH3 TACH8 TACH4 TACH9 TACH5 TACH10 TACH11 TACH12 J24/J25/J26/J28/J30/J31: 8-pin Fan Header Signal Signal PWM1 VCC1 TACK1 GND1 GND2 TACK2 VCC2 PWM2 http://www.tyan.com...

  • Page 66: Hdd Bp Board Led Definitions

    Status LED Activity LED Color: Amber  Color: Green  No Driver Present or power disconnected  OFF  OFF  Driver Present  No Activity  OFF  ON  Access Activity  OFF  Blinking  HDD Fail  On Solid  OFF  Identify (Locate the HDD)  Blinking(1Hz)  OFF  Rebuild  Blinking(4Hz)  OFF  http://www.tyan.com...

  • Page 67: Replacing The Power Supply

    Replacing the Power Supply Please unplug the power cord before you follow these instructions to replace the power supply units. Remove seven (7) screws that secure the power supply with bracket to the chassis. Slide out the power supply unit. http://www.tyan.com...
  • Page 68 Unscrew the power supply bracket. After replacing a new power supply unit, follow the procedures in reverse order to reinstall the power supply back into the chassis. http://www.tyan.com...

  • Page 69: Appendix I: Cable Connection Tables

    Mini-SAS Cable J40/J36/J33/J31/ → SATA CABLE SATA0 J55 → SATA CABLE SATA1 J54 → Fan cable S5512 SATA Cable M1253 Connect to SATA0~SATA3 → Mini-SAS Cable J55/J54/J53/J52/ → SATA CABLE SATA0 J51 → SATA CABLE SATA1 J50 → Fan cable http://www.tyan.com...

  • Page 70: Chassis Intrusion Cable

    2x12P PWR P1 PWR1 → 2x4P PWR P2 PWR2 → PSMI P8 PSU to M1253 BP BD Connect to M1253 → B4P P4 → B4P P5 5. Chassis Intrusion Cable Chassis Intrusion Cable Chassis Connect to S5512 MB → Intrusion Cable http://www.tyan.com...

  • Page 71: Appendix Ii: Fan And Temp Sensors

    This section aims to help readers identify the locations of some specific FAN and Temp Sensors on the motherboard. A table of BIOS Temp sensor name explanation is also included for readers’ reference. NOTE: The red dot indicates the sensor. http://www.tyan.com...
  • Page 72 (rpm) Temp Sensor: CPU_MOS_Area(RT2), PCIE_Area(Q83). They detect the system temperature around. NOTE: The system temperature is measured in a scale defined by Intel, not in Fahrenheit or Celsius. BIOS Temp Sensor Name Explanation: http://www.tyan.com...
  • Page 73 SYS.4(Rear 1) Fan Speed of Rear_Fan (J18) SYS.5(Rear 2) Fan Speed of Rear_Fan (J20) SYSFAN6 Fan Speed of SYS_Fan6(J59) SYSFAN7 Fan Speed of SYS_Fan7(J56) SYSFAN8 Fan Speed of SYS_Fan8(J58) SYSFAN9 Fan Speed of SYS_Fan9(J61) SYSFAN10 Fan Speed of SYS_Fan10(J60) http://www.tyan.com...
  • Page 74 NOTE http://www.tyan.com...

  • Page 75: Appendix Iii: Fru Parts Table

    Appendix III: FRU Parts Table GT62A-B5512 FRU Parts Item Model Number Part Number Picture Description PCBA M2091 411739100498 M2091 for GT62A SATA cable CCBL-033T 422795500005 Mini-SAS cable CCBL-067P 422782700006 Cable CCBL-0317 332810000397 A/C Power Cord, L=1800mm, US type CCBL-0300 332810000281...
  • Page 76 NOTE http://www.tyan.com...

  • Page 77: Appendix Iv: Technical Support

    By offering plenty of options for users, MiTAC serves multiple market segments with the industry’s most competitive services to support them. Please feel free to contact us directly for this service at tech-support@tyan.com Help Resources: 1. See the beep codes section of this manual.
  • Page 78 (RMA) number. The RMA number should be prominently displayed on the outside of the shipping carton and the package should be mailed prepaid. TYAN will pay to have the board shipped back to you. TYAN® GT62A-B5512 Service Engineer’s Manual V1.0 Document No.: D2190-100 http://www.tyan.com...
