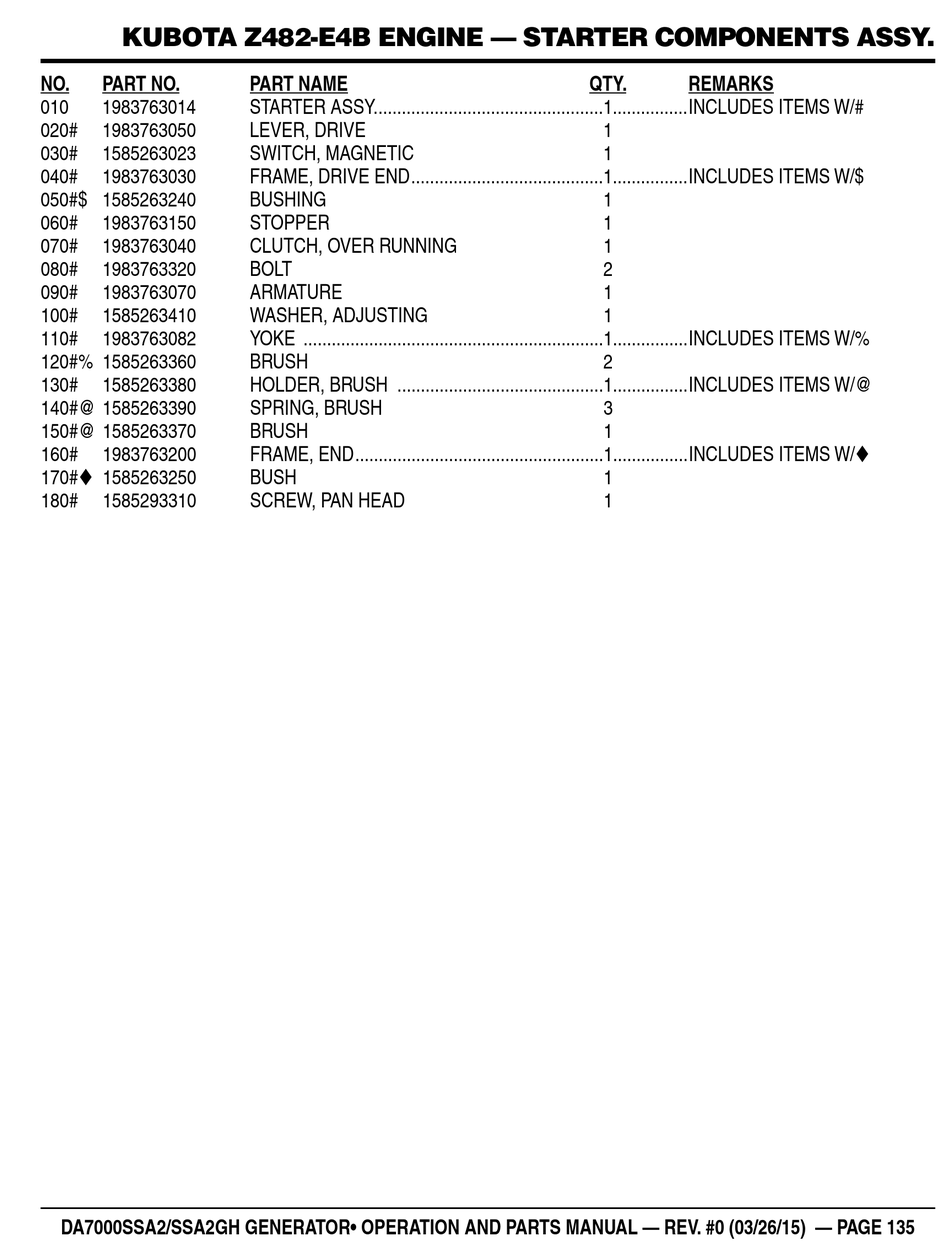

KUBOTA Z482-E4B ENGINE — STARTER COMPONENTS ASSY.
NO. PART NO.
010 1983763014
020# 1983763050
030# 1585263023
040# 1983763030
050#$ 1585263240
060# 1983763150
070# 1983763040
080# 1983763320
090# 1983763070
100# 1585263410
110# 1983763082
120#% 1585263360
130# 1585263380
140#@ 1585263390
150#@ 1585263370
160# 1983763200
170# 1585263250
180# 1585293310
DA7000SSA2/SSA2GH GENERATOR• OPERATION AND PARTS MANUAL — REV. #0 (03/26/15) — PAGE 135
PART NAME
STARTER ASSY. ................................................1................INCLUDES ITEMS W/#
LEVER, DRIVE
SWITCH, MAGNETIC
FRAME, DRIVE END .........................................1................INCLUDES ITEMS W/$
BUSHING
STOPPER
CLUTCH, OVER RUNNING
BOLT
ARMATURE
WASHER, ADJUSTING
YOKE ................................................................1................INCLUDES ITEMS W/%
BRUSH
HOLDER, BRUSH ............................................1................INCLUDES ITEMS W/@
SPRING, BRUSH
BRUSH
FRAME, END .....................................................1................INCLUDES ITEMS W/
BUSH
SCREW, PAN HEAD
QTY. REMARKS
1
1
1
1
1
2
1
1
2
3
1
1
1
