DA/DAC Series Generators
Single Side Access/Service Modifications
The following instructions are intended to assist the user in the installation of the Single Side Access Kit for DA/
DAC Series Generators. It is recommended the following procedure be performed by a Multiquip Authorized
Service Center (ASC) or by a Multiquip Field Service Manager. Generator or engine failures caused by improper
field installation are not covered under the Multiquip Limited Warranty. Please read all assembly instructions before
installing the kit.
REQUIRED TOOLS
„ 10mm, 14mm sockets
„ 3/8" Ratchet W/Extension
„ Electric Drill W/Extension
„ 1/2" Drill Bit
„ Straight-Edge Ruler
PARTS
Verify that all parts are accounted for. See Figure 1 and
Table 1.
L E
N G
S I
S S
A C C E
N
/ D
A C T I O
D A
N S
D E L A
S I A L
I O
C T
S T
R U
I N
S T
I N

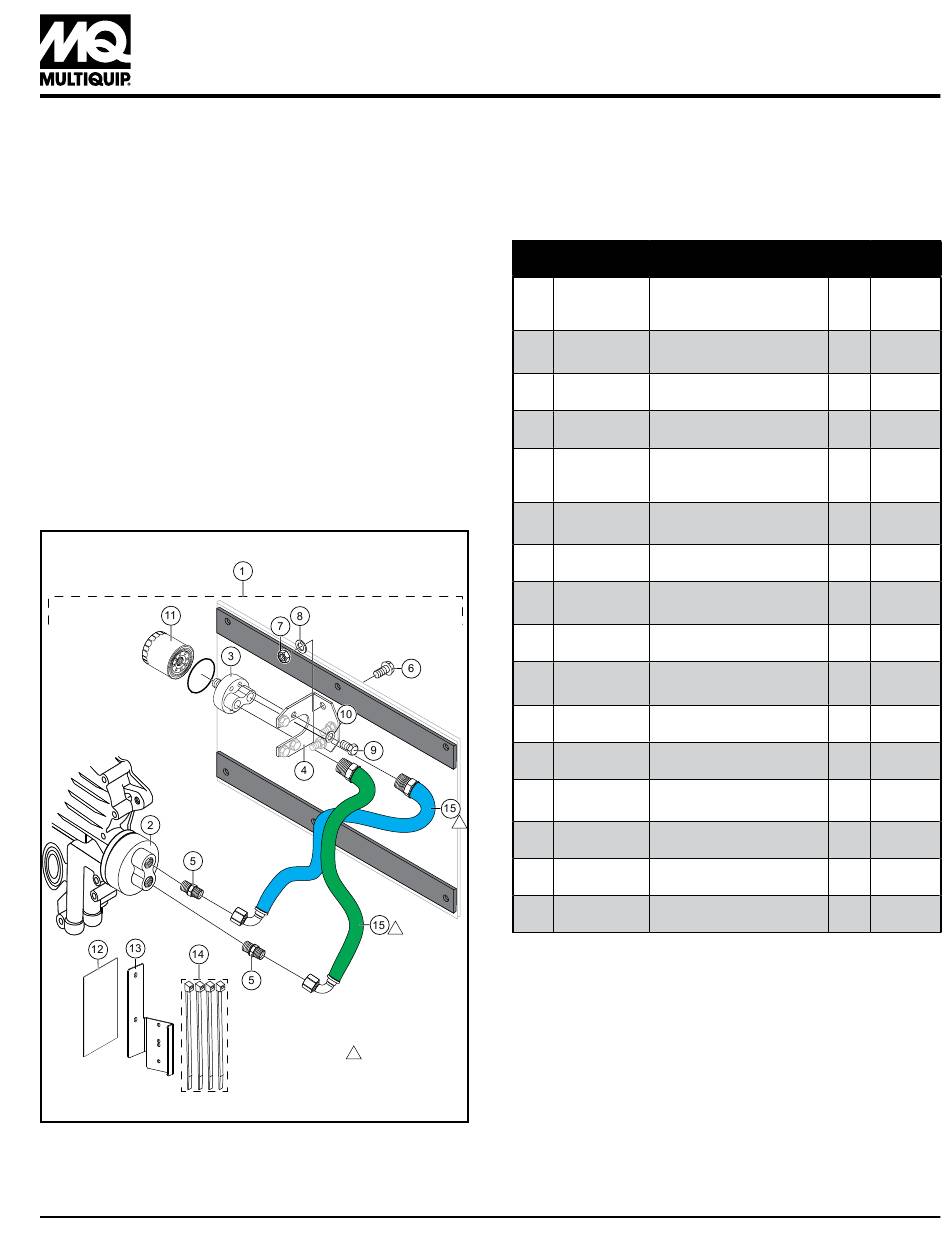

Figure 1. Single Side Access/Service Kit
DA/DAC SERIES — SINGLE SIDE ACCESS KIT INSTRUCTIONS P/N 14252 — REV. #0 (9/24/15) — PAGE 1
„ Motor Oil
„ Funnel
„ High Temperature Sealant
1
NOTE:
1
HOSE COLORS SHOWN
HERE FOR CLARITY.
SUPPLIED HOSES ARE
GRAY COLORED.
Table 1. Single Side Access/Service Kit
Item
Part No.
No.
1 13505
2 148002003
3 149002000
4 149149001
5 14052
6 32379
7 10133
8 10136
9 0400 B
10 0161 C
11 HH15032430
12 14252
1
13 12467
14 1662
15 14051
WORK SAFELY!
Only a qualified service technician with proper training
should perform this installation. Follow all shop safety rules
when performing this installation.
Description QTY.
Kit, Single Side Access/Service
Filter, Adapter
Filter Head
Bracket
Fitting, 3/4 MPT x 5/8 MORB
Straight
Screw, HHFS 3/8-16 x 1.0" ZN
Nut, Nyloc 3/8-16
Washer, Flat SAE 3/8
Screw, HHC 5/16-18 x 1/2"
Washer, Lock 5/16 MED
Filter, Spin-On
Instructions, Kit, Single Side
Access/Service
Bracket, Hose
Tie Wrap, 11.02"L, Black
Hose Assy, 5/8"IDx35.5"
Remarks
Includes
1
items 2-15
1
1
1
2
3
3
3
4
4
1
1
1
4
2
