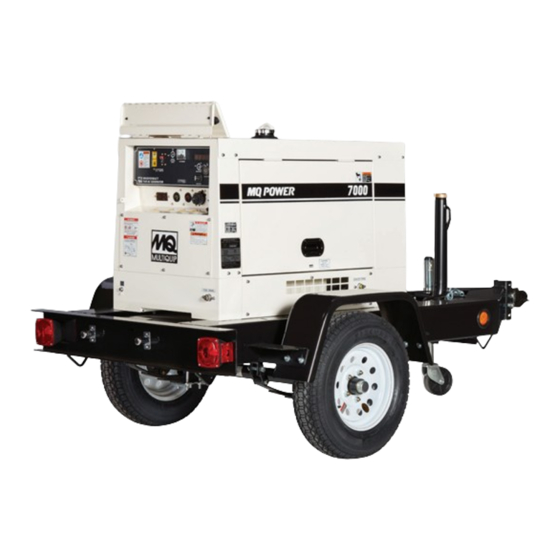

DA/DAC7000 Series Generators
MQPILHEATERKIT
The following instructions are intended to assist the user with the installation of the in-line fuel heater on the
DA/DAC7000 Series Generators. The in-line fuel heater is recommended for de-gelling fuel in cold weather starting
conditions (ambient temperatures ranging at or below ≤ 32°F).
OPERATING INSTRUCTIONS (TEMP.
These operating instructions are to assist in corrrect generator
start-up when ambient temperatures are ≤ 32°F.
1. Insert the ignition key into the ignition switch.
2. Turn the ignition key clockwise to the RUN position.
3. Let the fuel heater warm-up for 5 minutes.
4. Turn the ignition key clockwise to the START position.
REQUIRED TOOLS
„ 9/16", 10mm, 17mm Socket and 6" Extension
„ Standard Screwdriver
„ Phillips-head Screwdriver
„ Needle Nose Pliers
„ Side Cutters
„ Torque Wrench (35 ft-lbs./47.45 N•m)
PARTS
Verify that all parts are accounted for. See Figure 1 and
Table 1.
9
5
6
8
4
7
Figure 1. MQPILHEATERKIT
DA/DAC7000 SERIES — MQPILHEATER KIT INSTRUCTIONS P/N 59037 — REV. #1 (04/13/15) — PAGE 1
≤ 32°F)
2
12
N S
I O
C T
R U
S T
I N
18
15
20
17 14
10
19
11
NOTICE
ITEMS 11, 12, 15, 17, 18, and 19 will be packaged
loose. All other items will be pre-assembled prior to
shipment.
Item
Part No.
No.
MQPIL-
1
HEATERKIT
2 59042
3 59043
4 17206
5 17207
6 16185
7 EE58631
8 EE58632
9 EE58635
10 59035
11 60028
12 8153
13 13287
14 15175
15 19473
16 22106
13
17 23767
18 1662
19 59049
20 10114
21 59037
Table 1. MQPILHEATERKIT
Description
Kit, MQPILHEATERKIT
Bracket, Filter Mount W/A,
DA7000
Fuel Filter/Heater, W/ Fittings
Fitting, 90 5BARB - 1/4 MP
Fitting, SRT 1/4MP - 5/16
BEAD, BRASS
Fitting, Plug 1/4MP SQ HD
Filter, Fuel/Water Separator,
5 Micron
Head Assembly, Fuel Filter/
Heater, 1/4 NPT
Heater Kit, Top Load Fuel
Control, Heater, W/Terms,
DA7000
Tank Fuel Line (1.5 Feet L.)
Pin, Clevis 3/16 X 7/8
Nut, Nyloc 8-32
SCREW, PHP 8-32 X 3/4
Clamp, Hose Worm #2, 1/4-5/8
Screw, HHFS 3/8-16 X 1.25 ZN
Screw, HHF M10-1.25 X 20mm
GRD 10.9
Zip Ties
Wire Assembly, DA7000
HEATER POWER
Washer, Ext. SHKP, #8
Instructions, MQPILHEATER-
KIT
QTY. Remarks
Includes
1
items 2-21
1
Includes
1 items
4-9
1
1
2
1
1
1
1
1 PC=1
2
FT.
1
2
2
3
2
2
6
1
1
1
