Left View

1
2
1
USB 3.0 ports are denoted by their blue color. Note that the USB 3.0 port is not operational
under DOS and does not support wake on USB. The powered USB 3.0 (
14) port can supply power (for charging devices only, not for operating devices) when
the system is off but still powered by the AC/DC adapter plugged into a working outlet, or
powered by the battery with a capacity level above 20% (this may not work with certain de-
vices - see page 7 - 11). Toggle power to this port by using Fn + power button.
Model A
2 2 4
3
Model B
2 4
3

Powered USB 3.0 Port
5
5
3
in Figure 1 -
Quick Start Guide

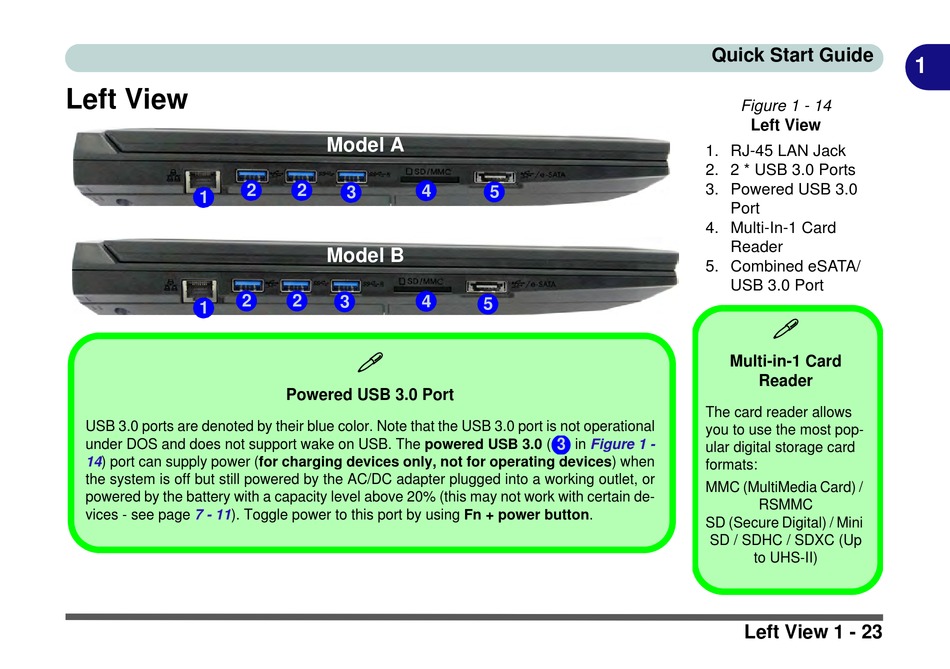

Figure 1 - 14
Left View
1. RJ-45 LAN Jack
2. 2 * USB 3.0 Ports
3. Powered USB 3.0
Port
4. Multi-In-1 Card
Reader
5. Combined eSATA/
USB 3.0 Port

Multi-in-1 Card
Reader
The card reader allows
you to use the most pop-
ular digital storage card
formats:
MMC (MultiMedia Card) /
RSMMC
SD (Secure Digital) / Mini
SD / SDHC / SDXC (Up
to UHS-II)
Left View 1 - 23
