EUROCOM P5 User Manual page 154

Modules

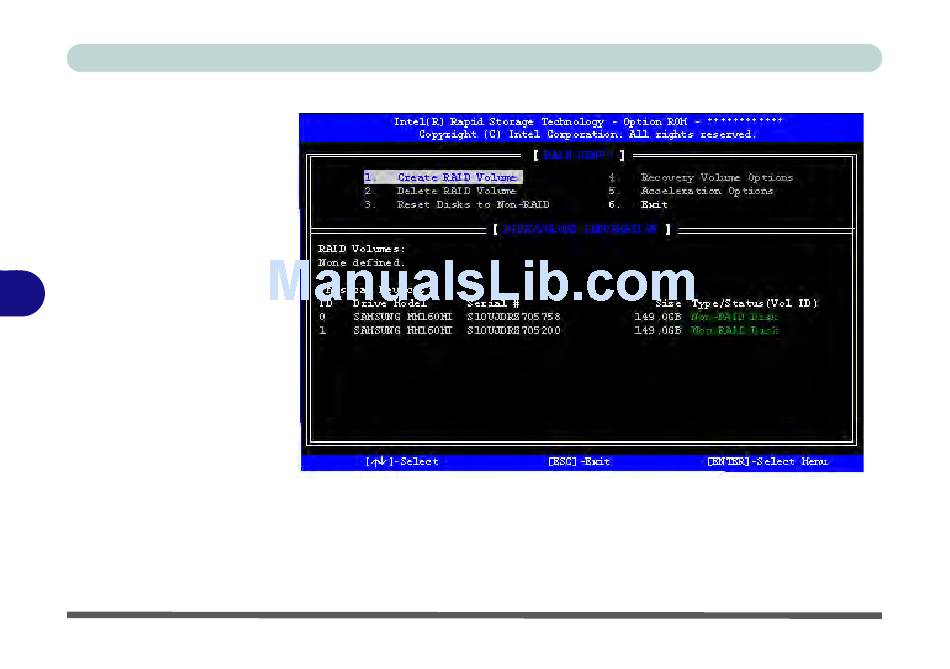

Figure 6 - 6
Intel(R) Rapid
Storage Technology
Option ROM
6
6 - 12 Setting Up SATA RAID or AHCI Mode
8. Select 1.Create RAID Volume and press Enter.
9. Type the RAID volume name and then press Tab or Enter to advance to the next
field.
10. Specify (use the up and down arrow keys) the RAID level (RAID 0 (Stripe) or
RAID 1 (Mirror) and then press Tab or Enter to advance to the next field.
11. Press Enter and the system will select the physical disks to us if applicable.
12. Press Enter and select (if applicable) the Strip Size (best set to default).
