FLIR Commercial Systems, Inc.
Document Number: 427-0030-00-12
Version: 110
Issue Date: March 2010
This document is controlled to FLIR Technology Level EAR 1. The information contained in this document is proprietary and/or restricted and pertains
to a dual use product controlled for export by the Export Administration Regulations (EAR). This document and data disclosed herein or herewith is
not to be reproduced, used, or disclosed in whole or in part to anyone without the written permission of FLIR Commercial Systems, Inc. Diversion
contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons, parties, or
uses otherwise prohibited.

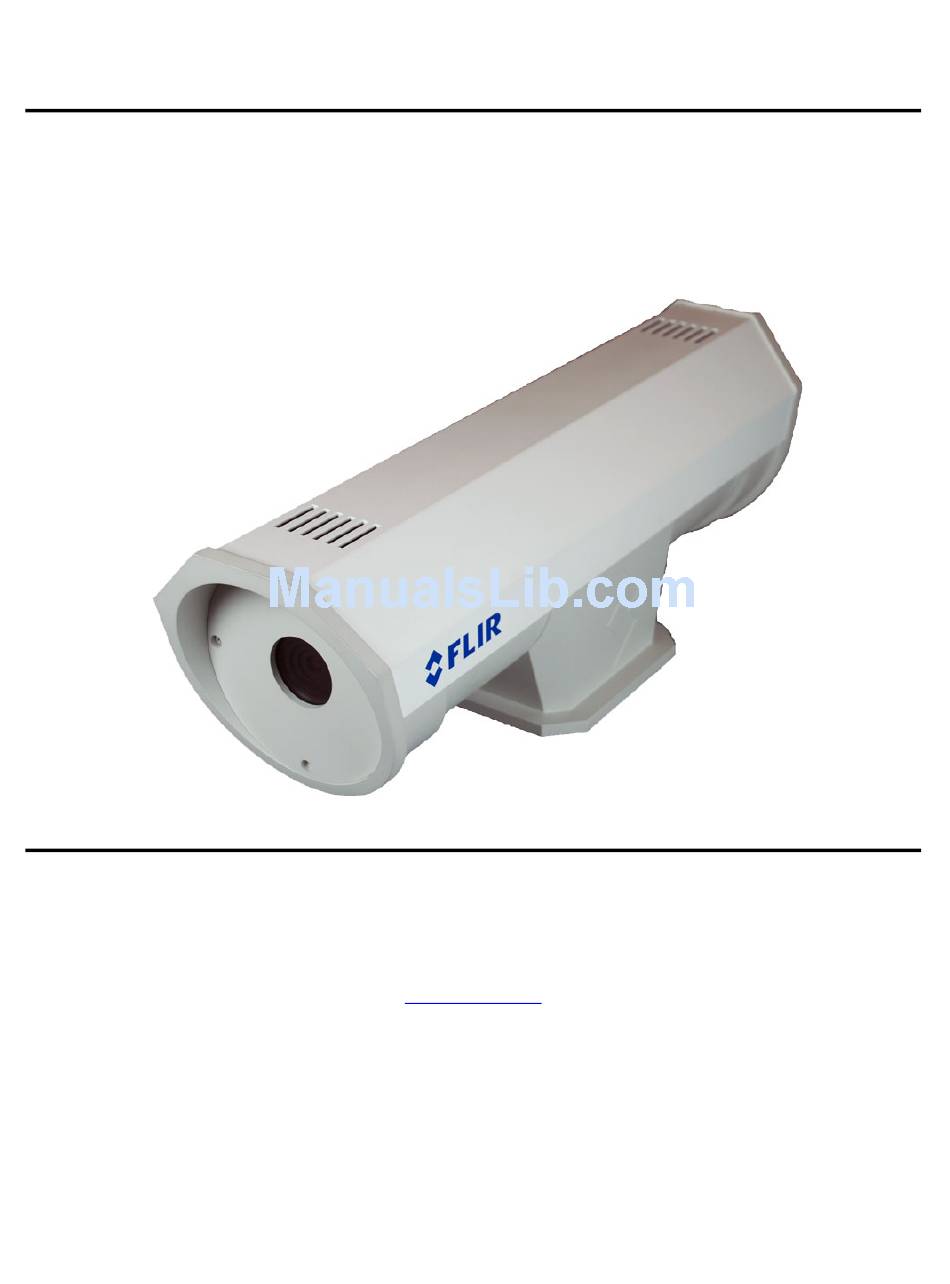

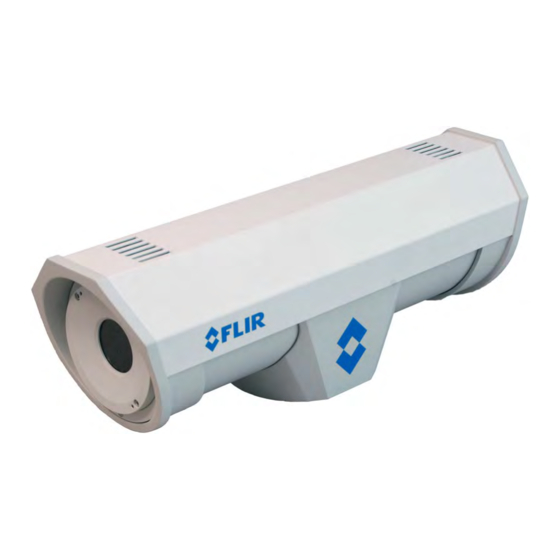

F-Series Camera
Installation Manual
70 Castilian Drive
Goleta, CA 93117
Phone: 888.747.FLIR (888.747.3547)
International: +1.805.964.9797
www.flir.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FLIR F-Series

Summary of Contents for FLIR F-Series

  • Page 1 Export Administration Regulations (EAR). This document and data disclosed herein or herewith is not to be reproduced, used, or disclosed in whole or in part to anyone without the written permission of FLIR Commercial Systems, Inc. Diversion contrary to US law is prohibited.
  • Page 2 This product is protected by patents, design patents, patents pending, or design patents pending. The F-Series thermal imaging system is controlled by US export laws. There are special versions of this system that are approved for international distribution and travel. Please contact FLIR Systems if you have any questions.

  • Page 3: Series Camera Installation

    F-Series Camera Installation This manual describes the installation of the F-Series cameras. If you need help during the installation process, please call to speak with our support experts (877-773-3547). This manual includes the following topics: • Installation Overview • Mounting the camera and its components •...

  • Page 4: Installation Overview

    The mount must support up to 30 lbs. (15 KG). The F-Series is both an analog camera and an IP camera. The video from the camera can be viewed over a traditional analog video network, and it can be viewed by streaming it over an IP network using MPEG-4, M-JPEG and H.264 encoding.

  • Page 5: Location Considerations

    F-Series cameras must be mounted upright on top of the mounting surface, with the base below the camera. The unit should not be hung upside down. The F-Series camera can be secured to the mount with three to five 1/4-20 bolts or studs as shown below.

  • Page 6: Prior To Cutting/Drilling Holes

    Prior to Cutting/Drilling Holes When selecting a mounting location for the F-Series camera, consider cable lengths and cable routing. Ensure the cables are long enough, given the proposed mounting locations and cable routing requirements, and route the cables before you install the components.
  • Page 7 Ensure the camera is properly grounded. Typical to good grounding practices, the camera chassis ground should be provided using the lowest resistance path possible. FLIR requires using a grounding strap anchored to the grounding lug on the back plate of the camera housing and connected to the nearest earth-grounding point.

  • Page 8: Connecting Power

    F-Series Installation Manual Connecting power The camera itself does not have an on/off switch. Generally the F-Series camera will be connected to a circuit breaker and the circuit breaker will be used to apply or remove power to the camera. If power is supplied to it, the camera will be in one of two modes: Booting Up or Powered On.

  • Page 9: Serial Connections

    F-Series Installation Manual 1—F-Series Camera Installation 1.12 Serial Connections The camera supports RS-422 and RS-232 serial communications using common protocols (Pelco D, Bosch). For configuration settings see paragraph 1.13 “Setting Configuration Dip Switches” on page 1-8. Note The terminal blocks for serial connections will accept a maximum 20 AWG wire size.

  • Page 10: Setting Configuration Dip Switches

    SW102 Switch Position Figure 1-4: F-Series Camera Configuration Pelco Address: This is the address of the system when configured as a Pelco device. The available range of values is from decimal 0 to 255. Table 1-2: Dip Switch Address/ID Settings—SW101...
  • Page 11 F-Series Installation Manual 1—F-Series Camera Installation Power Board Switch Layout and Control. The tables below defines the switch locations, bit numbering and on/off settings. Table 1-3: Dip Switch Settings—SW102 Switch octaves Settings Description Bit 1 Bit 2 2400 Baud rate...

  • Page 12: F-Series Camera Specifications

    1—F-Series Camera Installation F-Series Installation Manual 1.14 F-Series Camera Specifications Camera Platform Type Fi×ed Fi×ed Fi×ed THERMAL CAMERA SPECS Array Format (NTSC) 160 × 120 320 × 240 640 × 480 Detector Type Long-Life, Uncooled Long-Life, Uncooled Long-Life, Uncooled VO× Microbolometer VO×...

  • Page 13: Verify Camera Operation

    1.12 “Serial Connections” on page 1-7. IP Communications As shipped from the factory, the F-Series camera has an IP address of 192.168.250.116 with a netmask of 255.255.255.0. Step 1 Configure a laptop or PC with another IP address from this network (for example, 192.168.250.1).

  • Page 14: Using Flir Sensors Manager (Fsm)

    Using FLIR Sensors Manager (FSM) The following provides a brief description of how to use FSM to control a camera and stream video from the camera. For more detailed information on how to use FSM, refer to the FLIR Sensors Manager User Manual.
  • Page 15 Active Sensors. Step 3 Click on the Discovery button along the top of the window to bring up the Discovery Panel. The FSM software can automatically discover FLIR cameras on the network. Click 427-0030-00-12, version 110 March 2010...
  • Page 16 Step 4 When the Discovery Panel is displayed, click Refresh. The FLIR camera will appear in the list of Discovered Servers. The camera will be called “flir”, and the asterisk in parenthesis “(*)” indicates the camera has not been added to the list of Active Servers on the right.
  • Page 17 If you need to contact FLIR for support, this information will be useful to the support engineer. Use the Menu entries at the left of the screen shown in Figure 2-1 to configure the F-Series camera.
  • Page 18 2—Verify Camera Operation F-Series Installation Manual Lan Settings Step 1 Click LAN Settings. The screen at the right will be displayed. Step 2 Enter the Hostname, Gateway, IP Address, and Netmask that are appropriate for the local area network. Then click Save.

  • Page 19: Mechanical Icd Reference

    Mechanical ICD Reference The following Mechanical Control Documents detail the outline and mounting for the F-Series cameras. These documents are provided for reference only. You should consult your local sales representative or application engineer to obtain current ICD information. Also, the F-Series Thermal Imaging Camera Core Data Sheet available from the website contains important mechanical interface data as well.
  • Page 20 A—Mechanical ICD Reference F-Series Installation Manual March 2010 427-0030-00-12, version 110...
  • Page 21 F-Series Installation Manual Appendix A—Mechanical ICD Reference Appendix A Mechanical ICD Reference F-Series Camera Mechanical Interface Control Document Sheet 1 427-0030-00-12, version 110 March 2010...
