Page 1: Instruction Manual

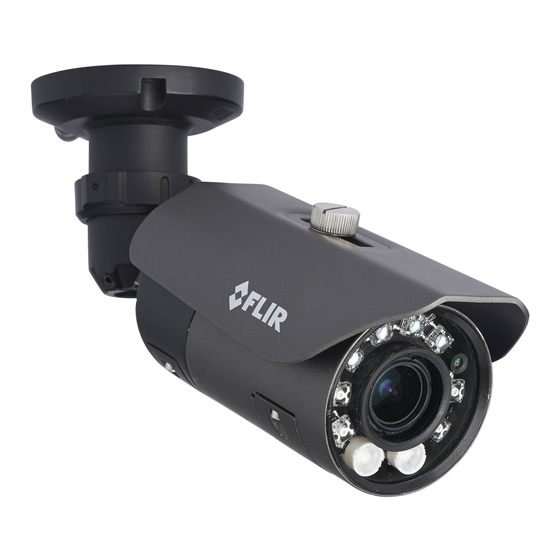

DNB13TL2 IR Bullet IP Camera Instruction Manual English Version 1.0 www.digimerge.com www.flir.com/security Copyright © 2013 Digimerge Technologies Inc., a FLIR Company... - Page 2 Thank you for purchasing this product. FLIR/Digimerge is committed to providing our customers with a high quality, reliable security solution. This manual refers to the following models: • DNB13TL2 For more information on this product, firmware updates, and accessory products, please visit us at: www.digimerge.com...
-
Page 3: Important Safeguards
Important Safeguards In addition to the careful attention devoted to quality standards in the manufacturing process of your video product, safety is a major factor in the design of every instrument. However, safety is your responsibility too. This sheet lists important information that will help to assure your enjoyment and proper use of the video product and accessory equipment. - Page 4 Service 13. Servicing - Do not attempt to service this video 19. Cleaning - Unplug the video product from the wall equipment yourself as opening or removing covers outlet before cleaning. Do not use liquid cleaners or may expose you to dangerous voltage or other aerosol cleaners.
-
Page 5: General Precautions
General Precautions 1. All warnings and instructions in this manual should be followed. 2. Remove the plug from the outlet before cleaning. Do not use liquid aerosol detergents. Use a water dampened cloth for cleaning. 3. Keep enough space around the unit for ventilation. Slots and openings in the storage cabinet should not be blocked. - Page 6 Features • 2.1 MP HD, Sony Exmor™ 1/2.8" CMOS Progressive Scan • 1080p picture quality at real-time (30 fps) • Triple-streaming (H.264/MJPEG) • Futureproof ONVIF 2.1 compliance (1.02 backwards compatible) • Compatible with popular third party VMS software • Milestone XProtect® GO (8 Channel) VMS included plus FLIR Syncro-V •...
-
Page 7: Table Of Contents
TABLE OF CONTENTS 1. Getting Started ....... . . 1 1.1 Default Camera Username, Password, and Ports . - Page 8 6.8 Alarm Configuration ........34 6.8.1 Disk Alarm ............34 6.8.2 Motion Alarm .
-
Page 9: Getting Started
Getting Started 1. GETTING STARTED The system comes with the following components: • 1 x Camera • 1 x Mounting Screw Kit Mounting Screw Kit: • 1 x Allen Key • 3x mounting screws (PA4 30mm) • 1 x RJ45 Coupler •... -
Page 10: Camera Overview
Getting Started 1.2 Camera Overview microSD card slot (max. 64GB supported; SanDisk™/ Sunshade Kingston™ brand memory cards recommended) Service video connector Camera stand screw Zoom adjustment Adjustment ring Focus adjustment Mounting plate Reset button Super Flux IR LEDs (x8) Lens High-power... -
Page 11: Onvif Compatibility And Included Software Overview
Getting Started 1.3 ONVIF Compatibility and Included Software Overview This camera is ONVIF v2.1 compliant. It is designed for interoperability with popular VMS’s and NVR’s*, with backwards compatibility to ONVIF v.1.02. For more information on ONVIF, visit www.onvif.org Syncro-V, and CMS-DH PRO are provided. Syncro-V and CMS-DH PRO are client-only, meaning that each camera must be individually configured for remote access. -
Page 12: Connection
Connection 2. CONNECTION The camera has the following termination cables: 1. RJ45 Network Interface: Connect to a router or switch on your network using RJ45 Ethernet cable (Cat5e or better). 100Mhz connection. PoE supported (class 3 PoE switch required). NOTE: Use the included RJ45 coupler to connect to male end of RJ45 Ethernet cable. -
Page 13: Camera Installation
Camera Installation 3. CAMERA INSTALLATION Make sure to follow the correct polarity if connecting the camera to DC power. Polarity is marked on the power connector. 1. Use the included mounting template to mark mounting points for the camera. NOTE: If mounting the Mounting... - Page 14 Camera Installation 4. (Optional) Insert the included BNC test cable into the video test cable terminals and connect to a test monitor to check the camera viewing angle. BNC Test Cable 5. (Optional) Insert a microSD card into the camera. To enable recording, you must format the microSD card and configure microSD...
- Page 15 Camera Installation 6. To change the camera’s viewing angle: • Loosen the stand screw using the included allen key. • Loosen the adjustment ring by hand. • Move the camera into the desired position, then tighten the stand screw and adjustment ring.
-
Page 16: Finding The Camera's Ip Address
Finding the Camera’s IP Address 4. FINDING THE CAMERA’S IP ADDRESS Use the steps below to find the camera’s IP address and connect to the camera over the local area network (LAN) using Syncro-V, UPnP on Windows® 7, or Bonjour® in Mac OS®. 4.1 Finding the Camera’s IP Address Using Syncro-V 1. -
Page 17: Finding The Camera's Ip Address Using Upnp In Windows
Finding the Camera’s IP Address 4. Click on a camera IP address in Device List to login. 5. Under User Name, enter the user name for the camera (default: admin). Under Password, enter the password for the camera (default: admin). Click Continue. -
Page 18: Finding The Camera's Ip Address Using Bonjour® In Mac Os
Finding the Camera’s IP Address 1. Click Start>Computer>Network. The camera’s IP address appears under Network Infrastructure. Double-click to open the camera Network 2. Double-click the camera to open it in your default browser. 3. Under User Name and Password, enter the camera’s User Name (default: admin) and Password (default: admin) and click Login. -
Page 19: Finding The Camera Ip Using The Bnc Test Cable
Finding the Camera’s IP Address 2. Click Bonjour. The camera’s IP address appears in the Bonjour Devices list. 3. Double-click the camera to open it in Safari®. Bookmarks button Bonjour Double-click the camera’s IP address 4. Under User Name and Password, enter the camera’s User Name (default: admin) and Password (default: admin) and click Login. -
Page 20: Configuring Remote Connection
Configuring Remote Connection 5. CONFIGURING REMOTE CONNECTION Follow the steps below to configure your camera for connections over the Internet using a web browser, Syncro-V, or other VMS software. Step 1 of 6: Locate the camera’s local IP address: • See “4. Finding the Camera’s IP Address” on page 8. Step 2 of 6: Port Forward your router: You need to enable port forwarding for the following ports on your router to the camera’s local IP address:... - Page 21 Configuring Remote Connection Step 3 of 6: Locate your camera’s MAC address: 1. Open a web browser and enter the camera’s IP address in the address bar in the following format: http:// http://192.168.0.120:80 Colon IP address HTTP port number 2. Under User Name and Password, enter the camera’s User Name (default: admin) and Password (default: admin) and click Login.
- Page 22 Configuring Remote Connection To setup your free FLIR DDNS account: 1. In your browser, go to http://ddns.myddns-flir.com and click Create Account. 2. Complete the Account Information fields with Click Create Account your personal information. Enter personal information 3. Complete the System Information fields: •...
- Page 23 Configuring Remote Connection 5. Your Account information will be sent to you at the email address you used in Step 2. Record your Account Information below. Domain Name: User Name: Password: Step 5 of 6: Enable DDNS on the camera: 1.
-
Page 24: Connecting To A Ddns Address Using Syncro-V
Configuring Remote Connection 5.1 Connecting to a DDNS address using Syncro-V NOTE: Complete all the steps above before performing the following method. 1. Open Syncro-V and click Device Manager>Video Device Manager. 2. Click Manager. The Device Maintenance window opens. Enter the Control camera’s Port... - Page 25 Configuring Remote Connection 8. Close Device Maintenance and Device Manager, and return to the Live Video screen. The newly added camera will appear in Device List. Found camera NOTE: A icon is shown for all cameras outside of the LAN. This does not affect your ability to connect to the camera remotely.
-
Page 26: Web Configuration
Web Configuration 6. WEB CONFIGURATION The camera includes a built-in web interface that can be accessed using a web browser. 6.1 Supported Browsers • Google Chrome, Mozilla Firefox, and Apple Safari® (via Adobe Flash Player) • Microsoft Internet Explorer® 7.0 or later, 32-bit version (via ActiveX®) 6.2 Chrome, Firefox, and Safari Setup 1. -
Page 27: Internet Explorer® Setup
Web Configuration 4. The main screen for the camera web interface opens. From here you can view and configure the camera. NOTE: If you do not see video from the camera, make sure your computer has the latest version of Adobe Flash Player installed (visit http:// www.adobe.com/ to download the latest version). - Page 28 Web Configuration 3. Under Download unsigned ActiveX controls, click Prompt (recommended) or Enable. Select Enable or Prompt under Download unsigned ActiveX controls Click OK 4. Click OK. Click OK again to save changes. Step 2 of 2: Log into camera: 1.
- Page 29 Web Configuration 4. If your computer has Flash Player installed, the main screen for the camera web interface opens. From here you can view and configure the camera. NOTE: The ActiveX plug-in may provide smoother video performance than Flash Player. To use ActiveX, click the message above the video window. Then click inside the video area, select Install this Add-on for all users on this computer, and follow the prompts.
-
Page 30: Web Interface/Live Video Overview
Web Configuration 6.4 Web Interface/Live Video Overview Click and drag to zoom in. Right-click and Camera select ZoomOut to zoom out. configuration menus Double-click inside window for full-screen Select Stream TIP: Select stream2 for better performance for remote connections. Stream2 has a lower resolution than stream1. The Live video page appears when you log into the camera. -
Page 31: Configuring Camera Settings
Web Configuration The Live Video Menu contains the following options: • Full Screen: Open the video in full screen. Press ESC to exit full screen. • Sensor Config: Configure the camera sensor settings. See “6.17 Sensor Configuration” on page 52. •... -
Page 32: Device Info
Web Configuration 6.5 Device Info The Device Info page shows information about your IP camera, such as the Device Name (which appears in the Device List in Syncro-V), firmware version, MAC address, and camera inputs and outputs. You can also configure the Device Name for your camera. -
Page 33: Stream Configuration
Web Configuration 6.6 Stream Configuration The Stream Configuration page allows you to configure the camera’s video streams. The camera supports three different video streams. This allows you to have a high quality recording stream (stream1), a lower quality stream (stream2) to preserve bandwidth for remote connections, and an MJPEG stream for applications requiring MJPEG. -
Page 34: Device Configuration
Web Configuration • Frame Rate: Select the frame rate for the stream up to maximum of 30FPS for stream1 or stream2 or 12FPS for stream3. NOTE: Frame rate may be automatically adjusted to account for bandwidth limitations. • I Frame interval: Select the interval for I frames: 1, 2, or 3. The default value of 2 should be used unless there are special requirements. -
Page 35: Local Network
Web Configuration 6.7.1 Local Network The Local Network page shows the camera’s current IP address and network parameters if DHCP is enabled. It also allows you to set a static IP address for the camera (see below), set the networking parameters, and to select IPv4 or IPv6. -
Page 36: Device Port
Web Configuration 4. Click OK to save changes. The camera will restart with the new IP address. 6.7.2 Device Port The Device Port page (Device Configuration>Device Port) allows you to configure the camera’s port configuration. The camera has the following ports: •... -
Page 37: Camera
Web Configuration 6.7.3 Camera The Camera page (Device Configuration>Camera) allows you to configure the Channel Name, which appears on the camera OSD and the video system frequency. To change the Channel Name: • Configure the Channel Name as needed and then click the Set button next to Channel Name. - Page 38 Web Configuration You can set the camera’s date and time the following ways: • Using an NTP server (recommended) • Using your computer’s system time • Manually The camera is configured to use NTP by default, but you must set the time zone and Daylight Savings Time settings to ensure accurate time.
-
Page 39: Osd
Web Configuration 3. Un-check Enable NTP and click Apply at the bottom of the screen. 4. If your region observes daylight savings time, check Adjust clock for daylight saving changes. • Under Start and End, select the start and end times for daylight savings. 5. -
Page 40: Microphone
Web Configuration • Custom: Create a custom OSD message. Enter the custom OSD text under Custom OSD. Device Name Channel ID Channel Name Time Custom 3. Enter the desired Row and Column for enabled OSD messages. Text on row 0 is shown at the top of the screen, and moves down as the row number increases. -
Page 41: Bnc Video Output
Web Configuration Configure microphone settings for listen-in audio. Self-powered microphone required (not included). To configure microphone settings: 1. Click Device Configuration>Microphone. 2. Check Enable Microphone to enable listen-in audio or un-check to disable. 3. Under Microphone Volume, select the volume for the microphone between 1~100. -
Page 42: Alarm Configuration
Web Configuration To change the language for the OSD and email alarms: 1. Click Device Configuration>Language. 2. Under Language, select the desired language then click OK to save changes. 6.8 Alarm Configuration Alarm Configuration contains the following sub-menus: • Disk Alarm •... -
Page 43: Motion Alarm
Web Configuration 3. Under Max Disk Space, enter the disk full percentage that will trigger an alarm (e.g. a Disk Full Alarm will be triggered when the recording disk is 80% full). 4. Check Disk Error Alarm to enable Disk Error Alarms. 5. - Page 44 Web Configuration 3. Click Schedule to configure a motion detection schedule. The Schedule Time Setting menu opens. NOTE: If the Schedule Time Setting menu does not open, disable any popup blockers. 4. Configure the weekly schedule. The schedule is divided into 3 periods, and motion detection will be enabled in all times during all 3 periods.
-
Page 45: Local Record
Web Configuration 6.9 Local Record Local Record contains the following sub-menus: • Record Policy • Record Directory 6.9.1 Record Directory Record Directory allows you to configure the microSD/SD memory card, NAS, and FTP storage locations. It also allows you format the microSD/SD card. - Page 46 Web Configuration 4. Click Modify. The Record Disk Path menu opens. Select SD1 Click Modify 5. Check Enable. Check Enable Click Format 6. Under File System, select SDVideo (recommended) or Ext3. 7. Click Format. A window will appear to show the status of the formatting. Wait for the formatting to complete and then click OK.
- Page 47 Web Configuration 2. Under Disk Name, select ftp. Select ftp Click Modify 3. Click Modify. The Record Disk Path opens. 4. Check Enable. 5. Configure the following: Check Enable Configure FTP server information Click OK • IP: Enter the FTP server address. •...
- Page 48 Web Configuration 6. Click OK. 7. Set up recording using the Record Policy sub-menu (see “6.9.1 Record Directory” on page 37). To access your recordings, use Syncro-V or manually access your FTP server. NOTE: On the Record Directory page, Status will be OK when FTP is selected if FTP is accessible and all settings have been entered correctly.
- Page 49 Web Configuration 4. Configure the following: • IP: Enter the IP address of the NAS. • Path: Enter the NAS folder where video files will be saved. NAS folder /public must be located directly under the root folder of the NAS (e.g. •...
-
Page 50: Record Policy
Web Configuration 6. Set up recording using the Record Policy sub-menu (see “6.9.1 Record Directory” on page 37). To access your recordings, use Syncro-V or manually access your NAS device. NOTE: On the Record Directory page, Status will be OK when NAS is selected if NAS is accessible and all settings have been entered correctly. - Page 51 Web Configuration The Record Policy menu allows you to set the microSD/SD memory card, NAS, and FTP recording parameters. Once configured, the device can record video directly to a microSD/SD card, NAS, and FTP. To enable recording to microSD/NAS/FTP: 1. Click Local Record>Record Policy. 2.
-
Page 52: Privacy Masking
Web Configuration number of days and enter the Number of Days desired. Note that you must have sufficient storage space to save the number of days entered. 8. Click OK to save changes. NOTE: To view video from the SD/microSD card, FTP, or NAS, use Syncro-V’s playback features, see the Syncro-V manual on the CD for details. -
Page 53: Network Service
Web Configuration 4. Click OK. An error message appears if the masks configured exceed 8% of the total image area. 6.11 Network Service Network Service contains the following sub-menus: • DDNS • PPPoE (Not supported) 6.11.1 DDNS The DDNS sub-menu allows you to configure DDNS settings. Before configuring DDNS settings, you must register the camera for a free FLIR DDNS account (see “5. -
Page 54: Service Center
Web Configuration • Password: Enter the Password you received in the confirmation email. 4. Click OK to save settings. 6.12 Service Center Service Center contains the following sub-menus: • SMTP • Alarm Center (not supported) 6.12.1 SMTP (Email Alert Setup) The SMTP sub-menu allows you to configure email alerts when motion alarms occur. -
Page 55: Privilege Manager
Web Configuration To enable email alerts: 1. Click Service Center>SMTP. 2. Check Enable SMTP. 3. Configure the following: • SMTP Server Address: Enter the address for your SMTP server. • SMTP Server Port: Enter your server’s SMTP port number. • User Name: Enter the SMTP account user name. •... -
Page 56: Group
Web Configuration 6.13.1 Group The Group page (Privilege>Group) allows you to manage permissions for user groups. Users obtain permissions from their group. The Administrators group contains all permissions and cannot be deleted or edited. To add a user group: 1. Click Add. The Add Group menu appears. NOTE: If the Add Group menu does not appear, disable any popup blockers. -
Page 57: User
Web Configuration 1. Under Group, select the group you would like to modify. 2. Click Modify to change the group name if needed, enter a new group name and click OK. 3. Change permissions as needed and click OK. To delete a user group: 1. -
Page 58: Unlocking User Accounts
Web Configuration To add a user account: 1. Click Add. The Add User window appears. NOTE: If the Add User menu does not appear, disable any popup blockers. 2. Enter a User Name and Password for the account and repeat the password under Confirm. -
Page 59: Protocol
Web Configuration 2. Click Privilege Manager>User. Select the user Click Unlock 3. Under User, select the locked user account. 4. Click Unlock to unlock the account. 6.14 Protocol Protocol contains the following sub-menus: • Protocol • Security (Not supported) NOTE: Do not check User Verification in the Security sub-menu, as it may block ONVIF software from detecting the camera. -
Page 60: Default Settings
Web Configuration 6.16 Default Settings Click Default Settings. Click Restore then click OK to restore the camera to factory default settings. The camera will reboot. 6.17 Sensor Configuration The Sensor Configuration menu is used to adjust camera image settings. To configure camera image settings using the Sensor Configuration menu: •... -
Page 61: Image Adjust
Web Configuration • Click Save to save setting changes. • Click Reset to revert to the last saved changes. • Click Factory Setting to revert all camera sensor settings to factory defaults. • Click Cancel to exit. TIP: Hold the mouse over the tabs to see the full name of the tab. 6.17.1 Image Adjust Adjust the Brightness, Saturation, and Contrast settings for the image. -
Page 62: Gain Mode
Web Configuration • MaxShutter: Sets the upper limit of the shutter speed when AutoShutter is selected. • FixedShutter: Sets the shutter speed when FixedShutter is selected. 6.17.3 Gain Mode Select gain mode and adjust gain settings. • Gain Mode: Select AutoGain or FixedGain. •... -
Page 63: Auto Iris
Web Configuration • Night Color: Select Black_White to have the camera switch to black and white during night mode or select Multicolor to have the camera remain in color during night mode. 6.17.5 Auto Iris Set Auto Iris settings. • Auto Iris: Select ON to enable or OFF to disable. •... -
Page 64: Ae Meter Mode
Web Configuration 6.17.7 AE Meter Mode Set the Auto-Exposure Meter Mode from one of the following: • Multi-Pattern: When metering light, entire image is metered symmetrically. • Center-Weighted: When metering light, priority is given to the center of the image. •... -
Page 65: Wdr
Web Configuration • WB Mode: Select Auto for automatic white balance or Manual to manually set the white balance. • Manual Mode: Select a mode for the lighting conditions or select Customized and manually adjust the RedGain and BlueGain. 6.17.9 WDR Configure settings for Digital Wide Dynamic Range. -
Page 66: Mirror
6.17.10 Mirror Enable/disable image mirroring. • Mirror: Select Horizontal to mirror the image horizontally, Vertical to mirror vertically, or Picture Flip to mirror both horizontally and vertically. Select Close to disable image mirroring. 6.17.11 Noise Filter Configure noise filter settings. -
Page 67: Resetting To Factory Defaults
Resetting to Factory Defaults 7. RESETTING TO FACTORY DEFAULTS Follow the steps below to revert all settings to factory defaults. The camera must be connected to power to perform a factory reset. Open the service compartment near the camera base by loosening the screws (2x) with the included allen key. -
Page 68: Dimensions
Dimensions 8. DIMENSIONS... -
Page 69: Technical Specifications
User setting of Stream 1/2 at supported resolutions, Stream3 fixed MJPEG Stream Brightness/Sharpness Each Variable 0~100 Gain Control Auto (with Max Setting)/Fixed 0~100dB Orientation Horizontal Mirror/Vertical Flip/Both Text Overlay Time/Date/Camera/Custom OSD Masking 3 user defined masking areas < 8% of total picture Network... - Page 70 Technical Specifications Recording Local Micro SD Memory*, Remote FTP server, TCP/UDP CMS, RTSP connection Simultaneous (stream 1,2 or 3) Network Protocols HTTP, TCP/IP, UDP/IP, RTSP, FTP, DHCP, NTP, PPoE. Video streaming from SDK & NVMS/NVR software or 3rd party applications. User Ports setting for Web port, RTSP Port, and SDK Control Port and Alarm Port.
-
Page 71: Troubleshooting
Troubleshooting 10. TROUBLESHOOTING Can’t find the camera IP address using Syncro-V or other software: • Make sure Ethernet and/or DC power cables are correctly connected to the camera. • Make sure the PoE switch or DC power source meets the camera’s power requirements (class 3 PoE /740mA / 9W / 12V). - Page 72 Troubleshooting Can’t connect to camera on a web browser using a DDNS address: • FLIR DDNS address entered incorrectly into the address bar. Make sure to enter http://, the Domain Name you received in the confirmation email, http:// followed by colon, and the HTTP port number of the camera (e.g. tomsmith.myddns-flir.com:80 •...
- Page 73 Need Help? Please make sure to visit our website www.digimerge.com to receive product updates and information. 3 Easy Ways To Contact Us Online: P ro d u c t s upp or t i s a v a i l a b l e 2 4 / 7 i n c l ud i n g p r od u c t in fo r m a ti on , u se r m a nu a l s , qu i c k s t a rt up g u i d e s an d FA Q’s w w w.d ig i m e rg e .c om By Email:...
