Zone 2 Door Contact with Bypass
If the door being released by the 7073/7073A/7173 keypad is protected, you can
provide a programmed bypass time by connecting its contact to Zone 2 (White/Red
pair) on the keypad and enabling the Bypass feature. See ZONE 2 BYPASS later in this
document. Door contacts may be N/C or N/O.
Note: The Door Strike time is programmable when the keypad is used on a
XR100/XR500 Series or XR150/XR350/XR550 Series panel.
Zone 3 Request to Exit
You can also connect a N/O PIR (or other motion sensing device) or a mechanical
switch to Zone 3 (White/Orange pair) on the 7073/7073A/7173 keypad to provide
request to exit capability. See ZONE 3 EXIT later in this document. When Zone 3
shorts, the keypad relay activates for 5 seconds. During this time, the user can open
the protected door to start the programmed Bypass entry/exit timer. If the door is
not opened within 5 seconds, the relay restores to its locked state.
Note: A Zone 3 Request to Exit is inhibited for 3 seconds after the keypad reads a card
and a door strike occurs. This is to allow entry to the area and pass under a Request-
to-Exit PIR.
Panic Key Options
2-Button Panic Keys
All keypads offer Panic key function that allows
users to send Panic, Emergency, or Fire reports to
the central station. Enable the Panic key function
in the keypad user menu. See Keypad Programming
Instructions later in this document. Install the
supplied icon labels below the top row of Select keys as shown in Figure 4.
The user must press and hold the two Select keys for two seconds until a beep from
the keypad is heard. At the beep, the panel sends the following zone alarm reports to
the central station:
Panic (left two Select keys)—Zone 19 + Device Address
Emergency—non-medical (center two Select keys)—Zone 29 + Device Address
Fire (right two Select keys)—Zone 39 + Device Address

7/0 Panic Keys

All keypads also allow the user to initiate an Panic alarm by pressing the 7 and 0
(zero) keys simultaneously for one-half (1/2) second. Enable the 7/0 Panic function in
Installer Options. See Keypad Programming Instructions later in this document. When
enabled, all keypads send a Zone Short message to the panel for the first zone of
the keypad address. When the keys are released a Zone Restore message can be sent
from the initiating keypad.
To produce a panic alarm, program the first zone of the keypad address as a panic
type in panel programming. Place a 1k Ohm end-of-line (EOL) resistor, DMP Model
311, across the White/Brown pair of zone wires on models 7070/7070A, 7073/7073A,
and 7170/7173. This allows a Zone Restore message to be sent when the keys are
released. The 1k Ohm EOL resistor is not required on 7060/7060A, 7063/7063A,
7160/7163 keypads.
LCD Keypad Installation Guide
Top Row Select Keys
Police Emergency
Label shows Icons only

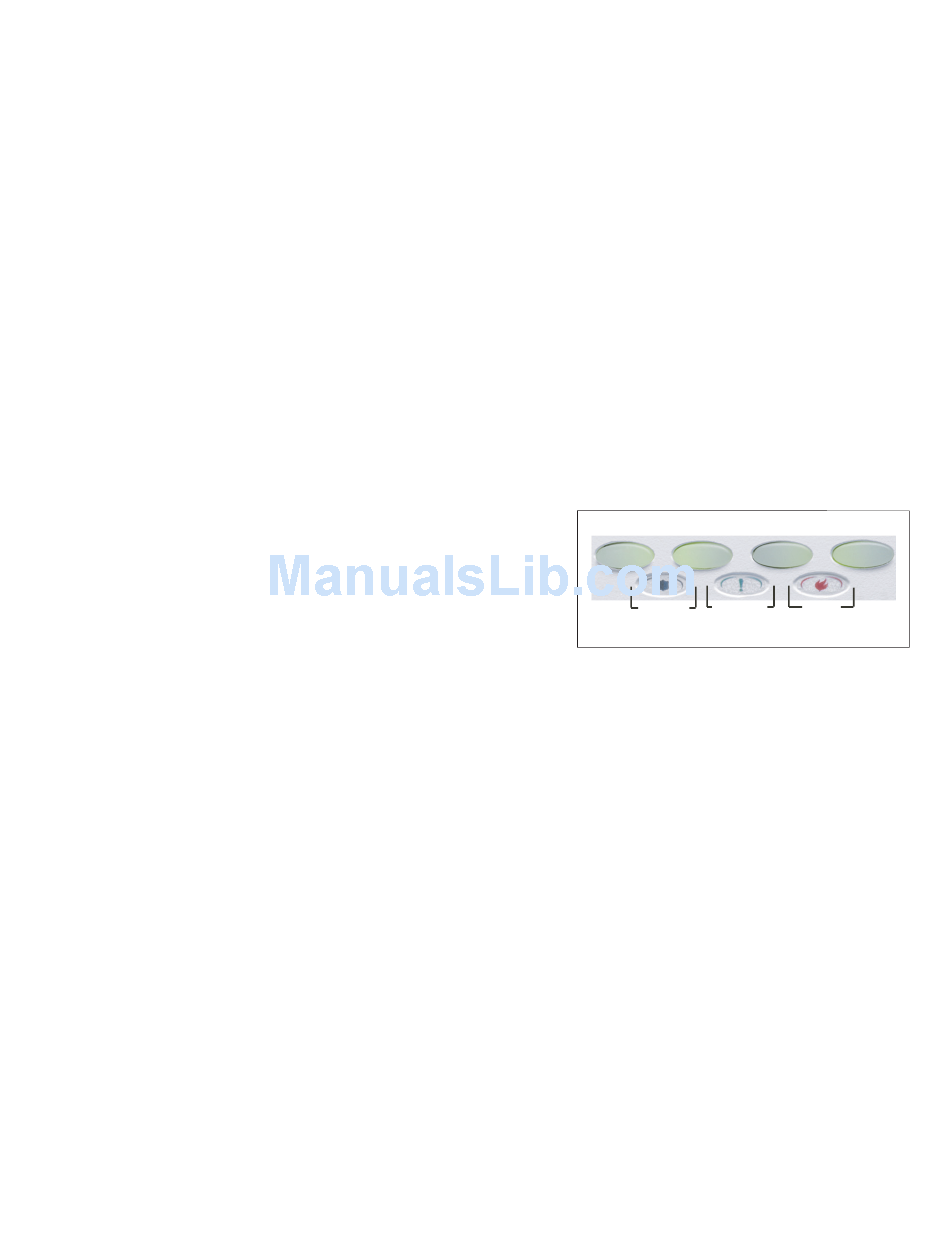

Figure 4: Label Placement
Fire
5
