INSTALLATION GUIDE

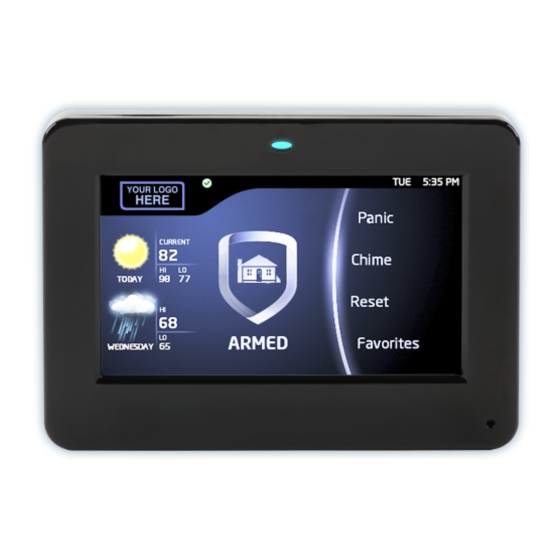

Models 7872 and 7873
Graphic Touchscreen Keypads

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7872 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DMP Electronics 7872

Summary of Contents for DMP Electronics 7872

  • Page 1 INSTALLATION GUIDE Models 7872 and 7873 Graphic Touchscreen Keypads...
  • Page 2 © 2015 Digital Monitoring Products, Inc. Information furnished by DMP is believed to be accurate and reliable. This information is subject to change without notice.

  • Page 3: Dmp Keypad Features

    • Simple harness connection to 4-wire keypad bus • Micro SD for customized logo • Icon-driven operation The Model 7872 keypad provides four fully programmable Class B, Style A, supervised, power limited protection zones and a built-in proximity card reader designed to read DMP/HID proximity credentials.

  • Page 4: Cleaning The Touchscreen Display

    Touchscreen Display The 7800 Series keypads have an integrated LCD touchscreen user interface. The display can be set up to display a custom logo image on the main screen. See the Custom Dealer Logo section below. The display can also be programmed to turn off (blank screen) during periods when the keypad is not in use.

  • Page 5: Harness Wiring

    7, yellow to terminal 8, green to terminal 9, and black to panel terminal 10. Use 1k Ohm EOL resistors, DMP Model 311, on keypad zones 1 through 4. The 7872/7873 keypads are supplied with a 12-wire data bus/zone harness. Four wires connect to the keypad bus. The remaining eight wires are for the four zone inputs: two wires for each zone.

  • Page 6: Card Readers

    Power/Armed LED blinks. This provides both an audible and visual acknowledgement of the credential read. Internal Access Control Reader The 7873 and 7872 keypads provide a built-in proximity card reader designed to read DMP/HID 1300 Series proximity credentials. External Access Control Reader To accept Wiegand data input from other external card readers, connect a 12 VDC external reader to the 7873 keypad.

  • Page 7: Keypad Backlighting

    Keypad Back Zones 1 to 4 7800 Series Keypads Brown/White – Zone 1 White/Brown Red/White – Zone 2 White/Red Orange White – Zone 3 White/Orange Wiring the 333 Suppressor Yellow/White One Model 333 Suppressor is – Zone 4 White/Yellow included with the 7873 keypad. If Violet –...

  • Page 8: Select Areas

    Color and Activity Operation Blue Steady Panel Disarmed, AC Power OK, Battery OK Blue Blinking Panel Disarmed, AC Power OK, Battery Fault No Light Panel Disarmed, AC Power Fault, Battery OK Red Steady Panel Armed, AC Power OK, Battery OK Red/Blue Alternate Panel Armed, AC Power OK, Battery Fault Red Blinking...

  • Page 9: Internal Speaker Operation

    Internal Speaker Operation All keypads emit standard tones for screen presses, entry delay, and system alerts. The speaker also provides distinct burglary, fire, zone monitor, and prewarn cadences. The keypads provide an alternate prewarn with alarm cadence that occurs when the status list displays a zone alarm.

  • Page 10: Installer Options Menu

    Installer Options Menu Keypad Options and Keypad Diagnostic menus allow installing and service technicians to configure and test keypad operation. Access the Installer Options Menu Access the Options menu through the carousel menu. While in the Option display, press the Installer Options icon and enter the code 3577 (INST) at the keypad and press CMD.
  • Page 11 Zone 2 Bypass (Soft-Shunt) ACTIVATE ZONE 2 Select YES to enable the Bypass option on zone 2 as BYPASS: NO YES described earlier in this document. This zone provides the bypass for door contacts. This zone must be programmed into the panel. Zone 2 Bypass (Soft-Shunt) Time ZONE 2 BYPASS Enter the number of Bypass seconds to elapse before the...

  • Page 12: Custom Card Definitions

    Number of User Code Digits NO OF USER CODE The keypad recognizes user codes from 4 to 10 digits DIGITS: in length. Press the display to enter the user code digit length being used by the panel. Default is 5. When searching the bit string for the user code, the digits are identified and read from left to right.
  • Page 13 Site Code Position SITE CODE: Enter the site code start position in the data string. Press POSITION any select area to enter a number between 0-255. Press COMMAND to save the entry. Default is 1. Site Code Length SITE CODE: Enter the number of characters the site code contains.
  • Page 14 Press SITE to choose (Accept Site Code) — Door access is granted when the Wiegand site code string received matches any site code programmed at SITE CODE ENTRY. For details refer back to the REQUIRE SITE CODE option. Press ANY to choose (Any Wiegand Read) — Door access is granted when any Wiegand string is received.

  • Page 15: Select Language

    Carousel Z-Wave Items The Z-Wave Carousel Items screen allows you to select MON 5:35 PM CAROUSEL Z-WAVE ITEMS the Z-Wave options to be displayed in the Carousel menu on the main screen. Press the item to select and Lights Thermostats a check-mark displays.

  • Page 16: Accessing Keypad Diagnostics

    Restart Keypad The Restart Keypad screen allows the installer to MON 5:35 PM restart the keypad to initiate a firmware update RESTART KEYPAD from a Micro SD card. RESTART Press the button to restart the keypad. Updating Firmware using Restart To load new rmware from an SD card, insert the card and Insert a Micro SD card into the Micro SD Card press RESTART.

  • Page 17: Additional Programming

    Additional Programming The keypads allow users to present a proximity credential to the built-in proximity reader. Users can also manually enter their user code into the keypad. The keypad verifies the user code and its authority with the panel. Additionally, the 7873 keypad activates the on-board Form C relay releasing a door strike or magnetic lock.

  • Page 18: Proximity Credentials Compatibility

    DMP . User’s Guide This User’s Guide covers 7872 and 7873 keypads and contains three different sections: Keypad Arming and Disarming, Keypad Door Strike, and Keypad Entry Delay. All of the examples displayed assume that CLOSING CODE is YES in panel programming.
  • Page 19 Keypad Door Strike Area and All/Perimeter Door Strike From the Status List, present your card to the reader. Once the system validates the card, the Door Strike relay activates. Home/Away systems only activate the 7873 Door Strike relay when arming and disarming. CURRENT CURRENT TODAY...

  • Page 20: Fcc Information

    FCC Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 21: Wiring Specifications For Keypad Bus

    To maintain auxiliary power integrity when using 22-gauge wire with a Model 7872 or 7873 do not exceed 225 feet. When using 18-gauge wire do not exceed 500 feet. Install an additional power supply to increase the wire length or add devices.

  • Page 22: Specifications

    Specifications Operating Voltage 12 VDC Dimensions 5.8” W x 4.135” H x 0.6” D Compatibility All keypads are compatible with all XR100/XR500 Series, XR150/XR350/XR550 Series, and XT30/XT50 Series panels. Accessories Keypad Wiring Harness 300-7800-12ADPT 12-Wire Harness adapter 300-7800-5 5-Wire Harness 300-7800-12 12-Wire Harness Proximity Credentials...
