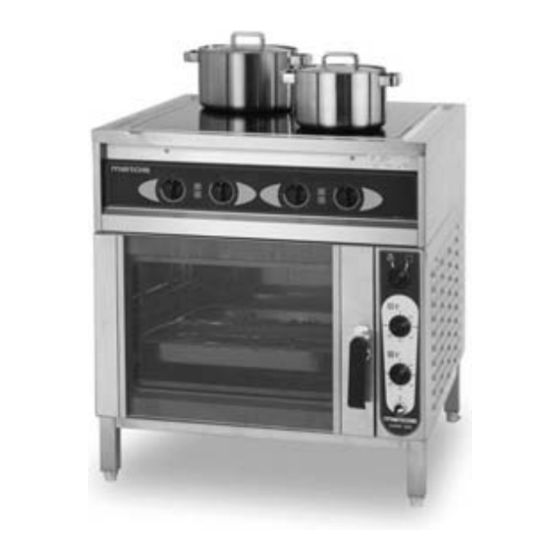

Ceramic hob range

Advertisement

Quick Links

CERAMIC HOB RANGE
ARDOX C
TYPE: C4, C6
Accessories
Chef 220
Chef 240
Installation and Operation Manual
Original instructions
S/N: 085528/01
Rev.: 3.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ardox C4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Metos Ardox C4

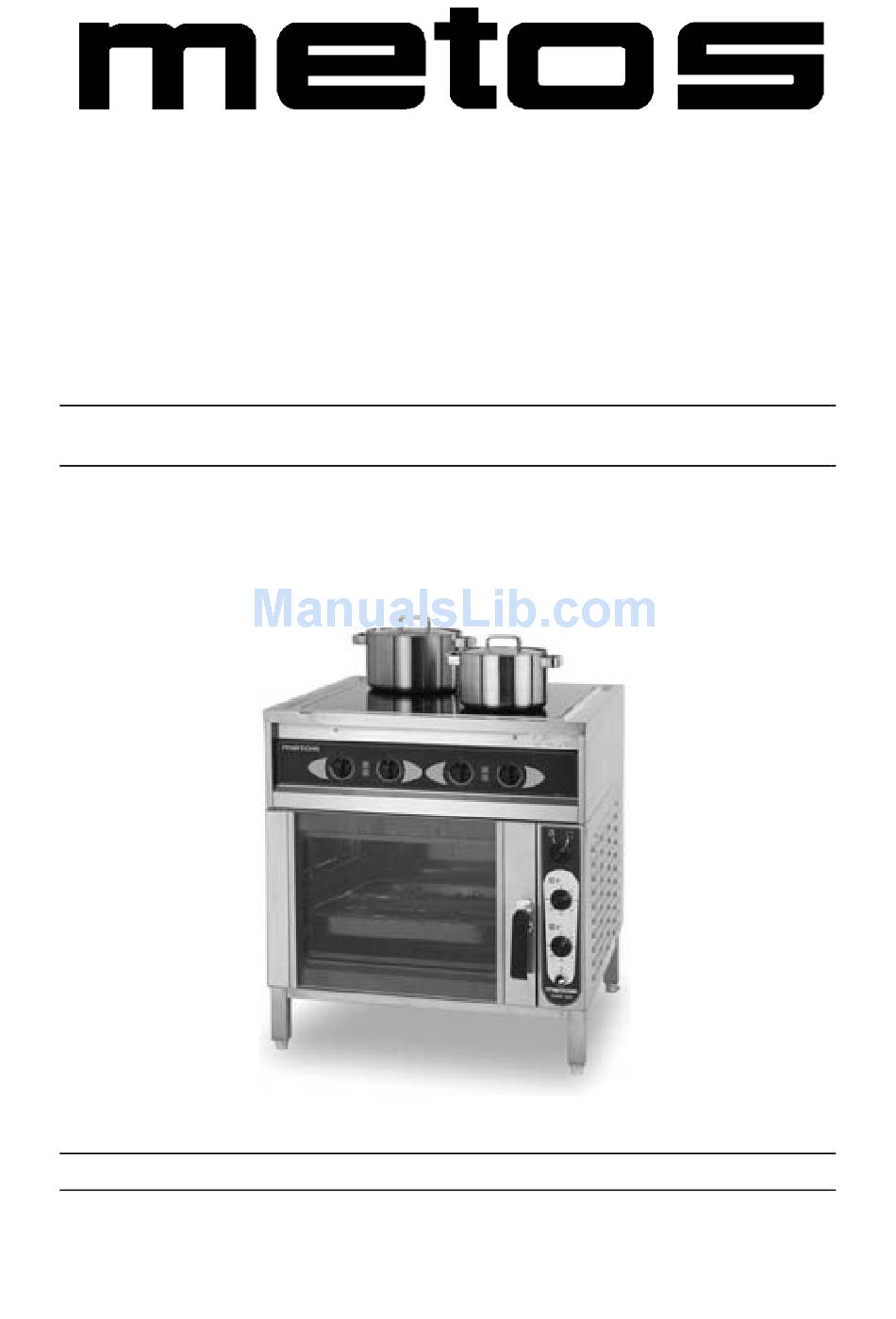

  • Page 1 CERAMIC HOB RANGE ARDOX C TYPE: C4, C6 Accessories Chef 220 Chef 240 Installation and Operation Manual Original instructions S/N: 085528/01 Rev.: 3.0...
  • Page 3 Dear Customer, Congratulations on deciding to choose a Metos appliance for your kitchen activities. You made an excellent choice. We will do our best to make you a satisfied Metos customer like thousands of customers we have around the world.
  • Page 4 22.3.2010 Rev. 3.0...
  • Page 5: Table Of Contents

    22.3.2010 Rev. 1. General ......................1 1.1 Symbols used in the manual ..................1 1.2 Symbols used on the appliance ..................1 1.3 Checking the relationship of the appliance and the manual .......... 1 2. Safety ......................2 2.1 Safe use of the appliance ....................2 2.2 Disposal of the appliance ....................
  • Page 6 22.3.2010 Rev.
  • Page 7: General

    22.3.2010 Rev. 3.0 General 1. General Carefully read the instructions in this manual as they contain important information re- garding proper, efficient and safe installation, use and maintenance of the appliance. Keep this manual in a safe place for eventual use by other operators of the appliance. The installation of this appliance must be carried out in accordance with the manufactur- er’s instructions and following local regulations.
  • Page 8: Safety

    22.3.2010 Rev. 3.0 Safety 2. Safety 2.1 Safe use of the appliance Because the range is a heated appliance that has hot surfaces during normal use, the fol- lowing warnings and instructions must be followed in order to avoid burns. During long-time operation even the frame surrounding the cooking plates gets hot.
  • Page 9: Functional Description

    22.3.2010 Rev. 3.0 Functional description 3. Functional description 3.1 Intended use of the appliance The Ardox C range is intended for preparing different kinds of foodstuffs using cookware. 3.1.1 Prohibited use Use of the appliance for other purposes than stated above is prohibited. Preparing food directly on the cooking plate without cookware is prohibited.
  • Page 10: Operation Instructions

    22.3.2010 Rev. 3.0 Operation instructions 4. Operation instructions 4.1 Before use 4.1.1 Selecting cookware Cookware made of stainless steel, aluminium and enamelled steel is best suitable for the ceramic range. Enamel based cast iron cookware can be used if handled with extra care. Cookware made of copper, ceramic and glass is not suitable for use on the ceramic range.
  • Page 11 22.3.2010 Rev. 3.0 Operation instructions The range is controlled with power regulators and pilot lights. Operating panel Pilot light, cooking zone on Power regulator, front zone Power regulator, rear zone The ceramic range heats up very fast so no preheating is necessary. This feature also makes it possible to switch off the cooking zone immediately when no longer needed.
  • Page 12: After Use

    22.3.2010 Rev. 3.0 Operation instructions 4.3 After use 4.3.1 Cleaning Use of a water hose or pressure cleaning jet is strictly forbidden. When cleaning the cooking top, remember that it is hot a long time after use. Cleaning is very easy, if possible spillovers are removed immediately with a damp cloth. Sugar and mixes containing much sugar must be removed immediately, because later re- moving is laborious and may leave permanent marks.
  • Page 13: Installation

    22.3.2010 Rev. 3.0 Installation 5. Installation 5.1 General The installation of this appliance must be carried out in accordance with the manufactur- er’s instructions and following local regulations. This installation manual must be used together with the installation drawing of the appliance. The connection of the appliance to the electrical and water supply must be carried out by qualified persons only.
  • Page 14: Test-Run

    22.3.2010 Rev. 3.0 Installation The feed-through for the connection cable is located in the bottom of the range, in the right front corner. In order to make the connection the knobs and the front panel of the range must be removed. The connection terminal is on the right side of the front casing. 5.5 Test-run Acquaint yourself with the user manual of this appliance before testing it.
  • Page 15: Troubleshooting

    22.3.2010 Rev. 3.0 Troubleshooting 6. Troubleshooting If the appliance does not function, check the following: • Has the appliance been used according to the instructions? • Are all possibly removable parts refitted? • Is the mains switch on the appliance or nearby - often on the wall - in the ON po- sition? •...
  • Page 16 22.3.2010 Rev. 3.0 Troubleshooting...
  • Page 17 22.3.2010 Rev. 3.0 Technical specifications 8. Technical specifications Main and control circuit diagram T02110 A3 Main and control circuit diagram T02111 A3 Installation drawing T02023 A3 Installation drawing T02025 A3 Installation drawing T02024 A3 Installation drawing T02026 A3...
  • Page 18 Main and control circuit diagram T02110 A3...
  • Page 19 Main and control circuit diagram T02111 A3...
  • Page 20 Installation drawing T02023 A3...
  • Page 21 Installation drawing T02025 A3...
  • Page 22 Installation drawing T02024 A3...
  • Page 23: Technical Specifications

    Installation drawing T02026 A3...
  • Page 24 22.3.2010 Rev. 3.0 Technical specifications Item Model Type Acces- Specification sory Outer dimensions WxDxH 800x800x900 mm Outer dimensions WxDxH 1200x800x900 mm Cooking top dimensions WxD 650x650 mm Cooking top dimensions WxD 347x650 mm, 650x650 mm Cooking zones 2x ø230mm, 2x270x270mm Cooking zones 3x ø230mm, 3x270x270mm Power regulation...
