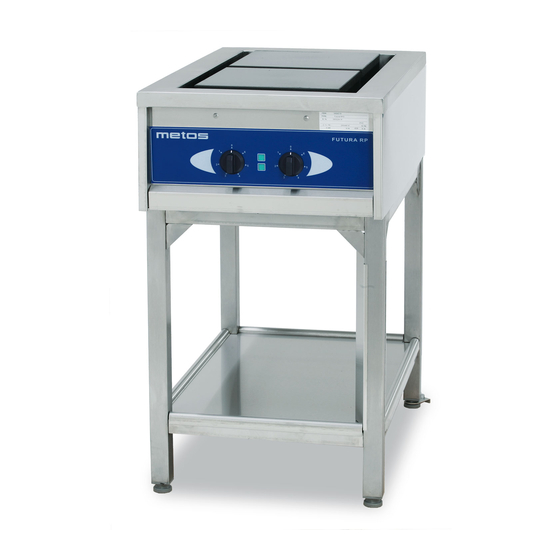

- Page 1 RANGE FUTURA RP2, RP4, RP6 MG-product codes 3494319, 3494358, 3494397 , 3521114, 3521115, 3521121, 3521153, 3521178, 3521386, 3521393, 3521467 , 3572214, 3572221, 3755004, 3755005 Installation and Operation Manual Rev.5.1...
- Page 1 RANGE FUTURA RP2, RP4, RP6 MG-product codes 3494319, 3494358, 3494397 , 3521114, 3521115, 3521121, 3521153, 3521178, 3521386, 3521393, 3521467 , 3572214, 3572221, 3755004, 3755005 Installation and Operation Manual Rev.5.1...
-
Page 2: Table Of Contents
Table of Contents General ...............................3 1.1. Symbols used in the manual ........................3 1.2. Symbols used on the appliance ........................3 1.3. Checking the relationship of the appliance and the manual ................3 Safety .................................4 2.1. Safe use of the appliance ..........................4 2.2. 2.2 Disposal of the appliance ........................4 Functional description ..........................5 3.1. -
Page 2: Table Of Contents
Table of Contents General ...............................3 1.1. Symbols used in the manual ........................3 1.2. Symbols used on the appliance ........................3 1.3. Checking the relationship of the appliance and the manual ................3 Safety .................................4 2.1. Safe use of the appliance ..........................4 2.2. 2.2 Disposal of the appliance ........................4 Functional description ..........................5 3.1. -
Page 3: General
12.08.2014 METOS FUTURA Range Rev. 5.0 General Carefully read the instructions in this manual as they contain important information regarding proper, efficient and safe installation, use and maintenance of the appliance. Keep this manual in a safe place for eventual use by other operators of the appliance. -
Page 3: General
12.08.2014 METOS FUTURA Range Rev. 5.0 General Carefully read the instructions in this manual as they contain important information regarding proper, efficient and safe installation, use and maintenance of the appliance. Keep this manual in a safe place for eventual use by other operators of the appliance. -
Page 4: Safety
METOS FUTURA Range Rev.5.0 12.08.2014 Safety 2.1. Safe use of the appliance Because the range is a heated appliance that has hot surfaces during normal use, the following warnings and instructions must be followed in order to avoid burns. During long-time operation even the frame surrounding the cooking plates gets hot. -
Page 4: Safety
METOS FUTURA Range Rev.5.0 12.08.2014 Safety 2.1. Safe use of the appliance Because the range is a heated appliance that has hot surfaces during normal use, the following warnings and instructions must be followed in order to avoid burns. During long-time operation even the frame surrounding the cooking plates gets hot. -
Page 5: Functional Description
12.08.2014 METOS FUTURA Range Rev. 5.0 Functional description 3.1. Intended use of the appliance The Futura range is intended for preparing different kinds of foodstuffs using cookware. 3.1.1. Prohibited use Use of the appliance for other purposes than stated above is prohibited. -
Page 5: Functional Description
12.08.2014 METOS FUTURA Range Rev. 5.0 Functional description 3.1. Intended use of the appliance The Futura range is intended for preparing different kinds of foodstuffs using cookware. 3.1.1. Prohibited use Use of the appliance for other purposes than stated above is prohibited. -
Page 6: Operation Instructions
METOS FUTURA Range Rev.5.0 12.08.2014 Operation instructions 4.1. Before use The cooking plates of the range are protected with a thin layer of oil for the duration of storage and transportation. When heating up the range for the first time the oil may create some smoke and unpleasant smell. -
Page 6: Operation Instructions
METOS FUTURA Range Rev.5.0 12.08.2014 Operation instructions 4.1. Before use The cooking plates of the range are protected with a thin layer of oil for the duration of storage and transportation. When heating up the range for the first time the oil may create some smoke and unpleasant smell. -
Page 7: After Use
12.08.2014 METOS FUTURA Range Rev. 5.0 Operating panel 1. Spillage tray 2. Pilot light cooking plate 3. Power regulator front panel 4. Power regulator, rear panel Each cooking plate is equipped with a 7-position power regulator which allows powerregulation in several steps. -
Page 7: After Use
12.08.2014 METOS FUTURA Range Rev. 5.0 Operating panel 1. Spillage tray 2. Pilot light cooking plate 3. Power regulator front panel 4. Power regulator, rear panel Each cooking plate is equipped with a 7-position power regulator which allows powerregulation in several steps. -
Page 8: Other Service Measures
METOS FUTURA Range Rev.5.0 12.08.2014 In all cleaning, prefer chemical cleaning methods rather than mechanical rubbing. Use a slightly alkaline detergent (pH 8-10) diluted in water according to instructions when cleaning the surfaces of the range. Always dry the cooking plates after cleaning by heating them up. -
Page 8: Other Service Measures
METOS FUTURA Range Rev.5.0 12.08.2014 In all cleaning, prefer chemical cleaning methods rather than mechanical rubbing. Use a slightly alkaline detergent (pH 8-10) diluted in water according to instructions when cleaning the surfaces of the range. Always dry the cooking plates after cleaning by heating them up. -
Page 9: Installation
12.08.2014 METOS FUTURA Range Rev. 5.0 Installation 5.1. General The installation of this appliance must be carried out in accordance with the manufacturer’s instructions and following local regulations. This installation manual must be used together with the installation drawing of the appliance. -
Page 9: Installation
12.08.2014 METOS FUTURA Range Rev. 5.0 Installation 5.1. General The installation of this appliance must be carried out in accordance with the manufacturer’s instructions and following local regulations. This installation manual must be used together with the installation drawing of the appliance. -
Page 10: Test-Run
METOS FUTURA Range Rev.5.0 12.08.2014 5.5. Test-run Acquaint yourself with the user manual of this appliance before testing it. The appliances under the cooking top are provided with their own manuals. After connecting the cable check the function of the range. -
Page 10: Test-Run
METOS FUTURA Range Rev.5.0 12.08.2014 5.5. Test-run Acquaint yourself with the user manual of this appliance before testing it. The appliances under the cooking top are provided with their own manuals. After connecting the cable check the function of the range. -
Page 11: Troubleshooting
12.08.2014 METOS FUTURA Range Rev. 5.0 Troubleshooting If the appliance does not function, check the following • Has the appliance been used according to the instructions? • Are all possibly removable parts refitted? • Is the mains switch on the appliance or nearby - often on the wall - in the ON position? •... -
Page 11: Troubleshooting
12.08.2014 METOS FUTURA Range Rev. 5.0 Troubleshooting If the appliance does not function, check the following • Has the appliance been used according to the instructions? • Are all possibly removable parts refitted? • Is the mains switch on the appliance or nearby - often on the wall - in the ON position? •... -
Page 12: Technical Specifications
METOS FUTURA Range Rev.5.0 12.08.2014 Technical specifications Wiring diagram 81848-83C Wiring diagram 81849C83 Main and control circuit T03431 A3 Main and control circuit T03519 A3 Main and control circuit S00092 A4 Installation drawing T02237 A3 Installation drawing T02238 A3 Installation drawing T02239 A3... -
Page 12: Technical Specifications
METOS FUTURA Range Rev.5.0 12.08.2014 Technical specifications Wiring diagram 81848-83C Wiring diagram 81849C83 Main and control circuit T03431 A3 Main and control circuit T03519 A3 Main and control circuit S00092 A4 Installation drawing T02237 A3 Installation drawing T02238 A3 Installation drawing T02239 A3... - Page 23 Installation drawing T02242 A3...
- Page 23 Installation drawing T02242 A3...
