Induction ranges

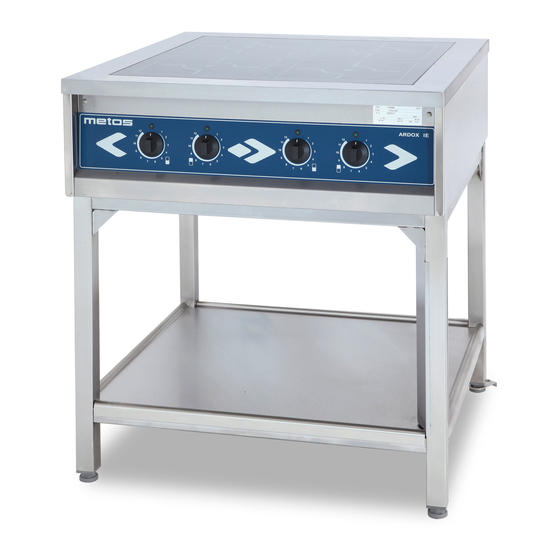

METOS ARDOX IE
4210064, 4210066, 4210068
Installation and Operation manual
07 .04.2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARDOX IE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Metos ARDOX IE

  • Page 1 Induction ranges METOS ARDOX IE 4210064, 4210066, 4210068 Installation and Operation manual 07 .04.2015...
  • Page 2: Table Of Contents

    07 .04.2015 Metos Induction range Ardox IE Table of Contents General description ...........................3 1.1. Symbols used in the manual ........................3 1.2. Symbols used on the appliance ........................3 1.3. Checking the relationship of the appliance and the manual ................3 Safety .................................4 2.1.
  • Page 3: General Description

    07 .04.2015 Metos Induction range Ardox IE General description Carefully read the instructions in this manual as they contain important information regarding proper, efficient and safe installation, use and maintenance of the appliance.Keep this manual in a safe place for eventual use by other operators of the appliance.
  • Page 4: Safety

    07 .04.2015 Metos Induction range Ardox IE Safety 2.1. Safe use of the appliance Because the range is a heated appliance that has hot surfaces during normal use, the following warnings and instructions must be followed in order to avoid burns.
  • Page 5: Functional Description

    Use of the appliance for any other purposes than that of mentioned above is prohibited. 3.3. Construction and operating principle Depending on the model,ceramic hob surface of Ardox IE consists of two, four or six induction heating zones. Cooking zones are marked on glass ceramic surface by a square shape.
  • Page 6: Operation

    07 .04.2015 Metos Induction range Ardox IE Operation 4.1. Before using the appliance 4.1.1. Selecting cookware for ceramic hobs with induction heating Cookware made from stainless steel with compound multi layer base. The magnetic induction base functions as a part of the hob’s magnetic field. Enamelled steel, cast iron andenamelled cast iron cook- ware is also suitable for induction hobs.
  • Page 7 07 .04.2015 Metos Induction range Ardox IE Figure 1 Zone will not Operate  Figure 4 Zone will not Operate Ø110mm pan - If inner circle markings can be seen, pan is too small. Detection will prevent cooking using this size of pan.
  • Page 8: Pot Type And Condition Guide

    07 .04.2015 Metos Induction range Ardox IE POT TYPE and CONDITION GUIDE POT TYPE and CONDITION GUIDE Note: A suitable pan is made of ferrous mate 4.2. Pot type and Condition guide Note: A suitable pan is made of ferrous material.
  • Page 9: Operation Procedures

    07 .04.2015 Metos Induction range Ardox IE 4.3. Operation procedures 4.3.1. Using the range Ardox I range with ceramic hobs heats up very fast, so no preheating is necessary. Select cooking zone and place cookware within the cooking zone. Start cooking from position “12” and when boiling begins, decrease the power as needed.
  • Page 10: Cleaning And Maintenance

    07 .04.2015 Metos Induction range Ardox IE Cleaning and Maintenance BEFORE ANY CLEANING OPERATION, ISOLATE ELECTRICITY AT MAIN SWITCH. Use of water hose or pressure cleaning jet is strictly forbidden. When cleaning the ceramic hob surface, remember that it is hot for a long time after use.
  • Page 11: Installation

    07 .04.2015 Metos Induction range Ardox IE Installation 6.1. General The installation of this appliance must be carried out in accordance with the manufactur-er’s instructions and in compliance with local rules and regulations. These instructions must be used together with the installation drawing of the appliance.
  • Page 12: Electrical Connections

    07 .04.2015 Metos Induction range Ardox IE 6.5. Electrical connections Check and ensure that supply voltage is the same as the voltage given on the rating plate of the applian- ce. The electrical connections must satisfy local house installation regulations. The valid national and local regulations of the electricity-supply inspection must be observed.
  • Page 13: Trobleshooting

    07 .04.2015 Metos Induction range Ardox IE Trobleshooting If the appliance fails to work, check to ensure that • it has been used according to the instructions • all removable parts are in place • the main switch (usually on the wall or in the immediate vicinity of the appliance) is in position ON •...
  • Page 14 07 .04.2015 Metos Induction range Ardox IE Error Name Cause Corrective action Code E1<->01 Hardware over current Unsuitable pan material Use suitable pan material Wrong or defective coil Check the coil / Call Service E1<->02 No inductor current Inductor connection failure Call Service Engineer.
  • Page 15: Technical Specification

    07 .04.2015 Metos Induction range Ardox IE Technical specification Item Model Type Specification Outer dimensions WxDxH Ardox IE 500x802x900 mm Outer dimensions WxDxH Ardox IE 802x802x900 mm Outer dimensions WxDxH Ardox IE 1200x802x900 mm Ceramic cooking hob dimensions Ardox IE...
  • Page 16: Wiring And Installation Drawings

    07 .04.2015 Metos Induction range Ardox IE Wiring and Installation drawings Main and control circuit diagram TO4141 A3 Installation drawing T04143A3...
