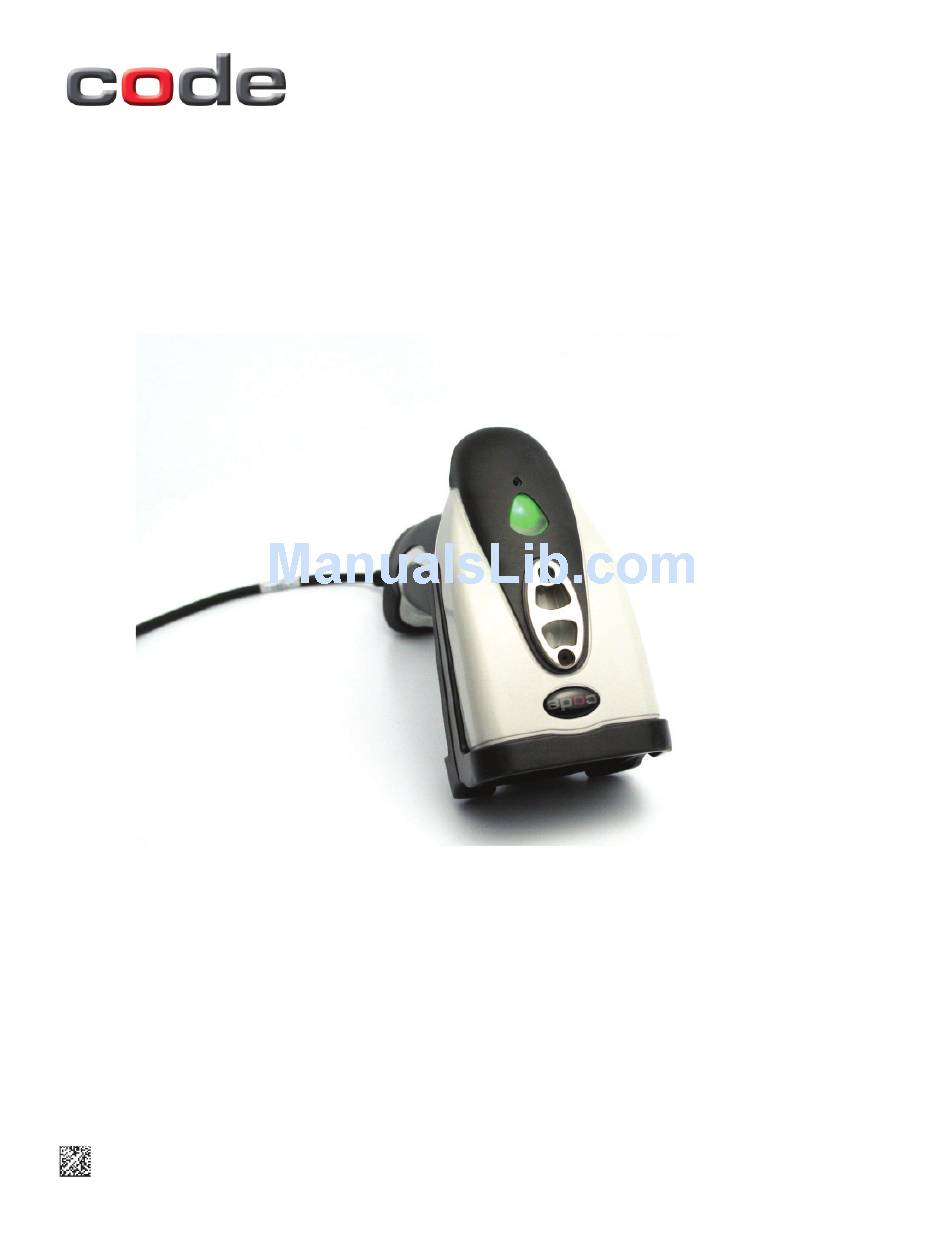

Page 1: Code Reader 1200
User Manual Code Reader 1200 ™ Manual Version 3 Release Date: 1/22/09 C003525_03_CR1200_User Manual C003525_03_CR1200 User Manual Save Settings... -
Page 2: Statement Of Agency Compliance
Statement of Agency Compliance The CR1200 has been tested for compliance with FCC regulations and was found to be compliant with all applicable FCC Rules and Regulations. IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, this device must not be co-located or operate in conjunction with any other antenna or transmitter. - Page 3 (If you would like to receive the the source code on CD, you may request it from your distributor within three years of your purchase of the Code Reader 1200, and it will be provided for only the cost of packaging and shipping the CD to you.) The Code Reader software uses the Mozilla SpiderMonkey JavaScript engine, which is distributed under the terms of the Mozilla Public License Version 1.1.
-
Page 4: Table Of Contents
2.2.1.3 - Keyboard Support ....................6 2.2.2 - PS/2 Cable Installation Guide ..................7 CR1200 must have a serial number greater than 10050561 and a fi rmware version greater than 4126 to use a PS/2 cable..........................7 2.2.3 - RS-232 (Serial) Cable Installation Guide ..............8 2.2.3.1 - Additional RS-232 (Serial) Communication Data Bit Settings ...... - Page 5 7.1 - Reset Reader to Factory Defaults ..................31 7.2 - General Safety Information ....................31 7.3 - Reader ID and Firmware Version ..................32 7.4 - Downloading to the CR1200 ....................32 7.5 - Warranty ..........................33 7.6 - CR1200 Accessories ......................34 7.7 - Frequently Asked Questions ....................
-
Page 6: Chapter 1 - Introduction
Chapter 1 - Introduction C003525_03_CR1200 User Manual Save Settings... -
Page 7: Introduction
USB, RS232, and PS2 protocol packets. It then writes that data to the output port of the CR1200 to which the cable is attached. A host computer application receives and processes the data packets. -
Page 8: About This Document
Setting Operational Features—confi guration codes for specifying CR1200 features Maintenance and Troubleshooting—maintenance of the CR1200 hardware and software Throughout this document you will fi nd codes that you can read with the CR1200 to confi gure it and to turn various features on or off. -
Page 9: Chapter 2 - Getting Started
Chapter 2 - Getting Started C003525_03_CR1200 User Manual Save Settings... -
Page 10: Unpacking
Figure 2.1 shows the connectors for the CR1200 cables. Cables are connected to the CR1200 with an 8-pin DIN connector. This section tells you how to attach the CR1200 to a host and confi gure the reader based on options available for each cable type. -
Page 11: Addional Usb Communication Settings
CR1200 and an application through the USB port. USB Virtual COM 1 Way Mode - This mode allows a USB-cabled CR1200 to function as a virtual COM port. To use the CR1200 in this mode, download the driver at www.codecorp.com/downloads.html. -
Page 12: Ps/2 Cable Installation Guide
2.2.2 - PS/2 Cable Installation Guide CR1200 must have a serial number greater than 10050561 and a fi rmware version greater than 4126 to use a PS/2 cable. 1. Power off the computer. If you disconnect the computer’s keyboard while it is powered on, your computer will lock up. -
Page 13: Rs-232 (Serial) Cable Installation Guide
Mode: RS-232 One Way Mode Baud Rate: 57600 Stop Bits: 2 Data Bits: 8 Parity: None Warning: Code Corporation approved power adapter must be used. Reader failure due to use of incorrect power adapter will void warranties. C003525_03_CR1200 User Manual Save Settings... -
Page 14: Additional Rs-232 (Serial) Communication Data Bit Settings
2.3.1 - Cabled Reader - Time Out Settings Scan one of the codes below to set the amount of time a cabled CR1200 will be enumerated before entering sleep mode. Note: These settings will only work in versions 2098 and above. -
Page 15: Chapter 3 - Optimization And Trigger Programming
Chapter 3 - Optimization and Trigger Programming C003525_03_CR1200 User Manual Save Settings... -
Page 16: Specifying Feedback
3.1 - Specifying Feedback The CR1200 features one LED on the top of the unit. The LED gives visual feedback based on the operation of the CR1200 (see Table 3.1). The LED may display Red, Amber, or Green. Confi gurable sound and vibration features provide audible and tactile feedback. -
Page 17: Targeting
Figure 3.2 graphically displays the fi eld of view of the CR1200 reader and shows the areas of that fi eld of view where various codes can be read. Targeting the code becomes more important as the size of the code decreases and the density increases. - Page 18 Figure 3.3 graphically displays the fi eld of view of the CR1210 reader and shows the areas of that fi eld of view where various codes can be read. Targeting the code becomes more important as the size of the code decreases and the density increases.
-
Page 19: Targeting
fi eld of view. The green LED provides focusing assistance to aid in positioning the CR1200 at the optimum distance for a read. Center the CR1200’s red LED display on the code and then move the unit closer to or farther away from the bar code until the green LED image merges with the red LED image. -
Page 20: Chapter 4 - Optimization And Trigger Programming
Chapter 4 - Optimization and Trigger Programming C003525_03_CR1200 User Manual Save Settings... -
Page 21: Operational Modes
The Duplicate Rejection Period defi nes a time interval. If a read during this interval duplicates the immediately preced- ing code, the read will be rejected. Read the following codes to set the delay time before the reader accepts a dupli-... -
Page 22: Chapter 5 - Setting Symbology
Chapter 5 - Setting Symbology C003525_03_CR1200 User Manual Save Settings... -
Page 23: Aztec Symbology
This section describes how to change the symbology settings on the CR1200. Use the codes in this section to specify the set of symbologies that you want the CR1200 to check for during a code read. Careful selection of your symbology set improves CR1200 performance. -
Page 24: Code 11 Symbology
5.4 - Code 11 Symbology Scan the following codes to enable/disable Code 11 symbology settings: Code 11 On (Default) Code 11 Off Code 11 Checksum 1 digit Code 11 Checksum 2 Digit & Code 11 Checksum 1 Digit & Stripped from Result... -
Page 25: Code 93 Symbology
Code 128 Short Margin Off Sample Code 128 Code Note: When Codablock F and Code 128 decoding are enabled, there is some danger of mistakenly decoding a damaged Codablock F symbol as a Code 128 symbol. Therefore, Code 128 decoding should be disabled when Codablock F decoding is enabled. -
Page 26: Data Matrix Symbology
Code. GoCode has many signifi cant advantages over all common linear barcodes and 2-D symbols. Please contact Code for more information on the benefi ts of utilizing a private symbology. -
Page 27: Maxicode Symbology
5.12 - Maxicode Symbology Scan the following codes to enable/disable Maxicode symbology settings: Maxicode On Maxicode Off (Default) Sample Maxicode 5.13 - Matrix 2 of 5 Symbology Scan the following codes to enable/disable Matrix 2 of 5 symbology settings: Matrix 2 of 5 On (Default) Matrix 2 of 5 Off Matrix 2 of 5 Sample 5.14 - Micro PDF417 Symbology... -
Page 28: Optical Character Recognition (Ocr)
Macro PDF 417 Off (Default) Sample PDF 417 Code 5.19 - Pharmacode For an explanation of Pharmacode settings and all programming codes please refer to Appendix G of the CR1200 User Manual. You may download Appendix G at: http://www.codecorp.com/manuals.html 5.20 - Postal Symbologies All postal code default settings are OFF. -
Page 29: Qr Code Symbology
5.21 - QR Code Symbology Scan the following codes to enable/disable QR Code symbology settings: QR Code On QR Code Off (Default) Enable Checksum Disable Checksum (Default) QR Code Inverse On Both Inverse and Standard On All QR On (includes Micro QR) -
Page 30: Telepen Symbology
5.24 - UPC/EAN/JAN Scan the following codes to enable/disable UPC/EAN/JAN symbology settings: UPC On (Default) UPC Off UPC Short Margin Enabled (Default) UPC Short Margin Disabled UPC Extension On UPC Extension Off Sample UPC A Code C003525_03_CR1200 User Manual Save Settings... -
Page 31: Chapter 6 - Setting Operational Features
Chapter 6 - Setting Operational Features C003525_03_CR1200 User Manual Save Settings... -
Page 32: Settings Lock
Mirroring On Mirroring Off (Default) Note: The Mirroring feature allows the CR1200 to read codes as they are seen through a mirror (inversed 180°). If the Mirroring feature is enabled, non-mirrored reading ability will be disabled. 6.3 - Adding Prefi x Settings Some applications may require specifi... -
Page 33: Prefi X Settings
Use only with serial applications Note: If you require a special confi guration, please contact Code at (801) 495-2200. 6.3.2 - Suffi x Settings If you scan the following codes, you may lose your current settings. Make sure to save settings on your reader before scanning the Suffi... -
Page 34: Erase Prefi X And Suffi X Settings
Erase Prefi x & Suffi x Data 6.5 - Reader Text Commands Enabling Reader Text Commands allows the CR1200 to accept text commands via serial communications. Scan the fol- lowing codes to enable/disable reader text commands: Reader Text Commands On Reader Text Commands Off - Default Note: Text commands can only be sent to the reader when it is active. -
Page 35: Chapter 7 - Maintenance And Troubleshooting
Chapter 7 - Maintenance and Troubleshooting C003525_03_CR1200 User Manual Save Settings... -
Page 36: Reset Reader To Factory Defaults
Repairs and Adjustments—Only those individuals authorized by Code should attempt to make repairs or adjustments to CR1200 equipment. If the reader casing is opened the warranty is voided. Power Supply—Use only the power supply provided for use with each specifi c unit when operating Code equipment. -
Page 37: Reader Id And Firmware Version
7.4 - Downloading to the CR1200 Firmware and other fi les can be downloaded using a USB or RS232 cable. You cannot download to the CR1200 over a PS2 cable because of the limitations in PS2 technology. Firmware updates may be found on the Code website at: http://www.codecorp.com/downloads.html... -
Page 38: Warranty
North America. Shipments from the US or other locations will be made F.O.B. Code’s manufacturing plant. Code will use new or refurbished parts at its discretion and will own all parts removed from repaired products. Customer will pay for any pre-shipped replacement product in case it does not return the replaced product to Code within 7 days of receipt of the replacement product. -
Page 39: Cr1200 Accessories
The CR1200 window should be clean to allow the best performance of the device. The window is the clear plastic piece inside the head of the reader. Do not touch the window. Your CR1200 uses CMOS technology that is much like a digital camera.
