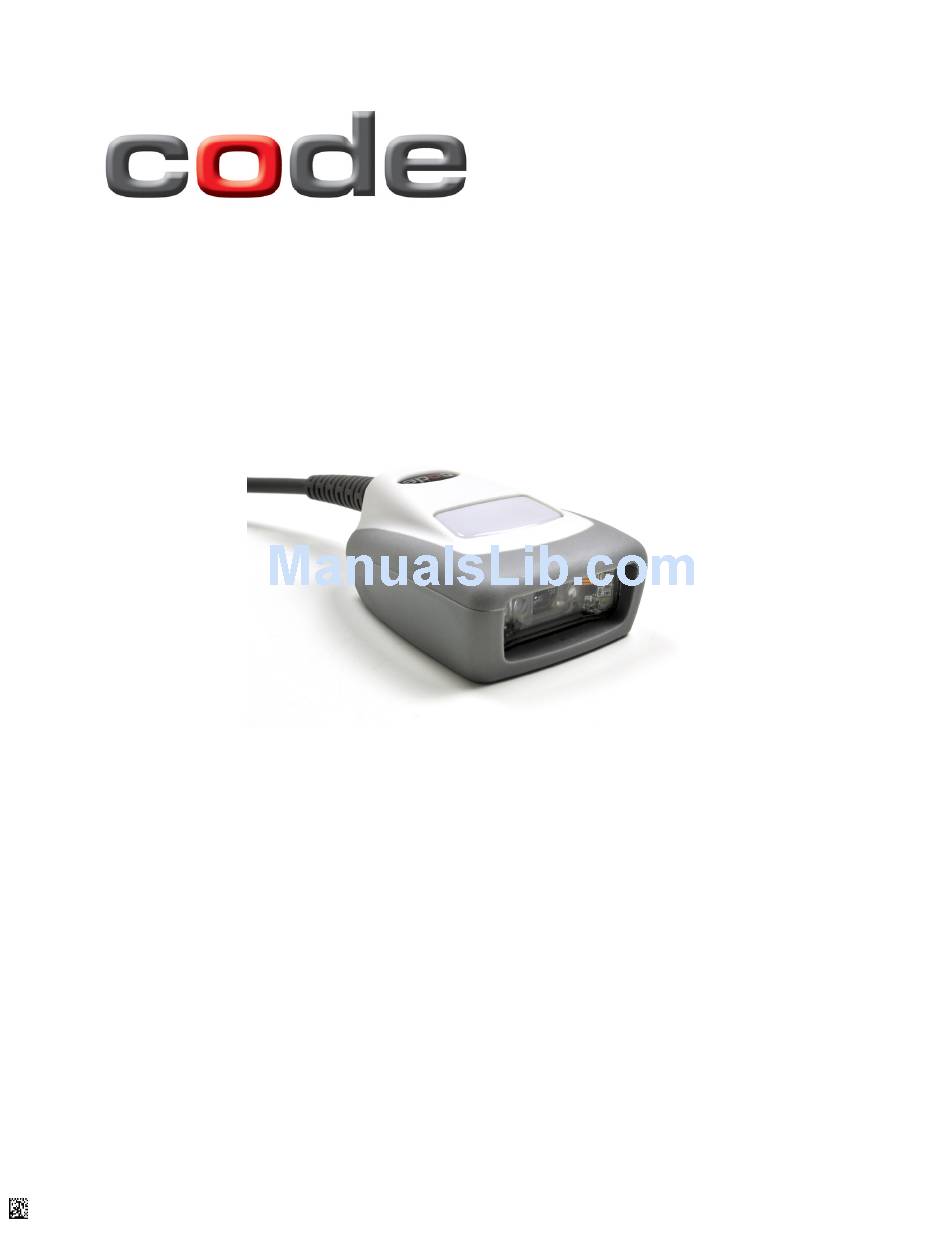

- Page 1 User Manual Code Reader 1000 ™ Manual Version 01 Release Date: January 2011 C005905_01_CR1000_User_Manual C005905_01_CR1000_UserManual...
-
Page 2: Statement Of Agency Compliance
Statement of Agency Compliance The Code Reader 1000 has been tested for compliance with FCC regulations and was found to be compliant with all applicable FCC Rules and Regulations. IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, this device must not be co-located or operate in conjunction with any other antenna or transmitter. - Page 3 Code Corporation. Code Corporation does not warrant that it is accurate, complete or error free. Any use of the technical documentation is at the risk of the user. Code Corporation reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult Code Corporation to determine whether any such changes have been made.
-
Page 4: Table Of Contents
6.0 - Reader Feedback............................3 7.0 - Symbologies Defaulted On..........................4 8.0 - Symbologies Defaulted Off .........................4 9.0 - Reader ID & Firmware Version ........................5 10.0 - Hole Mounting Pattern ..........................6 11.0 - CR1000 Overall Dimensions ........................6 12.0 - Maintenance..............................7 13.0 - Warranty ..............................7 C005905_01_CR1000_User_Manual... -
Page 5: Unpacking
After several seconds, the unit will beep twice, the LED will turn off and the CR1000 is ready for use. 3.0 - Detaching a Cable To detach a cable, press a paper clip into the hole on the back of the CR1000, and gently pull the cable from the reader. C005905_01_CR1000_User_Manual... -
Page 6: Reading Range
10° angle. Default AGC settings were used. Accuracy= +/- 10%. 5.0 - Targeting & Reading Distance The blue bars are used for aiming, center the bars in the center of a bar code and press the LED button to scan. The optimal reading distance is approximately 4.0” (10 cm). -
Page 7: Reader Feedback
6.0 - Reader Feedback Scenario Top LED Button Sound CR1000 Green LED lights Up 1 Beep Successfully Powers Up CR1000 Successfully 1 Beep Once enumerated, the Enumerates with Green LED turns off Host (via cable) Press the top button Attempting to... -
Page 8: Symbologies Defaulted On
7.0 - Symbologies Defaulted On The following are symbologies that have a default of ON. To turn symbologies on or off, scan the symbology bar codes located in the CR1000 Configuration Guide located on our website at http://www.codecorp.com. Aztec Codabar... -
Page 9: Reader Id And Firmware Version
To find out the Reader ID and firmware version, open a text editor program (i.e., Notepad, Microsoft Word, etc.) and read the following code: Reader ID and Firmware You will see a text string indicating your firmware version and CR1000 ID number (see below): Xap/iVVVVWWWWXXXXSSSSSSSSSSPXX-XX+XXX Xap/i - Code Internal ID (not applicable) -
Page 10: Hole Mounting Pattern
10.0 - CR1000 Hole Mounting Pattern NOTE 1: LOCATING HOLES ARE 2MM IN DIAMETER, HOLE DEPTH is 1.5 MM NOTE 2: MOUNTING INSERTS ARE M3-.5 INTERNAL THREAD, 3.8MM LENGTH 11.0 - CR1000 Overall Dimensions C005905_01_CR1000_User_Manual... -
Page 11: Maintenance
The CR1000 window should be clean to allow the best performance of the device. The window is the clear plastic piece inside the head of the reader. Do not touch the window. Your CR1000 uses CMOS technology that is much like a digital camera. - Page 12 Terms of Warranty CR1000 readers carry a warranty of two years. Other products with serial numbers, such as but not limited to, radios, CodeXML® modems, battery chargers, stands and power supplies are warranted for three years from date of shipment.
