FIRST STEPS WITH THE ANALOG FOUR
SETTING UP THE ANALOG FOUR
Make sure you place the Analog Four on a stable support, such as a sturdy table with sufficient cable space, or mount
in a rack according to the instructions on page 16. Before you start connecting the Analog Four to other units, make
sure all units are switched off.
1 Plug the included DC adapter to a power outlet and connect the small plug to the 12 V DC connector of the Analog
Four unit.
2 Connect the main out L/R from the Analog Four to your mixer or amplifier.
3 If MIDI control of the Analog Four is desired, connect the MIDI OUT port of the device you wish send data from to
the MIDI IN port of the Analog Four. The MIDI THRU port duplicates the data arriving at the MIDI IN port, so it can
be used for chaining MIDI units together.
4 Switch on all units. Switch on the Analog Four by pressing the Power rocker switch located at the back of the unit.
Before restarting the unit, wait 2 seconds after the LCD backlight goes out.

THE USER INTERFACE

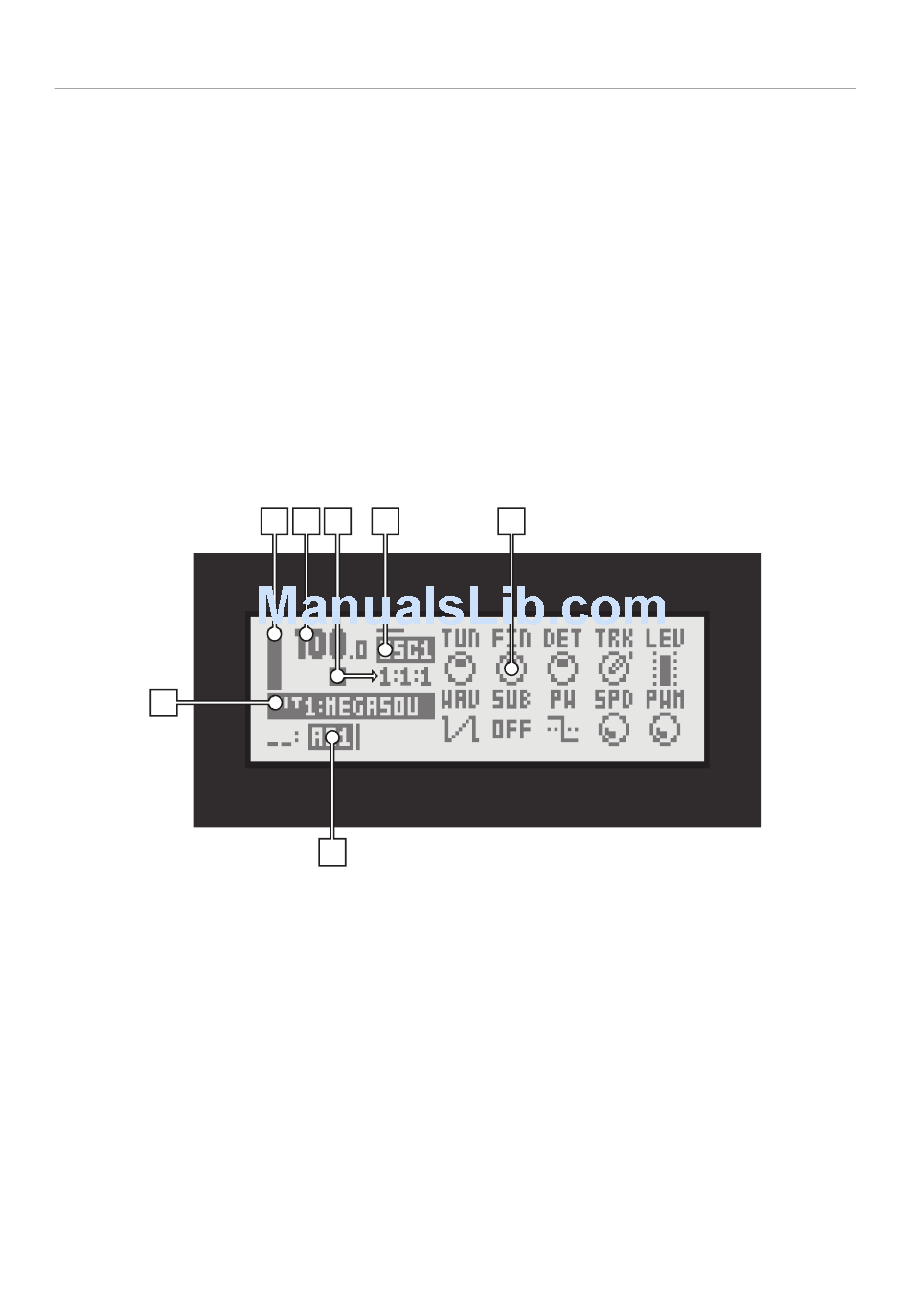

The LCD screen shows all the information needed for real-time interaction and editing on the Analog Four. The main
interface screen is shown below:
7
1 Bar showing the overall volume level of the active track.
2 The current tempo shown with one decimal.
3 The playback/recording status of the sequencer shown by the standard »record«, »play«, »pause« and »stop« symbols:
. To the right a counter displaying how many bars, beats and steps the sequencer has played is located.
4 Information about which PARAMETER page is active. The line above the text indicates the active sub page of the
PARAMETER page. A fully drawn line means no sub page is available.
5 Up to ten track parameters. They show what the DATA ENTRY knobs control and the current parameter values. Press and
turn a knob to adjust parameters in larger increments.
6 The currently active pattern.
7 The currently active kit. When you turn a
6
1 2 3 4
6
DATA ENTRY
5
knob, the name of the parameter it controls is shown here.
