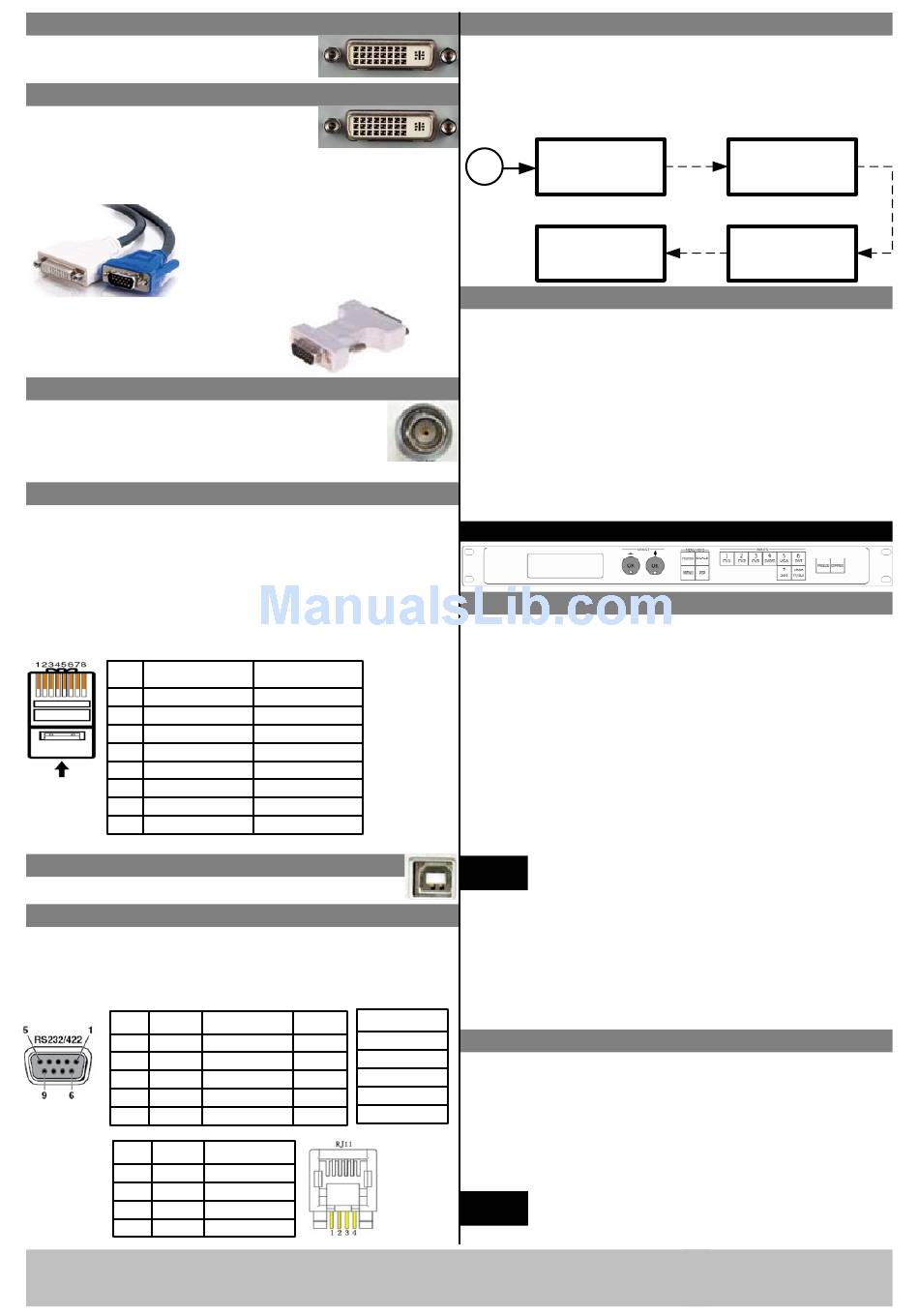

Step 12-Program Output
Used to connect with DVI-based
display or LED control display.
Step 13-Preview Output
Used to connect with DVI-based
monitor so as to monitor the status
of input signal, or connect VGA-
based monitor via a DVI to VGA
cable.
DVI to VGA adapter, it has
DVI-I male at one end and
VGA male at the other end.
Step 14-CVBS/SDI Output
Can receive signal from device with CVBS
or SDI input (the interface is VSP 628
optional module).
Step 15-LAN (Ethernet) port
Use twist CAT5 cable to connect to LAN port, user can
control VSP 628 based on default IP address:
192.168.0.100. User can also change the IP address by
RS232 or USB. Twist CAT5 should be one end in
T568A, and another end in T568B standard. LAN
(Ethernet) port is not for standard configuration.
Pins Crossover Cable
Pin
End 1 Wire Color
1 White-green
2 Green
3 White-Orange
4 Blue
5 White-blue
Insert twisted
6 White-Orange
pair wires RJ-
7 White-Orange
45 connector
8 Orange
T568A
Step 16-USB Port
Connect control PC to USB port via USB cable.
Step 17-Serial Port
Use RS232 to RJ11 cable to connect a control system or
computer to the back panel RJ11 port and the other end
on RS232 port. RS232 to RJ11 cables as following
definition.
Pin
RS-232
2 TX
3 RX
5 GND
7 ---
Insert twisted
8 ---
pair wires
RS232/RS422
Pin RJ-11
connector
1 ---
2 RX
3 TX
4 GND
Address: S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone, Xiamen, Fujian Province, P.R.C
Tel: 00865925771197
Email: rgblinkcs@gmail.com
DVI to DVI+VGA splitter cable:
one end is DVI-I or DVI-D male,
the other end is DVI-I or DVI-D
female together with VGA male.
End 2 Wire Color
White-Orange
Orange
White-green
Blue
White-blue
Green
White-Orange
Orange
T568B
Function RS-422
Transmit TX-
Receive RX-
Signal Ground GND
Not used RX+
Not used TX+
Function
Not used
Receive
Transmit
Signal Ground
Fax: 00865925771202
http://www.rgblink.cn
Step 18-Power
Plug in power cord which has IEC connector, VSP 628
support AC power from 85 to 265VAC, 50-60Hz, which
means world wide compatible.
Plug
Powering Up
Push power button switcher to ON position. LCD
module on the front panel will show RGBLINK and
VSP 628 model information, and go into self
verification before it load the last setting configuration
data and send the processed image to the target
displayer device. User can operate with VSP 628
through local front panel and remote control with the
software run on the PC, remote control by RS232, USB
or TCP/IP.
Local Control-Front Panel Control
Step 1-Set Output Resolution
1). Push 【MENU】 to the main menu, use UP or
DOWN button to right OUTPUT, press OK to confirm.
CAT5 is
2). Use UP or DOWN button to the right OUTPUT RES,
wired as
press OK to confirm.
T568A at
3). Use UP or DOWN button to right DVI/VGA RES,
one end
press OK to confirm, and use LEFT or RIGHT button to
and T568B
open output resolution setting.
at the other
4). Spin knob to select the desired output resolution,
is
selected and press OK to confirm, press 【MENU 】to
crossover.
return and exit Settings.
NOTE
VSP 628 supports 15 output resolutions as
follows:
800x600x60Hz,1024x768x60Hz,1024x768x75Hz，
1280x720x50Hz,1280x720x60Hz,1280x768x60Hz,
1280x1024x60Hz,1400x1050x60Hz,1440x900x60Hz,
1600x1200x60Hz,1680x1050x60Hz,1920x1080x50Hz,
1920x1080x60Hz,1920x1200x60Hz,2048x1152x60Hz.
Function
Step 2-Input Switch
Transmit(-)
Receive(-)
VSP 628 can realize seamless switching between 2
Signal Ground
channels , only need to switch to video wall channel to
Receive(+)
choose, for example, key 【 CV1 】 light, then the
Transmit(+)
video wall output signal is channel 1, if you want to
switch to channel 2 signal, just press 【CV2 】 and it
Insert
will achieve seamless switching.
twisted pair
wires RJ11
NOTE
Switching speed can be adjusted through
Connector
【DIMMER】button or (ALPHA) on PC software.
3 sec
RGBLINK
VSP 628
INPUT:CV1
10 sec
NO INPUT
HDMI/VGA RESOLUTION
1024X768@60
RGBLINK
3 sec
INITIAL PROCESSOR
PLEASE WAIT A MINUTE
VSP 628 Quick Start
