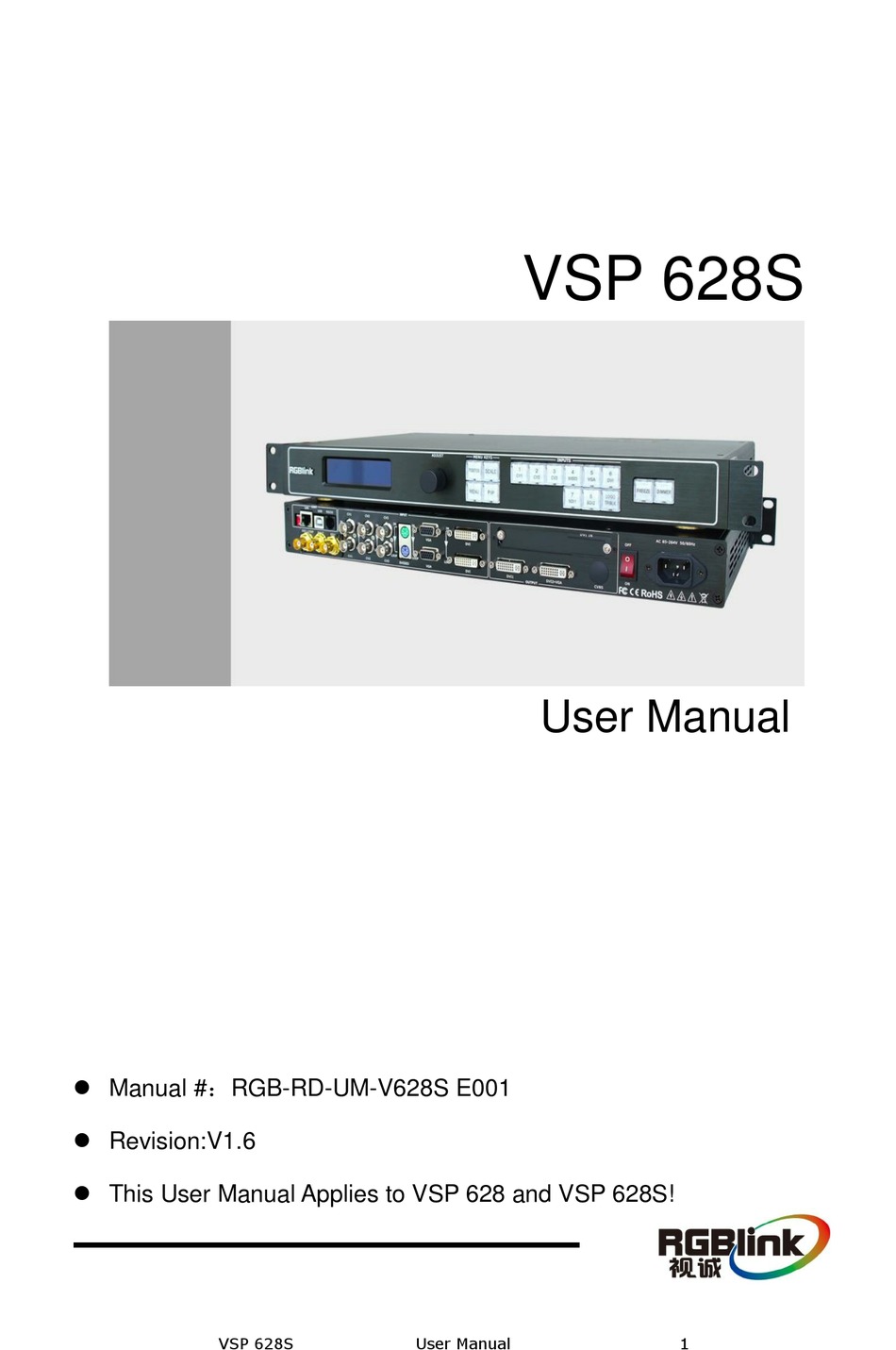

VSP 628S
User Manual
 Manual #：RGB-RD-UM-V628S E001
 Revision:V1.6
 This User Manual Applies to VSP 628 and VSP 628S!
VSP 628S
User Manual
1

Advertisement

Table of Contents
loading

Related Manuals for RGBlink VSP 628S

Summary of Contents for RGBlink VSP 628S

  • Page 1 VSP 628S User Manual  Manual #：RGB-RD-UM-V628S E001  Revision:V1.6  This User Manual Applies to VSP 628 and VSP 628S! VSP 628S User Manual...
  • Page 2 No part may be copied, reproduced or translated without permission. Notice RGBlink provides this manual ―as is‖ without warranty of any kind, either expressed or implied, including but not limited to the implied warranties or merchantability and fitness for a particular purpose. RGBlink may make improvements and/or changes to the product(s) and/or the program(s) described in this publication at any time without notice.
  • Page 3 30 days after the transfer of risks. In the event of justified notice of compliant, RGBlink can repair the fault or provide a replacement at its own discretion within an appropriate period.
  • Page 4 Company address Xiamen RGBlink Science & Technology Co., Ltd. S603~604 Weiye Building Torch Hi-Tech Industrial Headquarter: Development Zone Xiamen, Fujian Province, P.R.C Building 3, A Baiwang Plaza, Xili Nanshan District, Shenzhen office: Shenzhen, Guangdong Province, P.R.C Room 602, Building 7, CaiManJie, No.67 Chaoyang Road, Beijing office: Chaoyang District, Beijing, P.R.C...
  • Page 5 To avoid fire hazard, use only the fuse having identical type, voltage rating, and current rating characteristics. Refer fuse replacement to qualified service personnel. Do Not Operate in Explosive Atmospheres To avoid explosion, do not operate this product in an explosive atmosphere. VSP 628S User Manual...
  • Page 6 Highlights an essential operating procedure, condition or statement. CAUTION The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. VSP 628S User Manual...
  • Page 7 V1.5 2013-03-23 0005# 1. Change the back panel; Vira 2. Change the menu; 3. Change the software. V1.6 2013-08-13 0006# 1. Change the front panel; Vira 2. Change the menu; 3. Change the software. VSP 628S User Manual...

  • Page 8: Table Of Contents

    System Overview ..................23 Application Questions .................. 24 2. Hardware Orientation ..............25 In This Chapter .................... 25 VSP 628S Back Panel ..................26 CONT Interface ...................... 26 1. Dial Switch......................26 2. 10/100M UDP Interface ..................26 3. USB Interface ....................26 4.
  • Page 9 22：DVI +VGA DVI Output ................... 28 23：CVBS Output ....................29 Switch and Power ....................29 24.25：Power Interface and Switch ..............29 VSP 628S Front Panel ................... 30 LCD Panel ......................31 Menu Buttons ....................... 31 Signal keys ......................31 Function ........................ 32 3.
  • Page 10 Install Software .................... 45 Run Software ....................49 Set Up Communication ..................49 How to use ......................52 File Toolbar ......................52 Communication Toolbar ..................54 Device Toolbar ...................... 54 Help Toolbar ......................55 Output resolution Toolbar ..................55 VSP 628S User Manual...
  • Page 11 6. System Setup and Operations ............73 In This Chapter .................... 73 Interface and Input Single Option ..............74 Single Picture Signal Switch ................. 76 Button Save User Mode Operations ..............76 Single Image Switch ....................76 VSP 628S User Manual...
  • Page 12 Sending card can't take lower part ............... 86 Left of the Screen Appears Two Black Sides ..........86 Adjust DE deviation ....................86 All Key Lights Light Simultaneously .............. 87 Check if dial switches are normal ................. 87 VSP 628S User Manual...
  • Page 13 V1.4: ....................94 a.VSP 628S add SDI output Module ............. 94 b. How to replace VSP 628S back panel block to SDI output block? ..... 96 c. WEB SERVER cross-platform control operation interface ......99 B. Contact Information ..............114 C.

  • Page 14: Introduction

    Introduction This chapter is designed to introduce you to the VSP 628S User Manual. Areas to be covered are:  Chapter Structure  How to Use This Manual  Terms and Definitions  System Overview  Application Questions VSP 628S...

  • Page 15: Chapter Structure

    1. Introduction Chapter Structure Chapter Structure The following chapters provide instructions for all aspects of VSP 628S operations. Chapter 1 Introduction Chapter 2 Hardware Orientation Chapter 3 Hardware Installation Chapter 4 Menu Orientation Chapter 5 Communication Software Guideline Chapter 6...

  • Page 16: How To Use This Manual

     For system setup and operations, refer to Chapter 6, ―System Setup and Operations‖ on page 73. Should you have any questions regarding the installation or operation of VSP 628S, please consult with the factory. Refer to Appendix B, ―Contact information‖ on page 114. VSP 628S...

  • Page 17: Terms And Definitions

    Telecommunications Wiring Standard.  “Color bars”: A standard test pattern of several basic colors (white, yellow, cyan, green, magenta, red, blue, and black) as a reference for system alignment and testing. In NTSC video, the most commonly VSP 628S User Manual...
  • Page 18  “Frame”: In interlaced video, a frame is one complete picture. A video frame is made up of two fields, or two sets of interlaced lines. In a film, a frame is one still picture of a series that makes up a motion picture. VSP 628S User Manual...
  • Page 19 For this reason, the hue control is not needed on a PAL TV set. PAL, in many transmission forms, is widely used in Western Europe, Australia, Africa, the Middle East, and Micronesia. PAL uses 625-line, VSP 628S User Manual...
  • Page 20 This is a 10-bit, scrambled, polarity independent interface with common scrambling for both component ITU-R 601 and composite digital video and four channels of (embedded) digital audio.  “Seamless Switching”: A feature found on many Extron video VSP 628S User Manual...
  • Page 21 31.5 kHz and vertical frequency of 70 Hz (Mode 1, 2) and 60 Hz (Mode 3). The signal is non-interlaced in modes 1, 2, and 3 and interlaced when using the 8514/A card (35.5 kHz, 86 Hz) in mode 4. It VSP 628S User Manual...
  • Page 22 640×480 with a color palette of 16 bits and 256,000 colors.  “YCrCb”: Used to describe the color space for interlaced component video.  “YPbPr”: Used to describe the color space for progressive-scan (non-interlaced) component video. VSP 628S User Manual...

  • Page 23: System Overview

    System Overview System Overview The VSP 628S is a multiple outputs video processor that accepts a wide variety of video signals, including RGB computer DVI, VGA video, HDTV HDMI video, S-composite video, composite video, 3 G SDI video, and can finish all the video input loop output.

  • Page 24: Application Questions

    1. Introduction Application Question Application Questions RGBlink offers solutions to demanding technical problems. Any application questions, or required further information, please contact with our Customer Support Engineers. Refer to Appendix B for contact details. VSP 628S User Manual...

  • Page 25: Hardware Orientation

    Hardware Orientation In This Chapter This chapter provides detailed information about the VSP 628S hardware. The following topics are discussed:  VSP 628S Back Panel  VSP 628S Front Panel VSP 628S User Manual...

  • Page 26: Vsp 628S Back Panel

    2. Hardware Orientation VSP 628S Back Panel VSP 628S Back Panel The figure below illustrates the professional interface and control signals of VSP 628S back panel. INTERFACE INTERFACE Dial the code switch 13.14 SDI Input 10/100M Interface 15.16.17 CVBS Loop Out...

  • Page 27: Rs232 Interface

    DVI input interface。Input the video signal from computer, DVI signal generator. Connect to the same DVI interface on VSP 628S; （This Connection does not support hot-plugging）. 12：SDI Loop Out SDI loop output, can connect the next level VSP 628S or the device with SDI input. VSP 628S User Manual...

  • Page 28: 13.14：Sdi Input

    Composite CVBS loop out, can connect the next level VSP 628S or the device with CVBS input. 18：S-Video Loop Out S-Video loop out, can connect the next level VSP 628S or the device with S Terminal loop out. 19：VGA Loop Out VGA loop out, can connect the next level VSP 628S or the device with VGA loop out.

  • Page 29: 23：Cvbs Output

    2. Hardware Orientation VSP 628S Back Panel hot-plugging）. DVI +VGA, VGA output connector can be connected to monitor or projector which has VGA interface. Note adapter, can connect with DVI-based or VGA-based equipment, and via DVI to VGA adapter, can output VGA only.

  • Page 30: Vsp 628S Front Panel

    Insert power cord and push power to ON position. LCD module on the front panel will show RGBLINK and go into self verification before it load last setting config and send processed image to the target monitor. For the first setup, CV1 input is default source.

  • Page 31: Lcd Panel

    2. Hardware Orientation VSP 628S Front Panel VSP 628S front panel as following: LCD Panel Used to show button menu and menus for interactive communication; Menu Buttons Used to adjust LCD menu and information interaction and with the same function with Enter to confirm current options.

  • Page 32: Function

    2. Hardware Orientation VSP 628S Front Panel SDI1 input selection Button, its LED light turns on, output will be switched to this channel; SDI2 input selection Button, its LED light turns on, output will be switched to this channel; LOGO, test pattern, BLK button, its LED light turns on, factory set is default for the test pattern.
  • Page 33 2. Hardware Orientation VSP 628S Front Panel Default will active to set Scale Width, and push the key again, will active to set Scale Height. Choose SCALE to set Width and Height synchronously. Rotate the knob to adjust values, and press the knob to confirm.
  • Page 34 2. Hardware Orientation VSP 628S Front Panel again, LED light is out, regulating function is closed. Long press DIMMER button for 2 seconds, transparency will be quickly transferred to 0, again long press DIMMER button for 2 seconds long, and transparency will quickly adjusted from 0 to 100.

  • Page 35: Hardware Installation

    Hardware Installation In This Chapter This chapter provides comprehensive installation instruction for VSP 628S hardware: Following is the size of VSP 628S for your reference. VSP 628S User Manual...

  • Page 36: Safety Precautions

    Unpacking and Inspection Before opening VSP 628S processor shipping box, inspect it for damage. If you find any damage, notify the shipping carrier immediately for all claims adjustments. As you open the box, compare its contents against the packing slip.

  • Page 37: Menu Orientation

    Menu Orientation In This Chapter This chapter describes all VSP 628S processor menus, including how they are accessed, the functions that are available, and descriptions of each menu tree (in block diagram format). The following topics are discussed: • MENU ...

  • Page 38: Menu

    Press the MENU to main menu, main menu as shown: Rotate knob buttons to select menu items. > before the menu means it’s in selected state. Press the knob to enter corresponding setting or view the menu. VSP 628S User Manual...

  • Page 39: Menu

    Press MENU to exit and return to higher level MENU. MENU---OUTPUT DETAIL Select OUTPUT, press it to confirm, show level 2 menu as follows: OUTPUT RES INFO: Mainly display the current output signal and output resolution; OUTPUT RES: Mainly display the current signal output format; VSP 628S User Manual...
  • Page 40 PIP SETTING: PIP setting, press it, can set IMAGE 1 or IMAGE 2; press MENU to exit and return to higher level MENU EFFECTS: Mainly for image output Settings. BRIGHTNESS: Can change the image BRIGHTNESS. CONTRAST: Can change the image color CONTRAST. VSP 628S User Manual...

  • Page 41: Menu

    FULL SIZE：User can set full size. LED SCREEN SIZE：User can set LED screen size by SCALE and POSITION button. SAVE: Save the screen parameter. MENU--- VIEW Spin the knob to SAVE in the Menu and push the knob to confirm. Rotate VSP 628S User Manual...

  • Page 42: Menu

    BOX X, BOX Y, BOX WIDTH and BOX HEIGHT. MENU--- LED CARD BRIGHTNESS: Control the brightness of sending card.（Only available for DBstar sending card）; CALINRATION: Calibrate sending card brightness.（Only available for DBstar sending card). MENU--- SYSTEM VSP 628S User Manual...
  • Page 43 MENU--- RESET RESET: Enter RESET interface and press the knob to confirm; Rotate the knob to YES and push the knob to confirm; then VSP 628S is resetting to its factory settings. After 5 seconds, it completes factory settings and is ready for more operations.

  • Page 44: Communication Software Guideline

    This chapter provides detailed information about the control communication software. The following topics are discussed:  Install Software  Run Software  How to control processor through RS232?  How to control processor with console software by USB? VSP 628S User Manual...

  • Page 45: Install Software

    Also it can be customized with schedule function. to install, English version default for use, click ―select‖ Double click to next dialog: And in next dialog is the user agreement of the software, click Agree to go VSP 628S User Manual...
  • Page 46 5. Communication Software Guideline Install Software User can select ―Change‖ to choose the VSP 628S install software: VSP 628S User Manual...
  • Page 47 5. Communication Software Guideline Install Software Click ―Next‖ to go on: Click ―Next‖ to go on: VSP 628S User Manual...
  • Page 48 5. Communication Software Guideline Install Software Click ―Next‖ to go on: Click ―Finish‖ and ready to run VSP 628S console: VSP 628S User Manual...

  • Page 49: Run Software

    5. Communication Software Guideline Run Software Run Software Install communication which comes with the package of VSP 628S device. Double click icon from home screen to run the software. Double click icon from home screen, and choose and click to run the software.
  • Page 50 COM1. Confirm used COM and open control software, click 【communication】 page，enter setup option, Serial is the default COM, click icon refresh COM number，choose available COM，default Baud rate is115200. VSP 628S User Manual...
  • Page 51 RS 232 COM line can upgrade 100M program, while USB can’t. Ethernet, user can fill any number less than1023 in local port, the remote port must be 192.168.0.100 and the remote port must be 1000. After VSP 628S User Manual...

  • Page 52: How To Use

    If user choose open device when start, user can use last run, use script file or none when user start. User can click to choose which script user want to open. If user choose execute schedule when start, the next dialogue will display when software run. VSP 628S User Manual...
  • Page 53 5. Communication Software Guideline Run Software : Language. The software supports Chinese, English and German version. The picture following is the German dialogue. VSP 628S User Manual...

  • Page 54: Communication Toolbar

    : Close COM. : Set COM. Device Toolbar : Synchronization. : Save to flash. ：Load form Flash. ：Factory setup ：Advance, for adm. inistrator control. Note Advance is only done by engineer. Please connect us for password. VSP 628S User Manual...

  • Page 55: Help Toolbar

    Help Toolbar ：About. Display information of software. Output resolution Toolbar User can choose different output resolution by selecting from pull down list. VSP 628S has 15 output resolutions for users selection. Note It is the same as :MENU OUTPUT OUTPUT RES DVI/VGA RES.

  • Page 56: Aspect Ratio Toolbar

    Screen parameter Toolbar User can set size and position of the screen simply, Mainly applies to LED screens users. After setting screen parameter， the user choice PIP or PBP operation, display picture can directly shows on corresponding screen。 VSP 628S User Manual...

  • Page 57: Image Toolbar

    Its display is the same as FREEZE. Note The accommodation of transparency is the same as DIMMER. Setting Gamma is generally not recommended, since LED large screen itself has Gamma function. For further information, users can contact with our customer service team. VSP 628S User Manual...

  • Page 58: Output Image Toolbar

    OUTPUT is the same as MENU OUTPUT EFFECTS. Display Toolbar User can customize image or images position and size just by drag and drop image (images) in this area. This process is sync to the parameters in images toolbars. VSP 628S User Manual...

  • Page 59: User Mode Toolbar

    Log Toolbar User can save or delete the operate log file. Information Toolbar It is the VSP 628S software version, core board version, firmware version and the serial number in bottom of the software interface. 【VProcessor 】Options Horizontal mirror image： When it is in √, the video can rotate in Horizontal mirror image way.
  • Page 60 Setup the plus-minus polarity of output CLK when some abnormal sending card can not identify the output. Delay transparency: Users can setup fade in out time. Schedule: Users can setup VSP 628S to play the appointed input video automatically VSP 628S User Manual...
  • Page 61 It takes effect immediately after users change IP through serial port; and when users change IP through network, it takes effect after reopen the software. Clock： Users can set or adjust lower computer time through‖ clock‖ VSP 628S User Manual...
  • Page 62 Note It is the same as MENU INTPUT VGA ADJUST. Output De Delay： Can adjust DE for DVI. Note It is the same as MENU OUTPUT OUT ADJUST DVI DE. VSP 628S User Manual...
  • Page 63 0-1023. This is only available for DVI signal. VGA Gamma： Compared to the Gamma in MENU, VGA Gamma has more optionals, user can set the value between 0-1023. This is only available for VGA signal. VSP 628S User Manual...
  • Page 64 5. Communication Software Guideline Run Software Update： VSP 628S supports update operation. Users can click the updating in the control pull-down options and click to select the saving path of the new FPGA software, then click start to update. Test Pattern：...

  • Page 65: Help 】Options

    5. Communication Software Guideline Run Software 【Help 】options Version: The update of software About: The information of the software version and the RGBlink company. VSP 628S User Manual...

  • Page 66: How To Control Processor Through Rs232

    USB adapter. Connect one end of the RJ11 download line to the RS232 on the video processor. Connect the end of USB-side to the PC, Ensure the cable connection is good. Turn on the Video Processor VSP 628S. Right click the【My Computer】on the home screen of control PC. Enter 【Attribute】, Find【Hardware】Option, as following.
  • Page 67 Click【Device Manager】―+‖ on the left，check the COM number, as following，, COM1 is offered. Remember the COM you are using and then run the control software, find 【Communication】 option. In default, first time user have to click button, as following: VSP 628S User Manual...
  • Page 68 How to control processor through RS232? Check and tap【Serial】, Serial Port , for example, is COM6 which is checked from device manager. Set VSP 628S Baud Rate to be :115200, Click【Confirm】after setting. 【 open serial】 , check if 【 COM】 icon on the bottom right corner,...

  • Page 69: How To Control Processor With Console Software By Usb

    628S, for the first time to use USB, the PC will remind finding the new hardware and ask to install the driver for this new driver: Install from the list or specified location, press ―NEXT‖: Press ―Browser‖ to find the driver, and press ―NEXT‖: VSP 628S User Manual...
  • Page 70 5. Communication Software Control Guide How to control processor with console software by USB? When the installation finish, can go to check the installed COM port inside the device management, as following picture shows: VSP 628S User Manual...
  • Page 71 How to control processor with console software by USB? Install the console software, and run after install, shows the interface of the console as following: Select the COM as installed just now, and set the VSP 628S Baud Rate to be: 115200. VSP 628S...
  • Page 72 VSP 628S. VSP 628S User Manual...

  • Page 73: System Setup And Operations

    In This Chapter This chapter provides comprehensive instructions for system setup and operations. The following topics are discussed:  Interface and Input Signal Option  Single Picture Signal Switch  PIP Setting  How to add tasks VSP 628S User Manual...

  • Page 74: Interface And Input Single Option

    24.25 Switch and Power sending port SDI Loop Out 21. DVI is main screen output which mainly connected with sending card of large screen, the VSP 628S support the follows: SMPTE:1280x720P60，1280x720P50，1920x1080P50，1920x1080P60,， VESA:800x600@60，1024x768@60，1024x768@75，1280x768@60， 1280x1024@60，1400x1050@60，1440x900@60，1600x1200@60， 1680x1050@60，1920x1200@60，2048x1152@60. Please choice corresponding output and press button to confirm through 【OUTPUT RES】...
  • Page 75 15-17. Loop output interface of the signal source, it can output the inputted signal without any treatment and change. This also is the big characteristic of the VSP 628S, i.e. any input signal can be realized without changing its format, the original image output.

  • Page 76: Single Picture Signal Switch

    , select the【 LOGO 】 and 【 TP 】 or 【 BLK 】respectively through the knob, then cut directly or fade-in and fade-out switch slowly, also, the speed of the switch can be adjust through the 【DIMMER】 button or VSP 628S User Manual...

  • Page 77: Scale

    You can also set through PC software: VSP 628S User Manual...

  • Page 78: Pip Setting

    MENU 】to quit after the completion of the setting, and enter into the 【VIEW 】 menu to select SAVE to save. VSP 628S User Manual...

  • Page 79: Console Software Setting Each Image's Width, Height And Position

    Step 1: In work mode, select the dual screen; Step 2: Set the size and position of Image 1 and Image 2 in the image; Step 3: After setting, click 【Settings】image output to complete the dual-screen setup. VSP 628S User Manual...

  • Page 80: How To Add Tasks

    First of all, set lower computer current time through host computer ―clock‖. Note Reset to factory settings after setting the clock will affect the time before. After device clock set, add task plan through‖ Timing Parameters‖. VSP 628S User Manual...
  • Page 81 ―Timer index‖. Note Equipment currently supports 10 task scheduler. 3. Set ―task schedule‖ playing time, can up to second. 4. Select the signal source to play works in dual channel or single channel VSP 628S User Manual...
  • Page 82 2 set input signal one by one. Users can see the image 1 and image 2 input source information in the input source toolbar after setting. Shown as the picture: Select CV1 as the input source of image 1: VSP 628S User Manual...
  • Page 83 Click button , you can see the input source, playing time, image size, position etc. of the current ―tasks plan‖ Users can see all the ―tasks plan‖ relevant content through ―Timer index‖ switching VSP 628S User Manual...

  • Page 84: Common Questions And Solution

    Large Screen Output Flash Point  Large Screen only Display Part of the Image  No Display in the Second Half Part of Large Screen  Left of the Screen Appears Two Black Sides  All Key Lights Light Simultaneously VSP 628S User Manual...

  • Page 85: No Output In Large Screen

    If display normally shows and no flash point, please check whether DVI outlets put tight or replace to DVI line of sending card. If display flash point, please judge if input signal, wire, and interface is normal. VSP 628S User Manual...

  • Page 86: Large Screen Only Display Part Of The Image

    Adjust DE deviation This phenomenon needs to adjust the DVI output and DE migration of the processor, through the 【MENU】 to find "OUTPUT" and find the corresponding output name, such as "DVI1 OUT ADJUST", and find "DVI1 VSP 628S User Manual...

  • Page 87: All Key Lights Light Simultaneously

    Check if dial switches are normal Shut the power, check if two red dial switches near CV are upward. Reboot if they face down, and reboot. The function of the red dial switched is mainly upgrade. VSP 628S User Manual...

  • Page 88: Specification

    720p50,720p59.94/60 VESA：800×600×60Hz,1024×768×60Hz,1280×768×60Hz, 1280×1024×60Hz,1600×1200×60Hz,1920×1080×60Hz Signal Level TMDS pwl,single pixel input,165MHz bandwidth Format Standard HDMI 1.3 SDI Input(3G module) Number of Inputs Connector Standard BNC Socket Transmission speed 19.4Mbps~3Gbps ITU-R BT.656,ITU-R BT.601,SMPTE 259M, SMPTE 292, SMPTE Supported Standard VSP 628S User Manual...
  • Page 89 Standard DB9 Socket Supported Standard VGA-UXGA Signal Level R、 G、 B、 Hsync、 Vsync:0 to1Vpp±3dB (0.7V Video+0.3v Sync ) 75 black level：300mV Sync-tip：0V Supported Resolution VGA-UXGA (800*600@60, 1024*768@60, 1280*1024@60, 1440*900@60,1600*1200@60) DVI Loop-through Number of Outputs Connector Standard DVI-I Socket VSP 628S User Manual...
  • Page 90 Signal Level R、 G、 B、 Hsync、 Vsync:0 to1Vpp±3dB (0.7V Video+0.3v Sync ) 75 black level：300mV Sync-tip：0V DVI Output Number of Outputs Connector Standard DVI-I Socket Signal Level TMDS pw, 165MHz bandwidth Supported Resolution VESA: 800×600×60Hz,1024×768×60Hz,1024×768×75Hz ,1280×768×60Hz, 1280×1024×60Hz,1440×900×60Hz,1400×1200×60Hz,1600×1200×6 VSP 628S User Manual...
  • Page 91 Fade in and fade out switching between any two inputs Extras Communication RS232 USB TCP/IP Power Supply 85-264V IEC-3 Working Environment 0° C~45° C Stored Environment 10% to 90% Product Warranty 3-year parts and labor warranty VSP 628S User Manual...

  • Page 92: V1.3 Vsp 628S With Cs Module

    V1.3 VSP 628S With CS Module a. CVBS Output Module Output resolution: PAL and NTSC. Circuit board picture as following: Key operation menu as following: VSP 628S User Manual...

  • Page 93: Sdi Output Module

    Factory acquiesce in 720P@60output，and need to upgrade program on line if want 1080P@60 output. Circuit board picture as following: Note If SDI output abnormally after add module, can use module reset to restart module . Key operation menu as following: VSP 628S User Manual...

  • Page 94: V1.4

    V1.4: a.VSP 628S add SDI output Module VSP 628S can support SDI output when output resolution is as follows: Note At present , these three resolutions: 1600x1200x60,1920x1200x60,2048x1152x60 Can not support SDI output. Users can set the following four SDI output resolutions according to their need: 1280x720x50，1280x720x60，1920x1080x50，1920x1080x60...
  • Page 95 Key operation menu as following: VSP 628S User Manual...

  • Page 96: How To Replace Vsp 628S Back Panel Block To Sdi Output Block

    How to replace VSP 628S back panel block to SDI output block? Step 1: Open the machine cover. Step 2: Unscrew the screw both ends of the sending card block with screwdriver, then you can remove the block. VSP 628S...
  • Page 97 Step 3: Take out the SDI output block that need replace. Step 4: Lock both ends of SDI output block with screw. VSP 628S User Manual...
  • Page 98 Step 5: Lock the cover, and complete the SDI output block replacement. VSP 628S User Manual...

  • Page 99: Web Server Cross-Platform Control Operation Interface

    If users use ipad or iphone, they can input the website 192.168.0.100 (default) in Safari browsers to operate. If users need to modify VSP 628S IP address, they can input corresponding modified IP address. If users use other device, they need to install webkit kernel browser, such as: apple Safari, Google Chrome or Maxthon.
  • Page 100 Step 2: Enter the default home page, the system provides 15 kinds of output resolutions for choose, blue stripe means current selected output resolution. Selected, then VSP 628S will automatically update the output resolution; Note Users can freely switch the icons in title bar to set relevant functions, following will introduce the relevant settings.
  • Page 101 Step 3: Select "Input" icon in title bar, user can click the signal source that need, select, VSP 628S will automatically update input signal source; VSP 628S User Manual...
  • Page 102 Step 4: Select "Image" icon in title bar to scale the image, user can modify digital setting parameters and image size and position easily through "-+" icon. Click "Set" after modify the digital, VSP 628S image will display the latest Settings;...
  • Page 103 1 is default for single image output image, and can't be chosen. Note You can preset the image mode that switch the current single picture mode to double-picture mode and the position of the two images in the mode. VSP 628S User Manual...
  • Page 104 Drag the slider rolling ball, when the slide block is green, pip starts. Then user can set PIP location, in addition to system default PIP upper left picture, also can choose picture above picture and picture edge picture. VSP 628S User Manual...
  • Page 105 , the selected image with blue stripes, tick, as shown below: image2 is selected, all settings will for image 2. For example, you can switch "Input" icon in title bar to choose image 2 input source. VSP 628S User Manual...
  • Page 106 Note If image1 and image2 with the same input source, then it will display the same picture in PIP. VSP 628S User Manual...
  • Page 107 Nonprofessional isn’t recommend to the above operations, if distortion of image quality as of improper operation errors, you can reset to the factory initialization. VSP 628S User Manual...
  • Page 108 Nonprofessional isn’t recommend to the above operations, if distortion of image quality as of improper operation errors, you can reset to the factory initialization. VSP 628S User Manual...
  • Page 109 Step 8: Save and Call function. User can save the parameters to UserMode1 and UserMode2, and can also load UserMode1 and UserMode2 that saved before. VSP 628S User Manual...
  • Page 110 Step 9: Page setting. First, choose the language according to user’s need. And the default is automatic identification; VSP 628S User Manual...
  • Page 111 IP will affect" (at green box); Now you need to refresh the page to complete the setting. If need to modify IP address, user can press MENU - > SYSTEM - > IP ADDRESS, it will take effect after restart the device. VSP 628S User Manual...
  • Page 112 And if slide block is green, the VSP 628 keys lock, and user can't operate any button. Dimmer: ALPHA transparency regulation. Drag ball to change the transparency value, transparency value is between 0 ~ 100 levels. Note Operation is invalid in PIP mode. VSP 628S User Manual...
  • Page 113 Step 10: Log function is mainly for research and development personnel as debugging use. VSP 628S User Manual...

  • Page 114: Contact Information

    All video products are designed and tested to the highest quality standard and backed by a full 3-year parts and labor warranty. Warranties are effective upon delivery date to customer and are non-transferable. RGBlink warranties are only valid to the original purchase/owner. Warranty related...

  • Page 115: Upgrading Software

    Firstly, users can choose the right serial port, set the Baud rate to 9600, choose LPC2368, and to load the aim document (hex file) for IP board upgrading; Secondly, tick the item below to confirm. Finally, click the ―start‖ button. VSP 628S User Manual...
  • Page 116 After download, exit the program, turn off the power, tack the two coding switch back, as below restart the equipment power, check if the equipment work normally. Note Flash Magic download website: http://www.flashmagictool.com/download.html&d =FlashMagic.exe VSP 628S User Manual...

This manual is also suitable for:
