DM84 Digital Matrix Processor
Out Source (Output Source) Tab
The DM84 is designed to be an integral component of a
DM Series chain, so each of the audio output channels
can be thought of as a processing pipeline whose input
is controlled by a three position switch (Matrix, Pink
Noise or 1 kHz Tone).
Signal Source
Name

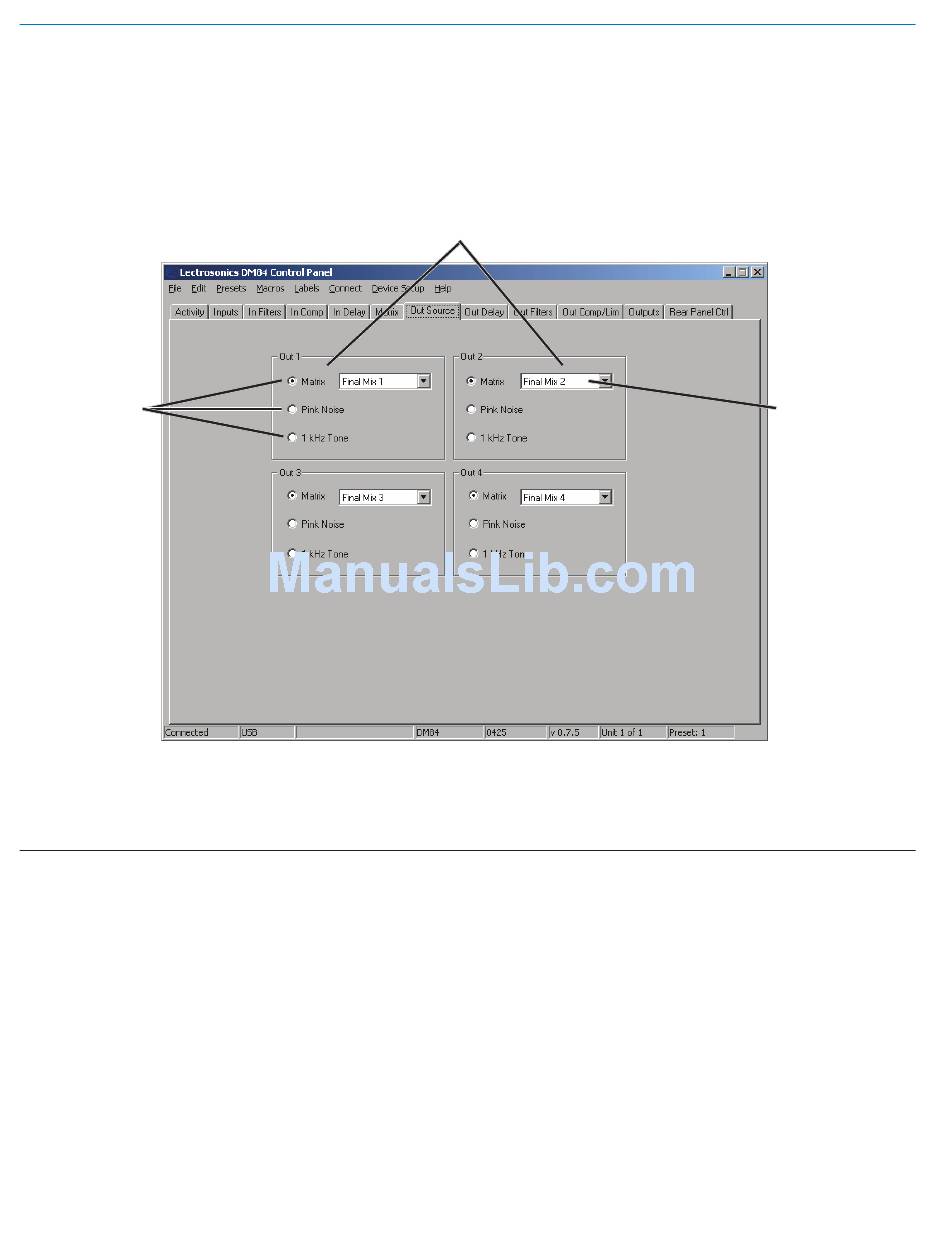

Output channel source controls The output channel signal source is selectable here from 3 choices:
30
DMTH4 Outputs
Description
• Matrix - A signal from the DANI bus is used as the signal source. One of 12 backpropagated
final mixes from the main mix matrix may be selected, or one of the 2 backpropagated expan-
sion mixes from the expansion mix matrix. The expansion final mixes are normally used as
sources for the DMTH4 telephone hybrid product in a multi-unit system.
• Pink Noise - A 0 dBu pink noise generator is used as the signal source.
• 1 kHz Tone - A 0 dBu 1kHz sine wave generator is used as the signal source.
The Out Source tab selects the output channel signal
source. This source will be added to the selected DM84
output.
Final Mix Select
