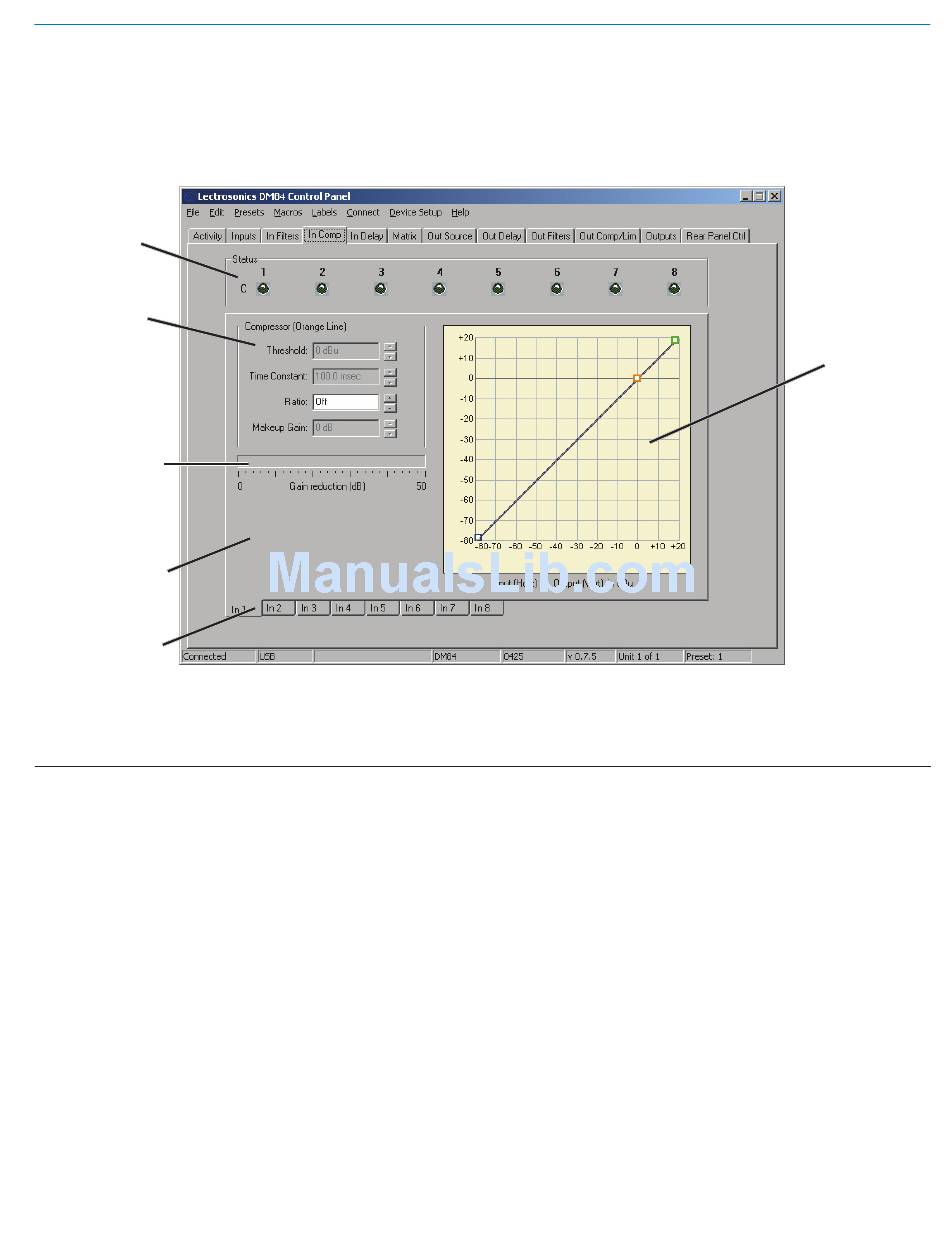

In Comp (Input Compressor) Tab

This tab contains a notebook of input compressor
settings, with a separate page for each input channel. If
connected to a DM84, changes made in this tab take
Status
Compressor
Setup
Gain Reduction
Meter
Configuration
Input Select
Name
Compressor setup
Rio Rancho, NM
Description
Compressor parameters are set by the following numerical controls:
• Threshold - The compressor input level threshold is displayed here and can be adjusted
from -80dBu to +20dBu.
• Time Constant - The compressor time constant is displayed here and can be adjusted from
0.5 to 1000.0 ms.
• Ratio - The compression ratio is displayed here and can be adjusted from 1:1 (displayed as
"Off") to 50:1 (displayed as "INF:1").
• Makeup Gain - The makeup gain value is displayed here and can be adjusted from 0dB to a
limit which is a function of the threshold and compression ratio. The makeup gain value
automatically responds to changes to the compression ratio so that it never exceeds the
limit set by the rule:
maximum makeup gain = gain reduction at full scale input
where the gain reduction at full scale input (+20dBu) depends on the threshold and
compression ratio selected.
effect immediately. As always, the changes are not
permanent unless the DM84 settings are stored to a
preset in nonvolatile memory.
