Matrix Tab

This tab contains a notebook with two crosspoint matrix
pages, one for the main matrix and one for the expan-
sion matrix. If connected to a DM84, changes made in
Mix Busses
DM84 Input
Channels
Output Source
Controls
Matrix Select
Name

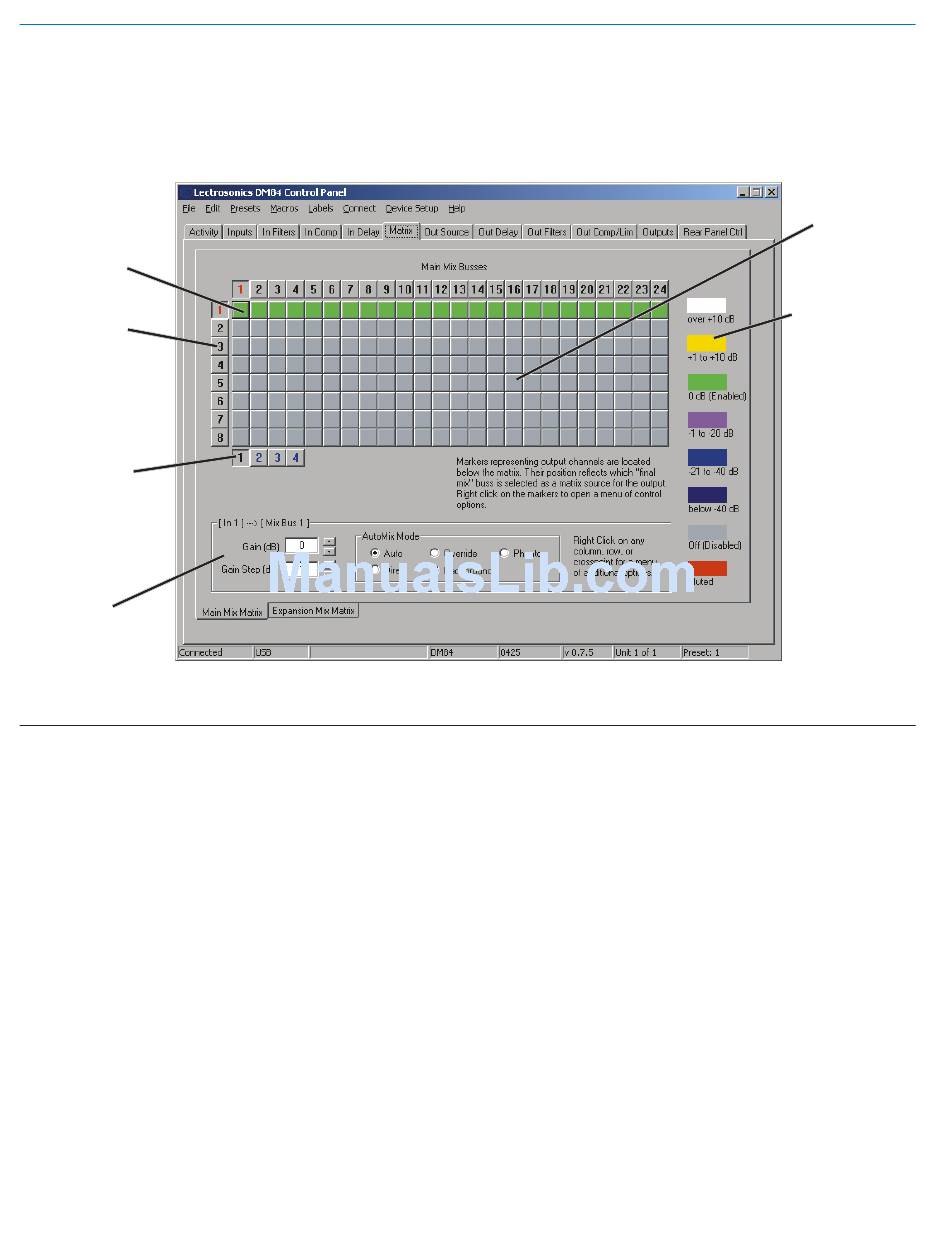

Crosspoint matrix
28
Description
Each matrix is organized 8 rows of crosspoints, one for each audio input channel. The number of
crosspoints in each row differs between the system mixing matrix and the expansion mixing
matrix:
• Each row in the system mixing matrix contains 24 crosspoints, one for each main mix bus in
the system.
• Each row in the expansion matrix contains 2 crosspoints, one for each expansion mix bus.
Along the left side of the matrix is found a column of input channel labels, and along the top is
found a row of mix bus labels. The buttons found inside the matrix are used to select a crosspoint
so that its settings can be viewed and modified.
Several settings are available by right clicking on a crosspoint button and choosing them from the
popup menu:
• Enable Crosspoint (0dB gain) - appears when the selected crosspoint is disabled. Choosing
this causes the crosspoint gain to be set to 0dB, the normal setting for an active crosspoint.
• Disable Crosspoint (Off) - appears when the selected crosspoint is enabled. Choosing this
causes the crosspoint gain to be set to "Off".
• Crosspoint Gain... - choosing this opens the Set Gain dialog.
• Mute Crosspoint - choosing this toggles the mute status of the selected crosspoint. If the
crosspoint is muted, this menu item is checked.
• Copy Crosspoint - choosing this copies the selected crosspoint settings so that they may be
pasted into another crosspoint.
• Paste Crosspoint - choosing this pastes previously copied crosspoint settings into the
selected crosspoint.
this tab take effect immediately. As always, the changes
are not permanent unless the DM84 settings are stored
to a preset in nonvolatile memory.
Matrix
Crosspoint Gain
Color Code
