DM84 Digital Matrix Processor

DM84 System Setup Tabs

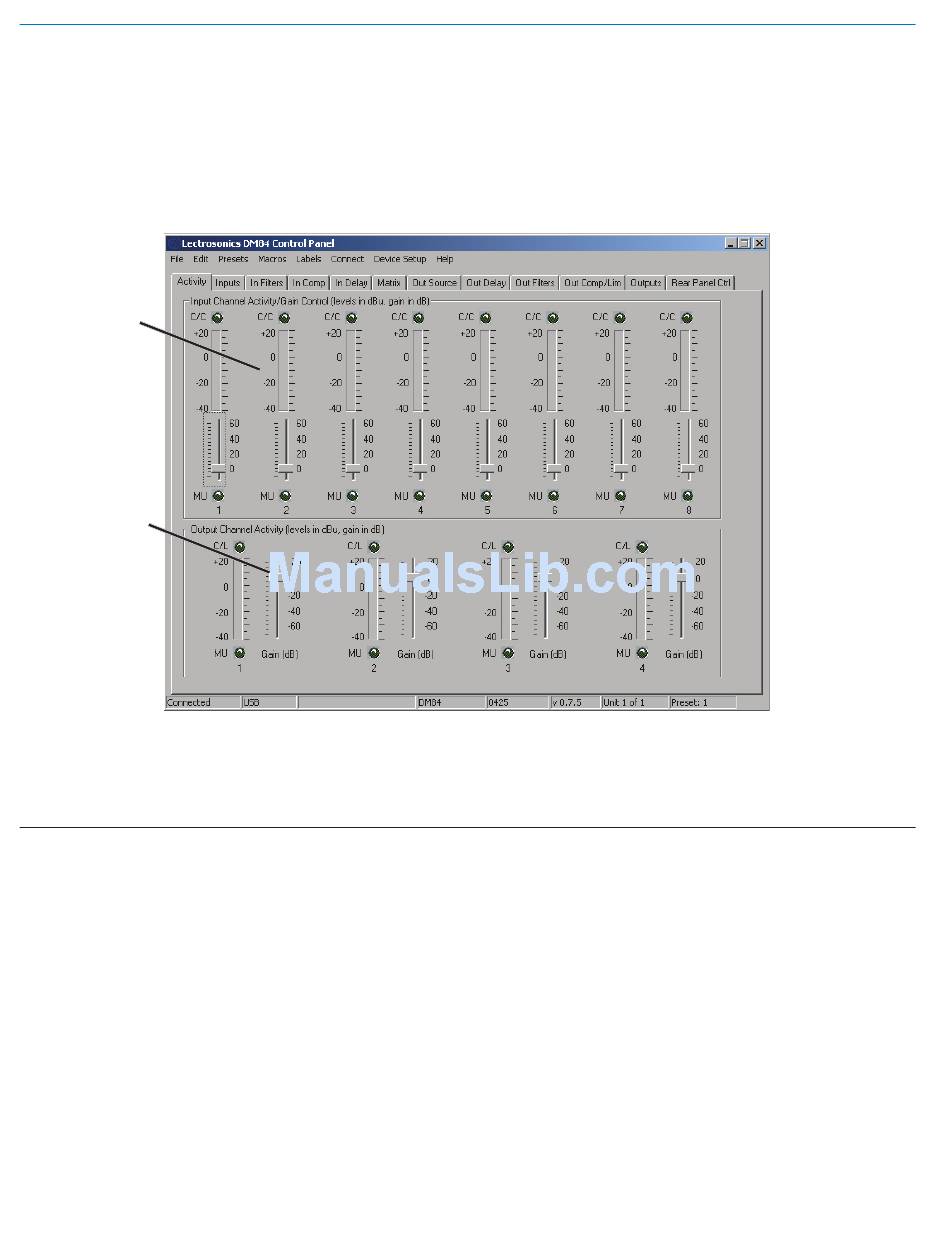

Activity Tab

The Activity Tab provides an "at a glance" monitoring of
input and output levels, when the DM84 is connected to
a computer system.
Input Channel
Activity/Gain
Output Channel
Activity/Gain
Name
Input Channel Activity/Gain LEDs, level meters and slider controls for monitoring and controlling the telephone, codec and
Output Channel Activity/Gain LEDs and level meters for monitoring the activity of the telephone, codec and auxiliary channels.
22
Description
auxiliary input channels.
C/C LED - Glows yellow if the input channel compressor has become active, or red if the input
channel audio is clipping.
Level Meter - True RMS level meter displaying the input audio level in dBu as measured after
application of the main and rear panel input channel gains, but before the signal is processed by
the input filters and compressor. Meter range is -40dBu to +20dBu.
MU LED - Glows red when channel is muted.
C/L LED - Glows yellow if the output channel compressor has become active, or red if the output
channel audio is in limiting.
Level Meter - True RMS level meter displaying the output audio level in dBu as measured after
application of the main and rear panel output channel gains, but before the signal is processed
by the output filters, compressor/limiter, or mic level attenuator. Meter range is -40dBu to +20dBu.
MU LED - Glows red when channel is muted.
The tab is divided into two functional sections: Input
Channel Activity/Gain and Output Channel Activity/
Gain.
