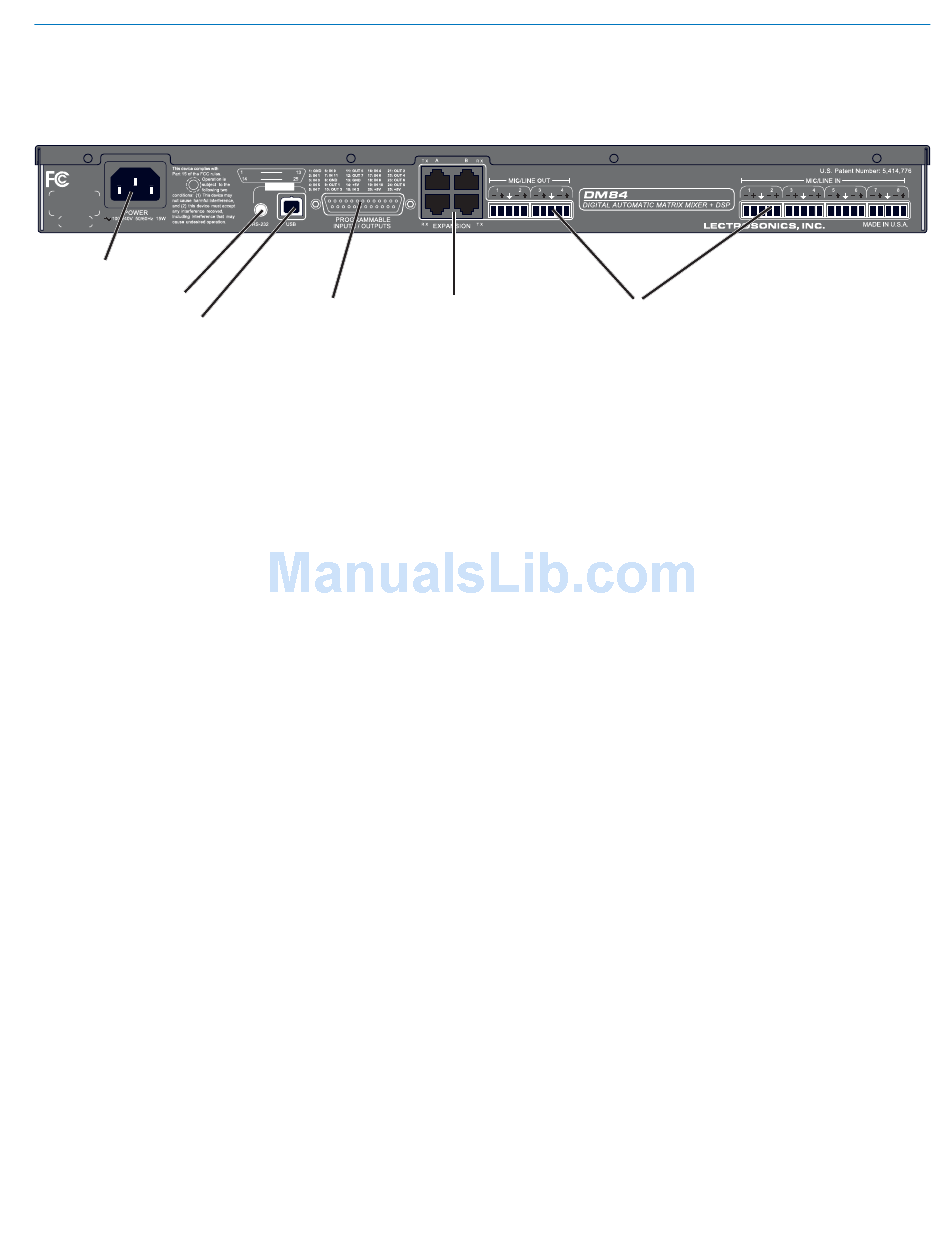

Rear Panel

DM84 - 8 inputs, 4 outputs

POWER Plug

RS232 Port

USB Port

POWER Plug
Standard NEMA 5-15 three-pin power plug capable of
accepting 100-240 VAC, 47-63 Hz.
RS-232 Port
A serials RS-232 interface is provided for setup and
control via a computer, or for connecting RS-232 serial
control devices from other companies.
USB Port
Standard USB connector for setup and control of the
DM from a Windows 2000 or Windows XP computer
system with USB interface.
Rio Rancho, NM
LecNet 2
Programmable Input and
Output Ports

DANI

Audio Inputs and Outputs

Programmable Input and Output Ports

Programmable inputs or outputs used to enable control
over a variety of parameters or to indicate either
channel activity or the current state of a programmable
input.
DANI
DANI, or Digital Audio Network Interface, is used to
connect the digital audio outputs of the master and
slave units in stacked configurations.
Audio Inputs and Outputs
Analog audio input and output connectors. The function
of these inputs and outputs is consistent between units.
Only the number of analog inputs and outputs vary.
