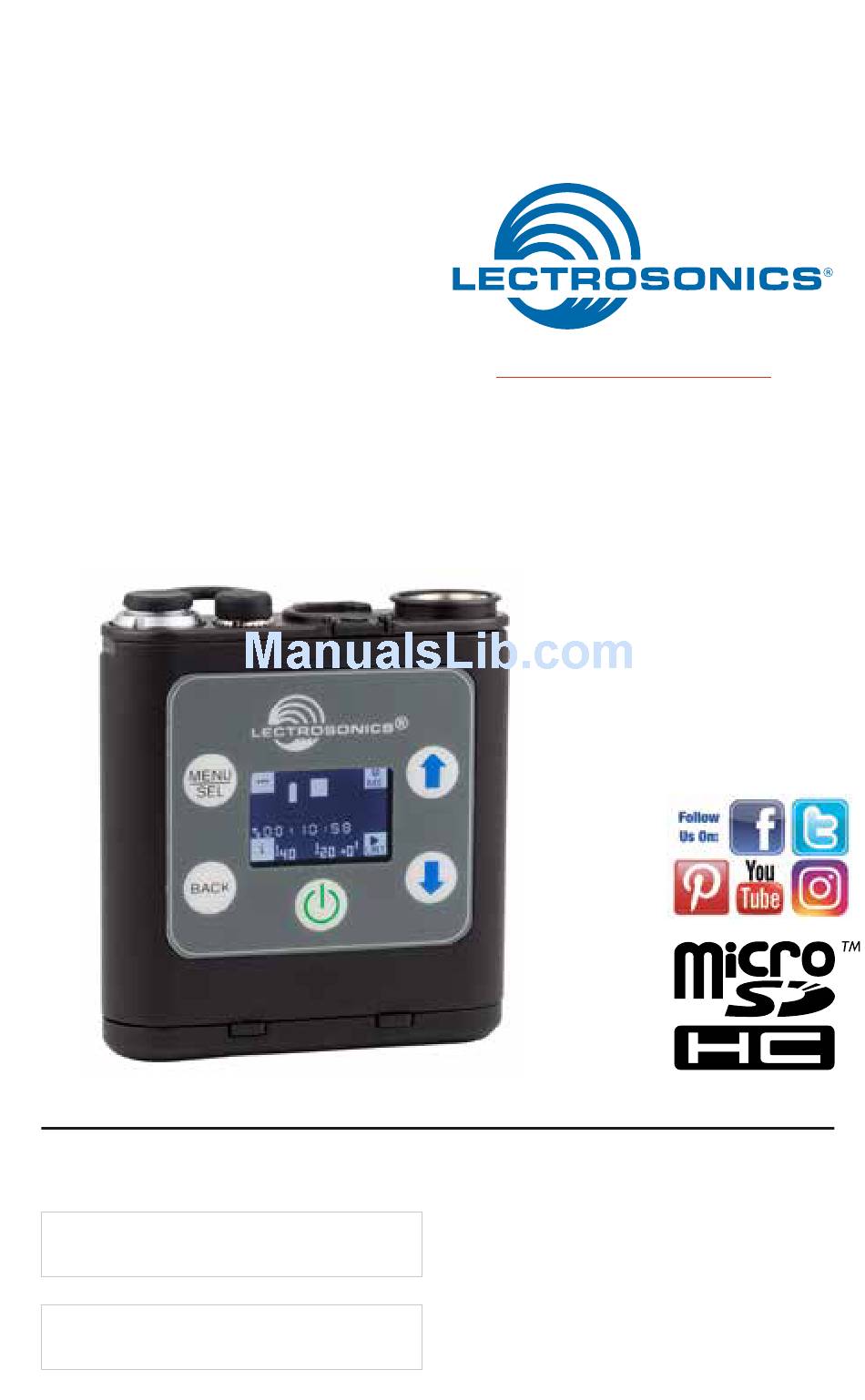

Lectrosonics PDR Quick Start Manual

Portable digital audio recorder
Hide thumbs Also See for PDR:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
Q
uick
S
tart
G
uide
PDR
Portable Digital Audio Recorder
Fill in for your records:
Serial Number:
Purchase Date:
CAUTION: See card
formatting warning
microSDHC Logo is a trademark of SD-3C, LLC
This guide is intended to assist with
initial setup and operation of your
Lectrosonics product.
For a detailed user manual, down-
load the most current
version at:
www.lectrosonics.com
on page 6
23 April 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDR and is the answer not in the manual?

Questions and answers

Related Manuals for Lectrosonics PDR

Summary of Contents for Lectrosonics PDR

  • Page 1 Logo is a trademark of SD-3C, LLC This guide is intended to assist with initial setup and operation of your Fill in for your records: Lectrosonics product. Serial Number: For a detailed user manual, down- load the most current...

  • Page 2: Features And Controls

    Time code slot cover sync port The audio input circuitry is the essentially the same as on Lectrosonics SM and L Series transmitters. Any microphone wired as Lectrosonics “compatible” or “servo bias” will work with the PDR. (See manual for details.) If the unit is booted with an unformatted SD card, the prompt to format the card will be the first window to appear after the boot sequence completes.
  • Page 3 The icons in the corners of the LCD will change depending on the status of the playback. 00 : 01 : 33 NOTE: Refer to the Operating Instructions section for details on the specific button functions and operations in the Main, Recording and Playback Windows. www.lectrosonics.com...

  • Page 4: Battery Installation

    The audio recorder is powered by a single AAA lithium battery, offering over six hours of operation. We recommend using lithium batteries for longest life. NOTE: Although alkaline batteries will work in the PDR, we strongly recommend that they be used only for short-term testing. For any actual production use, we recommend the use of disposable lithium AAA batteries.

  • Page 5: Compatible Memory Cards

    Belt Clip PDR wire belt clip included Compatible memory cards The card should be a microSDHC memory card, speed class 10, or any UHS speed class, 4GB to 32GB. The recorder supports the UHS-1 bus type, marked on the memory card with an symbol.

  • Page 6: Formatting The Sd Card

    In short - there should be NO manipulation of the data on the card or addi- tion of data to the card with anything other than a PDR. Copy the files to a computer, thumb drive, hard drive etc that has been formatted as a regular OS device FIRST - then you can edit freely.

  • Page 7: Powering Off

    Icons in the four corners of the screen provide access to the Menu, Card Info (available recording time if SD card installed, PDR info if no card in unit), and the REC (record start) and LAST (play last clip) func- tions.

  • Page 8: Recording Window

    Progress Tracker functions indicated 00 : 18 : 21 by the icons Play/Pause STOP All files created are 002A .WAV given a time stamp. See 02/05 05:01 File Naming [PDR-HD24] for options. 00:00:11 00 : 18 : 11 HOLD LECTROSONICS, INC.

  • Page 9: Navigating Menus

    BACK Remote enabled? Use arrow keys to select Press to set Remote BACK analog or digital BACK function (For information Rev: v2.00 About PDR purposes only.) BACK Restore defaults? Use arrow keys to return Default BACK to default settings www.lectrosonics.com...
  • Page 10 Use Clock Choose to use the clock provided in the PDR as opposed to a timecode source. Set the clock in the Settings Menu, Date & Time on page 9. NOTE: The PDR time clock and calendar (RTCC) cannot be relied on as an accurate time code source.
  • Page 11 Use UP and DOWN arrows to adjust headphone volume. Scene & Take Each time recording is started, the PDR automatically begins a new take. Takes can run up to 999. The scene numbers can be manually entered and are limited to 99.
  • Page 12 NOTE: See Mic Level. Bit Depth PDR defaults to 24-bit format recording, which is a more effecient space sav- ing format. 32-bit is available if your editing software is older and won’t accept 24-bit. (32-bit is actually 24-bit padded with zeros, so more space is taken up the card.)

  • Page 13: Available Recording Time

    Choose either Alkaline or Lithium battery type. The voltage of the installed battery will be shown at the bottom of the display. NOTE: Although alkaline batteries will work in the PDR, we strongly recommend that they be used only for short-term testing. For any actual production use, we recommend the use of disposable lithium AAA batteries.
  • Page 14 • Record Start/Stop • Audio playback level • Lock/Unlock The PDR tones are unique to the PDR and will not react to “dweedle tones” meant for Lectrosonics transmitters. The setup screens appear differently for iOS and Android phones, but provide the same control settings.
  • Page 15 Version Tap to play tone Select Mode Playback Volune Select Function Android Version Select Function Tap function name or down arrow to select mode Touch and hold to play tones Playback Volume www.lectrosonics.com...

  • Page 16: Limited One-Year Warranty

    This warranty does not apply to used or demonstrator equipment. Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item.
