DM84 Digital Matrix Processor
Installing LecNet2
Part of the LecNet2software package is the control
panels for the DM84. This Graphic User Interface (GUI)
is designed to allow easy setup and monitoring of the
DM84 using a computer system running Windows
2000 or XP operating system.
™
Installing LecNet2
1. Use the computer control panel to remove any
previously installed versions of LecNet2software.
(This will ensure you are using the latest release.)
2. Insert the LecNet2program disk supplied with the
Venue Receiver into the CD-ROM drive on the
computer system that will be used to set up and
control the Venue Receiver.

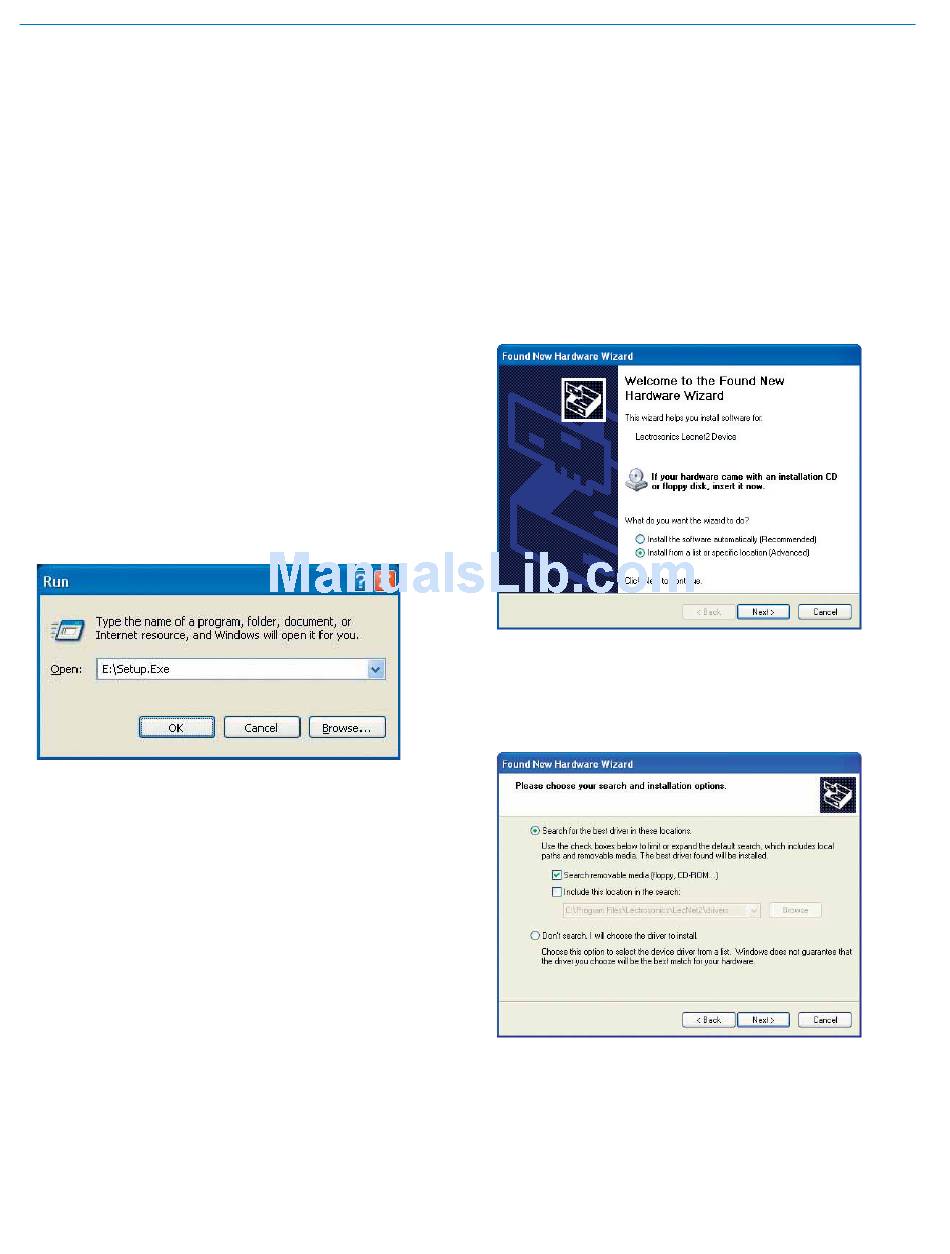

3. The CD should automatically start the installation
procedure. If it doesn't, click "Start" on the Win-
dows Task Bar then click "Run..." Enter the Drive
number followed by "Setup.exe" as shown below.
4. Follow the on-screen instructions to install the
LecNet2software.
Installing the LecNet2
There are two methods of connecting a Windows-based
computer system to DM Series device, either via a USB
cable or an RS-232 cable. However, although the USB
port offers significantly increased speed and conve-
nience over standard RS-232 links, it does require the
installation of a LecNet2™ USB driver.
The LecNet2USB driver is not part of the standard
Windows ® 2000 and XP driver library. As a result,
connecting a computer system to a DM84 for the first
time is different than subsequent installations. There
are a few minor differences between installing the
LecNet2USB drivers on a Windows 2000 versus a
Windows XP system.

USB driver installation (Windows XP)

When a DM84 is connected to a Windows XP computer
system for the very first time, the Windows
Hardware Found Wizard" automatically opens.
16
™
Software and USB Driver
Software
™
USB Driver
®
"New

First time installation

When a LecNet2™ device is connected to the computer
system for the very first time, the Windows Found New
®
Hardware Wizard automatically opens. Use the follow-
ing procedure to install the LecNet2USB driver using
the Wizard.
1. Place the LecNet2Installation Disk in the computer
system's CD-ROM drive.
2. On the first page of the Wizard, select the option
"Install from a list or specific location (Ad-
vanced)" and click Next> to continue.
3. Select "Search for the best driver in these
locations.", then check the box for "Search
removable media (floppy, CD-ROM...)" and click
Next> to continue.
