CB Technology (Clean Burning)
Your wood-burning stove is fitted with CB technology. To ensure
optimum burning of the gases released by the burning process, air
is guided by a specially developed system. Pre-heated air is fed into
the combustion chamber through the small holes below the smoke
deflector plate. The airflow is driven by the combustion speed, and
cannot be regulated.

Primary air

The primary air regulation mechanism is used for lighting the fire,
or to boost the burning process when you put wood on. The primary
air vent can be 25% - 50% open if you use hard wood fuel such as oak
and beech. You can close the primary air vent if you use soft wood
such as birch or pine for fuel.

Settings for normal load: 50%

Secondary air

Secondary air is pre-heated and fed indirectly to the fire. At the same
time, the secondary airflow cleans the glass pane to avoid soot build-
up. If you over-restrict the secondary airflow, soot can build up on the
glass pane. The secondary airflow determines the heat output from
your wood stove.
Settings for normal load:. 90%

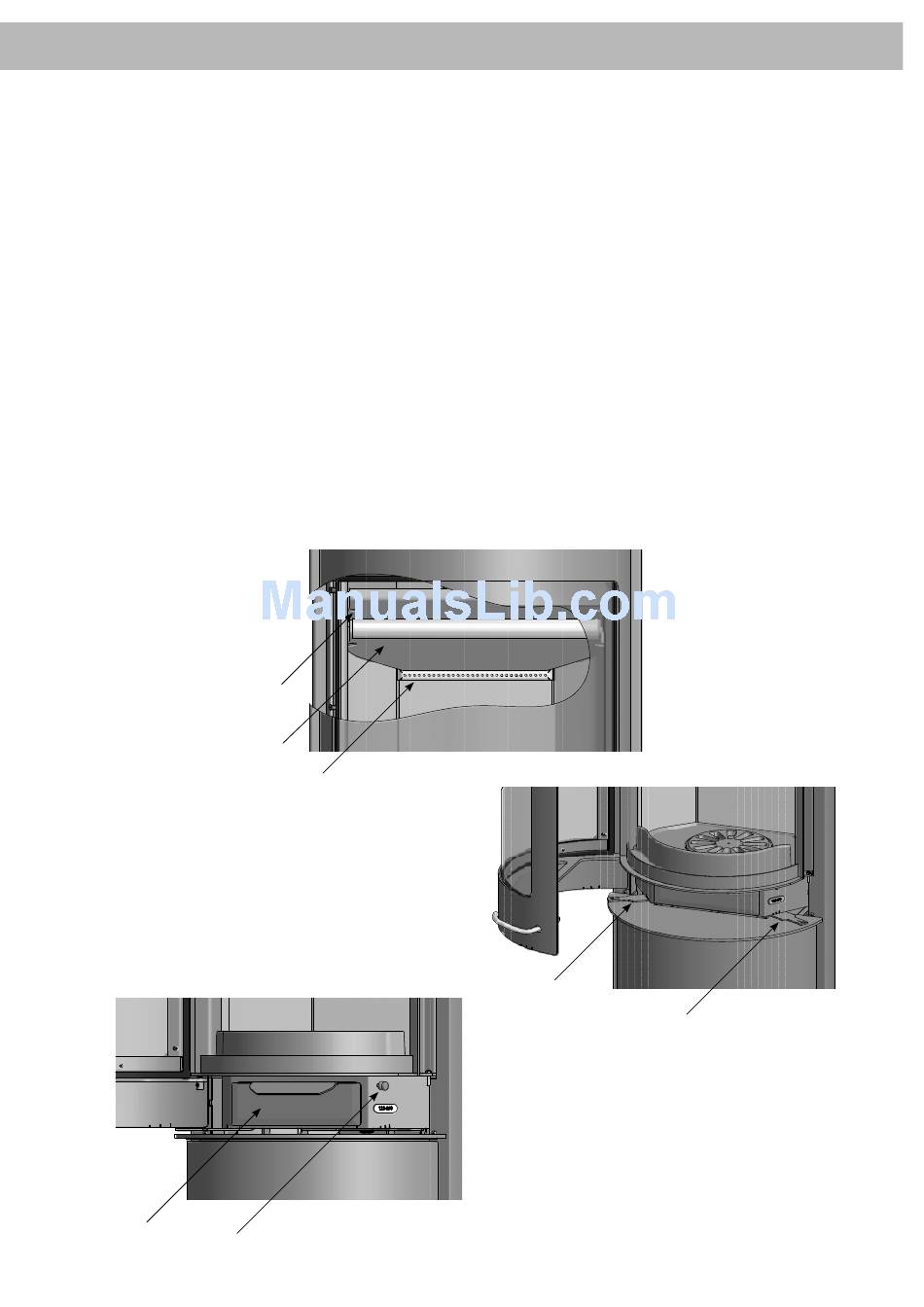

Retaining pins for

smoke deflector plates

Smoke deflector plates

Ash pan

Handle for riddling grate

I N S T R U C T I O N F O R U S E

CB Technology

Smoke deflector plates
The smoke deflector plates are located in the upper part of the com-
bustion chamber. The plates hold back smoke, making sure it stays
inside the combustion chamber for a longer time before escaping
through the chimney. This reduces the smoke gas temperature as
the gases have more time to dissipate heat to the wood-burning
stove. The smoke deflector plates must be removed for sweeping;
see „Maintaining your wood-burning stove". Note that the smoke
deflector plates are made of porous, ceramic material, and can break.
Exercise care when working. The smoke deflector plates are subject
to wear and tear, and are not covered by the warranty.
Ash pan
Open the glass door to access the ash pan which is located below the
combustion chamber.
Keep the ash pan closed at all times when the wood stove is lit.
Handle for riddling grate
Your wood stove is fitted with a riddling grate which empties the ash
from the combustion chamber into the ash pan when activated.
The riddling grate must be in semi-open position while the wood
stove is lit.
Primary air
Secondary air
