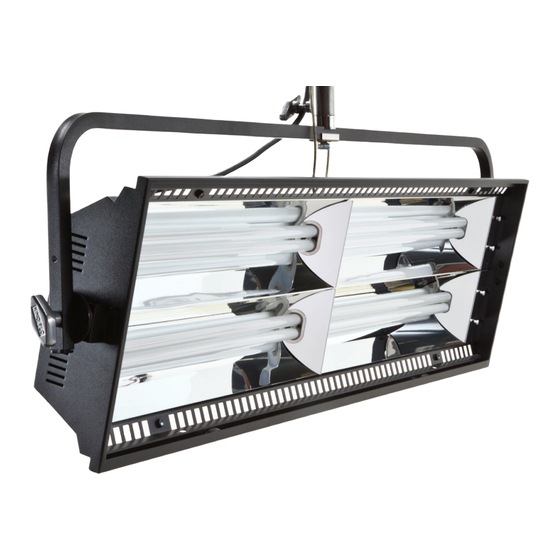

- Page 1 Operation Manual ParaZip 415 & 215 DMX ® ParaZip 415 Yoke Mount ParaZip 415 Pole-Op Part No. 3100081 Rev A 06-15-2015...
- Page 2 ParaZip Fixture Styles and Features ParaZip Yoke Mount ZIP-415-120U ParaZip 415 DMX Yoke Mount, Univ 120U ZIP-415-230U ParaZip 415 DMX Yoke Mount, Univ 230U ZIP-215-120U ParaZip 215 DMX Yoke Mount, Univ 120U ZIP-215-230U ParaZip 215 DMX Yoke Mount, Univ 230U...
- Page 3 Included w/ all ParaZip Models GFR-Z4 ParaZip 415 Gel Frame (Included) GFR-Z2 ParaZip 215 Gel Frame (Included) LVR-Z490-P ParaZip 415 Louver/HP, 90° (Included) LVR-Z290-P ParaZip 215 Louver/HP, 90° (Included) True Match Lamps ® 55C-K32 55W Kino KF32 Compact 55C-K55 55W Kino KF55 Compact...
- Page 4 Inserting Lamps Remove the lamp base Remove gel frame. Insert lamp tip first. cover by pulling up on the two push-buttons. Snap lamp base into To release lamps, Replace lamp base cover lamp connector. and push down on pins to press red button and lift lock.
- Page 5 Applying Gel to Frame A) The Gel Frame comes with Gel Clips. Cut the gel to size and use the clips to fasten the gel to the frame. B) Another method is to apply transfer tape directly to the gel frame. The clips are not necessary when taping the gel.
- Page 6 ParaZip Yoke Mount The Yoke has a ½” hole to accept industry standard mounting hardware. The ParaZip 415 Yoke Mount can hang from a grid by a junior pipe hanger using a Junior Pin Assembly for Yoke (MTP-I80), sold separately. The ParaZip 215 Yoke Mount can also hang from a grid by a junior pipe hanger using a Junior Pin Assembly for Yoke (MTP-I80) or by a baby pipe hanger using a Baby Receiver...
-
Page 7: Fixture Operation
Pole Operation The Blue cup alters the Pan (left or right.) The White cup alters the Tilt (up or down.) Warning! Do not pull yoke to adjust tilt. Turn the white knob counter clockwise to angle the yoke 90°. (ParaBeam shown for illustration purposes only.) Fixture Operation Warning! To Ensure Proper Operation... - Page 8 ParaZip Control Panel A) DMX-In & DMX-Out: DMX-In receives signals from Dimmer Board. DMX-Out relays DMX signal through other fixtures or instruments. Note: Each ParaZip fixture (415 & 215 models) has an “AUTO TERMINATE” feature. The last fixture that does not have an XLR cable attached to the DMX “Out” port will automatically terminate.
-
Page 9: Manual Operation
Manual Operation The onboard dimmer dial can manually dim lamps. The MANUAL DIM LAMPS switch selects 4 or 2 lamp operation. Select the 2 setting to turn off the outer lamps. Note: All manual controls are disabled as soon as the DMX cable is applied. - Page 10 Auto Terminate The ParaZip 415 and 215 fixtures have an AUTO TERMINATE feature. The last fixture that does not have an XLR cable attached to the DMX “Out” port will automatically terminate. ParaZip fixtures can be jumpered using the IN and OUT ports. As many as 100 fixtures can be jumpered on one chain as long as the DMX cable run remains under 1000 feet or 40 x 25ft DMX cables.
-
Page 11: Troubleshooting
Trouble Shooting LAMPS FAIL TO LIGHT: • With the power switch in the ON position, the red light should be on. If it is not, voltage is not present. Check your power feed. Check the fuse on the fixture and replace with the same type of fuse rating as marked if necessary. •... -
Page 12: Accessories And Parts
Accessories and Parts BRD-Z42 ParaZip 415/215 Barndoors (Set of 2) LVR-Z490-P ParaZip 415 Louver/HP, 90° LVR-Z460-P ParaZip 415 Louver/HP, 60° LVR-Z445 ParaZip 415 Louver-Honeycomb, 45° LVR-Z290-P ParaZip 215 Louver/HP, 90° LVR-Z260-P ParaZip 215 Louver/HP, 60° LVR-Z245 ParaZip 215 Louver-Honeycomb, 45° MTP-I80 Junior Pin Assembly for Yoke (28mm) MTP-I40... - Page 13 True Match Lamps ® 55C-K32 55W Kino KF32 Compact 55C-K55 55W Kino KF55 Compact Cases KAS-Z41 ParaZip 415 Ship Case KAS-Z21 ParaZip 215 Ship Case KAS-CL6 6-Lamp Carry Case (55W Compact)
-
Page 14: Fixture Specifications
(127 x 40.5 x 16.5cm) Lamp type: 55W CFL w/ 2G11 base ParaZip 415 Yoke Mount Model: ZIP-415-230U ParaZip 415 DMX Yoke Mount, Univ 230U, 165W Input Voltage: 240~100VAC 50/60Hz Output Frequency: 80kHz Amperage: 0.7A at 230VAC Lamp Switching: 4/2 Dimming Range: 100%~5% Weight w/ lamps: 20.1 lbs /9.0kg... - Page 15 Model: ZIP-415P-120U ParaZip 415 DMX Pole-Op, Univ 120U Input Voltage: 100~240VAC 50/60Hz, 165W Output Frequency: 80kHz Amperage: 1.4A at 120VAC Lamp Switching: 4/2 Dimming Range: 100%~5% Weight w/ lamps: 22 lbs /10kg Dimensions: 50.5 x 16 x 6.5” (128 x 40.5 x 16.5cm)
- Page 16 This product is made of recyclable materials and should be disposed of in accordance with governmental regulations. Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
