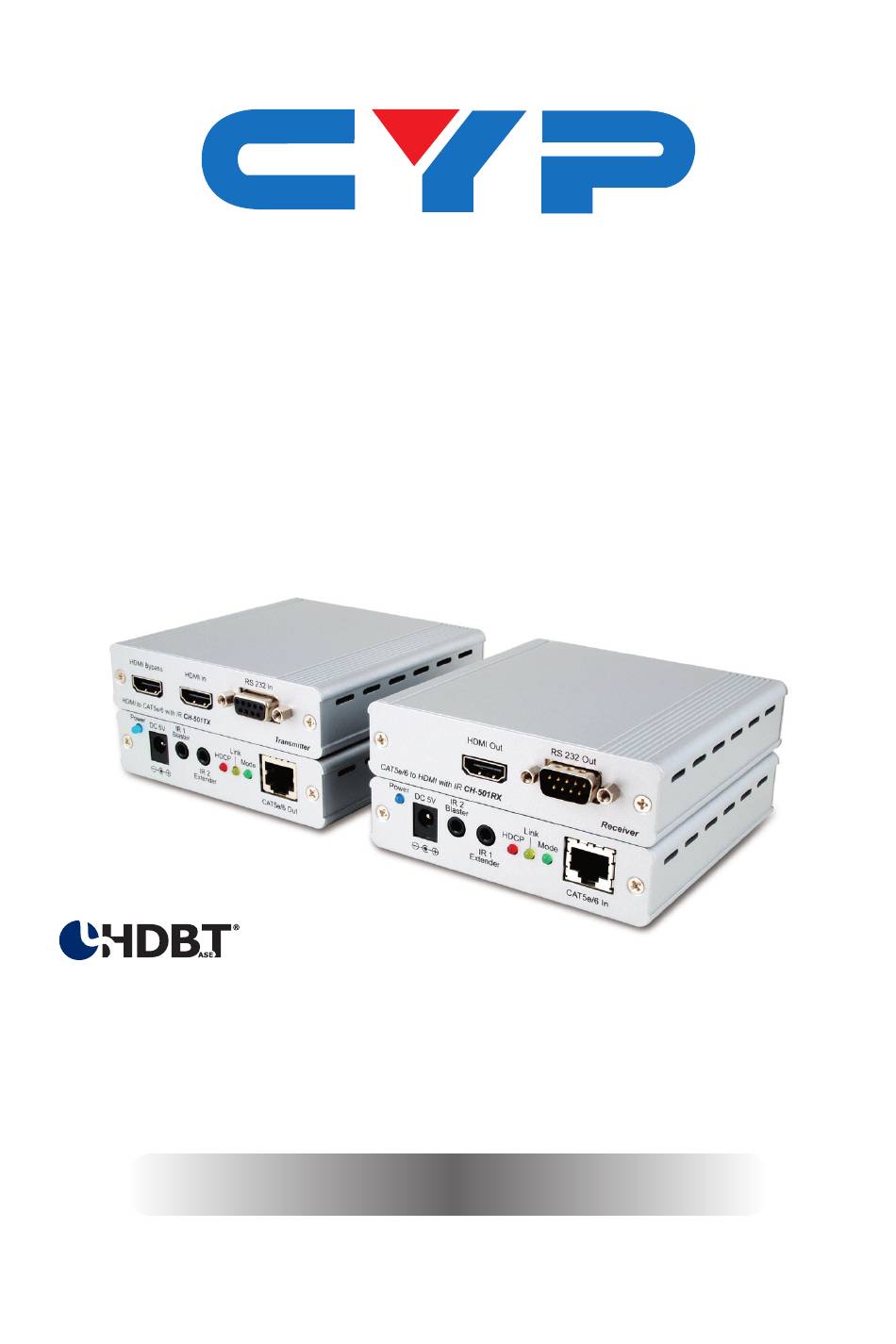

- Page 1 CH-501TX & RX HDMI over Single CAT5e/6/7 Transmitter and Receiver Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Transmitter Front and Rear Panels ..3 6.2 Receiver Front and Rear Panels ..4 6.3 IR Cable Pin Assignment....5 6.4 RS-232 Cable Pin Definitions ....5 7. -
Page 6: Introduction
1. INTRODUCTION The HDMI over Single CAT5e/6/7 Transmitter and Receiver set can send uncompressed video/audio and IP data over a single run of CAT5e/6/7 cable up to 100m at 1080p and 70m at 4K. It has the added benefit of control through the built-in RS-232 pass-through and 2-way IR control. -
Page 7: Features
5. FEATURES • HDMI (with 3D format and 4K2K resolution support), HDCP and DVI compliant • Supports CEC bypass function • Simultaneous transmission of uncompressed video/audio and data over a single CAT5e or CAT6 cable up to 100m/328ft at 1080p and 70m/229ft at 4K •... -
Page 8: Operation Controls And Functions

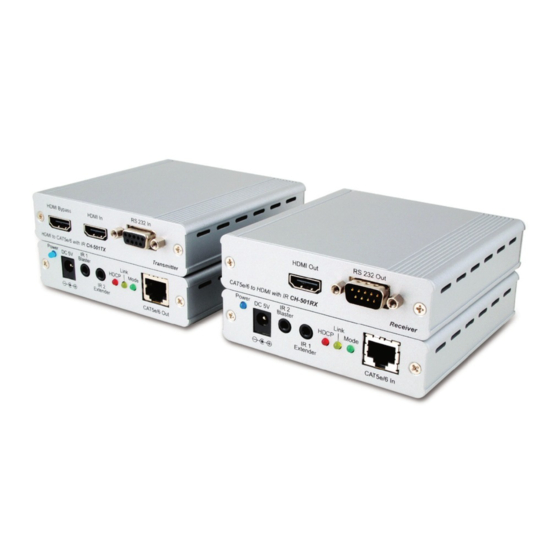

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels Front Rear IR 1 Power DC 5V RS 232 In Blaster Link HDMI Bypass HDMI In HDCP Mode IR 2 Extender CAT5e/6 Out HDMI to CAT5e/6 with IR CH-501TX Transmitter HDMI Bypass: Connect to a HDTV/monitor to test the HDMI input source signal. -
Page 9: Receiver Front And Rear Panels
HDCP IR 1 Extender CAT5e/6 In CAT5e/6 to HDMI with IR CH-501RX Receiver HDMI Out: Connect to an HDMI equipped TV/monitor of display the HDMI input source signal. RS-232 Out: Connect to the device that is to be controlled (via D-sub 9-pin female cable) by RS-232 commands. -
Page 10: Ir Cable Pin Assignment
6.3 IR Cable Pin Assignment IR Blaster Power 5 V IR Blaster Signal IR Extender IR Signal Power 5 V Grounding 6.4 RS-232 Cable Pin Definitions DEFINE (TX / RX) TxD / RxD RxD / TxD... -
Page 11: Connection Diagram
Power Supply Power DC 5V IR 2 Blaster Link HDCP Mode IR 1 Extender CAT5e/6 In 60° RS 232 Out HDMI Out CAT5e/6 to HDMI with IR CH-501RX Receiver 60° Blaster 1.5m RS-232 RS-232 Equipped HDMI Switcher HDMI Output TV/Monitor... -
Page 12: Specifications
8. SPECIFICATIONS Video Bandwidth 300 MHz/9 Gbps Transmitter Input 1×HDMI, 1×IR Extender, 1×RS-232 Output 1×CAT5e/6, 1×HDMI Bypass, 1×IR Blaster Receiver Input 1×CAT5e/6, 1×IR Extender Output 1×HDMI, 1×IR Blaster, 1×RS-232 CAT6 Cable Distances 100m (1080p@60Hz, 12-bit) 70m (4K@60Hz, 4:2:0, 8-bit) HDMI Cable Distances 10m (1080p@60Hz, 12-bit) 5m(4K@60Hz, 4:2:0, 8-bit) HDMI Resolutions... -
Page 13: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface Infrared... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CH501TXRX...
