P90L 6kVA & 10kVA User's Manual

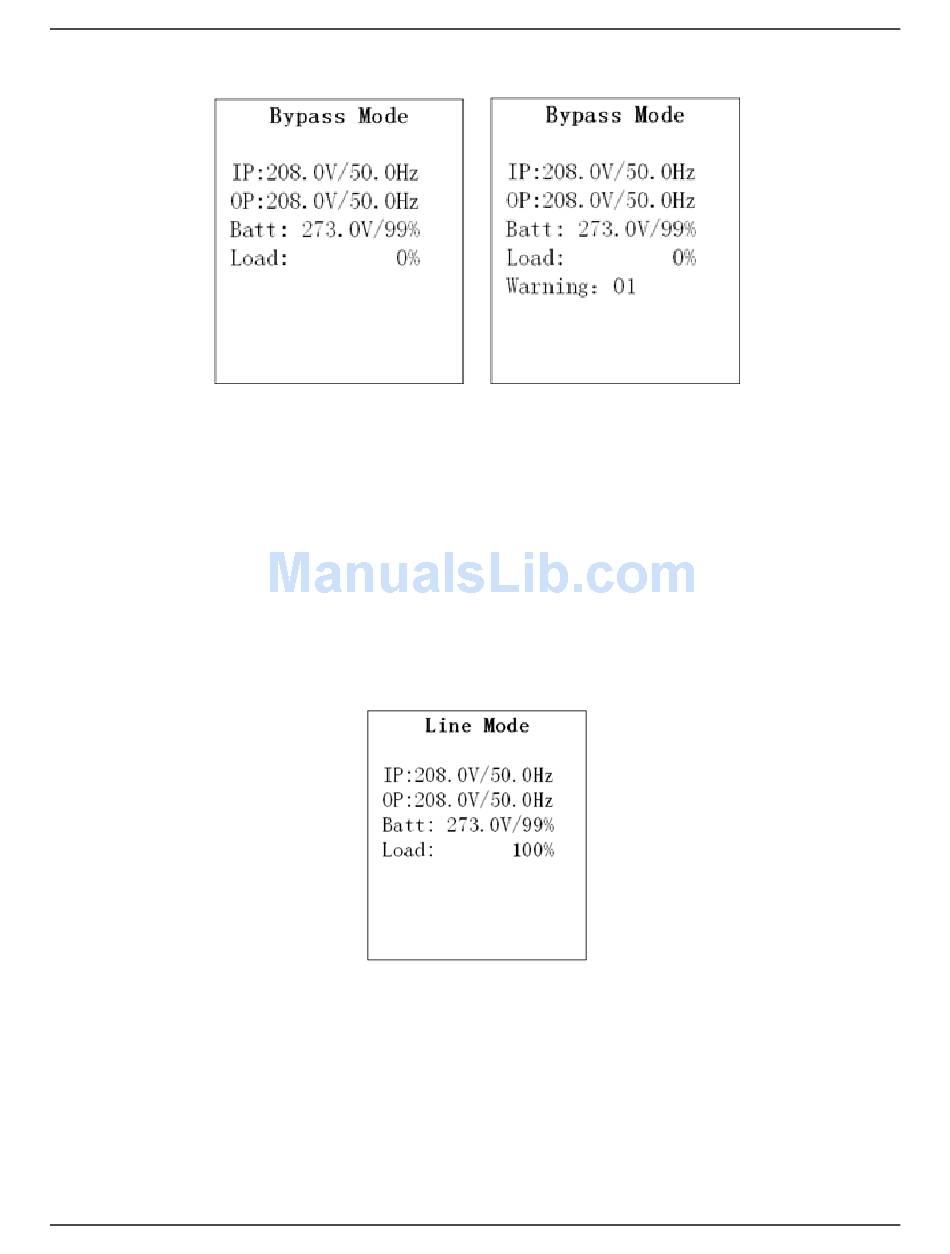

Main Interface (Home Screen)

1. In the first line, it will display the current mode the UPS is in.
2. When an alarm occurs, the warning or fault information will display below the "load" line;
3. When the front panel is not operated for quite a long time, the page will default back to this home page;
4. Press the "UP" or "DOWN" button to enter the main operation menu.
5. When LCD is on this home page, if UPS is in bypass, you could press the "ON/ENTER" button to turn on the
UPS to line / converter / ECO / battery mode according to the setting and input status; in reverse, you could
press the "OFF/ESC" button to turn off the UPS to bypass mode or shutdown. As previously mentioned in
"UPS Operation" section of this manual.

Operation Menu

Main menu
1. After pressing the "UP" or "DOWN" button at the home page, the screen will display the main menu of
the operation menu. In the main menu, there are 5 items (Control / Measurement / Information / Setting
/ Alarm) to select.
2. Press "UP" or "DOWN" button to select item.
3. Press "ON/ENTER" button to confirm the selection.
4. Press "OFF/ESC" button to go back to the home page;
5. This operation is the same or similar in other menus or pages. Please refer to the section of "Button Opera-
tion" section.
Xtreme Power Conversion Corporation
Uninterruptible Power Supply
Page 18
