System Single Line Diagram

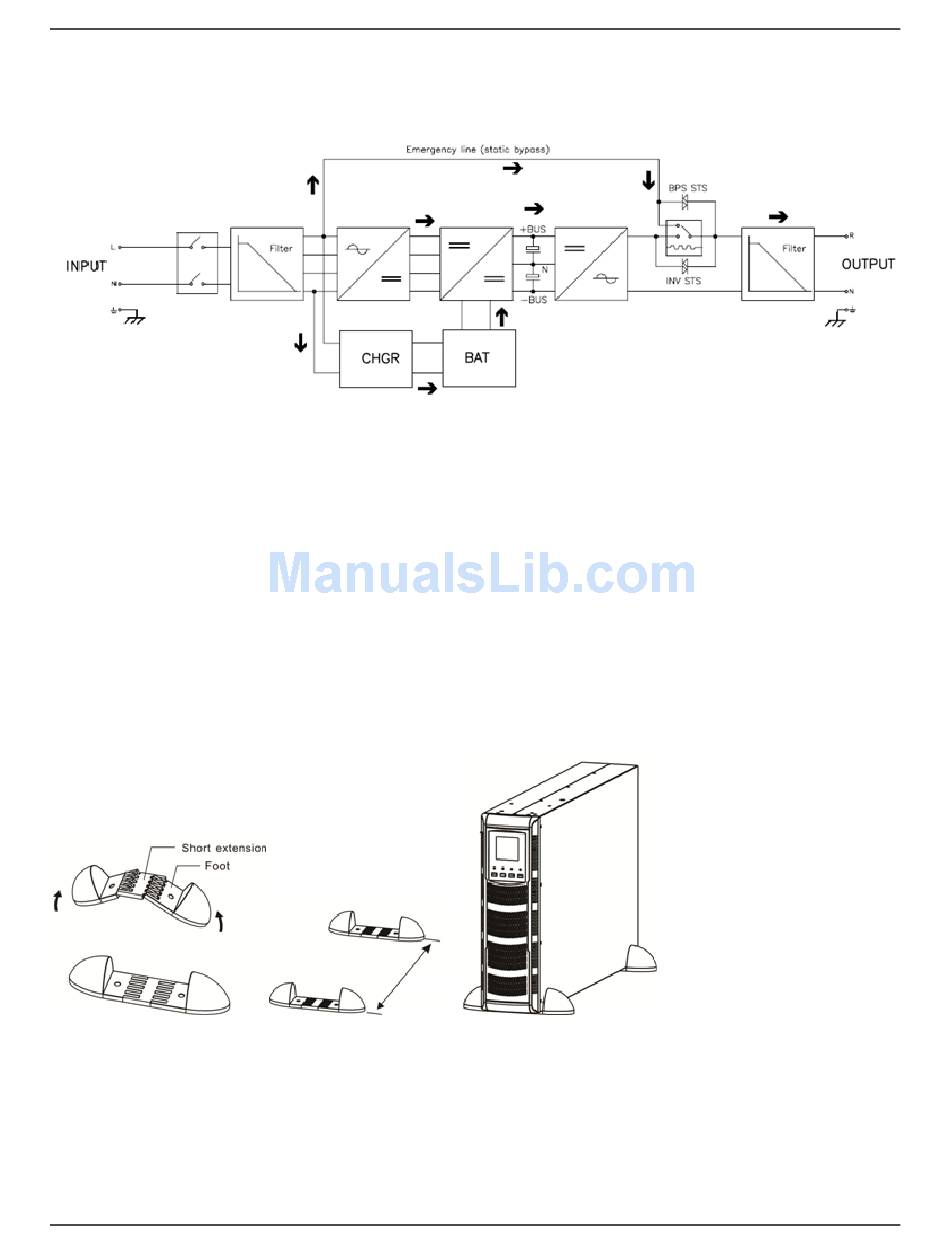

System single line diagram is shown below:

Tower Installation

The UPS system is shipped with four plastic feet and 6 plastic extensions (2 short extensions plus 4 long exten-

sions). These are to be used to install the P90L UPS or UPS and BP240 battery module in tower configuration:

1. For UPS only, assemble two feet and one short extension together as front support. Assemble rear support

in the same manner.

2. For UPS and Battery Module, assemble two feet and two long extensions together as front support. As-

semble rear support in the same manner.

3. Align the two supports in your installation area, appropriately 14 inches apart.

4. Then, simply put the UPS module and battery module in the stands as shown in step 3. Be sure that the

UPS LCD display is on the upper half part of front panel.

Step 1

Xtreme Power Conversion Corporation

Step 2

14 in

Uninterruptible Power Supply

Step 3

UPS only
