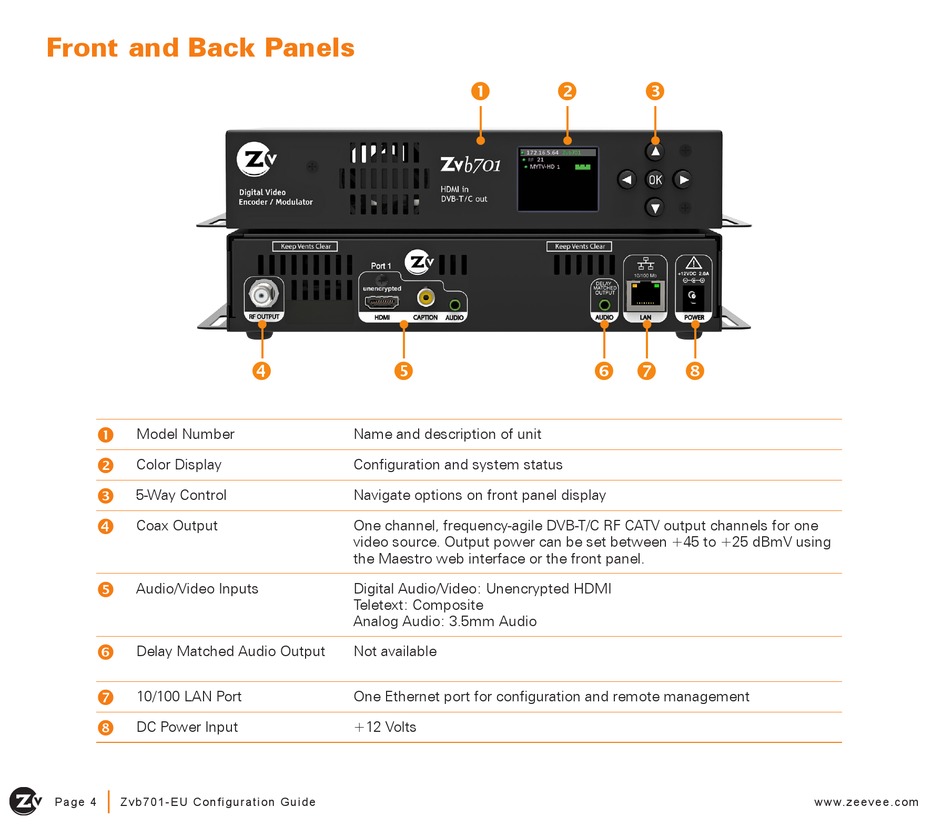

Front and Back Panels


Model Number

Color Display

5-Way Control

Coax Output

Audio/Video Inputs

Delay Matched Audio Output

10/100 LAN Port

DC Power Input
|
Page 4 Zv b70 1- E U C o n f ig u r a t i o n G u id e
 
Name and description of unit
Configuration and system status
Navigate options on front panel display
One channel, frequency-agile DVB-T/C RF CATV output channels for one
video source. Output power can be set between +45 to +25 dBmV using
the Maestro web interface or the front panel.
Digital Audio/Video: Unencrypted HDMI
Teletext: Composite
Analog Audio: 3.5mm Audio
Not available
One Ethernet port for configuration and remote management
+12 Volts
  
  
