SECTION 7—FOOTREST/ANTI-TIPPER

Adjusting Height

NOTE: For this procedure, refer to FIGURE 7.7.
All Wheelchairs with Swivel Anti-tip Except Paul Schulte Signature BB and T-5
Tennis Elite Models
1. To adjust the height of the swivel anti‐tip, remove dust cover and loosen set screw on
swivel anti‐tip castor assembly (FIGURE 7.7).
2. Set anti‐tip castor wheel to desired height. Tighten set screw and reinstall dust cover.

Paul Schulte Signature BB and T-5 Tennis Elite Models ONLY

NOTE: For this procedure, refer to FIGURE 7.7, Detail A.
1. Remove the dust cover on the anti‐tip castor fork assembly.
2. Remove the locknut that secures the anti‐tip castor fork assembly to the anti‐tipper.
3. Adjust the height of the anti‐tip castor fork assembly to the desired height by either
adding or removing spacers from the fork stem.
4. Reinstall locknut and dust cover onto the wheelchair.
NOTE: View
facing back of
wheelchair.

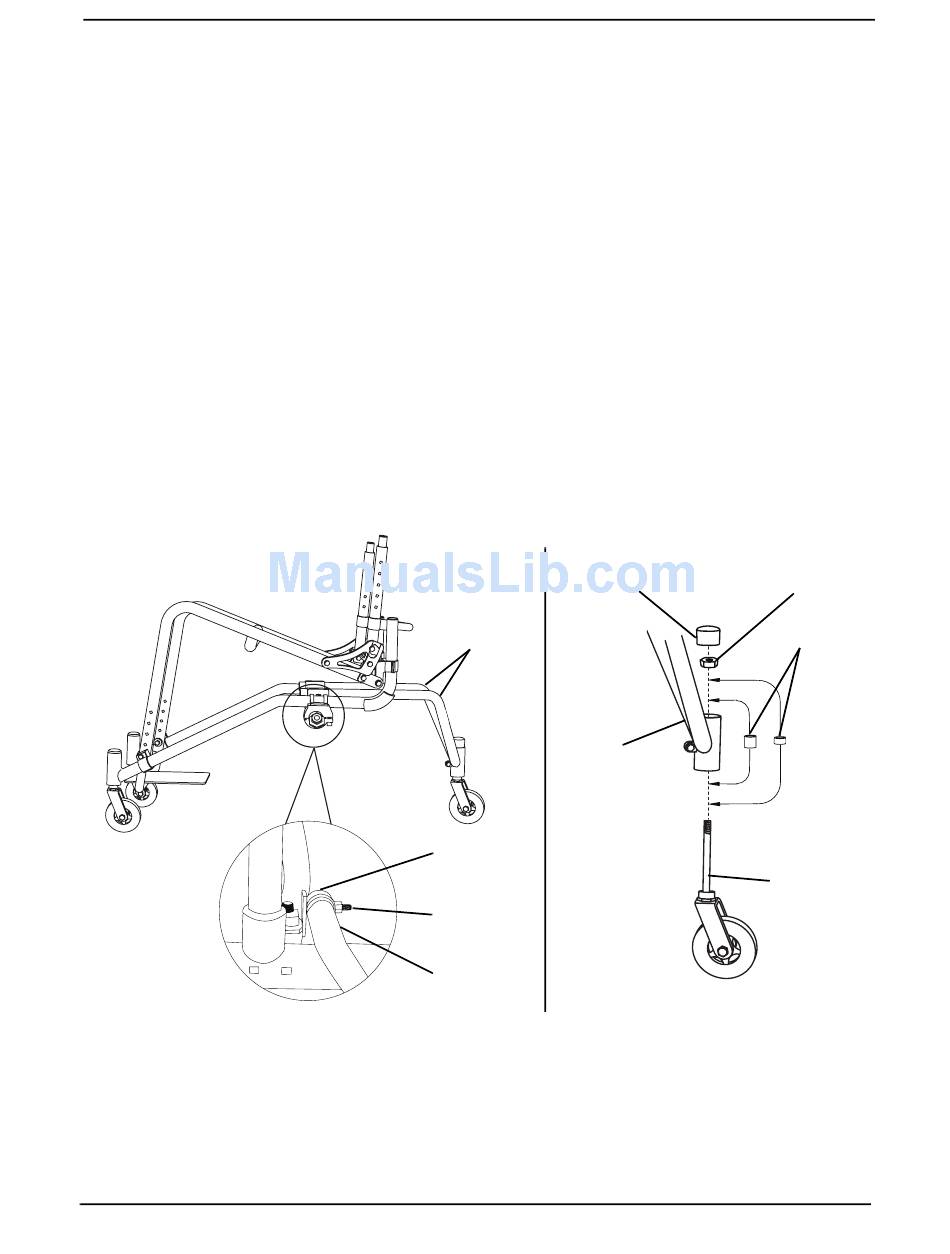

FIGURE 7.7 Installing/Removing/Adjusting Swivel Anti-Tip
Everyday and Sport Series Wheelchairs
Dust Cover
Anti-Tippers
Anti-Tippers
Anti-Tipper
Receiver
Set Screw
Anti-Tipper
68
DETAIL "A"
Locknut
Spacers
Anti-Tip
Castor Fork
Assembly
Part No 1122172
