10. Reposition the camber inserts to the highest degree of camber. Refer to Adjusting Rear
Wheel Camber on page 41.
11. Repeat STEP 3.
12. Close the left camber clamp. Refer to Opening/Closing Camber Clamps on page 39.
13. Rotate the right toe adjustment ring until the tab stops against the upper metal tab on
the camber clamp.
14. Securely tighten set screw on right toe adjustment ring.
15. Repeat STEP 7.
16. Perform one of the following:
• Toe In/Toe Out Measurement is Within ±1/8‐inch (.32 cm) ‐
i. Proceed to STEP 17.
• Toe In/Toe Out Measurement is Not Within ±1/8‐inch (.32 cm) ‐
i. Repeat STEP 1.
ii. Loosen the set screw on the right toe adjustment ring.
iii. Repeat STEP 3.
iv. Repeat STEPS 12‐16 until toe in/toe out measurement is within ±1/8 (.32 cm) inch.
17. If desired, reposition camber inserts to the desired degree of camber. Refer to
Adjusting Rear Wheel Camber on page 41.
Lower Degree of Camber
Left Tab
Stopped
Against
Lower Edge
of Camber
Clamp
Axle Tube - Will
Rotate Up only

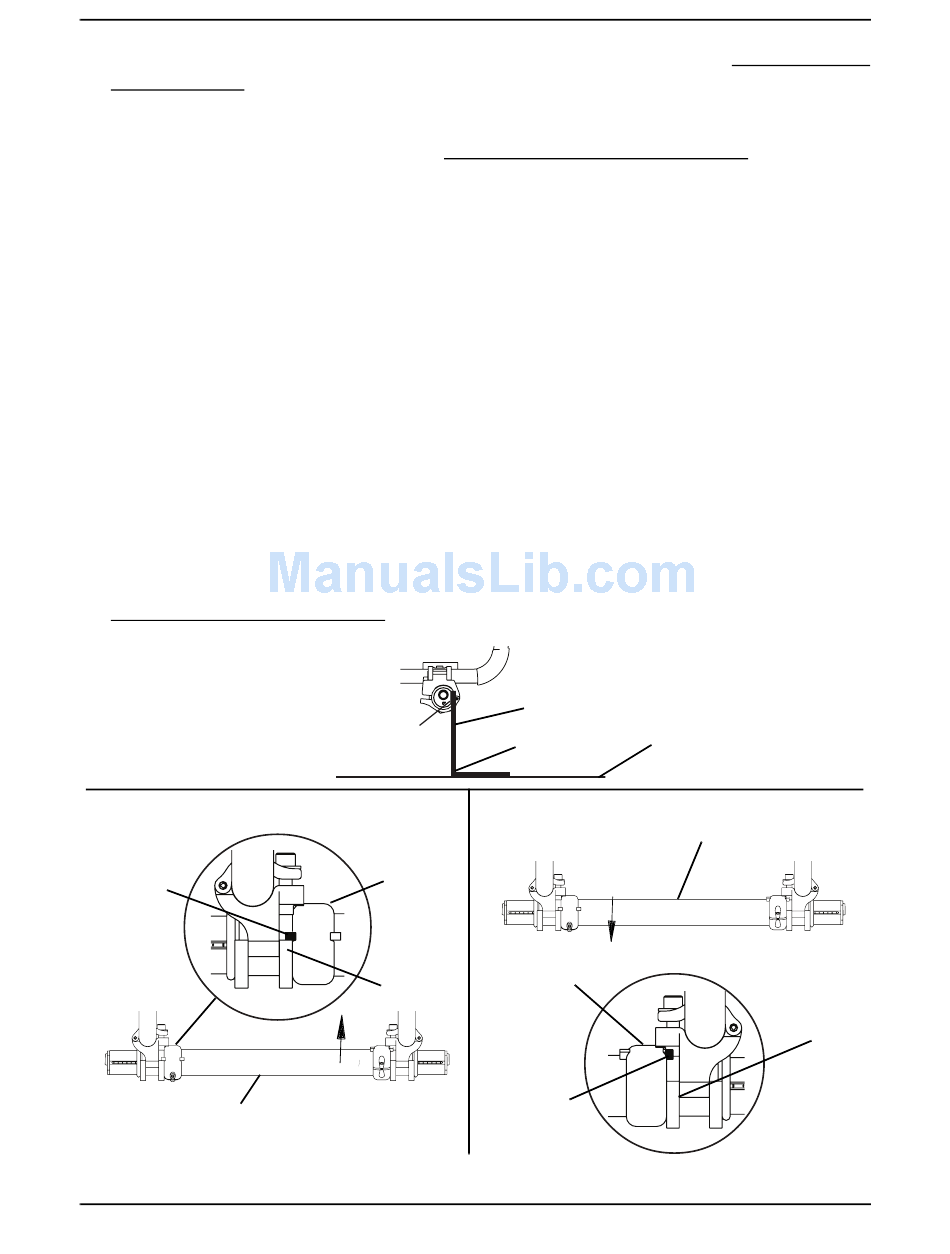

FIGURE 5.17 Adjusting the Axle Tube - A4 Camber System
Part No 1122172
Place "L" Square Here
Flat Edge of
90° Angle
Camber Tube
Left Toe
Adjustment
Ring
Right Toe Adjustment
Camber
Clamp
Upper Edge
of Camber
53
Ground/Floor
Higher Degree of Camber
Axle Tube - Will Rotate Down only
Ring
Right Tab
Stopped
Against
Clamp
