SECTION 7—FOOTREST/ANTI-TIPPER
DETAIL"A" - ANTI-TIPPER
ADJUSTMENT HOLES
Top Adjustment Hole
Anti-Tipper Bar
Release Buttons
Anti-Tipper
Hole
Camber Clamp
Anti-Tipper
Socket
Ground/
1-1/2 to 2 inch
Floor
(53.66 cm)
Clearance

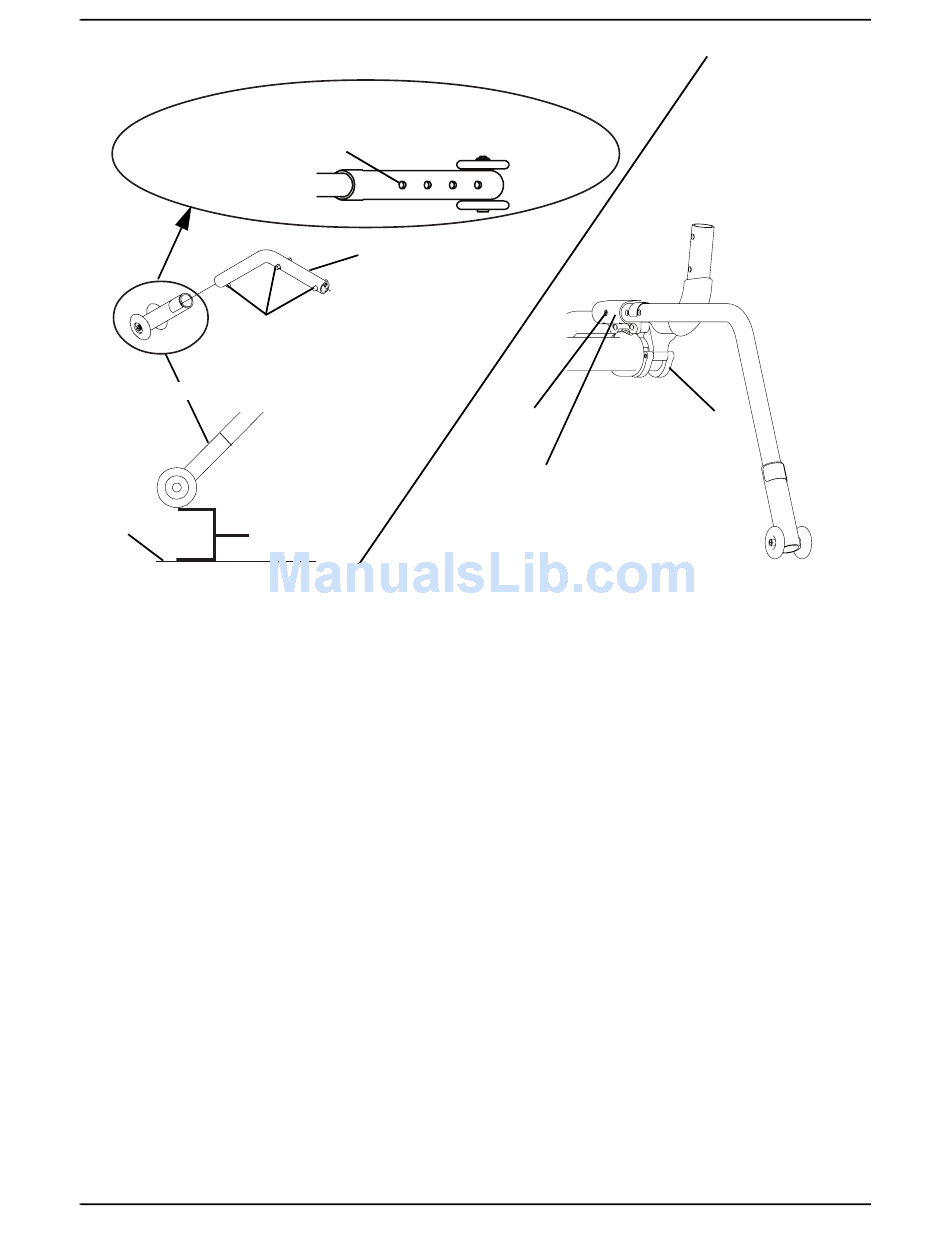

FIGURE 7.6 Adjusting/Replacing Anti-Tipper

Installing/Removing/Adjusting Swivel Anti-Tip

NOTE: For this procedure, refer to FIGURE 7.7 on page 68.
NOTE: This applies to any Terminator ordered with swivel anti‐tip.

Installing/Depth Adjustment

1. Loosen set screws on anti‐tip receivers (FIGURE 7.7).
2. Slide the swivel anti‐tip into the anti‐tip receivers. Position swivel anti‐tip so it is even
with wheels on chair or extends beyond them. Tighten set screws.

Removing

1. Loosen set screws on anti‐tip receivers (FIGURE 7.7).
2. Slide the swivel anti‐tip out of the receivers.
67
Part No 1122172 Everyday and Sport Series Wheelchairs
