SECTION 7—FOOTREST/ANTI-TIPPER

Coved Washer

Footrest

Tubing

Mounting Screw/

Threaded Sleeve

Adjustment Holes

Half Clamp

Mounting Screw

Half Clamp

Coved Washer

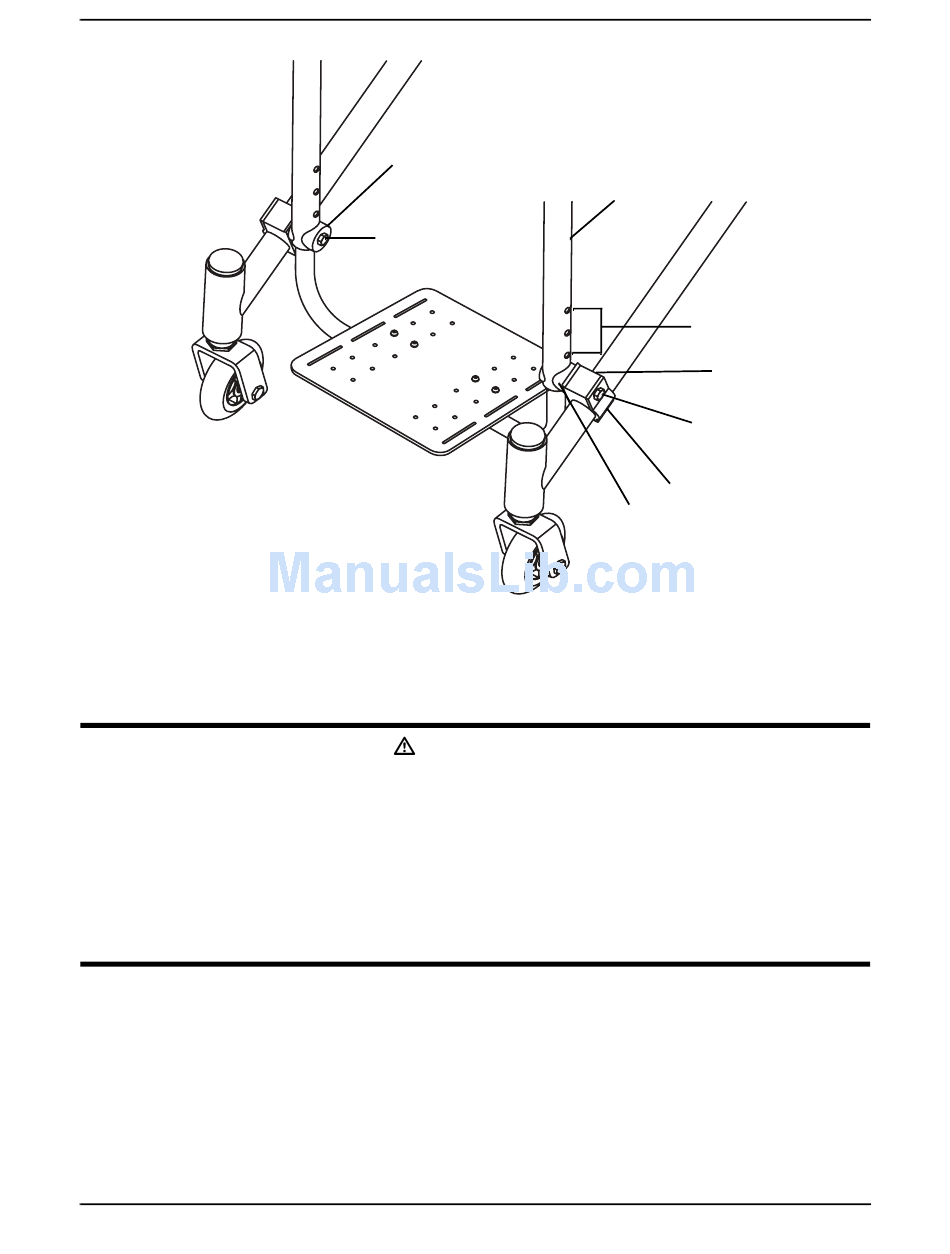

FIGURE 7.5 Adjusting the X-terminator and Transformer Footrests - Transformer Height

Adjusting/Replacing Anti-Tipper

WARNING

Anti-tippers MUST be attached at all times. Inasmuch as the anti-tippers are an

option on this wheelchair (you may order it with or without the anti-tippers),

Invacare strongly recommends ordering the anti-tippers as an additional safeguard

for the wheelchair user.

Anti-tippers MUST be fully engaged. Ensure the release button of the anti-tipper

fully protrudes out of the hole in the anti-tipper socket.

Ensure both anti-tippers are adjusted to the same height.

NOTE: For this procedure, refer to FIGURE 7.6 on page 67.

NOTE: To ensure the correct model anti‐tipper is used refer to FIGURE 7.6. Measurements for

anti‐tippers are approximate and are taken using the top adjustment hole on the anti‐tipper

(Detail ʺAʺ).

Part No 1122172

Everyday and Sport Series Wheelchairs
