Invacare Tracer IV Parts Catalog

Invacare Tracer IV Parts Catalog

Invacare chair parts catalog
Hide thumbs Also See for Tracer IV:

Advertisement

Quick Links

Download this manual See also: Operator's Maintenance Manual, User Manual
Parts Catalog
Issued: Apr 19, 2012

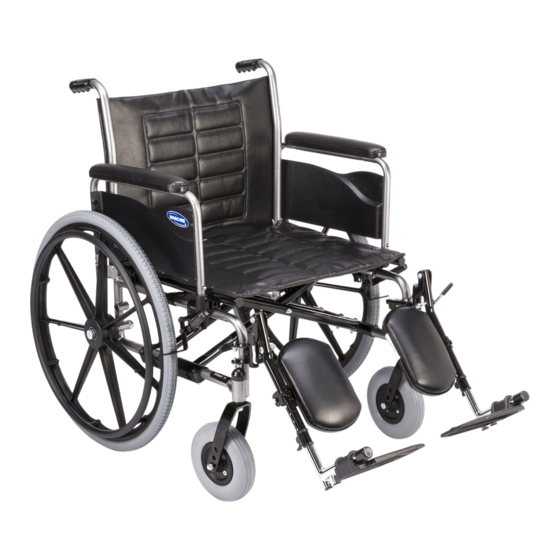

Tracer® IV Wheelchair
(After 9/30/03)
Yes, you can. ™

Advertisement

loading

Related Manuals for Invacare Tracer IV

Summary of Contents for Invacare Tracer IV

  • Page 1 Parts Catalog Issued: Apr 19, 2012 Tracer® IV Wheelchair (After 9/30/03) Yes, you can. ™...
  • Page 2 For your convenience, we have supplied an area for you to list your Invacare Representatives. © 2012 Invacare Corporation, Elyria, Ohio. Invacare, the Medallion Design and Yes you can. are registered trademarks; Tracer is a registered trademark of Form No. 03-030 To order call toll free 1-800-333-6900, or www.invacare.com...
  • Page 3 Front Riggings - Pivot/Slide Tube & Footplates - T93HA, T94HA, T93HAB, T94HAB ... Handrims & Attaching Hardware ... Packaging - Literature & Upholstery Colors ... Seat Extensions ... Form No. 03-030 To order call toll free 1-800-333-6900, or www.invacare.com TABLE of CONTENTS Page Number...
  • Page 4 Wheel Locks - Push to Lock (After 4/15/07) ... Wheel Locks - Removable & Flip Back Arms ... Wheels - Rear Wheel Hardware ... Wheels - Rear Wheels ... Form No. 03-030 To order call toll free 1-800-333-6900, or www.invacare.com TABLE of CONTENTS Page Number...
  • Page 5 NOTE: When adjusting or replacing parts, please refer to your Owner's Manual for assistance. Part Number U240 U550 Form No. 03-030 To order call toll free 1-800-333-6900, or www.invacare.com Bag, Poly (34 x 12 x 38") Upholstery Colors Description Owner's Manual...
  • Page 6 Seat Extensions NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Form No. 03-030 To order call toll free 1-800-333-6900, or www.invacare.com...
  • Page 7 NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Item Number Note Part Number 1119122 1131378 1027095 A - Includes items 3-6.
  • Page 8 Frame and Hardware NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Form No. 03-030 To order call toll free 1-800-333-6900, or www.invacare.com...
  • Page 9 NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Item Number Note Part Number 1118227 1021261 16720X004 1107805 60275X000 1109938 1096781...
  • Page 10 Crossbraces and Hardware NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Form No. 03-030 To order call toll free 1-800-333-6900, or www.invacare.com...
  • Page 11 Crossbraces and Hardware NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Item Number Note Part Number 1118201 60264X001 40317X001 1027095...
  • Page 12 Seat Upholstery and Hardware Kits NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Form No. 03-030 To order call toll free 1-800-333-6900, or www.invacare.com...
  • Page 13 Seat Upholstery and Hardware Kits NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Chair Width x Depth 18" x 18"...
  • Page 14 Back Upholstery NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Form No. 03-030 To order call toll free 1-800-333-6900, or www.invacare.com...
  • Page 15 NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Chair Width x Height 18" x 16" 20" x 16" 22" x 16"...
  • Page 16 Conventional Adjustable Height Arms NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Form No. 03-030 To order call toll free 1-800-333-6900, or www.invacare.com...
  • Page 17 Conventional Adjustable Height Arms NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Item Number Note Part Number 8881127561 8881127559 8881135513 Form No.
  • Page 18 Conventional Adjustable Height Arms NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Item Number Note Part Number 8881135514 8881127562 Form No. 03-030 To order call toll free 1-800-333-6900, or www.invacare.com...
  • Page 19 Conventional Adjustable Height Arms NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Item Number Note Part Number 8881127560 8881127510 8881127509...
  • Page 20 Conventional Adjustable Height Arms NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Item Number Note Part Number 1121163 1038460-NLA 7100053...
  • Page 21 Conventional Fixed Height NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Form No. 03-030 To order call toll free 1-800-333-6900, or www.invacare.com...
  • Page 22 Conventional Fixed Height NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Item Number Note Part Number 8881127565 8881127563 8881127566 8881127564 8881127569 Form No.
  • Page 23 Conventional Fixed Height NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Item Number Note Part Number 8881127567 8881127570 8881127568 8881127509 8881127510 Form No.
  • Page 24 Conventional Fixed Height NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Item Number Note Part Number 1117365 1117366 NOTE: A - Removable Arm.
  • Page 25 NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Item Number Note Part Number 1089104 1001843 1001979 1021508 1089102 1089103 1001801 1131189 A - Includes Items 2-5.
  • Page 26 Wheel Lock NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Form No. 03-030 To order call toll free 1-800-333-6900, or www.invacare.com...
  • Page 27 NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Item Number Note Part Number 1110225 1110226 1110227 1110228 1110160 1017677 1058900 NOTE: A - Includes items 4 and 5 each with a quantity of 2.

  • Page 28: Rear Wheels

    NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Model Number Wheel Style Composite Corded Urethane U2222C (24 x 1") 5/8" Axle...
  • Page 29 Rear Wheels NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. NOTE: A - Kit contains 2 - U2222C Wheel assemblies with chrome handrims, 2 - AT903 Caster assemblies and a 350lb weight capacity decal.
  • Page 30 NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Item Number Note Part Number 47203X020 47183X021 60030X000 1034111 NOTE: A - Includes items 1-3.
  • Page 31 Handrims & Attaching Hardware NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Non Projection Handrims & Attaching Hardware Model Number...
  • Page 32 Casters and Hardware NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Form No. 03-030 To order call toll free 1-800-333-6900, or www.invacare.com...
  • Page 33 NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Item Number Description Wheel Assembly - 1 piece Wheel Assembly - 1 pair...
  • Page 34 NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Part Number 8881091819 See Note(s) A 1091800 See Note(s) A 40163X008 NOTE: A - Specify upholstery color when ordering.
  • Page 35 Footrest and Legrest Accessories NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Part Number 1110346 1110347 1110350 1110351 1035456 1035457...
  • Page 36 Footrest and Legrest Accessories NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Part Number 1143050 Part Number 1035917 See Note(s) A...
  • Page 37 Front Riggings - Bolt Through and Spring Button Kits NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Style Part Number...
  • Page 38 Footrest Support Assembly T93HA, T93HAB, T93HC, T93HCB NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Form No. 03-030 To order call toll free 1-800-333-6900, or www.invacare.com...
  • Page 39 Footrest Support Assembly T93HA, T93HAB, T93HC, T93HCB NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Item Number Note Part Number...
  • Page 40 Legrest Support Assembly T94HA, T94HAB, T94HC, T94HCB NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Form No. 03-030 To order call toll free 1-800-333-6900, or www.invacare.com...
  • Page 41 Legrest Support Assembly T94HA, T94HAB, T94HC, T94HCB NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Item Number Note Part Number...
  • Page 42 Articulating Legrest Support AHL4A / AHL4C NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Form No. 03-030 To order call toll free 1-800-333-6900, or www.invacare.com...
  • Page 43 Articulating Legrest Support NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Item Number Note Part Number 04526X019 1025104 1022877 1022878...
  • Page 44 Articulating Legrest Support NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. NOTE: A - Includes Items 1-32. B - Includes Items 4-13.
  • Page 45 Pivot Slide Tube with Footplate AHL4A/C Legrests NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Form No. 03-030 To order call toll free 1-800-333-6900, or www.invacare.com...
  • Page 46 Pivot Slide Tube with Footplate NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Item Number Note Part Number See Chart...
  • Page 47 Pivot Slide Tube with Footplate AHL4A/C Legrests NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. NOTE: A - Use the same parts number when ordering Front Rigging for either side.
  • Page 48 Pivot Slide Tube with Footplate T93HA, T94HA, T93HAB, T94HAB NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Form No. 03-030...
  • Page 49 Pivot Slide Tube with Footplate T93HA, T94HA, T93HAB, T94HAB NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Item Number Note...
  • Page 50 Pivot Slide Tube with Footplate T93HA, T94HA, T93HAB, T94HAB NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Item Number Note...
  • Page 51 Pivot Slide Tube with Footplate T93HA, T94HA, T93HAB, T94HAB NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Item Number Note...
  • Page 52 Pivot Slide Tube with Footplate T93HA, T94HA, T93HAB, T94HAB NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Standard Pivot/Slide Tube w/ Footplate...
  • Page 53 Miscellaneous Accessories NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. 18" Wide Chair 1041603-NLA See Note(s) A, B NOTE: A - Specify upholstery color when ordering. See category titled, "Upholstery Colors."...
  • Page 54 Miscellaneous Accessories NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. OverHead and Single Pole Anti-Theft Device Part Number 1037080 1121288...
  • Page 55 NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Part Number 8881034668 See Note(s) A 8881034686 See Note(s) A 8881102882 See Note(s) A...
  • Page 56 Oxygen Holder - 1497 NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Form No. 03-030 To order call toll free 1-800-333-6900, or www.invacare.com...
  • Page 57 NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Item Number Note Part Number 1070901 1017672 1027683 1027684 7930363 1023560 1023618...
  • Page 58 I.V. Rod and Bracket (2218) NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Form No. 03-030 To order call toll free 1-800-333-6900, or www.invacare.com...
  • Page 59 I.V. Rod and Bracket (2218) NOTE: If your chair was built with a serial # starting with "03H" or "03I", please contact an Invacare Parts Specialist for replacement parts at 1-800-333-6900 Ext. 3722. Item Number Note Part Number 1101760 1027095...
  • Page 60 Wheel Locks - Push to Lock - After 4/15/07 Form No. 03-030 To order call toll free 1-800-333-6900, or www.invacare.com...
  • Page 61 C - Includes: Handles, Tips, Cords, and Washers. D - Not shown. Form No. 03-030 To order call toll free 1-800-333-6900, or www.invacare.com Description Wheel Lock Assembly, Push to Lock, Black - Right Wheel Lock Assembly, Push to Lock, Black - Left...
  • Page 62 Wheel Lock - Removable and Flip Back Arms - Push and Pull to Lock NOTE: Due to the possiblity of various manufacturing dates for Tracer IV Wheelchairs built with a serial # starting with "03H" or "03I", replacement parts will need to be ordered thru an Invacare Parts Specialist at 1-800-333-6900.
  • Page 63 Wheel Lock - Removable and Flip Back Arms - Push and NOTE: Due to the possiblity of various manufacturing dates for Tracer IV Wheelchairs built with a serial # starting with "03H" or "03I", replacement parts will need to be ordered thru an Invacare Parts Specialist...
  • Page 64 Customer Service 800-832-4707 800-333-6900 Florida Technical Support 407-321-5630 © 2012 Invacare Corporation. All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are identified by ™ and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.
