SECTION 7—FOOTREST/ANTI-TIPPER

Installing/Adjusting Optional Clamp on Raised Footrest

NOTE: For this procedure, refer to FIGURE 7.2.
NOTE: This procedure is for Terminator Everyday (ED) wheelchairs ONLY.

Installing

1. Install the two half clamps onto either
side of the wheelchair frame
approximately 2‐inches (5.08 cm) above
existing footrest with two provided
allen screws.
2. Repeat for the opposite side of the
wheelchair.
3. Slide the clamp on raised footrest into
the half clamps to the desired height.
4. Securely tighten the four allen screws.

Adjusting

1. Loosen the four allen screws.
2. Adjust clamp on raised footrest to the desired height.
3. Securely tighten the four allen screws.

Replacing/Adjusting Optional A4 Footrest

NOTE: For this procedure, refer to FIGURE 7.3 on page 63.
NOTE: This procedure is for Terminator Everyday (ED) wheelchairs Only.

Replacing the Footrest

1. Loosen, but DO NOT remove the two allen screws that secure the footrest to the
wheelchair frame.
2. Slide the existing footrest tubes out of the wheelchair frame and install new footrest
by reversing this step.
3. Position the new footrest to a determined height.
4. Tighten the two allen screws that secure the footrest to the wheelchair frame.
5. Adjust the footplate to the desired position. Refer to Adjusting Footplate Angle on
page 63 and/or Adjusting Footplate Depth on page 63.
Everyday and Sport Series Wheelchairs
Wheelchair Frame
Half Clamp
Raised
Footrest

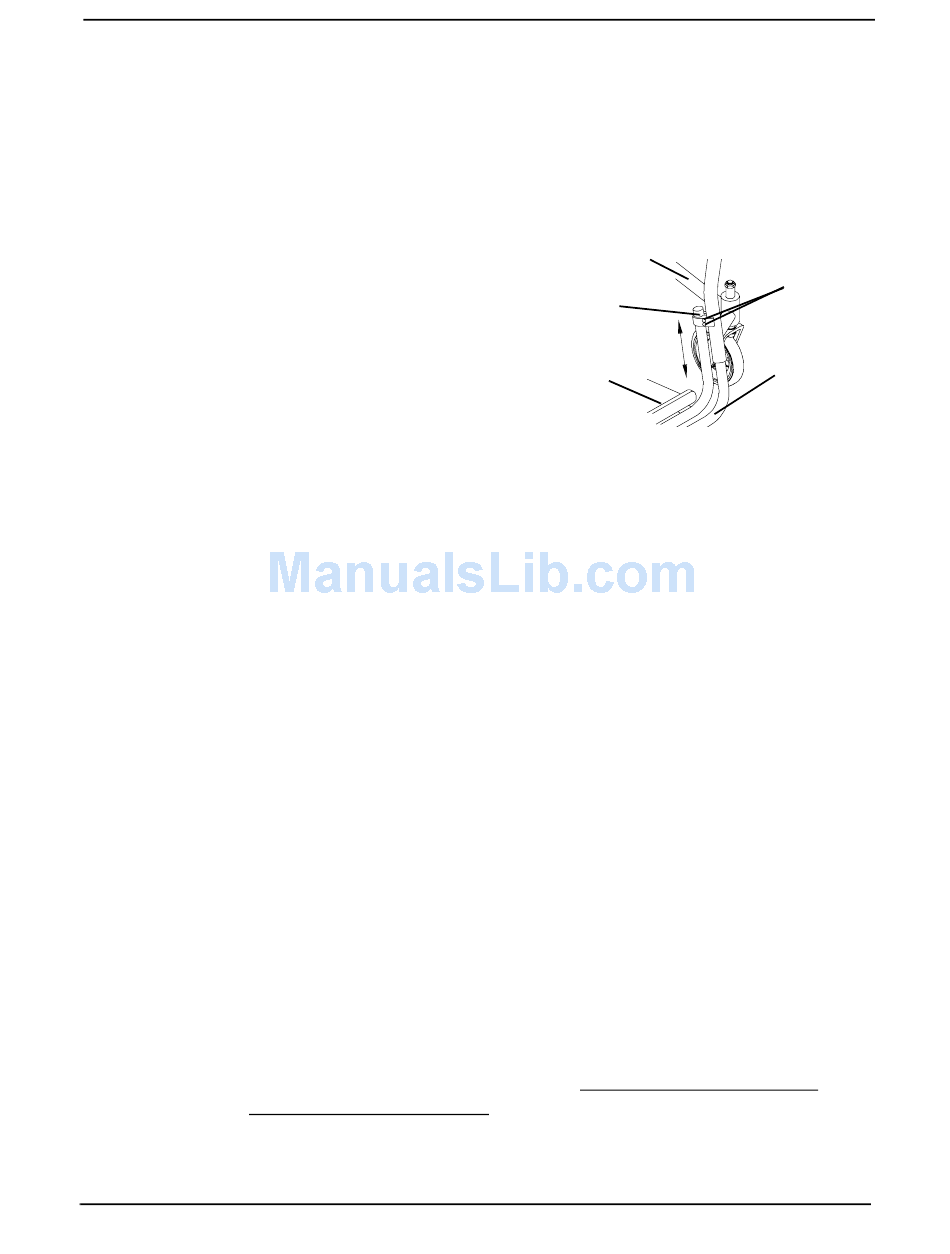

FIGURE 7.2 Installing/Adjusting Optional
Clamp on Raised Footrest
62
Allen
Screws
Outside
Footrest
Hoop
Part No 1122172
