SECTION 5—WHEELS
Stop - In position for one
Stop - Not touching
camber, touching camber clamp
camber clamp
Adjustment Ring
Adjustment Ring
Camber Clamp
Camber Clamp
Stop - In position for one
camber, touching camber clamp Adjustment Ring
Stop - Not touching
Adjustment Ring
camber clamp

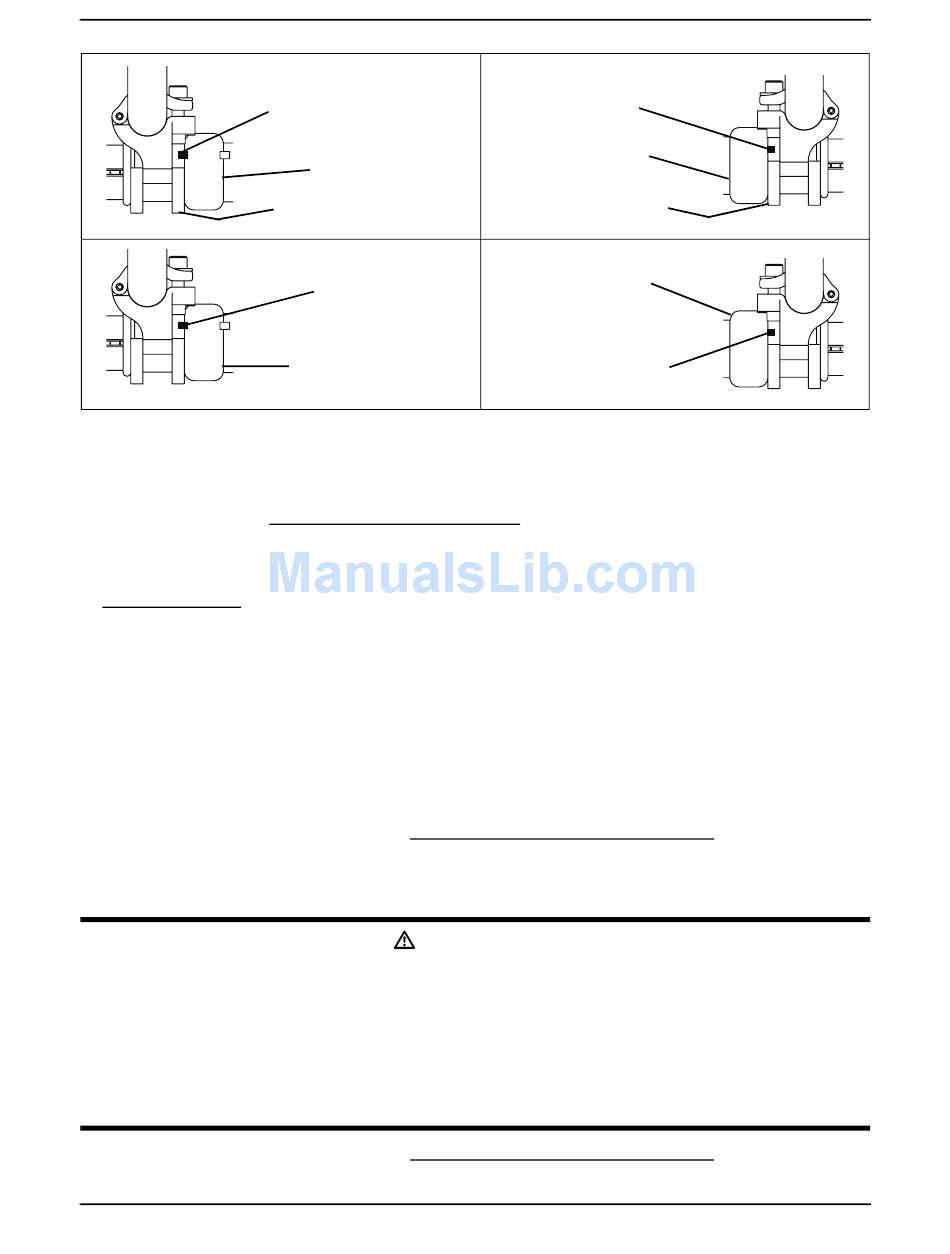

FIGURE 5.10 Adjusting Toe In/Toe Out - A4 Camber System - Course Adjustment
NOTE: DO NOT tighten the phillips screw on the other adjustment ring at this time.
NOTE: Repeat STEPS 1‐7 of this procedure for the other adjustment ring after repositioning the
camber insert. Refer to Adjusting Rear Wheel Camber on page 41.
NOTE: When positioning the other adjustment ring, rotate the ring until the stop is at the bottom
of the slot in the camber clamp. The right and left stops MUST be positioned opposite to each other
or Fine Adjustment on page 45 will not work correctly.
NOTE: When the left adjustment ring is adjusted to a camber, the right adjustment ring will not
touch the camber clamp and when the right adjustment ring is adjusted to the other camber the left
adjustment ring will not touch the camber clamp.

Fine Adjustment

NOTE: For this procedure, refer to FIGURE 5.11 on page 46.
NOTE: This adjustment is required anytime the camber insert is repositioned.
1. Open the camber clamp. Refer to Opening/Closing Camber Clamps on page 39.
2. Slowly rotate the axle tube until the stop on the opposite adjustment ring is positioned
at the opposite end of the camber clamp.
WARNING
QUICK RELEASE LEVERS - Make sure the quick release levers are pointing
towards the rear of the wheelchair and are in the closed position before using the
wheelchair, otherwise personal injury or damage to the wheelchair may occur.
STANDARD AND SUSPENSION CAMBER CLAMPS - Make sure the hex screws
are securely tightened before using the wheelchair, otherwise personal injury or
damage to the wheelchair may occur.
3. Close the camber clamp. Refer to Opening/Closing Camber Clamps on page 39.
45
Part No 1122172 Everyday and Sport Series Wheelchairs
