  • Page 1 Operation Manual Tegra 4Bank Universal Part No. 3100050 Rev C 04-14-2011...

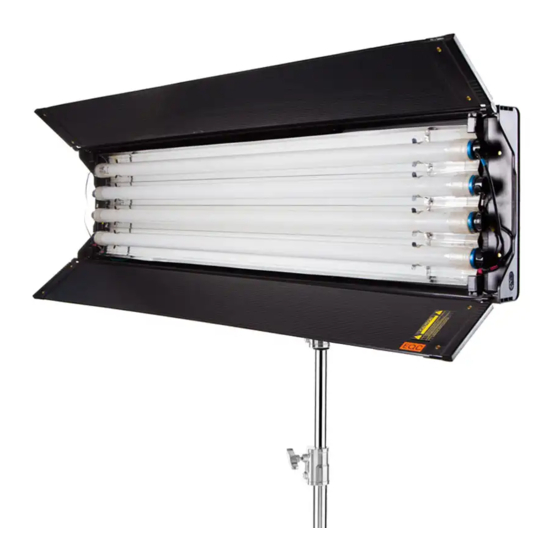

  • Page 2 Tegra 4Bank Assembly and Features TEG-400-120U Tegra 4Bank Universal, 120U TEG-400-230U Tegra 4Bank Universal, 230U LVR-G490 Tegra 4Bank Honeycomb, 90° (Included) MTP-LB Kino 41 Lollipop w/ Baby Receiver (16mm) (Included) True Match Lamps ® 488-K29-S 4ft Kino KF29 Safety-Coated 488-K32-S...
  • Page 3 Tegra 4Bank Universal Kits KIT-T4-120U Tegra 4Bank Kit, Universal 120U KIT-T4-230U Tegra 4Bank Kit, Universal 230U Tegra 4Bank Kit Kit Contents: 1 Tegra 4Bank Universal 1 Louver, 90° 1 Flozier, Half 1 Lamp Case 1 Ship Case Dimensions: Weight: 54 x 8.5 x 21”...
  • Page 4 Lamp Harness Color Codes The Harness wiring is color-coded. The same color-code must match at each end of the lamp for proper operation. Inserting Lamps Locking Lamp Connector: Depress both tabs on lamp connector and apply to lamp pins. Match the Harness color-codes at each end of the lamp.
  • Page 5: Mounting Procedures

    Mounting Procedures Mounted on a baby stand Mounted to pipe grid Note: When hanging in a studio, loop a safety cord through the strain-relief ring provided on the back of the fixture. A 180 degree turn is all that is required to loosen the mount for orientation.
  • Page 6 Mounting Flozier Remove Louver. Stretch two elastic cords Take up slack on both around fixture. elastic cords. Expand the Barndoors to smooth out the face of the Flozier and eliminate wrinkles. Gelling the Fixture Restricting the airflow around the lamps can cause the lamps to operate hotter. This increased heat will raise the lamp’s color temperature and green spike.
  • Page 7: Troubleshooting

    Harness color-codes must match at each end of the lamp. Once everything has been checked, re-strike. Lamp Select Switch The Tegra 4Bank Universal has four Lamp Select Switches. Each switch controls one lamp. Turning off 2 lamps equals a one f-stop reduction in...
  • Page 8: Dimming Control

    Dimming Control Manual Dimming Control The Tegra 4Bank features a built-in dimmer control. For full light output, turn dimmer fully clockwise. An input jack for an optional Remote Dimmer (DIM-5) is located next to the lamp select switches. Note: The ballast is designed to start lamps at any dim setting. However, in cold temperatures, if the ballast does not start, turn off the ballast.
  • Page 9 Accessories and Parts DIM-5 Remote Dimmer w/ 15ft Cable DFS-4804 Tegra 4Bank Flozier, Full DFS-4804-H Tegra 4Bank Flozier, Half LVR-G490 Tegra 4Bank Honeycomb, 90° LVR-G460 Tegra 4Bank Honeycomb, 60° MTP-B41F Kino Offset w/ Baby Receiver (16mm) MTP-L Kino 41 Lollipop w/ 3/8” Pin (10mm) MTP-LB Kino 41 Lollipop w/ Baby Receiver (16mm) MTP-LBS...
  • Page 10 True Match Lamps ® 488-K29-S 4ft Kino KF29 Safety-Coated 488-K32-S 4ft Kino KF32 Safety-Coated 488-K55-S 4ft Kino KF55 Safety-Coated Cases KAS-T4-C BAG-401 KAS-C46 Part No. Description Dimensions Weight Holds (Empty) BAG-401 Tegra 4Bank 53.5 x 7 x 18” 5 lb Tegra 4Bank System, Soft Case (136 x 18 x 46cm)
  • Page 11 Ballast Specifications TEG-400-120U Tegra 4Bank Universal, 120U Input Voltage: 100-240VAC 50/60Hz Output Frequency: 40kHz Amperage: 2.8 amps at 120VAC Lamp Switching: 4~1 Weight w/ lamps: 18.5 lb (8.4kg) Tegra 4Bank Dimensions: 52 x 13.5 x 6” (w/ 6.5” barndoors) (132 x 34 x 15cm) Universal (w/ 16.5cm barndoors)
  • Page 12 This product is made of recyclable materials and should be disposed of in accor- dance with local and state regulations. Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
